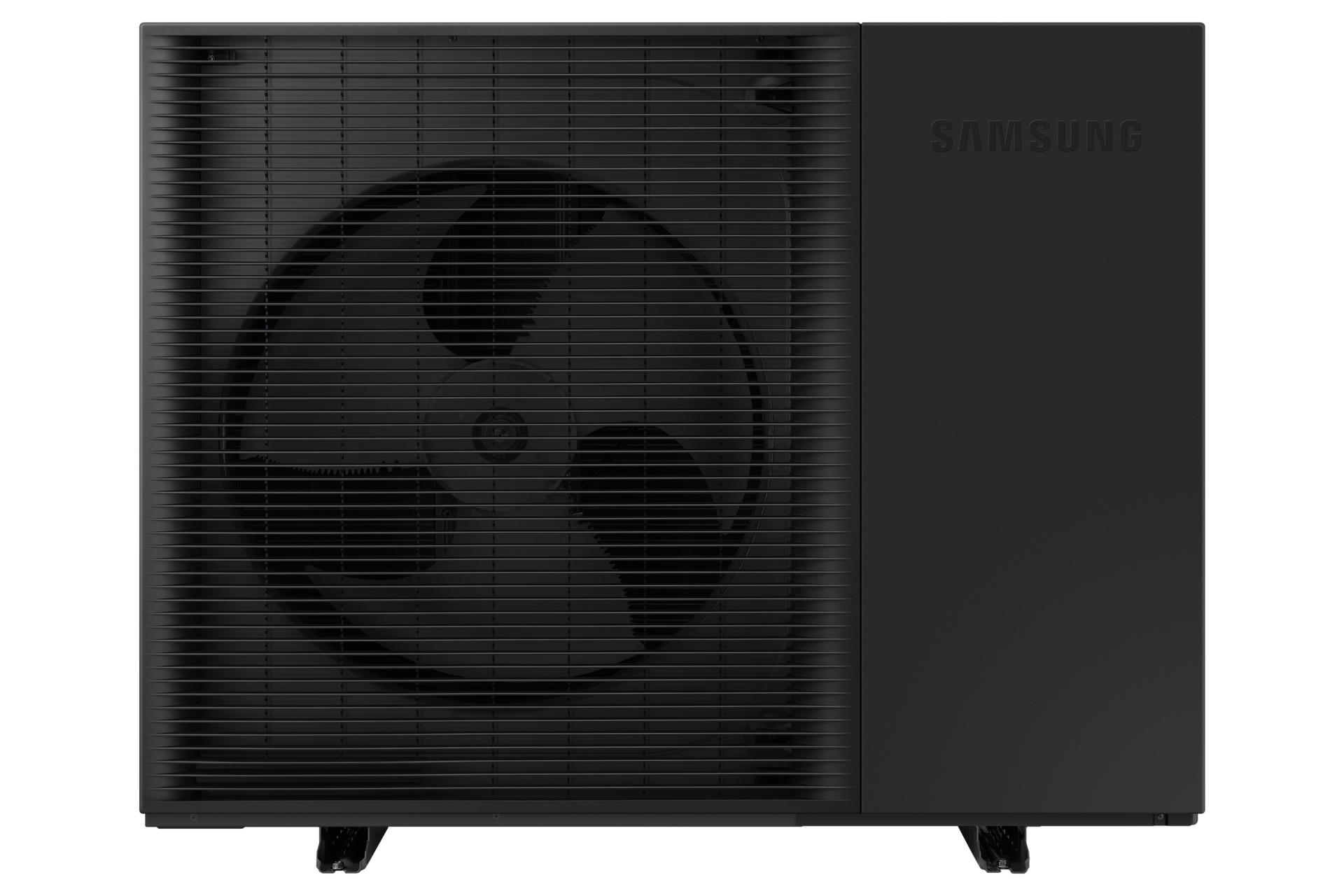

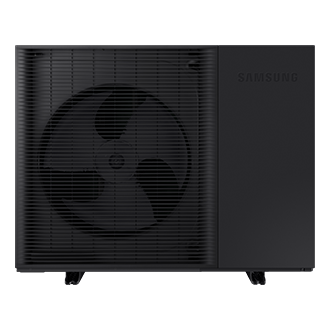

AE6000C EHS R290 MONO with R290 Refrigerant Pump Intergrated

AE6000C EHS R290 MONO with R290 Refrigerant Pump Intergrated

AE160CXYBEK/EU

Choose your color

Choose your Capacity

More heat, less noise

Highlights

Eco-conscious refrigerant

R290 Refrigerant

The natural R290 refrigerant has an Ozone Depletion Potential (ODP) of zero and a Global Warming Potential (GWP) of 3, which is lower than conventional R32 or R410A refrigerants*. It also has a reinforced design with 5 layers of safety features to reduce the risks of using the R290 refrigerant.

* GWP by refrigerant: R290 = 3, R32 = 675, R410A = 2088.

* GWP by refrigerant: R290 = 3, R32 = 675, R410A = 2088.

Creates extremely hot water – up to 75°C

Hot Water Temperature of up to 75°C

Enjoy a supply of extremely hot leaving water of up to 75°C*, which enables effective convection heating and provides sanitary water. It improves energy efficiency**, as it can supply sanitary water of up to 70°C*** using only a Heatpump. And it is hot enough to kill Legionella bacteria****.

Creates extremely hot water – up to 75°C

Hot Water Temperature of up to 75°C

Enjoy a supply of extremely hot leaving water of up to 75°C*, which enables effective convection heating and provides sanitary water. It improves energy efficiency**, as it can supply sanitary water of up to 70°C*** using only a Heatpump. And it is hot enough to kill Legionella bacteria****.

  • * Leaving water temperature from an outdoor unit is 75°C when the outdoor temperature is -10~35°C. Sanitary water leaving a DHW tank is 70°C when the outdoor temperature is -10~43°C. Results may vary depending on the actual usage conditions.
    ** Based on internal testing compared to a conventional model AE***RXYD*G/EU.
    *** Leaving water temperature of sanitary hot water, when the outdoor temperature is between -10~43°C. If the outdoor temperature is lower than -10°C, a Booster Heater is required. Results may vary depending on the actual usage conditions.
    **** Sanitary hot water should be stored at 60°C or higher in order to kill Legionella bacteria.

Adjustable, 4-step, low-noise operation

Low Sound Level of 35dB(A)

Make less noise whenever you need. The 4-Step Quiet mode* enables adjustable low-noise operation to meet the noise level regulations in European countries. Simply select from four different steps and reduce the sound level by 3dB, 5dB, 7dB or keep it as low as 35dBA*** to reduce disturbance.

* The heating performance may be reduced when operating in Quiet mode.
** The Technical Instructions on Noise Abatement (German: TA-Lärm) contain regulations for protecting the general public or neighborhood from noise emissions.
*** Based on internal testing. The noise level is measured 3m away from the front of the outdoor unit. Results may vary depending on environmental factors and individual use.

Reliable hot water and heating

100% Heating Performance at -10°C*

Enjoy all of the warmth and hot water you need, even in a cold weather. Its heating performance has been increased by 8%*, enabling it to deliver a 100% heating performance in temperatures as low as -10°C**. Its enlarged heat exchanger is also 13% larger***, so it transfers more heat at once.

* Based on internal testing, compared to a conventional EHS Mono R32 model. Conditions: A-10/W35°C, based on 16kW models.
** Based on a leaving water temperature of 35°C.
*** Based on Samsung’s measurements of an 16kW model (79.3m2) compared to a conventional outdoor unit with the same capacity (70.1m2).

* Based on internal testing, compared to a conventional EHS Mono R32 model. Conditions: A-10/W35°C, based on 16kW models.
** Based on a leaving water temperature of 35°C.
*** Based on Samsung’s measurements of an 16kW model (79.3m2) compared to a conventional outdoor unit with the same capacity (70.1m2).

Enhancedefficiency

High Efficiency (SCOP A+++)

Enjoy consistently high energy savings. It has an enhanced Seasonal Coefficient of Performance (SCOP) A+++ energy efficiency rating across the whole range of capacities*. It has been increased by up to 14%** compared to conventional models and is up to 15% more than the A+++ rating criteria***.

* Based on internal testing when generating 35°C water, in accordance with EN14825. Results may vary depending on the system configuration and actual usage conditions.
** Based on internal testing when generating 35°C water using an EHS R290 Mono 5kW model, AE050CXYBEK/EU (SCOP: 5.10), compared to an EHS R32 Mono model of the same capacity, AE050RXYDEG/EU (SCOP: 4.46).
*** Based on internal testing when generating 35°C water using an EHS R290 Mono 5kW model, AE050CXYBEK/EU (SCOP: 5.10), compared to the criteria of A+++, SCOP≧ 4.45.

* Based on internal testing when generating 35°C water, in accordance with EN14825. Results may vary depending on the system configuration and actual usage conditions.
** Based on internal testing when generating 35°C water using an EHS R290 Mono 5kW model, AE050CXYBEK/EU (SCOP: 5.10), compared to an EHS R32 Mono model of the same capacity, AE050RXYDEG/EU (SCOP: 4.46).
*** Based on internal testing when generating 35°C water using an EHS R290 Mono 5kW model, AE050CXYBEK/EU (SCOP: 5.10), compared to the criteria of A+++, SCOP≧ 4.45.

Save energy** and quickly resolve issues

IoT

Save energy and quickly solve problems to stay comfortable. AI Energy mode in the SmartThings App* can reduce energy use by up to 40% for domestic hot water**. If an error occurs, the App also sends an Automatic Service Request. And a Remote Device Care function can proactively identify issues.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
** Only available when using a new Tank Integrated Hydro Unit (AE2**CNWM*G/EU) with a built-in Wi-Fi module. Based on internal testing on an EHS R290 Mono outdoor unit (AE160CXYDEK/EU) with a Tank Integrated Hydro Unit (AE260CNWMEG/EU) in normal usage conditions, as below. Results may vary depending on the system configuration and installed models.[Test Conditions]- Showers for 2 people, twice a day, using 140L of water in total. With AI Energy mode, the hot water temperature was reduced from 55°C to 40°C, which is closer to the actual water temperature for a shower.- As a result, the total power consumption per day for domestic hot water in AI Energy mode was 2.137 kWh, which is up to 40% less than the 3.562 kWh used in Normal mode, while the same heat energy was used by people.

Stylishly seamless

Premium Design

Enhance the look of any outdoor space with a premium design. With a dark gray chassis and black grille, it blends in with modern buildings and their surroundings. A slanted grille also screens the inside from view*. And its compact design is less than 1m high**, so it fits neatly below a window.

* Based on a viewing height of 1,700mm.
** 5.0/8.0kW models: 850mm. 12.0/16.0kW models: 1,018mm.

5 Layers of Protection

Leakage Prevention

A robust design alleviates pressure in the pipe to prevent gas escaping.

Leakage Detection

Sensors monitor the refrigerant and water pressures to detect leakages.

Exhaust

A forced exhaust system ventilates the inside of the outdoor unit to keep it below the Lower Explosive Limit (LEL). An Air Separator in the leaving water pipe prevents the leaked gas from flowing into the house.

Ignition Prevention - Gas tight (Sealing)

Potential ignition sources, such as terminals and plugs, are sealed and located higher up in the outdoor unit to keep them away from the leaked gas, which will sink to the bottom.

Explosion Prevention

Explosion-proof and molded parts will prevent an explosion if the leaked gas was to come into contact with potential ignition sources.

Save time installing

Convenience in Installation

Install the system and check the water pressure easily. All of the parts for the water piping, like the pump and expansion tank, are fitted inside, which reduces the installation time and space. And a water pressure sensor lets you conveniently monitor the water pressure on a remote controller.

Save time installing

Convenience in Installation

Install the system and check the water pressure easily. All of the parts for the water piping, like the pump and expansion tank, are fitted inside, which reduces the installation time and space. And a water pressure sensor lets you conveniently monitor the water pressure on a remote controller.

How to measure

How to measure

Specifications

Download
  • Net Dimensions (WxHxD) (mm) 1270x1018x530 mm
  • Heating [Btu/h] 54,600 Btu/h
  • Heating [kW] 16.0 kW
  • COP (Nominal Heating) 4.51 W/W
