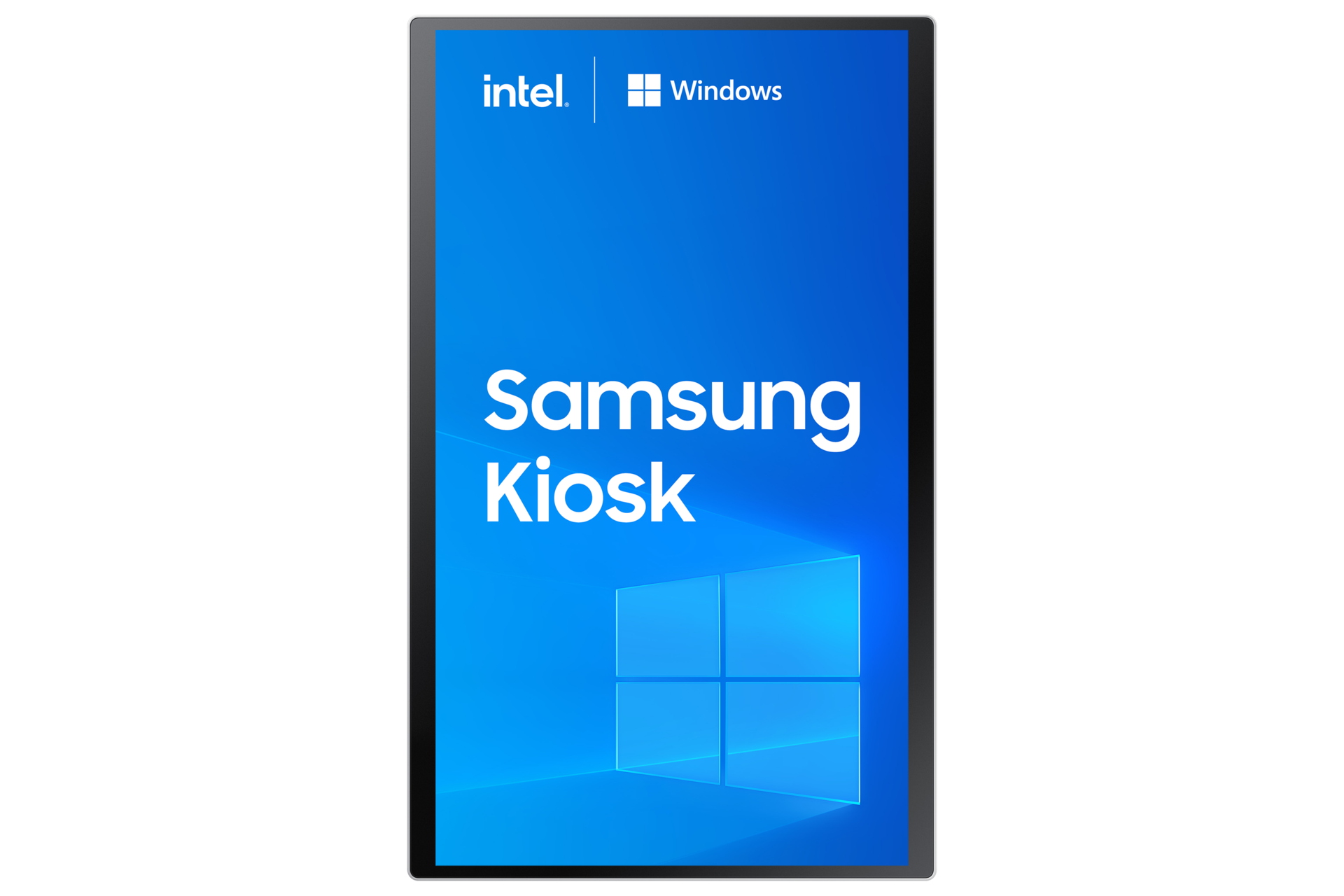

24" Windows All-In-One Kiosk
Unlock Net 30, 60, 90 terms or pay in monthly installments Apply Now
Finding the perfect fit can be a challenge. Now you can shop worry-free unlike ever before.
Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 loT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.*
Boost every customer experience with the intuitive all-in-one payment and ordering system, with no additional peripherals needed. Adopting a modular design, the Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.1*
Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 loT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business uses.
Powered by 11th Gen Intel® Core™ Processor, the Samsung Kiosk, built on Windows OS, features high-performance computing power for flexible, stable, and enhanced capabilities. Delivers amazing and robust experiences to users in any business environment.2

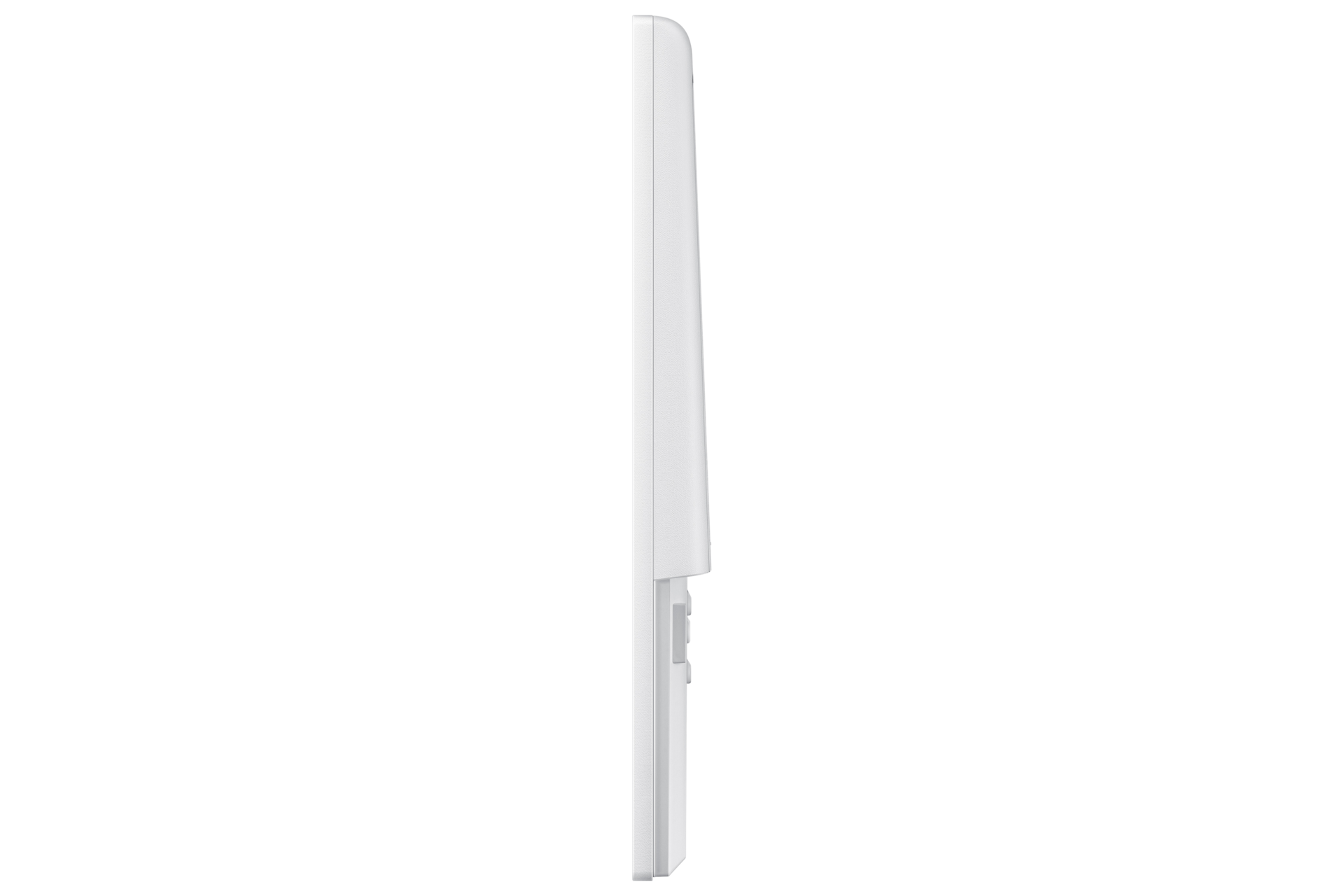

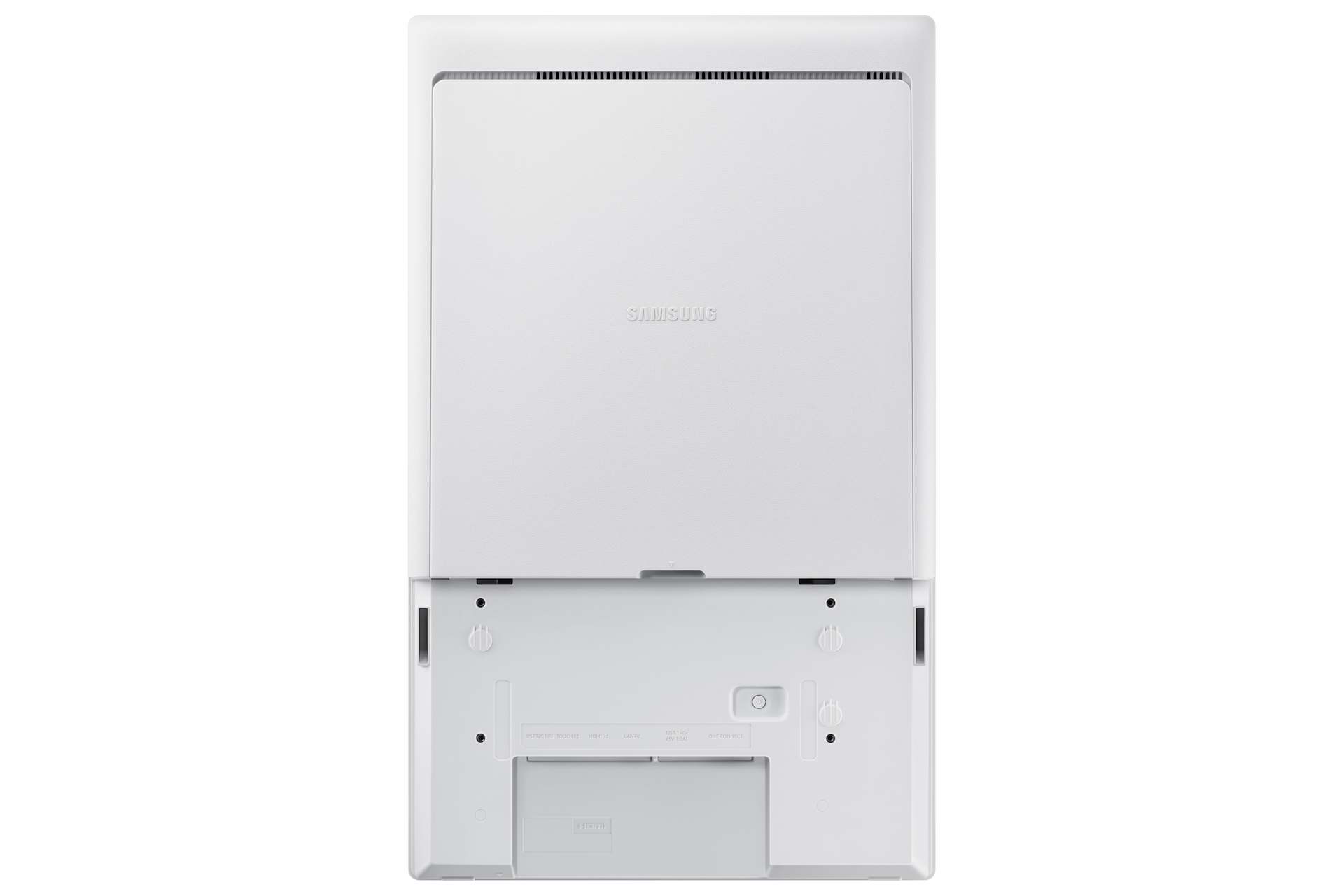

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the gray-white color and simple stand enables the kiosk to blend perfectly into any store interior for a stylish look.*
For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed for optimized space saving.*
Samsung understands that accidents happen. To protect users, the Samsung Kiosk screen is wrapped in proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
EMC
Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35
Tunerless : KN32 / KN35 CE (Europe)
EN55032 : 2012 or 2015
EN55024:2010 or EN 55035:2017 VCCI (Japan)
VCCI CISPR32:2016 CCC(China) GB/T9254-2008
GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)
C-Tick (Australia) AS/NZS CISPR32:2015
GOST(Russia/CIS) ROCT CISPR 24-2013
ROCT CISPR 22:2005
Safety
CB (Europe) : IEC60950-1/EN60950-1CCC
(China) : GB4943.1-2011PSB
(Singapore ) : PSB+IEC60950-1NOM
(Mexico ) : NOM-001-SCFI-1993IRAM
(Argentina ) : IRAM+IEC60950-1SASO
(Saudi Arabia ) : SASO+IEC60950-1BIS
(India) : IEC60950-1 / IS13252NOM
(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC
(Korea) : K 60950-1EAC
(Russia) : EAC+IEC60950-1INMETRO
(Brazil) : INMETRO+IEC60950-1BSMI
(Taiwan) : BSMI+IEC60950-1RCM
(Australia) : IEC60950-1/AS/NZS 60950-1UL
(USA) : cUL60950
EMC
Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005
Safety
CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
Contrast Ratio
1,000:1(without Glass)
Brightness (Typ)
250cd(Typ, w/o glass)
Resolution
1,920 x 1,080
Contrast Ratio (Typical)
1000:1(without glass)
Contrast Ratio (Dynamic)
Mega
Viewing Angle (H/V)
178/178
Diagonal Size
24"
Panel Type
ADS
Pixel Pitch (HxV)
0.2745 x 0.2745 mm
Brightness (Typical)
250cd(Typ, w/o glass) nit
Response Time (ms)
14ms
Color Gamut
72%
Glass Haze
25 (w/o glass)
H-Scanning Frequency
56~84.5KHz
Maximum Pixel Frequency
148.5MHz
V-Scanning Frequency
48~75Hz
Contrast Ratio (Dynamic)
Mega
Operation Time Support
16/7
All-in-One Solution
Yes
USB
1
Power Consumption (On Mode)
88 W
Power Consumption (Sleep Mode)
0.5 W
Touch Technology
Capacitive
Set Dimension (WxHxD)
547.9 x 334.4 x 48.8 inch
Package Dimension (WxHxD)
620 x 419 x 122 inch
Package Dimensions (W x H x D)
620 x 419 x 122 mm
Shipping Weight
5.7 lb
Package Weight
5.7 kg
Set Weight
4.3 lb
Temperature
0℃~40℃
Humidity
10 ~ 80%, non-condensing
Bezel Color
Black
Bezel Width
UD: 17.9 / LR: 9.4
Frame Material
Non-Glossy
Touch
Yes
Stand
Yes
OS Version
Windows 10 IoT Enterprise
Flash Memory Size
256GB
Staying connected is critical. With ProCare Device Protection, you'll help ensure business continuity and maintain your company's valuable assets.
Staying connected is critical. With ProCare Device Protection, you'll help ensure business continuity and maintain your company's valuable assets.
Features and specifications are subject to change without prior notification.
Price, Promotion, Processing:
Pricing, delivery date and other errors may be withdrawn or revised and/or your order may be cancelled at any time, without prior notice, before we have both (a) shipped or provided access to your product or service, and (b) received your payment for the product or service. All sales on Samsung.com are subject to the full Terms of Sale . Samsung is not responsible for any errors, omissions or misdirected or lost orders, or orders which may be delayed. Samsung reserves the right to modify pricing and modify or cancel promotions at any time, without prior notice.
* Wall mount and stand sold separately.
1 Samsung Kiosk supports a fully integrated EMV cradle for a Verifone terminal (P400) which varies by region and country.
2 Embedded processor varies by model.
7 For further details regarding regional restrictions on the antimicrobial function, please refer to each country's Samsung.com website.
8 A shatter-proof film is applied to the screen to help mitigate the hazard of shattering glass, but is does not protect the screen from physical impact.
