Comment se connecter à SmartThings sur mon POWERbot?

Date de dernière mise à jour : déc. 29. 2022

SmartThings est une fonction qui contrôle et gère de manière pratique les appareils ménagers intelligents et les appareils Internet des objets (IoT) avec un smartphone. De l'extérieur, vous pouvez surveiller et contrôler l'état de divers appareils, tels que les appareils intelligents, les appareils ménagers, les téléviseurs, les haut-parleurs, etc. enregistrés sur le service. Il s'agit d'un service de plate-forme de nouvelle génération qui unifiera les produits de Samsung en une plate-forme open source capable de connecter non seulement nos produits, mais également d'autres IoT.

smartthings in your life

Étape 1. Vérification des conditions de connexion



Avant de connecter votre smartphone à votre robot aspirateur (POWERbot), assurez-vous que les conditions suivantes sont remplies:

Android

iOS (iPhone)

OS

Android 6.0 or more

iOS 10.0 or more

Device Type

Smartphone, Tablet

iPhone 6 or more, iPad

Mémoire Size

2 GB or more

2 GB or more

Support resolution

1280*720(HD)

1920*1080(FHD)

2560*1440(WQHD)

1334*750

1920*1080

App preload criteria

Mémoire 2 GB or more

Bluetooth profile 4.0 or higher

Terminal capable of Wi-Fi mirroring

Mémoire 2 GB or more

Bluetooth profile 4.0 or higher

Terminal capable of Wi-Fi mirroring

Étape 2. Connexion de votre smartphone au réseau Wi-Fi

  • Sur votre smartphone: appuyez sur Paramètres → Connexion → Wi-Fi → Sélectionnez un routeur auquel vous connecter (entrez le mot de passe lors de la configuration de la sécurité).
  • Lorsqu'il est correctement connecté, le routeur sélectionné dans le réseau actuel est confirmé comme «connecté»

Note:

  • Le nom du routeur (SSID) est défini en anglais, en symboles et en chiffres (les caractères spéciaux ne sont pas pris en charge).
  • Connexion 2,4 GHz disponible lors de la connexion à un robot aspirateur au réseau Wi-Fi.Au moins 3 antennes de réception du réseau Wi-Fi doivent être affichées.
  • Lorsque vous connectez votre appareil électroménager à votre smartphone avec SmartThings, assurez-vous que les deux appareils sont connectés au même routeur.

Installation de l'application SmartThings

  • Téléchargez et installez l'application SmartThings depuis les marchés (Google Play Store, Apple App Store ou Samsung Galaxy Apps).
  • Pour trouver l'application, utilisez le mot-clé «SmartThings».



Étape 4. Configuration d'un compte Samsung

  • Vous devez vous connecter à un compte Samsung avant d'utiliser l'application SmartThings.
  • Pour configurer un compte Samsung, vous pouvez suivre les instructions fournies par l'application SmartThings.
  • Ou, si vous avez un smartphone Samsung, vous pouvez ajouter votre compte Samsung dans l'application de configuration de votre smartphone. Ensuite, il se connectera automatiquement à votre compte Samsung.



Step 5. Connecting your smartphone to the robot vacuum

1. First, make sure your robot vacuum (POWERbot) is turned on and the Wi-Fi router is connected to the power supply.

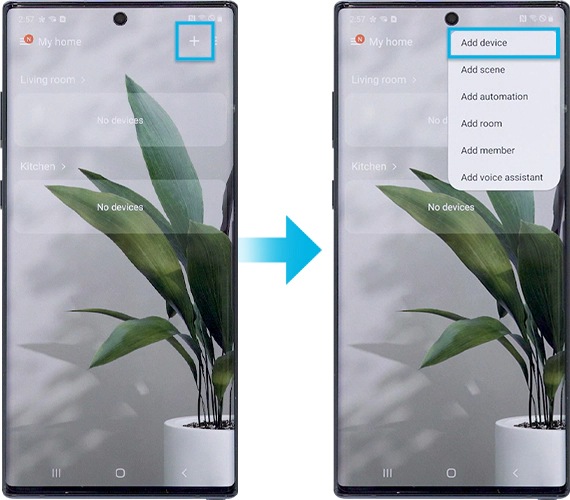

2. Launch the SmartThings app. Tap the plus button and select [Add device] on home view.

select add device on home view

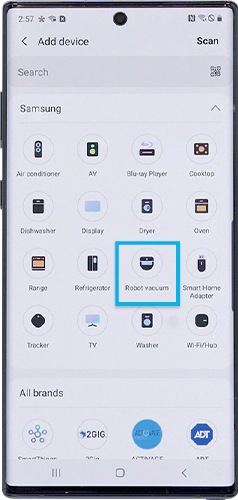

3. Select [Robot vacuum].

select robot vacuum

4. Tap the [Start] button.

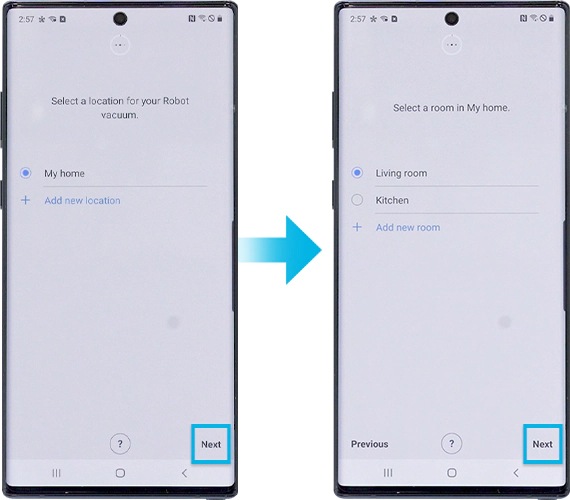

5. Select your preferred location and room for the robot vacuum and tap Next on the bottom screen.

select your preferred location and room

6. Press and hold the Clock button on the remote control until AP appears on the display. It may take some time to connect the device to the Internet.

press and hold the clock button on the remote control

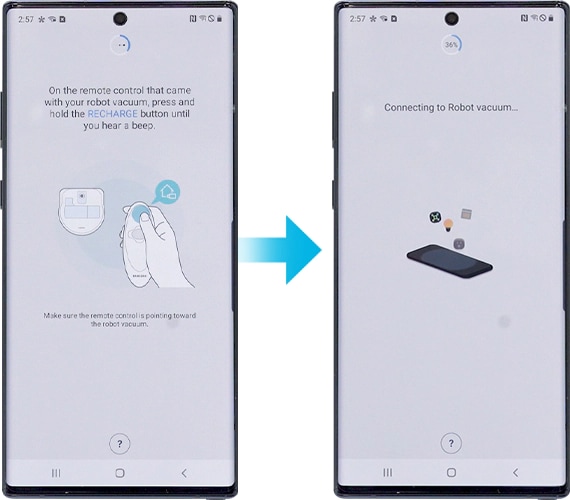

7. Press and hold the Recharge button on the remote control until the robot vacuum makes a beep sound. Make sure the remote control is pointing at the vacuum.

press the recharge button on the remote control

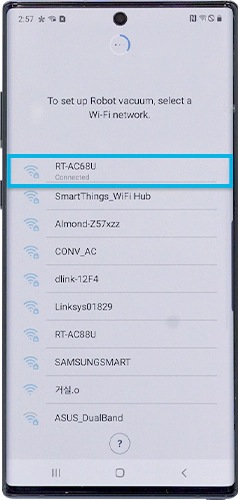

8. Enter the Wi-Fi information to connect both of them.

enter the wi-fi information

9. Please wait until the robot vacuum is registered with your Samsung account.

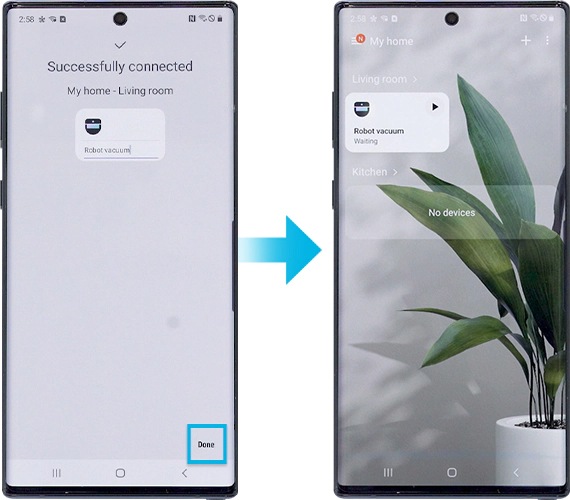

10. The registration is complete. Set the name of robot vacuum.

set the name of robot vacuum

1. First, make sure your robot vacuum (POWERbot) is turned on and the Wi-Fi router is connected to the power supply.

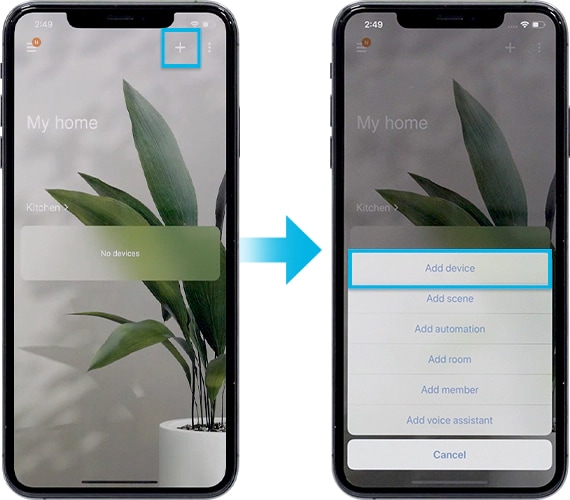

2. Launch the SmartThings app. Tap the plus button and select [Add device] on home view.

select add device on home view for ios

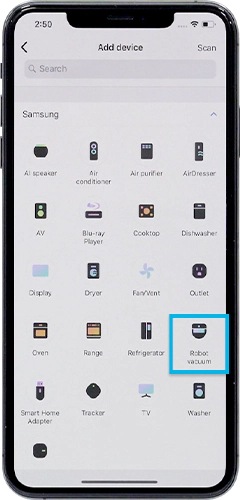

3. Select [Robot vacuum].

select robot vacuum for ios

4. Tap the [Start] button.

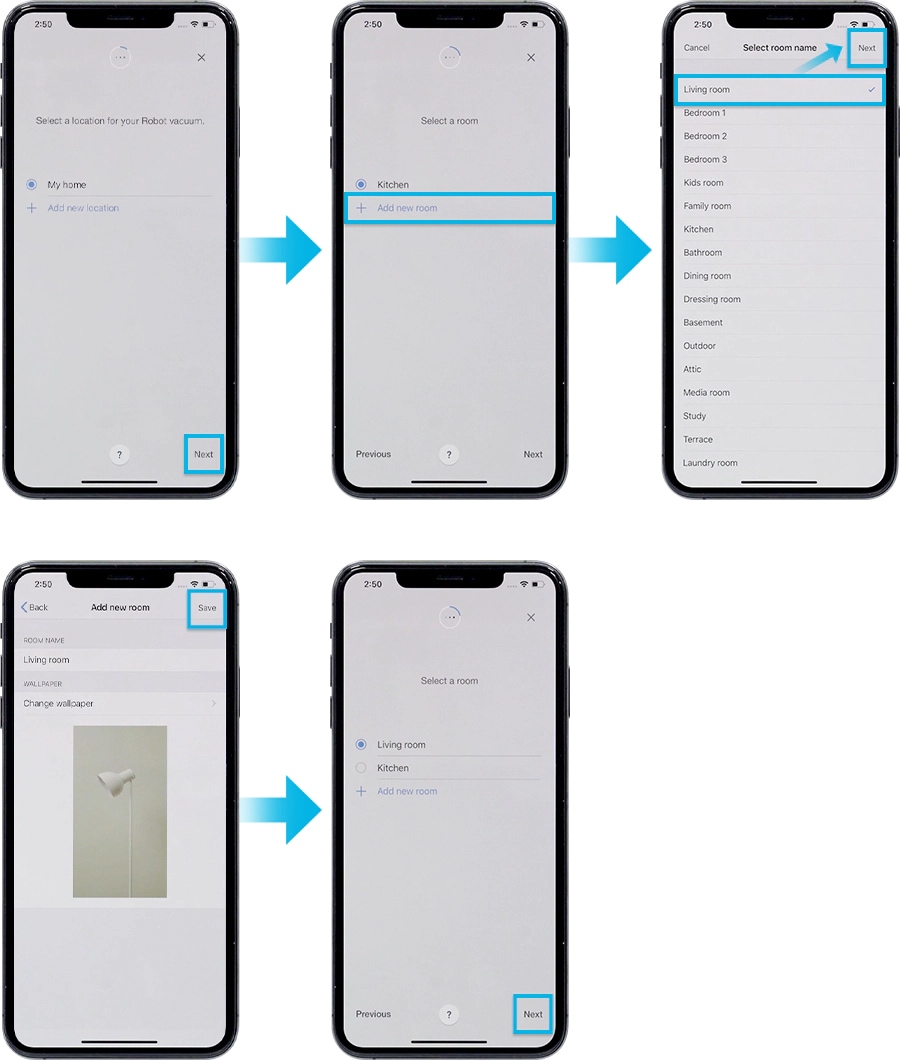

5. Select your preferred location and room for the robot vacuum.

select your preferred location and room for ios

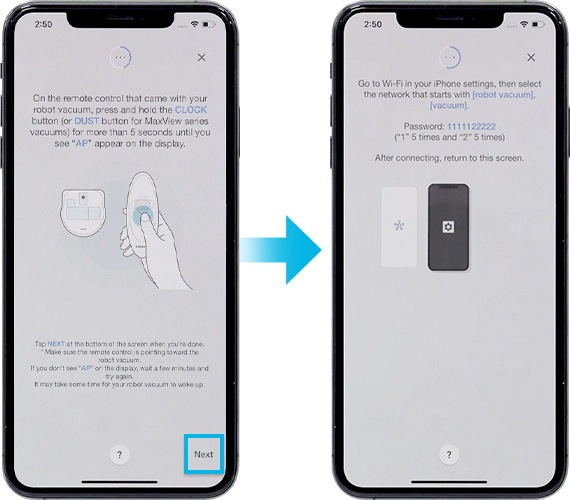

6. Press and hold the Clock button on the remote control until AP appears on the display. Then, tap Next on the bottom screen.

press and hold the clock button on the remote control for ios

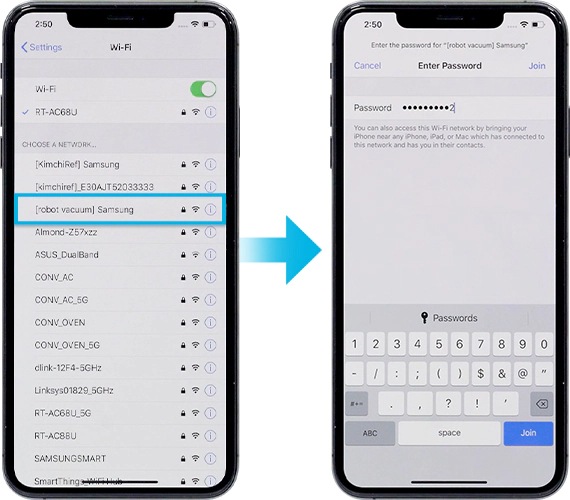

7. On your iPhone, open the Settings app and go to Wi-Fi to connect to the network name that starts with robot vacuum or vacuum. The password is 1111122222. (“1” 5 times and “2” 5 times)

connect the wi-fi network with password for ios

8. Once the device is connected to the Wi-Fi network, run the SmartThings app again.

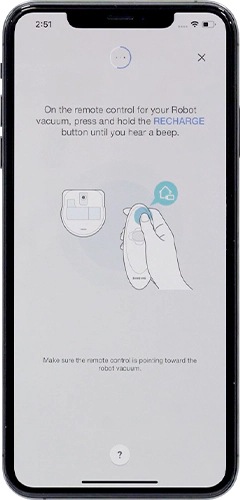

Press and hold the remote control Recharge button until you hear beep. Ensure that the remote control is pointed toward the robot vacuum.

press and hold recharge button for ios

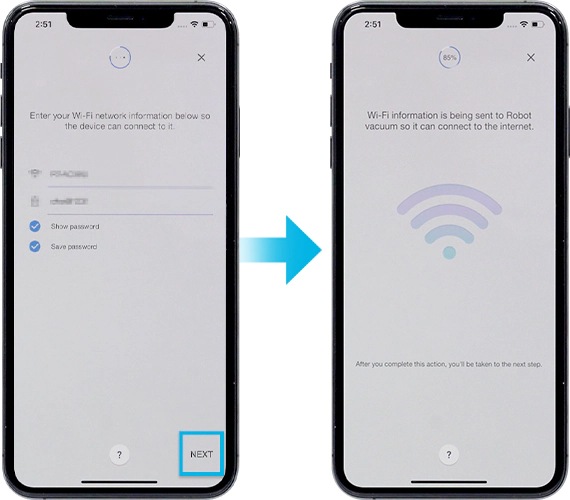

9. Enter your Wi-Fi information to connect the device to Wi-Fi network and tap the Next. The Wi-Fi information is sent to the vacuum.

enter wi-fi information for ios

10. Please wait until the robot vacuum is registered with your Samsung account.

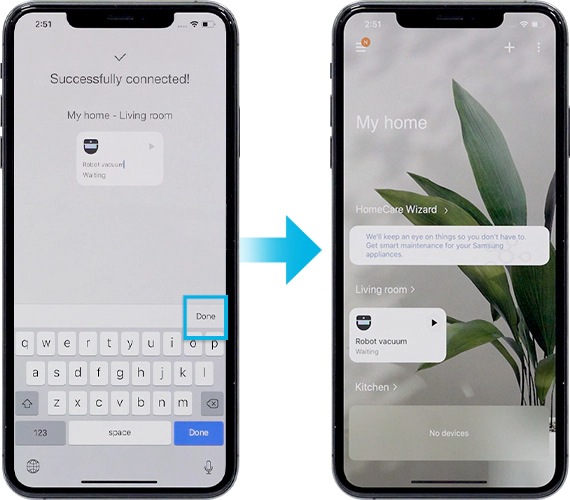

11. The registration is complete. Set the name of the robot vacuum.

set the name of robot vacuum for ios

Si vous ne pouvez pas terminer l'enregistrement du produit, veuillez suivre les étapes suivantes.- Essayez à nouveau la procédure d'enregistrement comme vous avez été dirigé par les messages contextuels.
- Vérifiez que l'option UPnP de votre routeur sans fil est active, puis réessayez la procédure d'enregistrement.
- Vérifiez que votre routeur sans fil fonctionne en mode sans fil, puis réessayez la procédure d'enregistrement.
- Si vous avez deux ou plusieurs POWERbots, éteignez les autres POWERbots, puis réessayez d'enregistrer votre POWERbot.
- Si un autre routeur sans fil possède le même SSID que votre routeur sans fil, l'enregistrement peut échouer.
Lorsque le contrôle intelligent est bloqué, vous ne pouvez pas contrôler le POWERbot sur votre smartphone.Le POWERbot et votre smartphone ne sont pas connectés au même routeur sans fil, et donc un délai de réponse peut se produire en fonction de votre environnement réseau.

Note:

  • Toutes les fonctions et descriptions d'étapes liées à l'application SmartThings diffèrent selon la version du logiciel.
  • Lors de l'utilisation de données mobiles, des frais peuvent être engagés en fonction des téléchargements et de la communication sans fil entre les appareils.
  • Les technologies et fonctions disponibles peuvent varier en fonction du pays, du fournisseur de services, de l'environnement réseau ou du produit.
