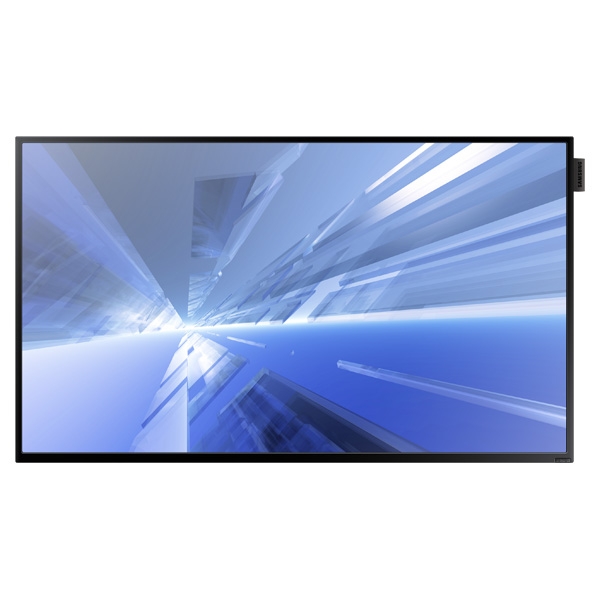

DB Series Digital Signage (DB32D)
Specification
DB Series Digital Signage (DB32D)
Series Name
DB-D Series
Display
32"
Slim Direct-LED Backlight
1920 x 1080
16:9
350 nits
5000:1
8ms
Connectivity
Video: VGA (D-Sub 15 Pin), DVI-D, Component/Composite, HDMI, Audio: Stereo Mini Jack
Audio: Stereo Mini Jack
RS232C (In/Out) thru Stereo Jack, RJ45
IR, Ambient Light
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
43W / 77W
< 0.5W
Environmental Conditions
0°C - 40°C
10%~80%
Features
Hardware: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker, SD Card Slot Software: Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, Smart F/W update, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch
Yes
Yes
Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS
200 x 200mm
Yes
Yes
Dimensions
28.4" X 16.5" X 2.0"
31.5" X 18.5" X 4.6"
10.5mm (Top/Side), 15.0mm (Bottom)
Weight
10.5 lb.
12.8 lb.
Service
3 Years On-Site (Parts / Labor / Backlight)
Included in Box
Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries
WMN4070SD, WMN250MD
STN-L32D, STN-L3240E
CY-TD32
Green Management
Yes
Yes
EMC
Packing Materials Recyclable
Package Contents
Included
Included
CML400D (Ceiling Mount), Foot Stand
