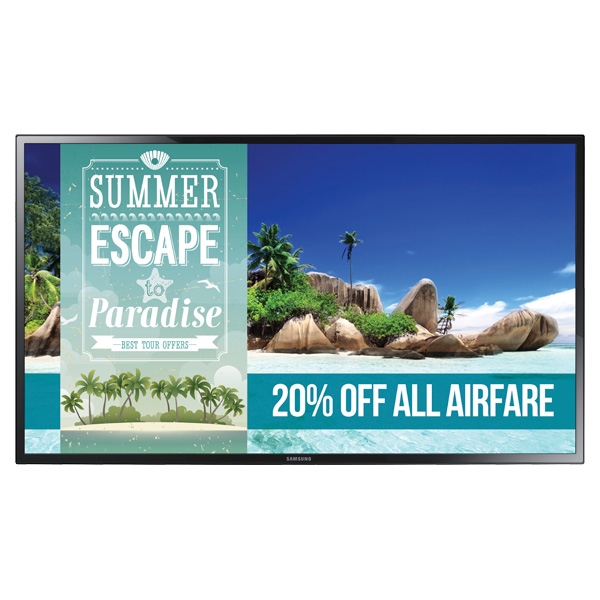

ED-C Series Digital Signage (ED46C)
Specification
ED-C Series Digital Signage (ED46C)
Series Name
ED-C
Display
46"
60Hz (Direct-LED Backlight)
1920 x 1080
16:9
350 nits
5000:1
178°/178°
8ms
Connectivity
VGA (D-Sub 15-Pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack)
Stereo Mini Jack, RS232C (thru Stereo Jack)
RS232C (In/Out) (thru Stereo Jack)
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
88W / 121W
< 0.5W
Environmental Conditions
0℃~ 40℃
10~80%
Features
PIP/PBP, Narrow Bezel
400 x 400mm
Yes
Dimensions
41.6" x 24.2" x 3.7"
45.4" x 28.5" x 6.5"
17.4mm (Bottom 20.8mm)
Service
3-Year On-Site (Parts/Labor)
Included in Box
Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries
WMN-4270SD
WMN-250MD
STN-L4055AD
Green Management
Yes
Yes
EMC
Yes
