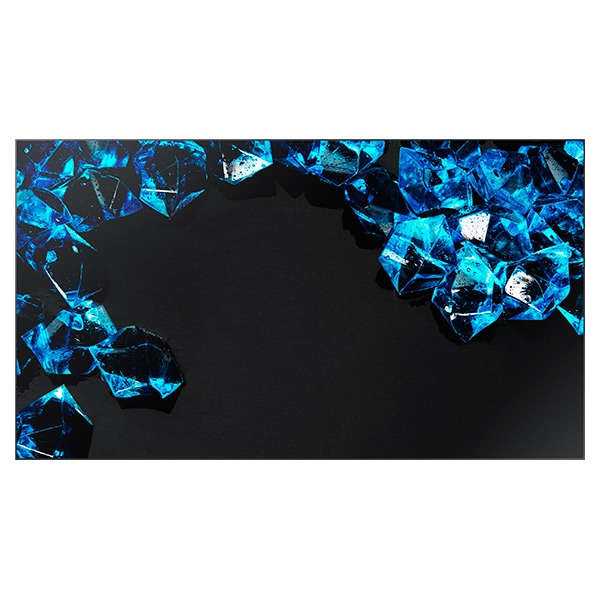

UD-D Series Digital Signage (UD46D-P)
Specification
UD-D Series Digital Signage (UD46D-P)
Series Name
UD Series
Display
46"
60Hz D-LED
1920 x 1080 (16:9)
700 nits
3500:1
178°/178°
8ms
Connectivity
VGA (D-sub 15 pin), DVI-D, Display Port 1.2, 2 HDMI, Component/Composite, Stereo mini Jack
Display Port 1.2(Loop-out), Stereo mini Jack
RS232C(In/Out), RJ45
Detachable type (IR, Ambient)
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
125W / 176W
< 0.5W
Environmental Conditions
32ºF ~ 104ºF
10% ~ 80%
Features
SD Card Slot, ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention(Haze 44%), Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery(80hrs Clock Keeping),Built In MagicInfo
Yes
Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB 2.0, Linux OS
600 x 400mm
Yes
Dimensions
40.2" x 22.7" x 3.8"
49.4" x 31.4" x 14.0"
2.3mm (U/L), 1.2mm (R/B)
Weight
39.8 lb.
49.5 lb.
Service
3 Years On-Site (Parts / Labor / Backlight )
Included in Box
Quick Setup Guide, Warranty Card, Application CD, DP cable, Power Cord, Remote Controller, Batteries
WMN-4675MD (Video Wall Mount)
MID-UD46DS (Video Wall Stand)
SBB-CF7, SBB-DA
Green Management
Yes
Yes
EMC
Packing Materials Recyclable
