Galaxy Note 9: Where are the sensors and camera located?

Last Update date : Nov 24. 2020
The Galaxy Note 9 is composed of different types of sensors and camera around it. You will find them either in the front side or in the back side of the device.
1. Front Side

Same arrangement as the previous models (Galaxy Note 8). The cameras , sensors, etc. are placed within the 8mm  space at the top of the bezel while the Iris Camera is hidden just like what has been applied to the S9/S9+.

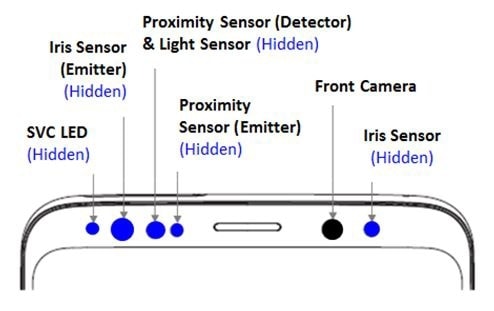

front side sensors and cam
2. Back Side

- Dual-camera:

   The telephoto camera on the left and the wide-angle camera on the right


-Fingerprint sensor :

   Central placement below the rear camera


- LED/HRM:

   Located on the right side of the camera (LED and then HRM)

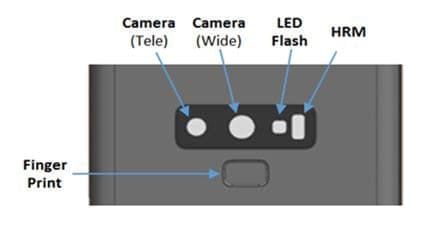

rear camera and sensors
