LS32R750UECXXK

32" UHD Monitor with Space-Saving Design SR750

Space-Saving Design Maximized Desk Space 4K Ultra HD
size 32”

Space-Saving Design

When not in use, the Samsung Space Monitor pushes back to sit flat against a back wall and leave your entire work surface clear. When it’s time for use, simply pull the Space Monitor towards you and adjust to your preferred viewing position.

Space-Saving Design

Maximized Desk Space

Samsung Space Monitor lets you use more of your work space. In side-by-side comparison on a 47.2 inch x 19.7 inch (120cm x 50cm) desk, the Space Monitor provides up to 40 percent more usable surface area than a conventional monitor of equivalent size (Samsung SD850).

Maximized Desk Space

4K Ultra HD

With 4x the pixels of Full HD, the 31.5” Space Monitor delivers more screen space and amazingly life-like UHD images. View documents and webpages with less scrolling, work more comfortably with multiple windows and toolbars, and enjoy your photos, videos and games in stunning 4K quality.

4K Ultra HD

Concealed Cables

Samsung Space Monitor stand neatly conceals its power/HDMI Y–cable in recessed chases to prevent tangling and keep your work space clear and free from clutter.

Concealed Cables

Stylish Design

With its slim panel featuring a 3-sided bezeless screen, the Samsung Space Monitor offers an understated stylish solution for any workplace or home interior.

Stylish Design

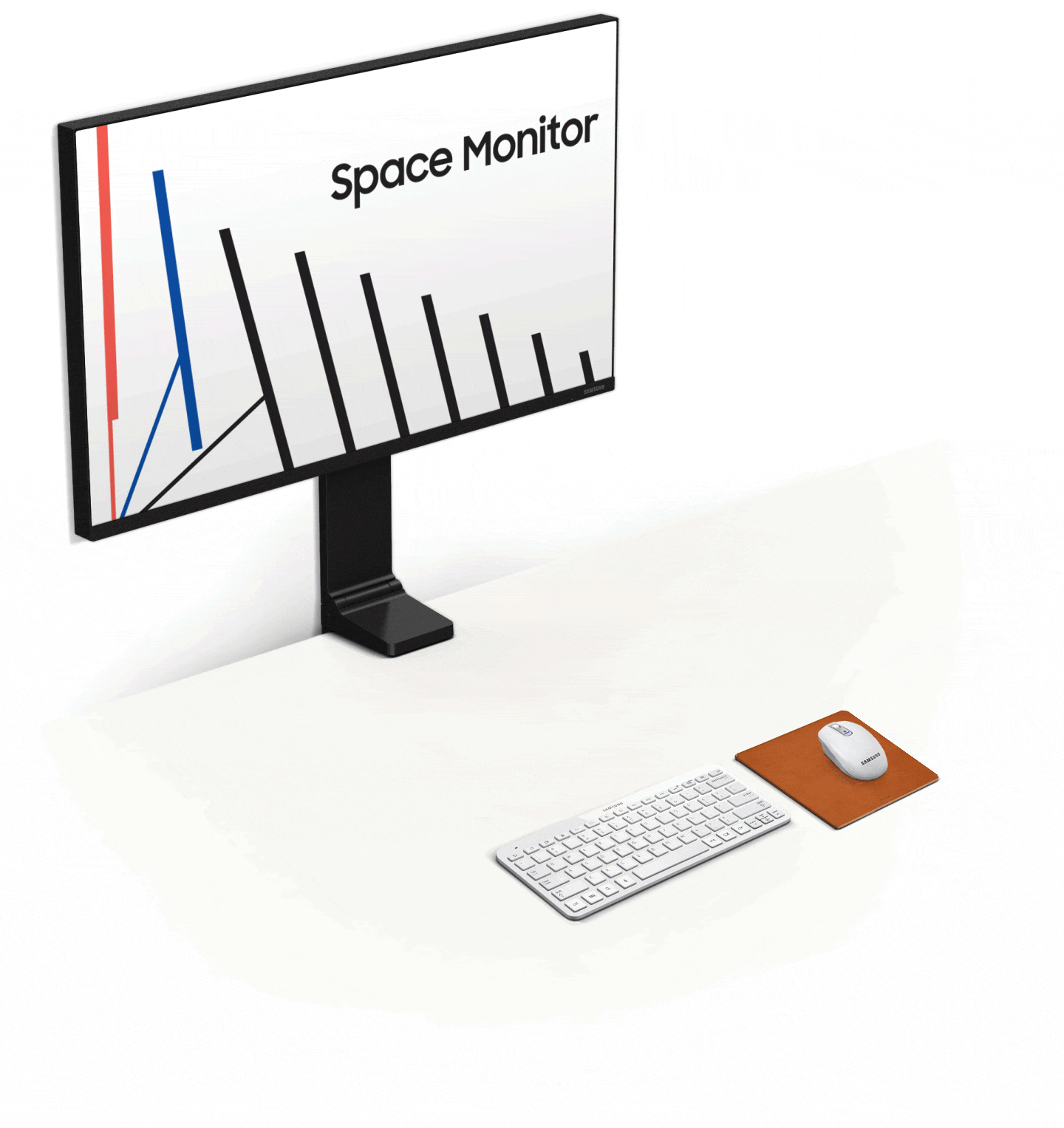

Zero-Level HAS

Samsung Space Monitor’s zero-level HAS (Height Adjustable Stand) allows easy positioning of the screen for optimum comfort and convenience. Its best-in-class adjustment span allows viewing from a height of 8.4 inches (213 mm) above the desk top (27-inch screen) all the way down to surface level.

Zero-Level HAS

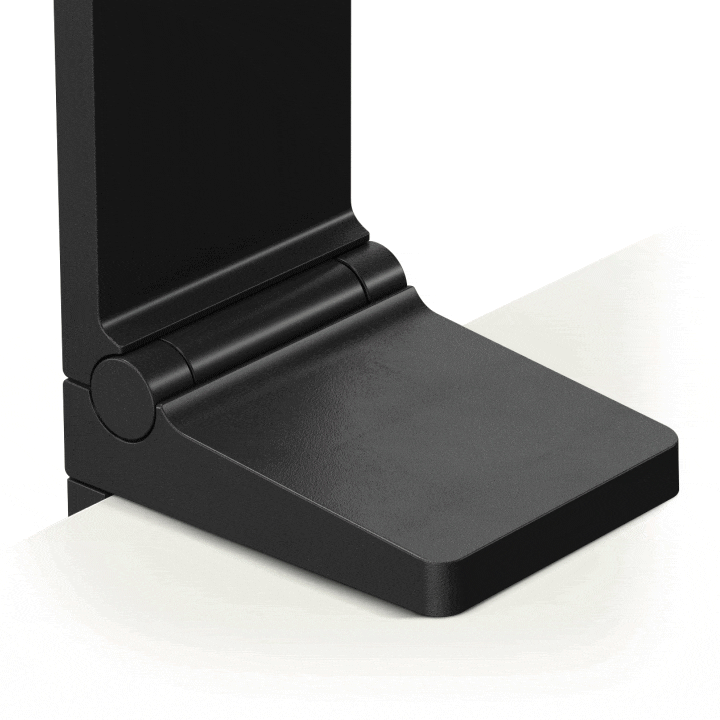

Robust Hinge

Samsung Space Monitor’s stand employs a robust hinge that ensures consistent and reliable performance. Developed using Samsung technology and tested internally to withstand over 5,000 movements, the durable hinge assures smooth and precise screen positioning time after time.

Robust Hinge

Adjustable Eye Level

Samsung Space Monitor can be quickly and easily raised or lowered to the optimum viewing height for any user and any purpose, making it a versatile solution for use at home or in public spaces such as libraries.

Adjustable Eye Level

Easy Installation

Samsung Space Monitor’s stand features an integrated clamp for quick and easy installation. Adjustable up to 3.54 inches (90 mm), the clamp allows the Space Monitor to be securely attached to desks and tables with a wide range of thicknesses.

Easy Installation
Specification
  • Display
    • Screen Size (Inch) 31.5
    • Screen Size (cm) 80.0
    • Screen Size (Class) 32
    • Flat / Curved Flat
    • Active Display Size (HxV) (mm) 697.3 x 392.2mm
    • Aspect Ratio 16:9
    • Panel Type VA
    • Brightness (Typical) 250cd/m2
    • Brightness (Min) 200cd/m2
    • Contrast Ratio Static 2500:1(Typ.)
    • Dynamic Contrast Ratio Mega ∞ DCR
    • Resolution 3,840 x 2,160
    • Response Time 4(GTG)
    • Viewing Angle (H/V) 178°(H)/178°(V)
    • Color Support 1B
    • Color Gamut (NTSC 1976) 72%
    • sRGB Coverage 100%(Typ.)
    • Refresh Rate (Hz) 60Hz
  • General Feature
    • Samsung MagicBright Yes
    • Samsung MagicUpscale Yes
    • Eco Saving Plus Yes
    • Eye Saver Mode Yes
    • Flicker Free Yes
    • Picture-In-Picture Yes
    • Picture-By-Picture Yes
    • Game Mode Yes
    • Image Size Yes
    • Easy Setting Box Yes
    • Windows Certification Windows 10
    • Off Timer Plus Yes
  • Interface
    • Display Port Version 1.2
    • Mini-Display Port 1 EA
    • HDMI 1 EA
    • HDMI Version 2.0x1
    • USB Hub Version 2.0
  • Operation Conditions
    • Temperature (℃) 10~40 ℃
    • Humidity (%) 10~80,non-condensing
  • Design
    • Color BLACK
    • Stand Type Dual Hinge
    • HAS(Height Adjustable Stand) 0~184.7mm
    • Tilt -5.0°(±2.0°)~ 20.0°(±2.0°)
  • Power
    • Power Supply AC 100~240V
    • Power Consumption (Max) 54 W
    • Power Consumption (DPMS) ≤0.5 W
    • Power Consumption (Off Mode) ≤0.3 W
    • Type External Adaptor
  • Dimension
    • Set Dimension with Stand (WxHxD) (mm) 714.5 x 757.2 x 115.5 mm
    • Set Dimension without Stand (WxHxD) (mm) 714.5 x 418.2 x 26.0 mm
    • Package Dimension (WxHxD) (mm) 978.0 x 159.0 x 502.0 mm
  • Weight
    • Set Weight with Stand (kg) 7.0 kg
    • Set Weight without Stand (kg) 4.8 kg
    • Package Weight (kg) 9.4 kg
  • Accessory
    • HDMI Cable Yes
    • Quick Setup Guide Yes
