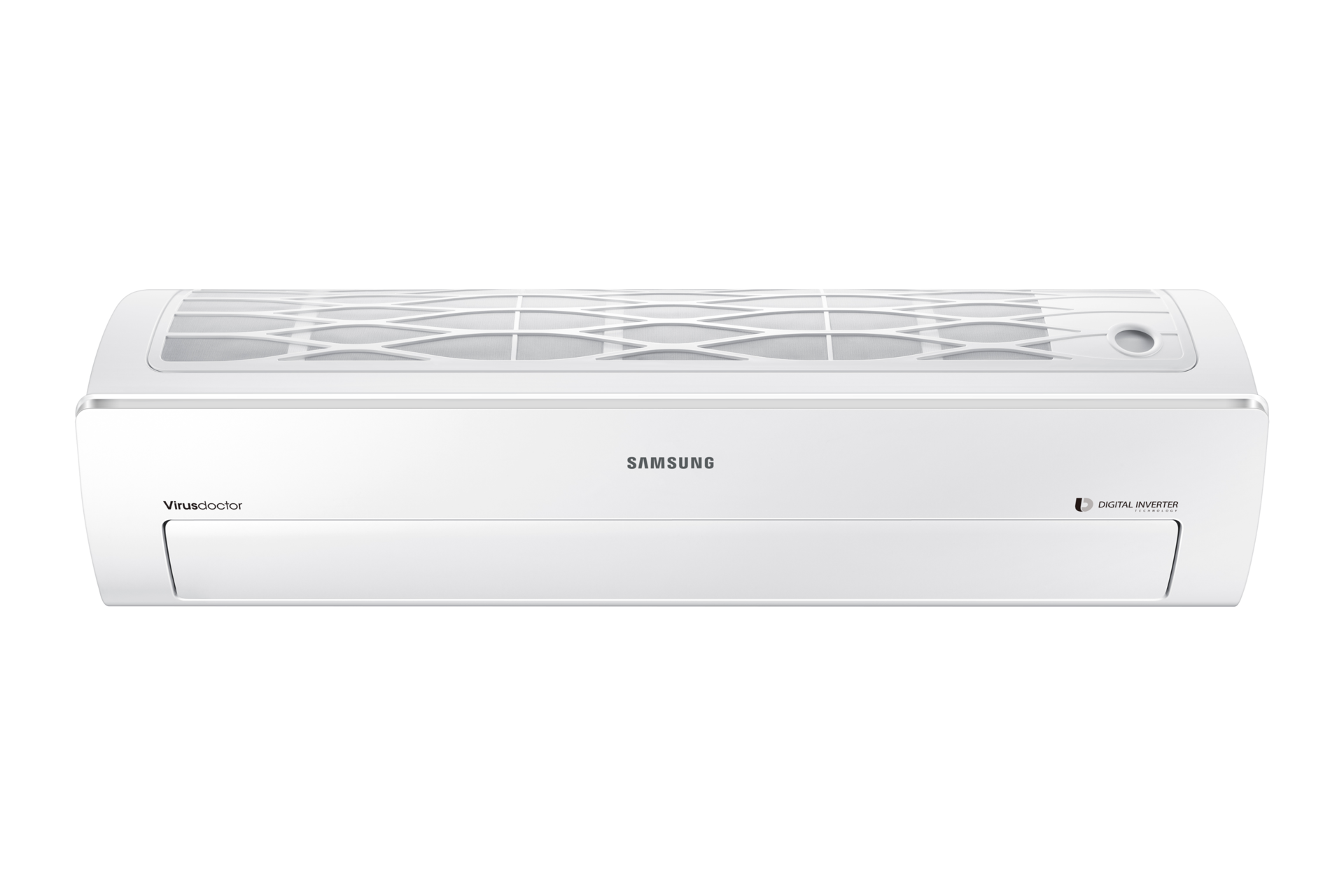

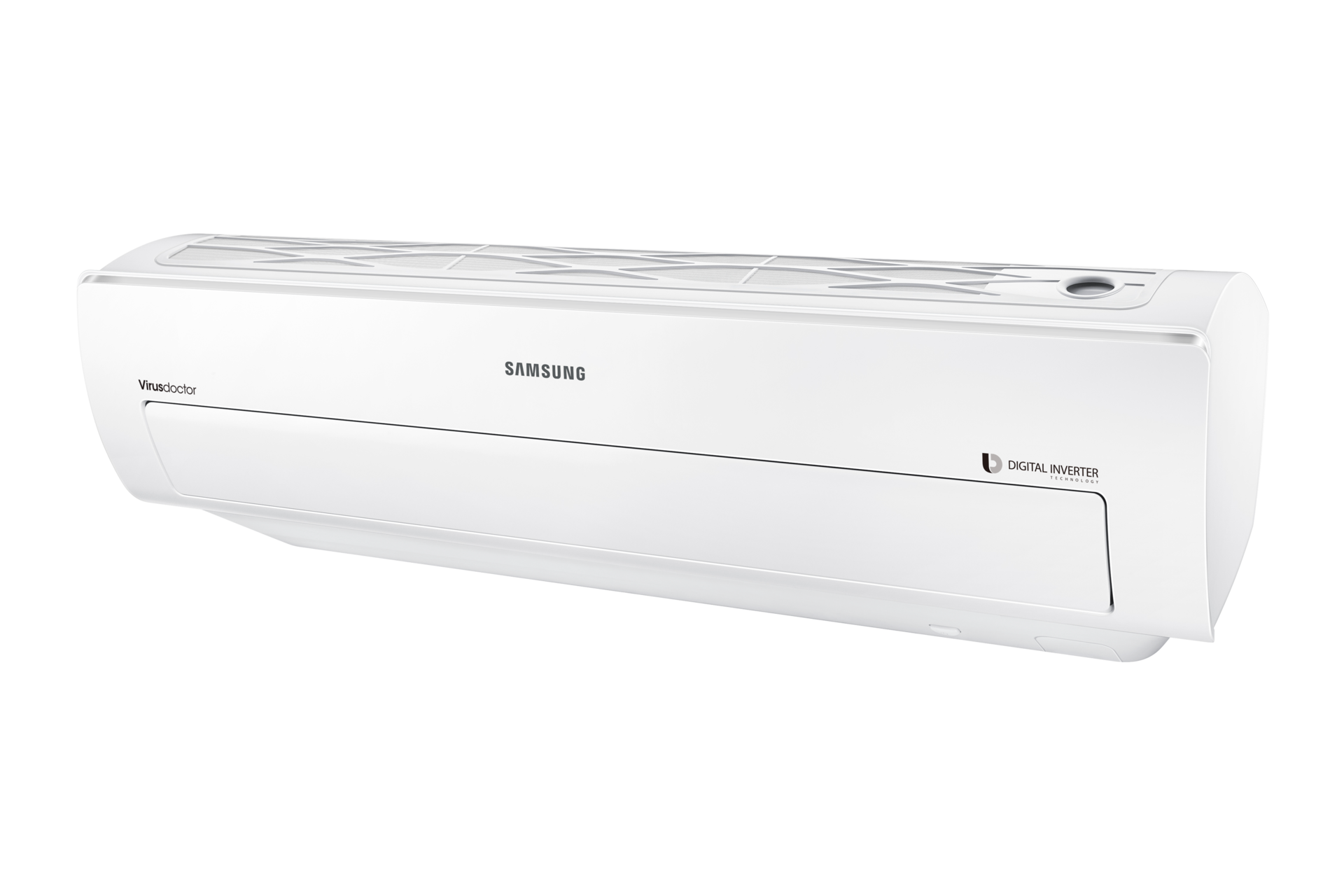

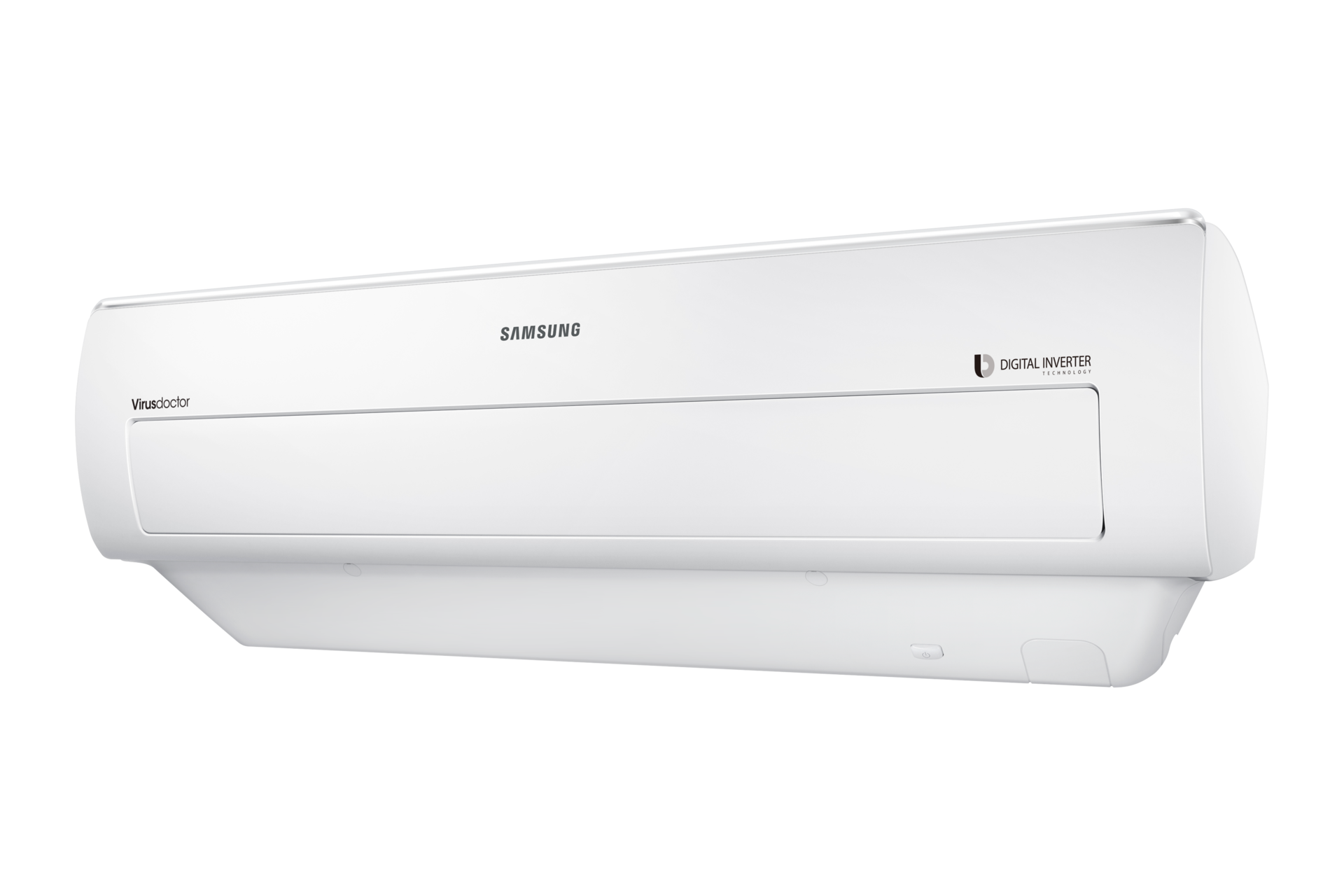

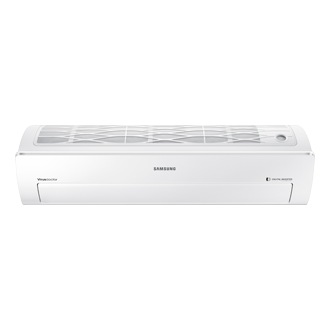

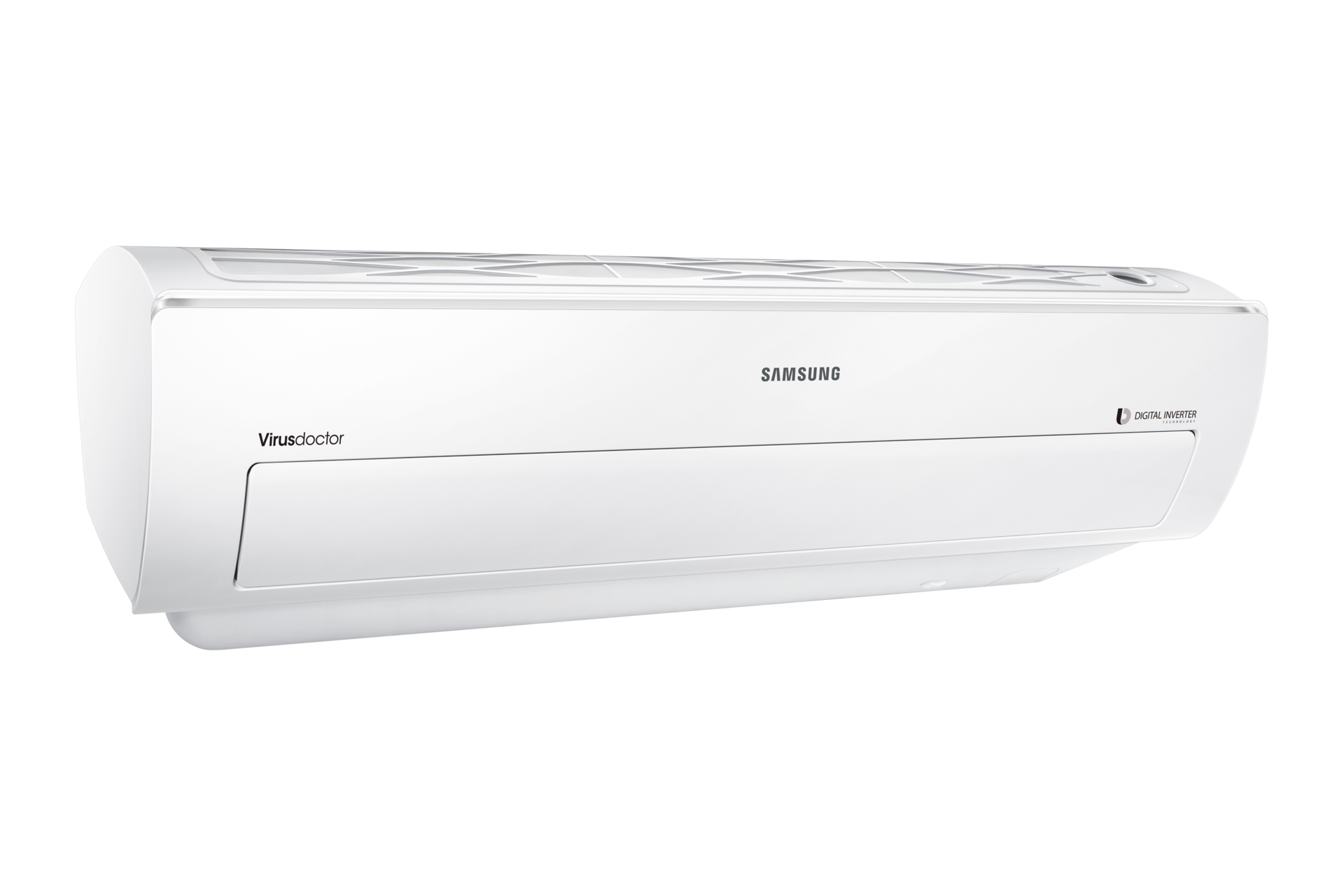

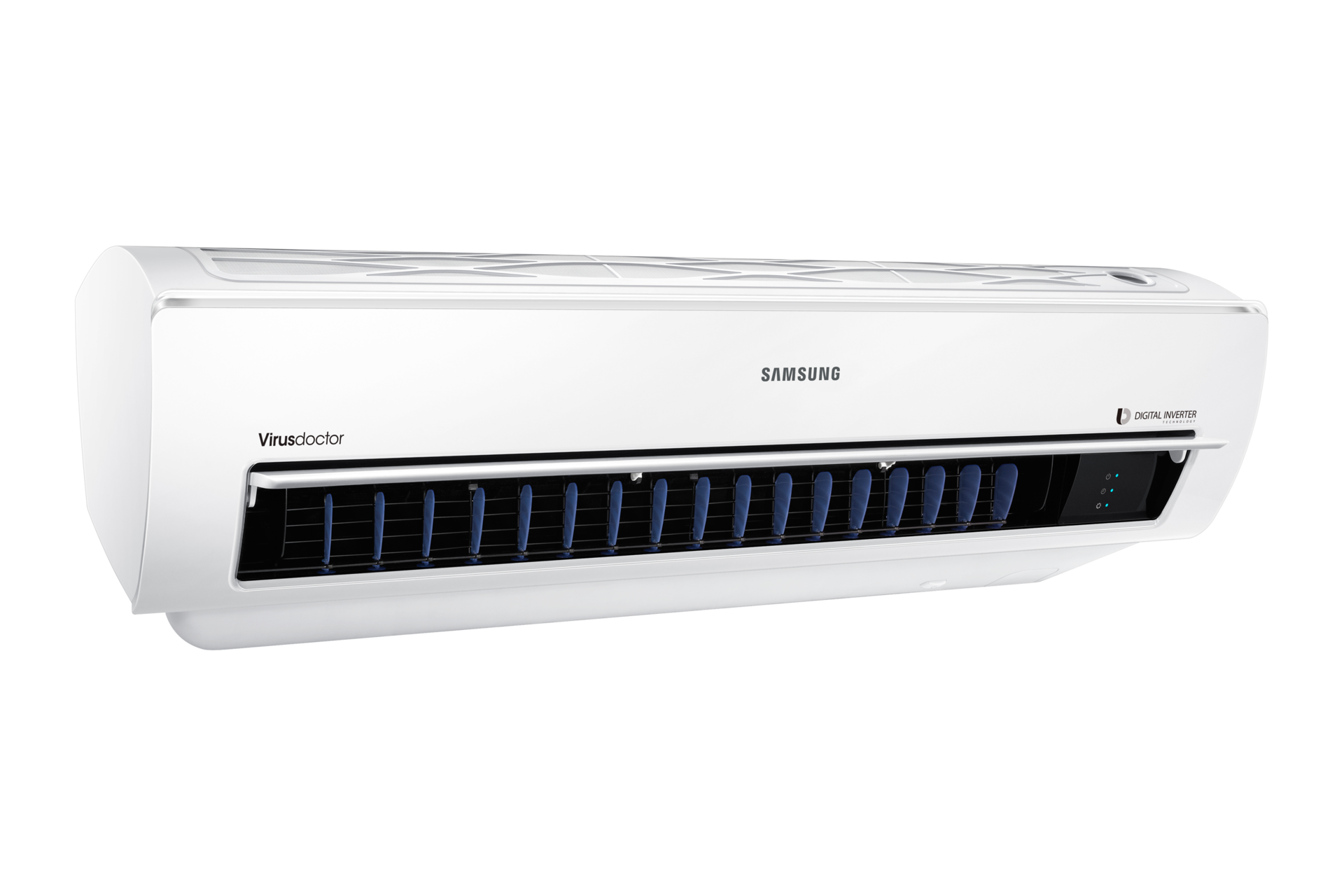

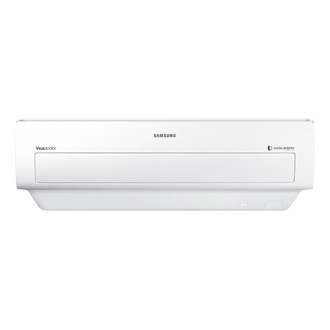

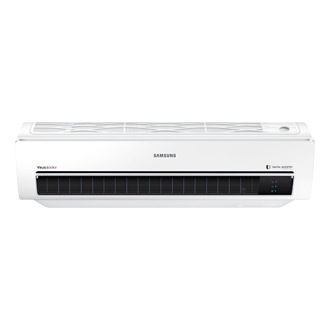

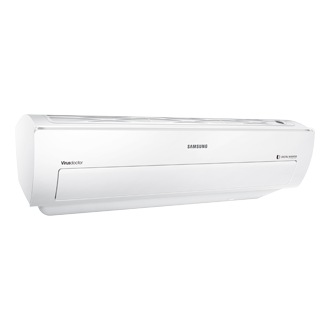

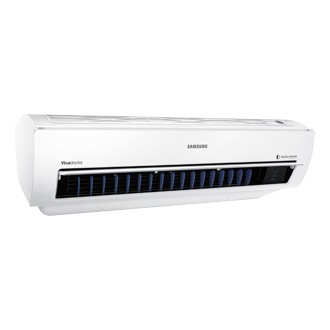

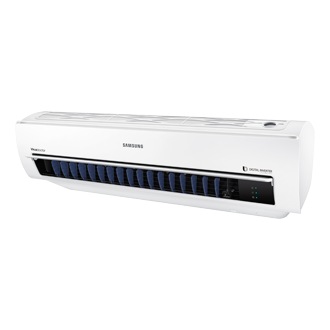

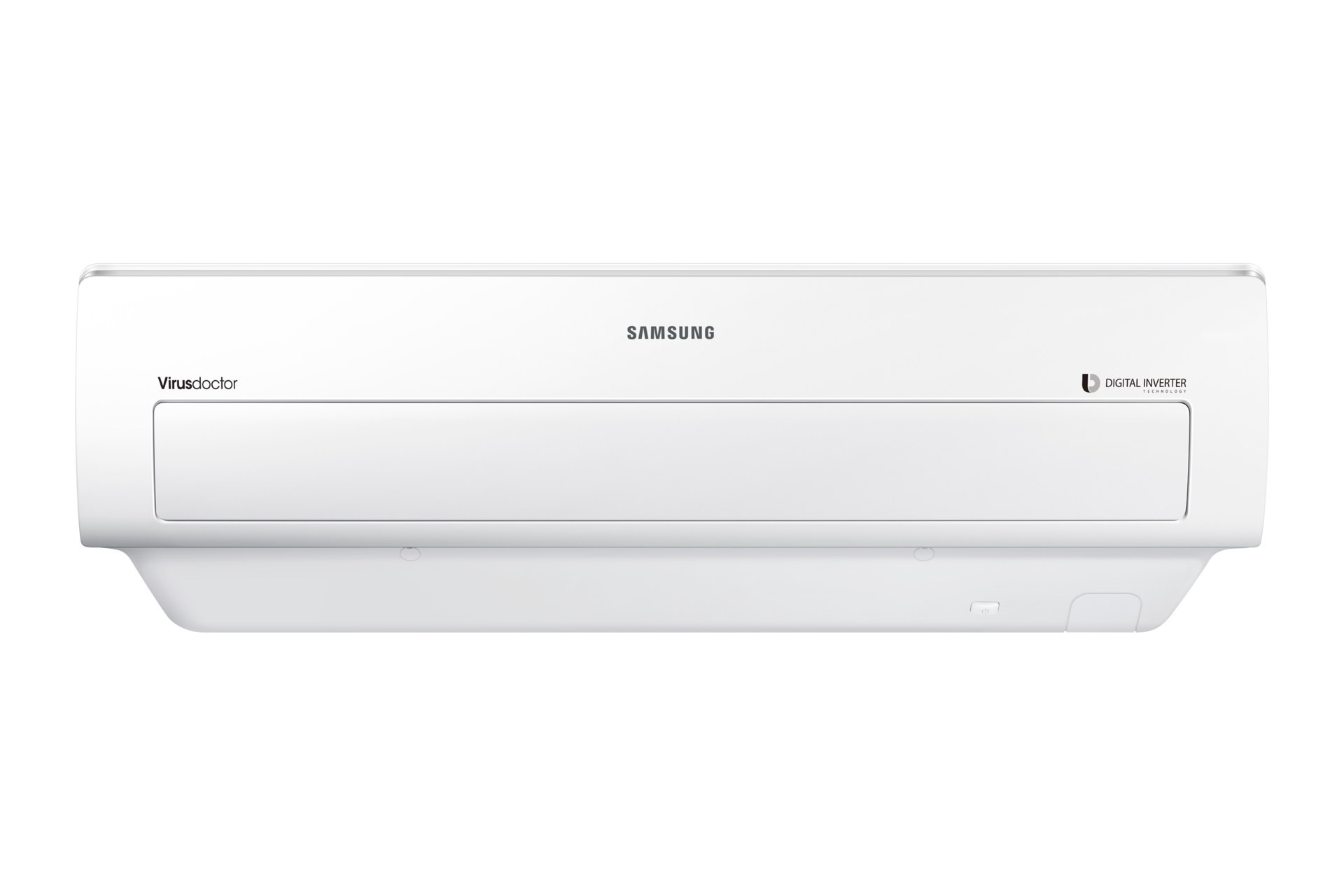

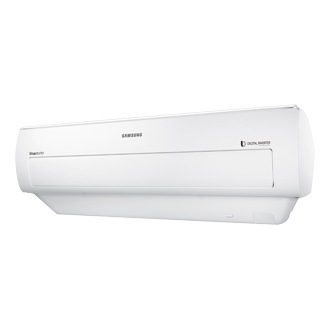

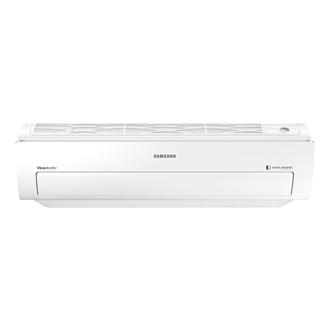

AR5500 Wall-mount with 38% Fast Cooling, 9,000 Btu/hr
38% Faster Cooling
An innovative triangle architecture cools the air 38% faster1, so you can quickly feel more comfortable. With a wider inlet and outlet and more air flow using a bigger fan, its unique shape cools your room rapidly.
More air in
The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its unique triangular design allows for a wider inlet, so more air can be drawn in.
More air flow
The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its unique triangular design allows for a bigger fan to ensure that air is cooled and expelled faster.2
More air out
The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its uniquely triangular design allows for an outlet with improved width and angle, and extra v-blades ensure that air is expelled farther and wider.3
Corner to corner cooling
Spreads cool air even further

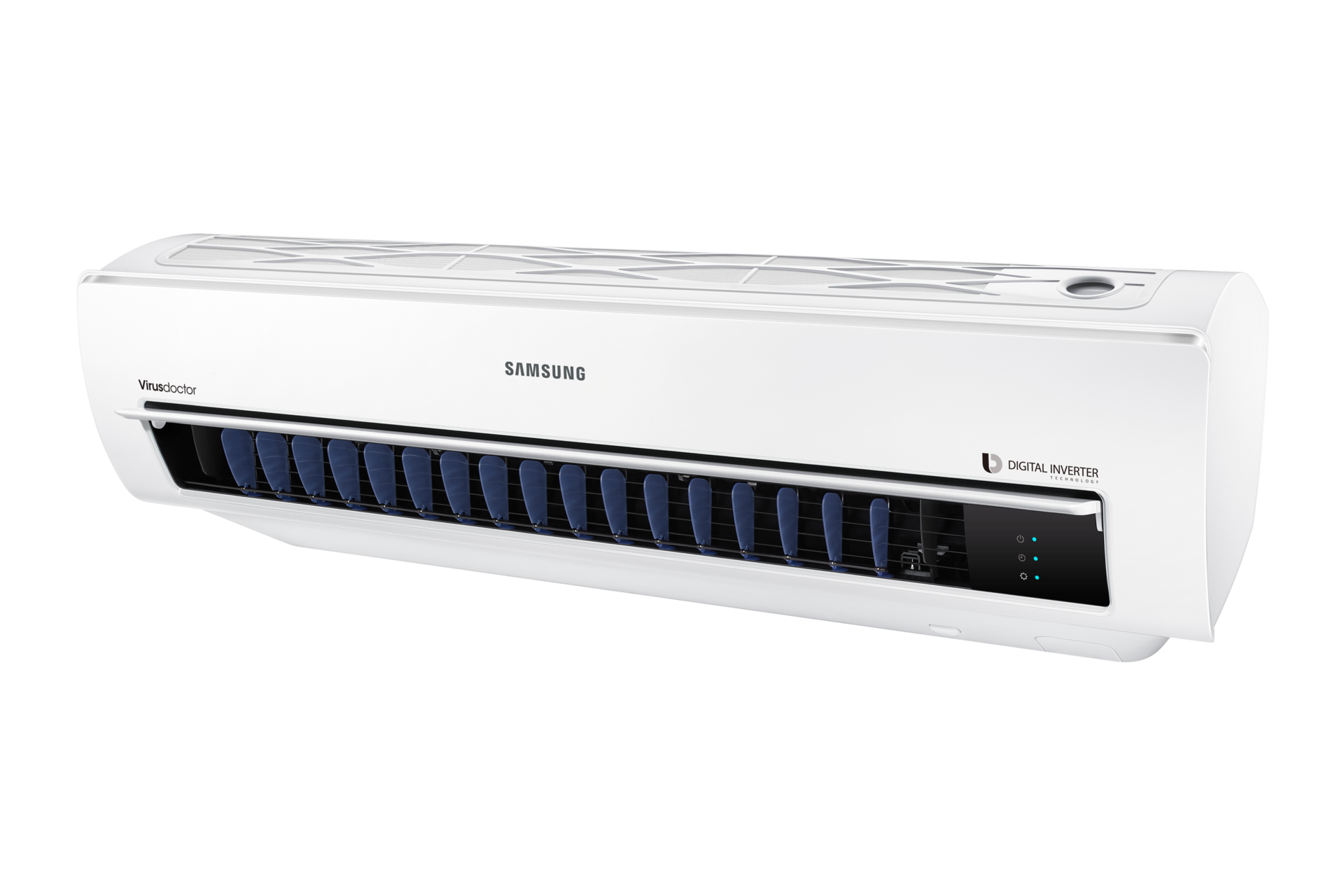

Cools evenly for corner to corner comfort. Extra v-blades, with a wider4 angle of movement, disperse cool air across a wider area and its upward air flow structure expels air over a longer distance.
Works smart. Saves energy.
An energy-efficient Digital Inverter with a SEER 10.1 rating maintains the desired temperature without frequently turning off and on. So it consumes less energy5 and helps you to stay comfortable for long periods.
Optimized 2-step cooling
The Samsung Air Conditioner begins cooling the air fast using its Fast Cool mode. It then automatically changes to Comfort Cool mode to maintain the desired temperature, so don’t have to keep changing the settings.
Save energy even when alone
Single User mode uses less compressor capacity, reducing power consumption6, while still providing a cool and comfortable environment. So you can use it when alone without worrying about the electricity bill.
Virus doctor & Easy filter
Virus Doctor purifies the air by using S-Plasma ion technology to eliminate up to 99% of bacteria and viruses—including the Influenza A and Corona viruses7—keeping the air you breathe clean and healthy.
Virus doctor & Easy filter
Easy to clean filter
The Easy Filter is located outside, on the top, so it can easily be taken out and cleaned. Its anti-bacterial coating filters dust, dangerous airborne contaminants and allergens8.
Control it anywhere
Using an App9 on your smartphone, the Wi-Fi Control function10 lets you remotely turn it on and off, select the operating mode and temperature, schedule when to start and stop, and control other functions.
Triple Protector Plus
Fin & Chassis Protector

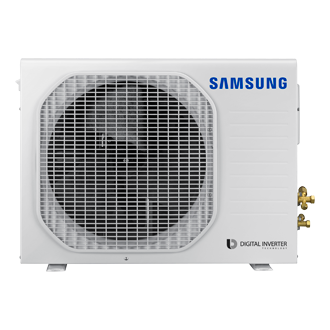

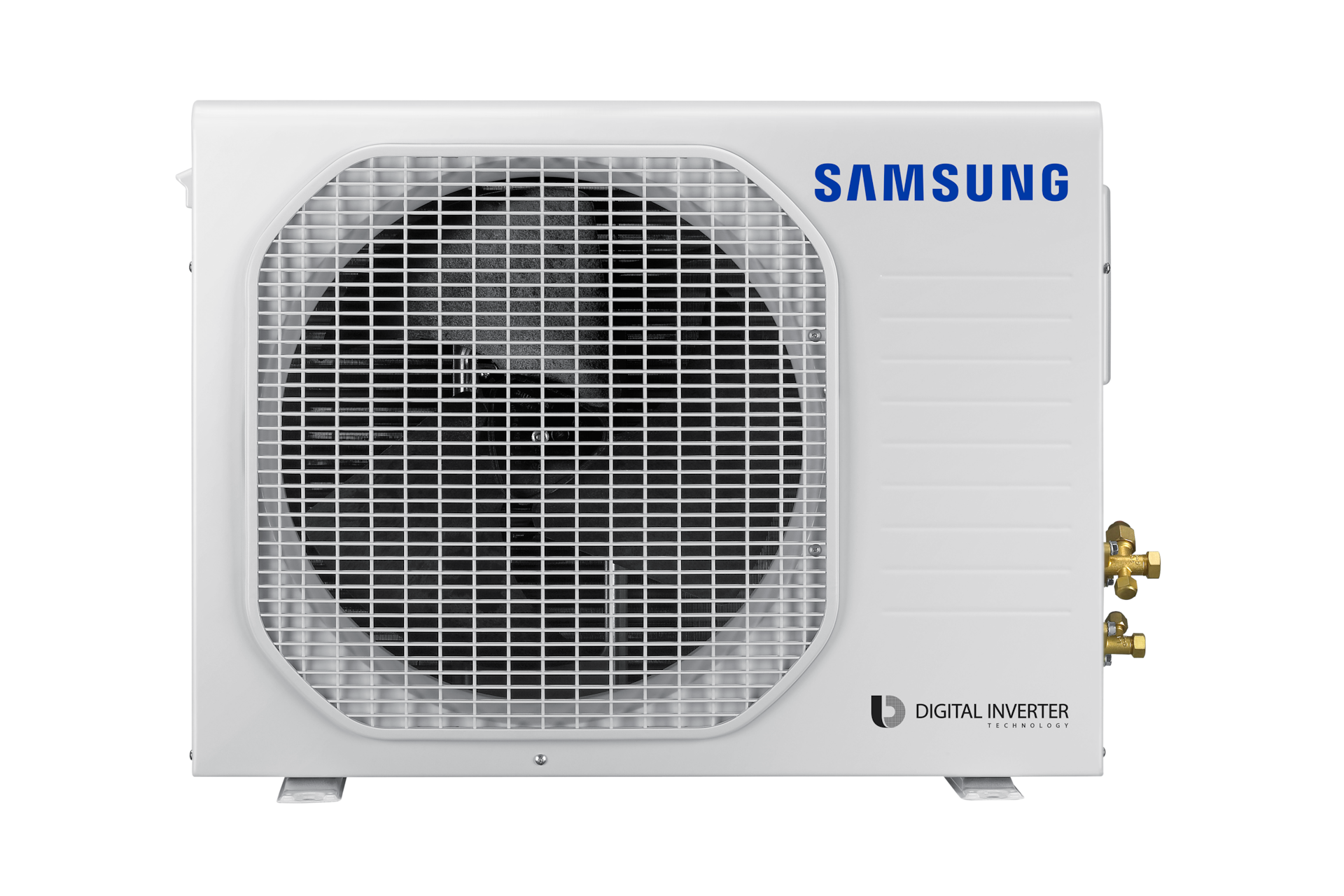

The AR5500 Air Conditioner can endure extremely hot temperatures, due to a larger condenser and optimized refrigerant flow. It also has anti-corrosion coating that stops the condenser and chassis from rusting.11
Triple Protector Plus
The AR5500 Air Conditioner keeps going even in the most challenging environments with its Triple Protector Plus technology, which protects the compressor from low-voltage shock caused by an overload of power surges.12
Triple Protector Plus
Triple Protector Plus also includes technology that protects the controller from high-voltage discharge caused by fluctuating electrical currents13, so you don’t need to use a separate voltage stabilizer.
Ensure a proper installation
Smart Installation is a self-diagnosis feature that ensures your air conditioner is installed perfectly. It automatically checks for installation faults that can cause problems when using it.
The Smart Check* automatic error-monitoring system detects and diagnoses problems and provides easy troubleshooting solutions using a smartphone App**. So it saves you time and potentially expensive repair bills***.
* Available on the Wi-Fi model only.
** Available on iPhones and Android devices. A network connection is required.
*** Service callouts will occasionally be required and may incur extra repair costs.
A Closer Look
Triangle Design For Powerful Cooling
The Samsung Air Conditioner’s unique triangular design improves its performance, circulating cool air faster, farther and wider around your home.
The pure Crystal Gloss™ finish and uniquely curved design of the Samsung Air Conditioner deliver a premium look and performance.
Ensure Perfect Installation
Smart Installation is a self-diagnosis feature that ensures your Samsung Air Conditioner is installed perfectly by your service engineer.
Filters dust, dangerous airborne contaminants and allergens.
2 Tested on AR09HSFSBWK model. Compared with Samsung conventional model AQV09TWS.
3 Tested on AR09HSFSBWK model. Compared with Samsung conventional model AQV09TWS.
4 Tested on AR09FSSSBWK compared with Samsung conventional model AQV12TWS.
5 Tested on AR09HSSDAWK/EU compared with Samsung conventional model AQ09TSB.
6 Tested on AR09FSSSCWK/SA compared with Samsung conventional models. Based on the accumulated power consumption of Normal mode vs. Single User mode.
7 Based on Kitasato Environmental Science Center (Japan) & Yonsei Univ. (Korea) test result. Effective on 4 viruser. Including Subtype H1N1. and Certain bacteria. Data has been measured under specific testing conditions and may differ based on environmental factors.
8 Tested in Korea test lab (FITI/KEMTI) and Japan test lab (ITEA). Data has been measured under specific testing conditions and may vary based on environmental factors.
9 Available on iPhones and Android devices. A network connection is required.
10 Available on the Wi-Fi model only.
11 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC
12 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC
13 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC
Capacity (Cooling, Btu/hr) 9,000
Capacity (Cooling, kW) 2,64
EER (Cooling, W/W) 3,61
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) 720 x 548 x 265
- Capacity (Cooling, Btu/hr) 9,000
- Capacity (Cooling, Min - Max, Btu/hr) 5,120 ~ 10,920
- Capacity (Cooling, kW) 2,64
- EER (Cooling, W/W) 3,61
- EER (Cooling, Btu/hW) 12,33
- Noise Level (Indoor, High/Low, dBA) 36 / 20
- Noise Level (Outdoor, High/Low, dBA) 47
- Power Source(Φ/V/Hz) 1 / 220 / 60
- Power Consumption(Cooling, W) 730
- Operating Current(Cooling, A) 3,5
- Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜) 826 x 261 x 261
- Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) 720 x 548 x 265
- Gross Weight (Indoor, kg) 11,2
- Gross Weight (Outdoor, kg) 28,5
- Net Weight (Indoor, kg) 9,8
- Net Weight (Outdoor, kg) 26
- Loading Quantity (20/40/40Hft without Pipe) 96 / 203 / 233
- Piping Length (Max, m) 15
- Piping Height (Max, m) 7
- SVC Valve (Liquid (ODxL)) 6,35
- SVC Valve (Gas (ODxL)) 9,52
- Moisture Removal (l/hr) 0,9
- Air Circulation (Cooling, ㎥/min) 11
- Refrigerant (Type) R-410A
- Low Ambient (Cooling, ℃) 16 ~ 46
- Outdoor Unit (Compressor Type) BLDC
- Outdoor Unit (Anti-Corrosion Fin) Yes
- Optimal Single Blade Yes
- Air Direction Control (Up/Down) Auto
- Air Direction Control (Left/Right) Manual
- Air Flow Control Step (Cool/Fan) 5/4
- Natural Breeze Yes
- Full HD Filter 60
- Auto Clean (Self Cleaning) Yes
- Virus Doctor Yes
- Easy filter Yes
- Beep On/Off Yes
- 24-Hour Timer Yes
- Auto Restart Yes
- 2 Step Cooling Yes
- Fast Cool Yes
- Comfort Cool Yes
- Good Sleep Yes
- Dehumidification Yes
- Fan Mode Yes
- Quiet Yes
