How to clean the air purifier filters
For enjoyable fresh, clean air, we recommend you clean the air purifier filters regularly. Please be careful not to injure yourself and damage the filters during the cleaning.
Air purifier AX5500 Series
There are two types of filters inside the Samsung air purifier. After opening the front panel, the Pre-filter and then the 2-in-1 filter can be found.
- The Washable Pre-filter
- The 2-in-1 filter (Deodorization filter + Dust collection filter)
The filter lifespan is related to the air quality in the environment the machine is operated. The more polluted the air, the shorter the filter lifespan.
Note:
- Please note that the 2-in-1 filter cannot be washed. Be careful not to get the 2-in-1 filter wet.
- The replacement cycle of the 2-in-1 filter is from 6 months to 1 year, if the appliance is operated 24 hours a day.
- You can purchase and replace a new filter at a nearby Samsung service center.
Detach filters
Before detaching the air purifier filters, be sure to turn off the appliance and unplug the power cord.
- To detach the front panel, use your thumbs to press the top of the panel and pull forward using your other fingers.
- To remove the Pre-filter, push the button on the top of the Pre-filter and pull it out slowly.
- To remove the 2-in-1 filter, push the filter holder clockwise to release and then remove the filter slowly.
Dust and clean the Pre-filter
- If the panel is covered with excessive dust, use a vacuum cleaner to remove as much as possible. Use a soft brush to remove dust or debris on the filter. Be careful not to tear or damage the Pre-filter.
- Soak the Pre-filter in lukewarm water for about 10 minutes after adding a neutral detergent. Rinse the filter under running water. (If necessary, use a soft brush to remove dust. Do not rub strongly however, as the Pre-filter may tear.)
- Place the filters in a well-ventilated dry space in the shade. Keep the filter out of direct sunlight. Please note that the 2-in-1 filter cannot be washed. Be careful not to get the 2-in-1 filter wet.
Note:
- Available technologies and functions may vary depending on the country, service provider, network environment, or product.
- Images on this content may vary depending on the device model you have.
Samsung air purifier enables you to breathe in clean and fresh air. You can purifier the air in your home by removing dust, allergens, and more. To keep the fresh air, you need to clean the air purifier filter frequently. See the filter details below and follow the instructions to clean your filters.
Overview of the filters

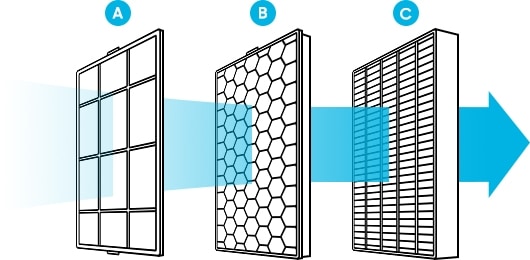

Samsung air purifier uses a multi-layered purification system comprising a pre-filter, deodorization filter, and HEPA filter.
- Pre-filter (A): Pre-filter extracts large dust particles, such as pollen and pet hair.
- Deodorization filter (B): It removes harmful gases such as carbon monoxide and unpleasant odors such as food and bathroom odors.
- HEPA filter (C): The HEPA filter can capture up to 99.97% of 0.3㎛ sized dust like cigarette smoke particles.
Only the pre-filter is washable among these filters. The deodorization filter and HEPA filter are not washable, so you must replace them periodically.
Note:
- Tested on the AX80K7580WFD for toluene, xylene, benzene, ethylbenzene, styrene and formaldehyde gases in the National Test Institute of South Korea.
- The filter media has over 99.97% dust collection efficiency, based on particle size of 0.26㎛, as specified by 42 CFR part 84. Tested in the National Test Institute of South Korea.
Check out the type of your air purifier filters before the cleaning. There are 2 different filter systems, 2-in-1 or a separated type. If the system is 2-in-1, you only need to replace the one filter. The separated type will need to replacement of the two filters.
Note that only the pre-filter can be washable among these filters. The deodorization filter and the HEPA filter are not washable, so you must replace them periodically.

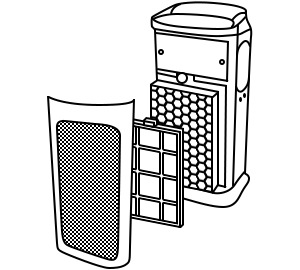

2-in-1 type filter
This is a type in which the deodorization filter and dust collecting filter have combined.

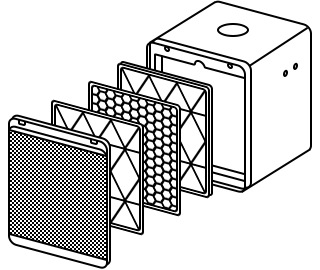

Separated type filter (Rear side of the product)
This type has configured the inside filters separately.
Note: The actual image and provided component parts of the air purifier may differ, depending on the model that you have.
Pre-filter disassembly and cleaning
Pre-filter disassembly

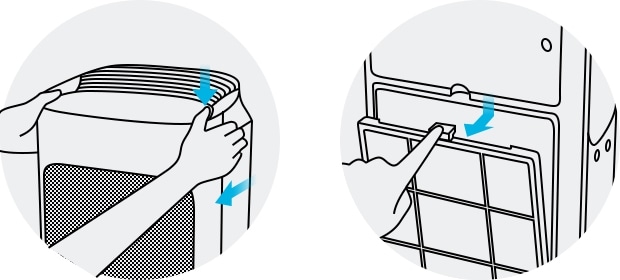

Step 1. To remove the pre-filter, remove the front panel first. Press the top of the product and pull the front panel forward.
Step 2. Remove the pre-filter.
Cleaning and drying the filter
- If you can see an accumulation of dust, remove the large dust first with a vacuum cleaner, and then rinse the filter with lukewarm water.
- When cleaning the pre-filter, rubbing with a brush or a similar tool may damage the superfine fibers.
- After cleaning, keep the filters in the shade until completely dry and away from direct sunlight.
- After assembling the pre-filter, reassemble the front panel. Insert the hook first and then press the top of the panel.
- It is recommended to have a cleaning interval of every 2 weeks when using the product 24 hours every day.
Note: Cleaning the pre-filter by rubbing with a brush or a similar tool may damage the superfine fibers.
Pre-filter disassembly

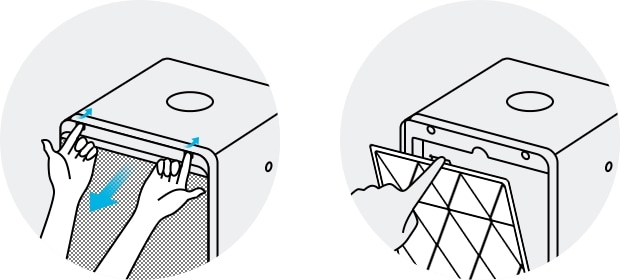

Step 1. Open the rear panel. Put your fingers in both grooves at the top of the rear panel and then pull it forward.
Step 2. Remove the pre-filter.

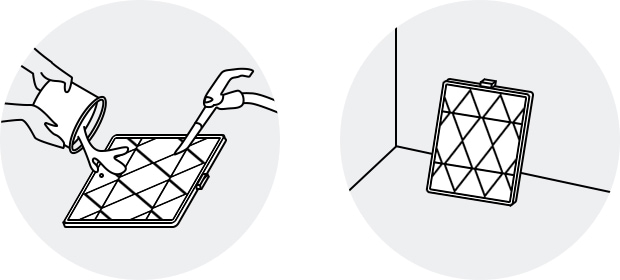

Cleaning and drying the filter
- If you can see an accumulation of dust, remove the large dust first with a vacuum cleaner, and then rinse the filter with lukewarm water.
- When cleaning the pre-filter, rubbing with a brush or a similar tool may damage the superfine fibers.
- After cleaning, keep the filters in the shade until completely dry and away from direct sunlight.
- It is recommended to have a cleaning interval of every 2 weeks when using the product 24 hours every day.
Note:
- The frequency of filter cleaning and replacement may vary depending on the operating environment.
- When using a replacement filter for the first time or replacing it with a new one, be sure to remove the vinyl packaging.
The pre-filter must be cleaned after a certain period for continuing to enjoy the fresh air. Make sure that you’re getting the best experience from your air purifier by maintaining it regularly.
In addition, as aforementioned, the deodorization filter and HEPA filter must be replaced regularly. The cleaning and replacement cycles that we recommend are given below.
- Pre-filter: Every 2 weeks if used 24 hours a day.
- Deodorization filter and HEPA filter: Every 6-12 months if used 24 hours a day.
Note: The frequency of filter cleaning and replacement may vary depending on the operating environment.
Clear the filter change reminder
After replacing the deodorization filter or HEPA filter, reset the filter replacement reminder using the Filter 3 sec button. If the reset is complete, the product will automatically notify you of the next replacement period. The method to reset the filter replacement reminder is as follows.
- If you hear a beep while the product is running and replace the filter, and then press the Filter 3 sec button for 3 seconds or more to reset.
- If the filter has been replaced before the activation of the Filter 3 sec button, reset the state by pressing the Filter 3 sec button for 3 seconds or more as well.
Filter change reminder in 2-in-1 type
Filter change reminder in a separated type
Note:
- The filter cleaning and replacement cycles may vary depending on the operating environment.
- The filter change indicator may not work properly if you continue to use old filters without replacing them or performing the reset process without the filter.
How to purchase replacement filters
If the filter replacement alarm lights up in red and you hear a beep, it suggests that the filters need to be replaced. The deodorization filter and HEPA filter are not washable, so you should replace them with new ones regularly.
To purchase the filters, visit Samsung's website. You will be able to find replacement filters suitable for the product that you are using.
With the Samsung SmartThings app, you can check the filter replacement time more quickly and easily. It is possible to check the indoor air cleanliness and set the time on and off with the SmartThings app. Also, you can reset the filter replacement reminder here and view information about the replacement filters as well. Download the SmartThings from the Play Store and App Store.
Note: For tablets that are not supported by the SmartThings app as well as smartphones that have an OS version earlier than the recommended versions (Android OS 6.0 or later (with at least 2 GB RAM), the SmartThings app may not be available.
