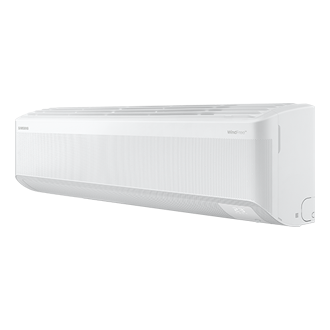

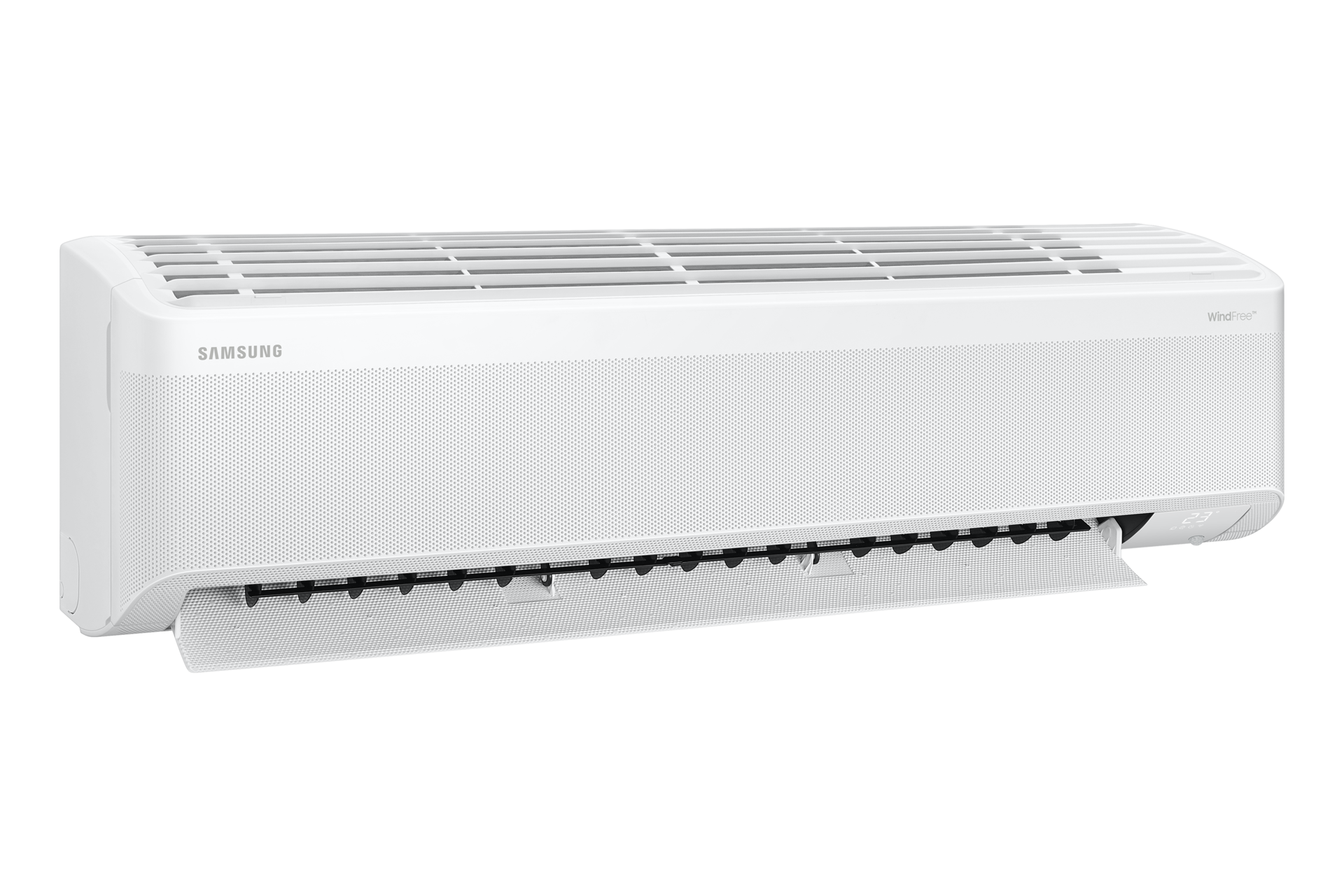

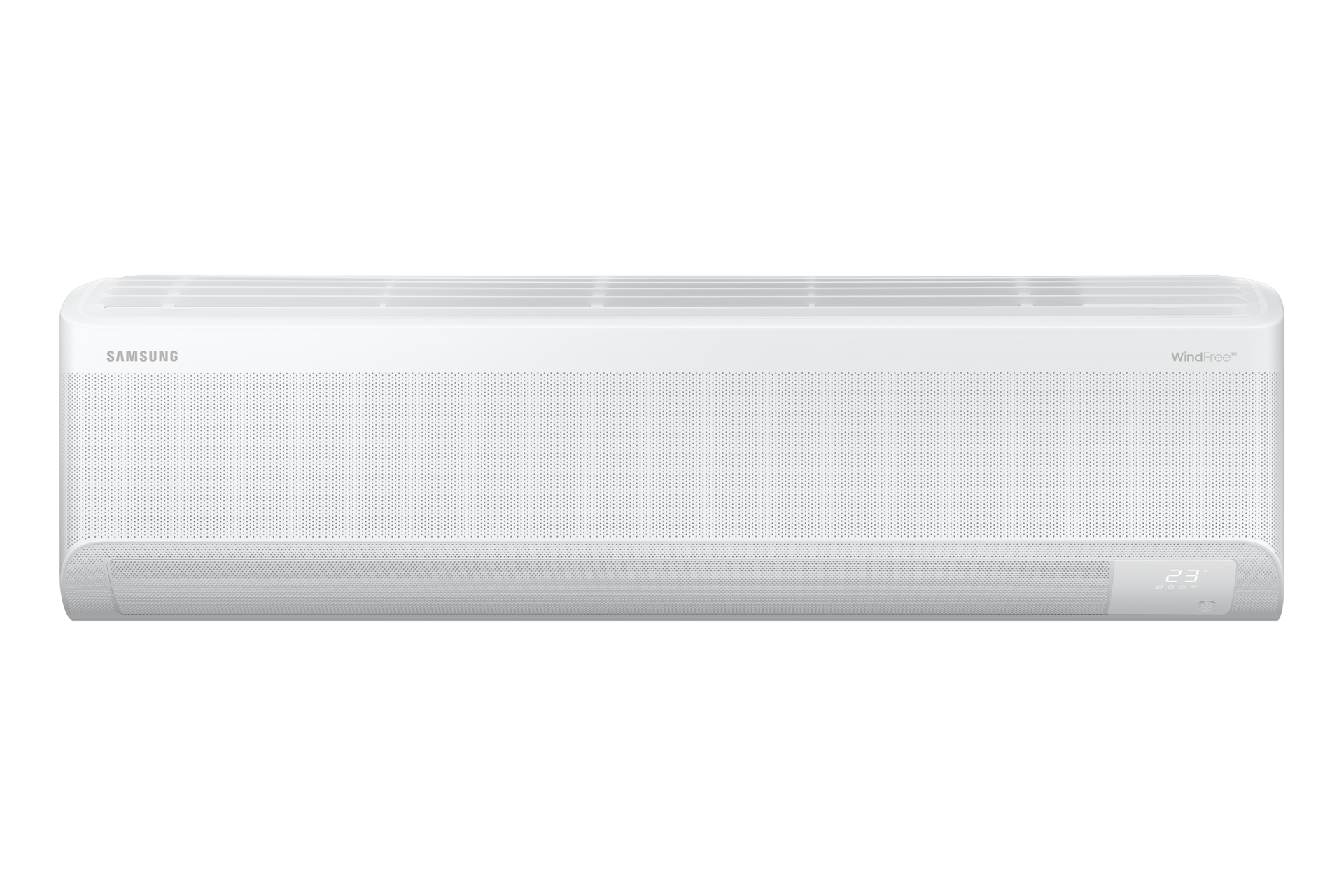

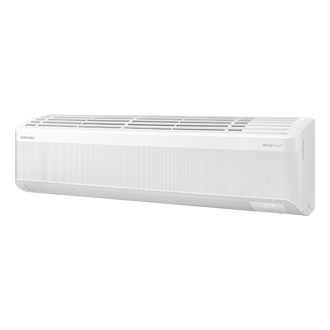

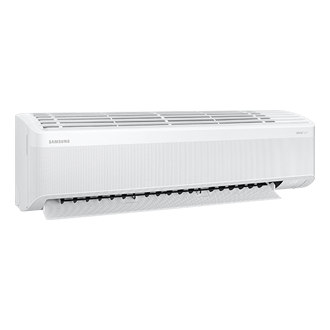

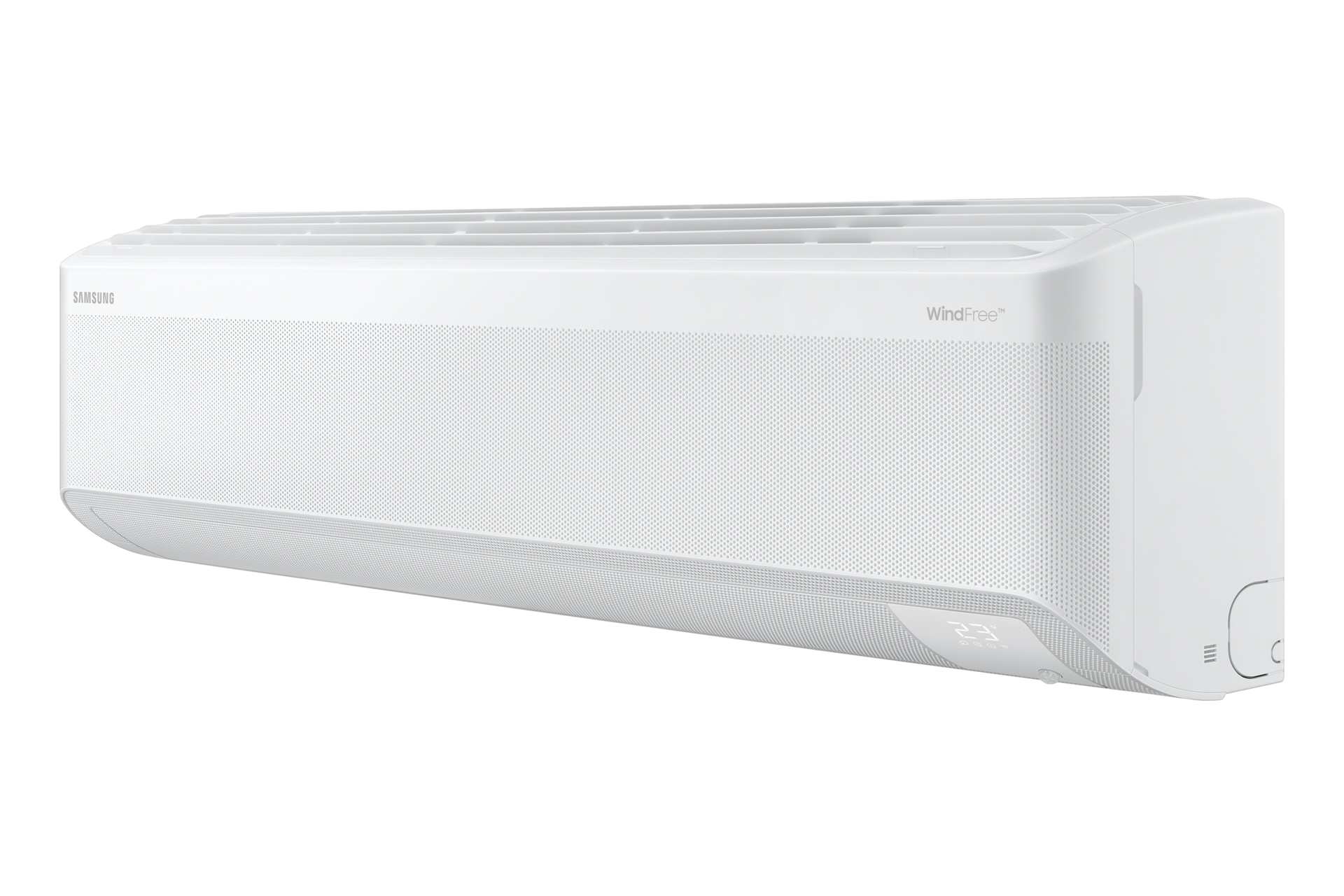

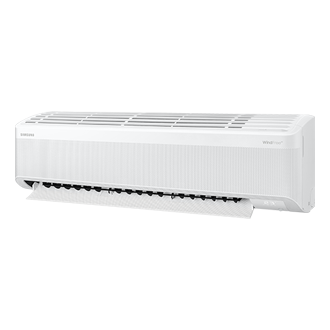

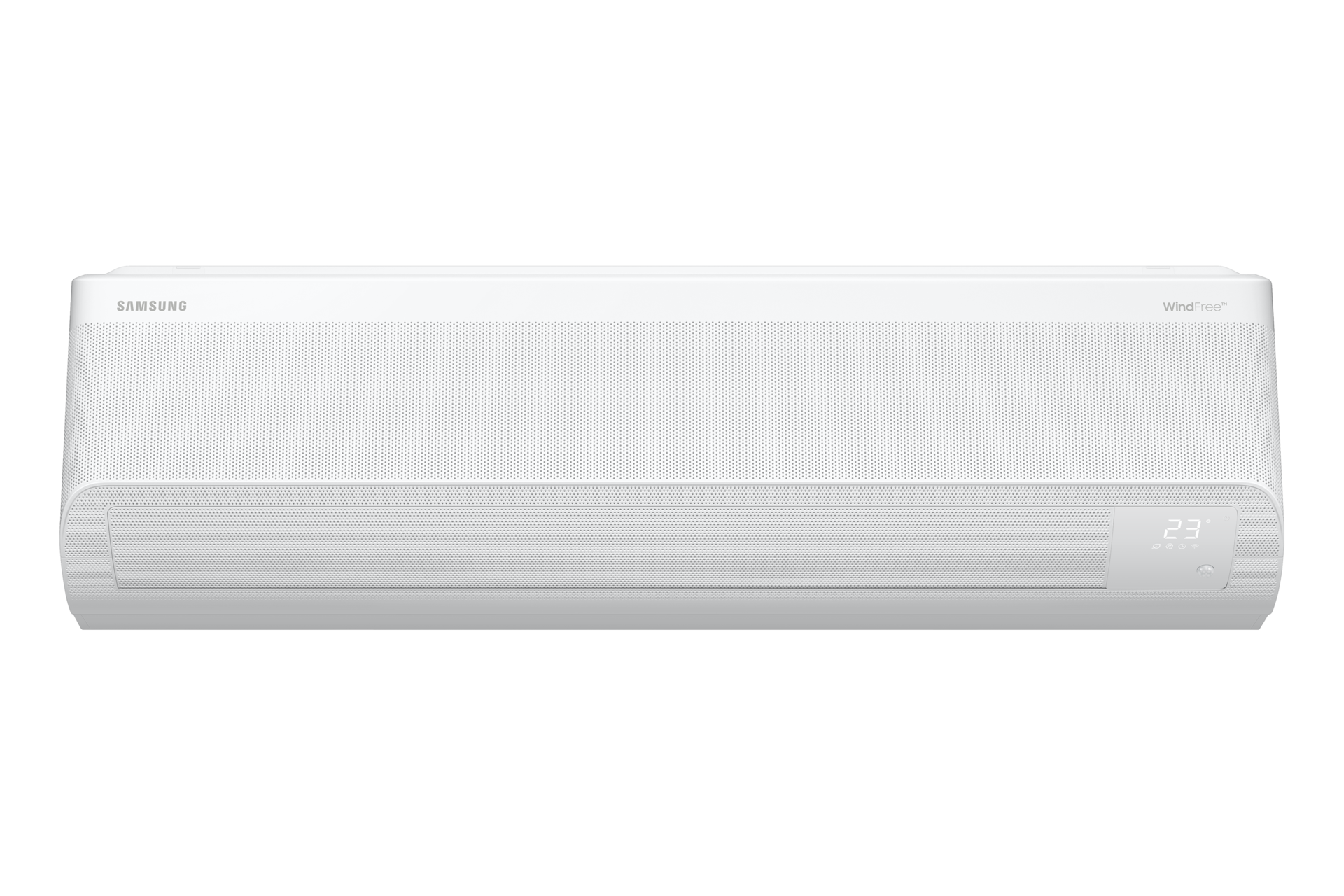

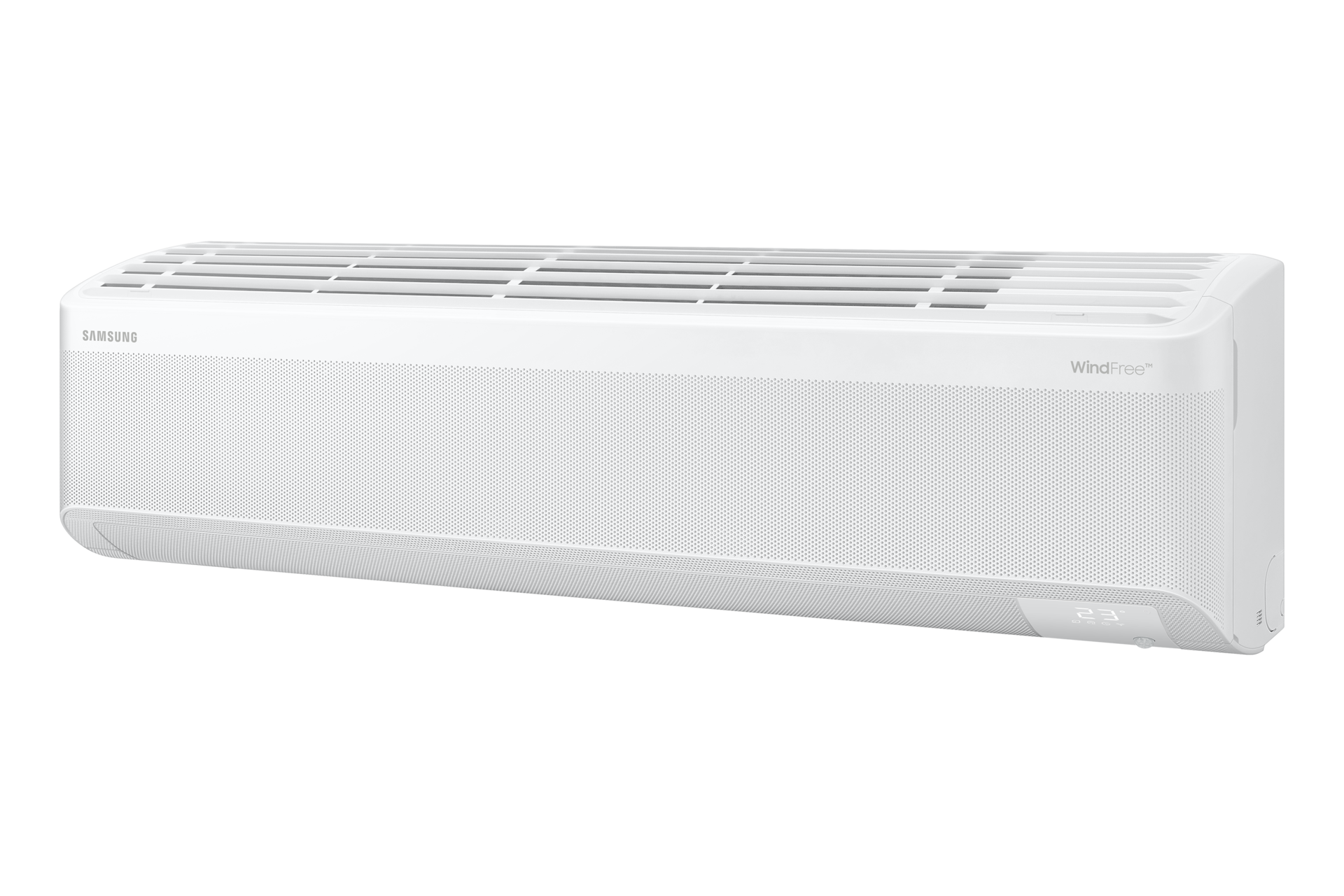

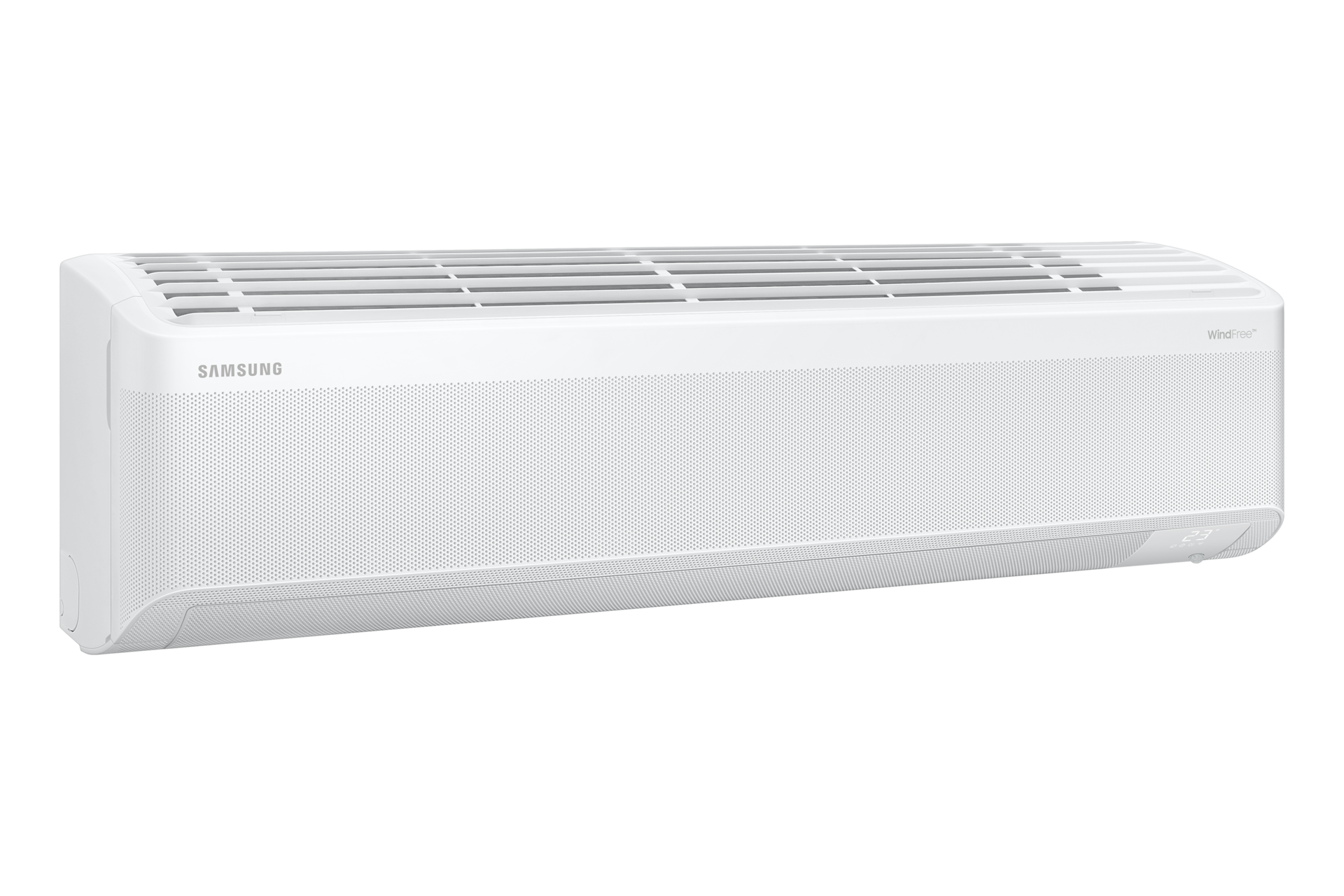

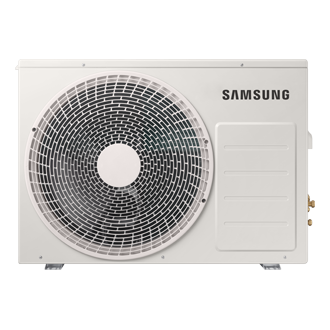

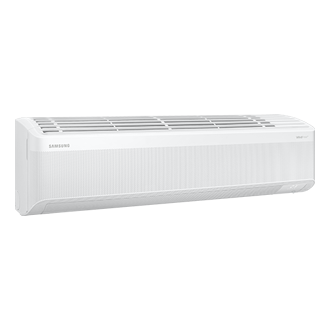

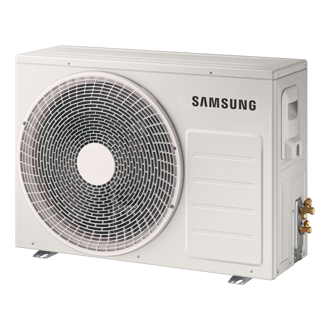

Bespoke AI WindFree RAC AI Energy Mode, 1.5 Ton
AR60F18CABW/JO
Scan this QR code with your phone and place the object in your space.
Features
Bespoke AI WindFree™
Highlights
WindFree™
AI
Performance
Efficiency
SmartThings
Hygiene
Durability
Convenience
Design
Specifications
-
Capacity (Cooling, Btu/hr)
17000 Btu/hr
-
Capacity (Cooling, kW)
4.98 kW
-
Net Dimension (Outdoor, WxHxD, mm*mm*mm)
880*638*310 mm
-
Capacity (Cooling, Btu/hr)
17000 Btu/hr
-
Capacity (Heating, Btu/hr)
20500 Btu/hr
-
Capacity (Cooling, Min - Max, Btu/hr)
5400 - 23000 Btu/hr
-
Capacity (Heating, Min - Max, Btu/hr)
4500 - 27300 Btu/hr
-
Capacity (Cooling, kW)
4.98 kW
-
Capacity (Heating, kW)
6.01 kW
-
Capacity (Cooling, Min - Max, kW)
1.58 - 6.74 kW
-
Capacity (Heating, Min - Max, kW)
1.32 - 8 kW
-
SEER(W/W, Energy Label)
7.0
-
SCOP(W/W, Energy Label)
3.8
-
Energy Efficiency Class for cooling (Grade)
A++ / A
-
Noise Level (Indoor, High/Low, dBA)
41/28 dBA
-
Noise Level (Outdoor, High/Low, dBA)
51 dBA
-
Power Source(Φ/V/Hz)
1 / 220-240~ / 50
-
Power Consumption(Cooling, W)
1390 W
-
Power Consumption(Heating, W)
1700 W
-
Operating Current(Cooling, A)
6.4 A
-
Operating Current(Heating, A)
7.8 A
-
Gross Dimension (Indoor, WxHxD, mm*mm*mm)
1115*290*375 mm
-
Gross Dimension (Outdoor, WxHxD, mm*mm*mm)
1023*724*413 mm
-
Net Dimension (Indoor, WxHxD, mm*mm*mm)
1055*299*215 mm
-
Net Dimension (Outdoor, WxHxD, mm*mm*mm)
880*638*310 mm
-
Gross Weight (Indoor, kg)
13.2 kg
-
Gross Weight (Outdoor, kg)
40.0 kg
-
Net Weight (Indoor, kg)
11.5 kg
-
Net Weight (Outdoor, kg)
37.0 kg
-
Loading Quantity (20/40/40Hft without Pipe)
65 / 138 / 154
-
Piping Length (Max, m)
30 m
-
Piping Height (Max, m)
15 m
-
SVC Valve (Liquid (ODxL))
6.35
-
SVC Valve (Gas (ODxL))
12.7
-
Moisture Removal (l/hr)
1.93 l/hr
-
Air Circulation (Cooling, m3/min)
14.50 ㎥/min
-
Refrigerant (Type)
R32
-
Refrigerant (Charging, kg)
1.15 kg
-
Refrigerant (Charging, tCO2e)
0.78 tCO2e
-
Low Ambient (Cooling, ℃)
-10~46 ℃
-
Low Ambient (Heating, ℃)
-15~24 ℃
-
Outdoor Unit (Compressor Type)
BLDC
-
Outdoor Unit (Anti-Corrosion Fin)
Yes
-
WindFree Cooling
Yes
-
Air Direction Control (Up/Down)
Auto
-
Air Direction Control (Left/Right)
Auto
-
Air Flow Control Step (Cool/Fan)
5/4
-
PM 1.0 Filter
No
-
Tri Care Filter
No
-
4-in-1 Care Filter
No
-
Copper Anti-bacterial Filter
No
-
Auto Clean (Self Cleaning)
Yes
-
Easy Filter Plus
Yes
-
SmartThings
Yes
-
AI Auto Cooling
Yes
-
Motion Detect Sensor
Yes
-
Freeze Wash
Yes
-
Filter Cleaning Indicatior
Yes
-
Indoor Temp. Display
Yes
-
Display On/Off
Yes
-
Beep On/Off
Yes
-
24-Hour Timer
Yes
-
Auto Changeover
Yes
-
Auto Restart
Yes
-
Auto Mode
Yes
-
Fast Cool
Yes
-
Dry Comfort
Yes
-
Good Sleep
Yes
-
Eco Mode
Yes
-
Dehumidification
No
-
Fan Mode
No
-
Quiet
Yes
-
WiFi Embedded
Yes
-
SmartThings App Support
Yes
