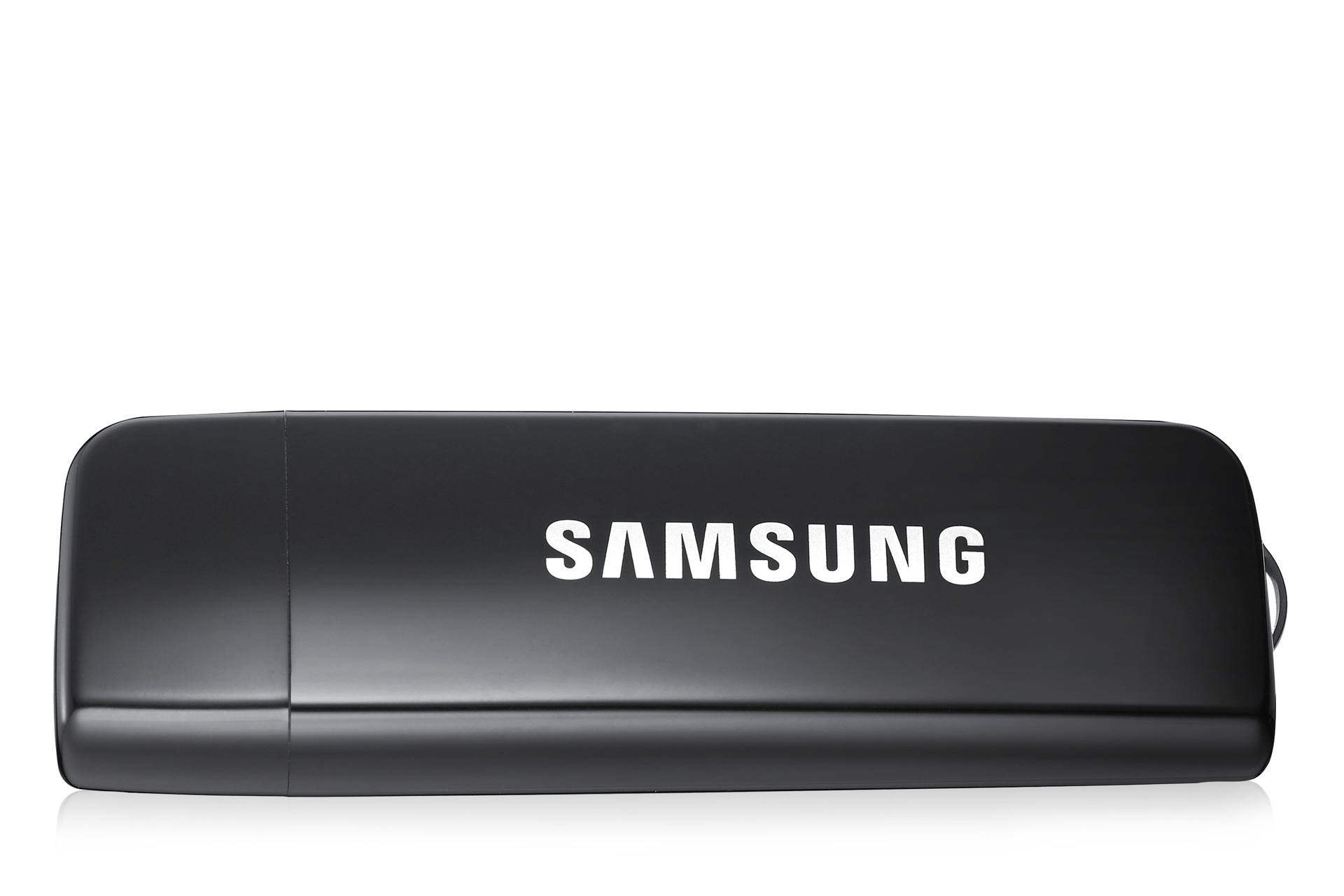

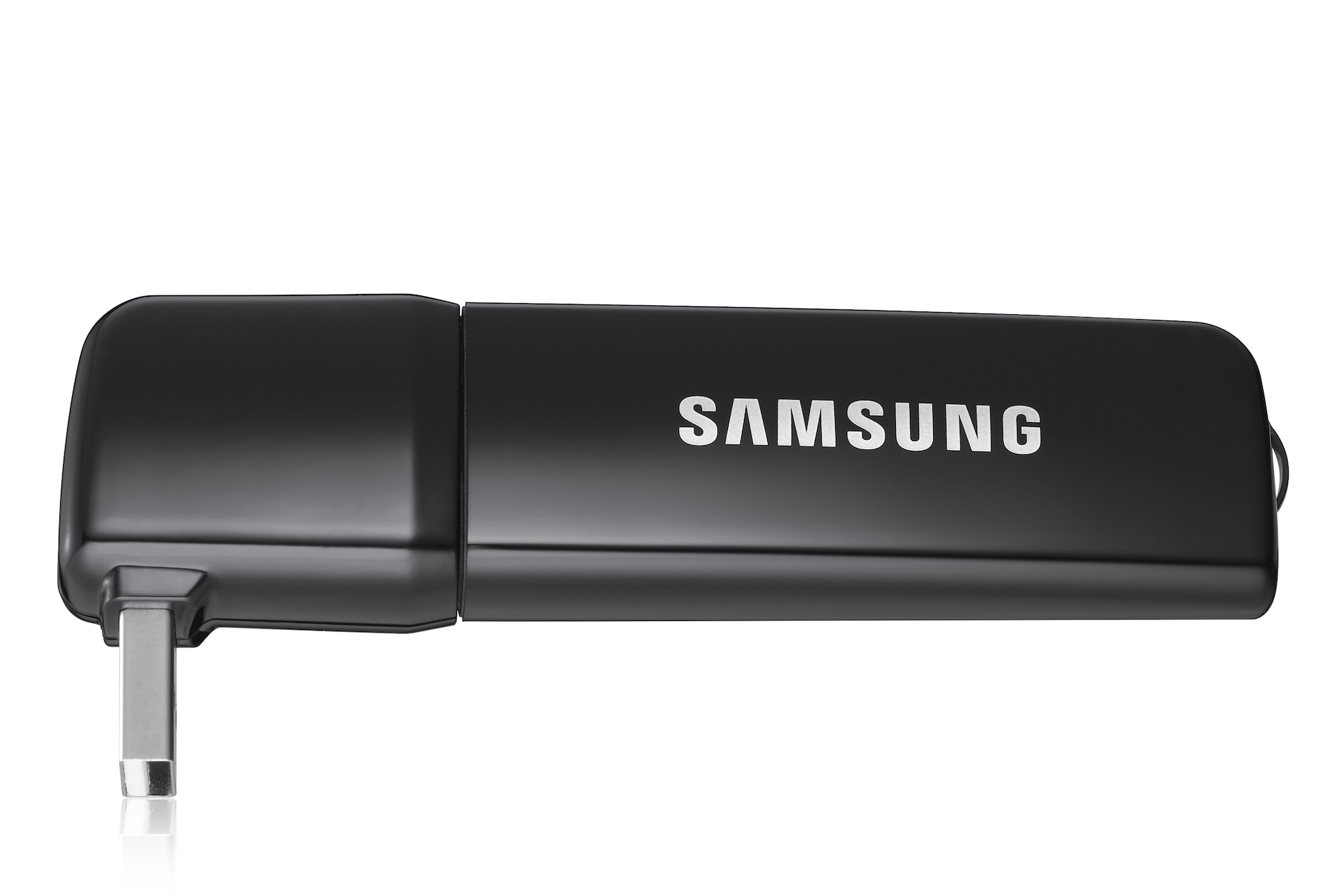

WIS12ABGNX Wireless LAN Adaptor


Take the easy step to more and better connections. The Samsung WIS12ABGNX Wireless LAN Adaptor lets you connect your Samsung TV, home entertainment system or Blu-ray player to the internet. Thanks to Smart Hub, you can also link all your entertainment devices for easy and versatile control. You’ll also be able to stream content from compatible mobile phones, Note PCs and digital cameras using AllShare. 4.397 5 68 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Layer Popup Close
At a Glance
  • Connect to the internet and other devices easily
  • Stream content from phones, cameras, PCs and more
  • Extend signal range using included extension cable
  • Link your entire entertainment system with Smart Hub

Transform to smarter TV connectivity

Transform to smarter TV connectivity
Use the LAN adapter to wirelessly access content for your Smart TV from the internet or from your digital camera, mobile phone, Note PC or other DLNA-certified multimedia devices. It communicates with your Smart Hub and links instantly with all elements of your Samsung home-entertainment system, giving you complete and easy control. Supported by the latest wireless LAN protocols - 802.11n, 802.11a, 802.11b and 802.11g, as well as DLNA 1.5 – easily access and connect to Samsung’s AllShare™ and directly stream content from devices to your TV.

Enjoy a greater wireless connection

Enjoy a greater wireless connection
Expand your wireless range and signal by connecting the dongle to your Smart TV. The Samsung wireless dongle is the easiest way to connect to not only the internet but also your DLNA-certified multimedia devices. It keeps your home entertainment system connected with simple controls and doesn’t require other software. And to increase the wireless range and strengthen the signal, connect the dongle to the Smart TV with the included extension cable. Make the jump to easier connectivity that gives you more.

Output Power

  • IEEE 802.11a11dBm at 54Mbps
  • IEEE 802.11b17dBm at 11, 5.5, 2, and 1Mbps
  • IEEE 802.11g14dBm at 54 Mbps
  • IEEE 802.11n (2.4GHz)14dBm (20MHz) / 12dBm (40MHz)
  • IEEE 802.11n (5GHz)11dBm (20MHz) / 9dBm (40MHz)


  • BD Player2010: C5*** series - 2011: D53** ~ D55** - 2012: BD E5500, ES6300
  • HES2010: C5*** series - 2011: D51** ~ D53** (D5000 ~ D55**, D7000 are only supported in Europe) - 2012: E4200, 4500
  • LCD TV2010 C550 and above2011 D530 and above
  • LED TV2010 C5000 and above2011 D5000 ~ D64**2012 EH 4500, EH 5300, EH 5400, ES 5500,ES 5700
  • Plasma TV2010 C550 and above (C540 is only supported in North America) 2011 D550 ~ D64**2012 E 490, 550 (Korea, Europe & CIS)
View remaining tech specs


  • IEEE 802.11a/b/g/nYes

Host Interface

  • Host InterfaceUSB 2.0

Frequency Range

  • Frequency Range2.412 ~ 2.4835GHz / 5.15 ~ 5.850GHz


  • Security64/128bit WEP, WPA / WPA2, 802 1x, WPS

Data Rate

  • IEEE 802.11a/g54, 48, 36, 24, 18, 12, 9 and 6Mbps
  • IEEE 802.11b11, 5.5, 2 and 1Mbps
  • IEEE 802.11nUp to 300Mbps (40MHz / spatial streams:2)


  • IEEE 802.11a/g-68dBm at 54Mbps
  • IEEE 802.11b-84dBm at 11Mbps
  • IEEE 802.11n-68dBm (20MHz) / -65dBm (40MHz)

Dimension (WxHxD)

  • Package95 x 165 x 30mm
  • Set26.6 x 84 x 16mm

Ideal For Music, Photo

  • IEEE 802.11a/b/g/nRecommended

Ideal For Streaming HD Video

  • IEEE 802.11a/b/g/n(2.4GHz)Not recommended
  • IEEE 802.11n (5GHz)Recommended

Ideal For Streaming SD Video

  • IEEE 802.11a/b/g/nRecommended


  • Package103g
  • Set17g


  • User ManualYes
  • AV genderYes
  • USB Extension CableYes

Power Consumption

  • TX (Transmitter)500mA
  • RX (Receiver)300mA
