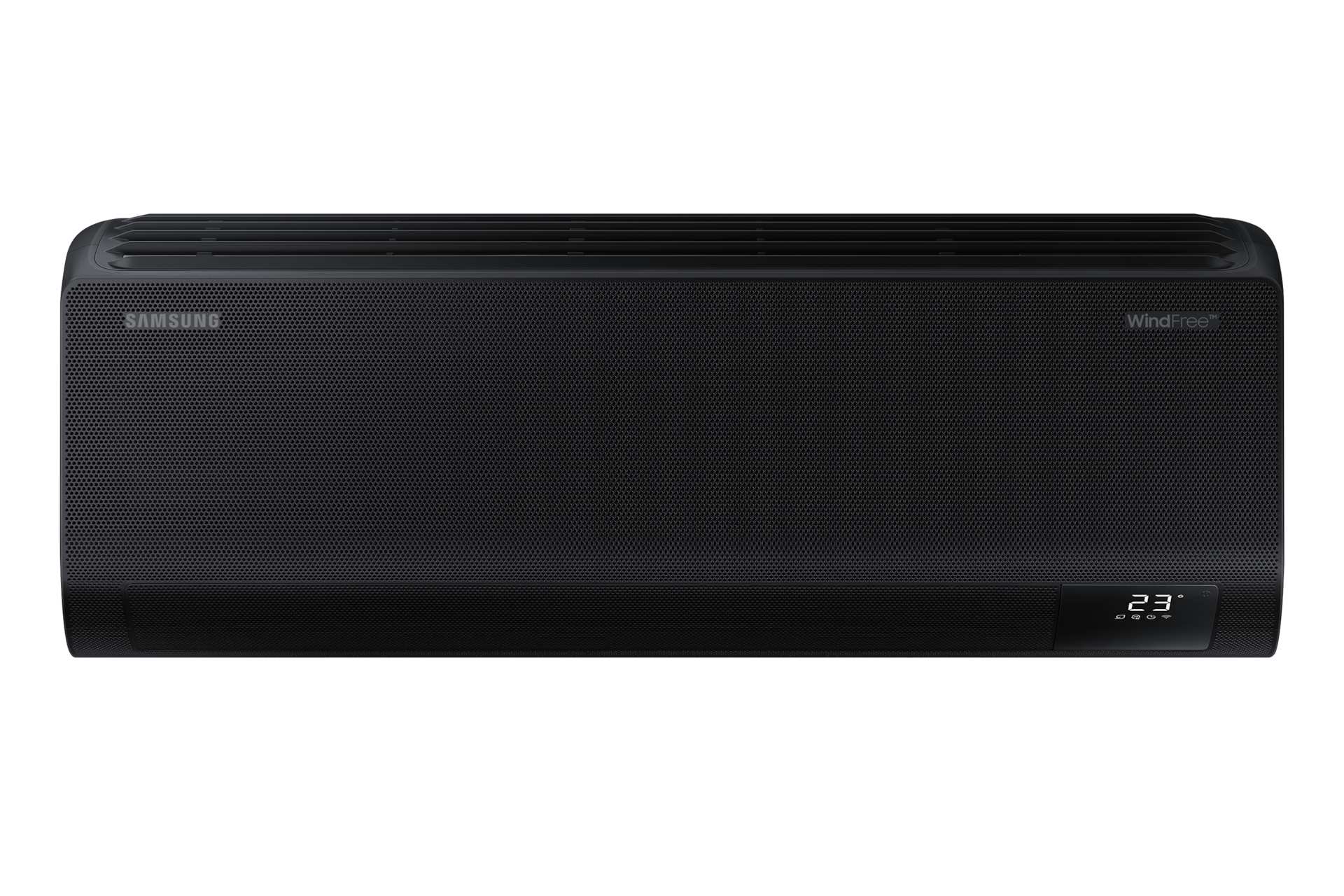

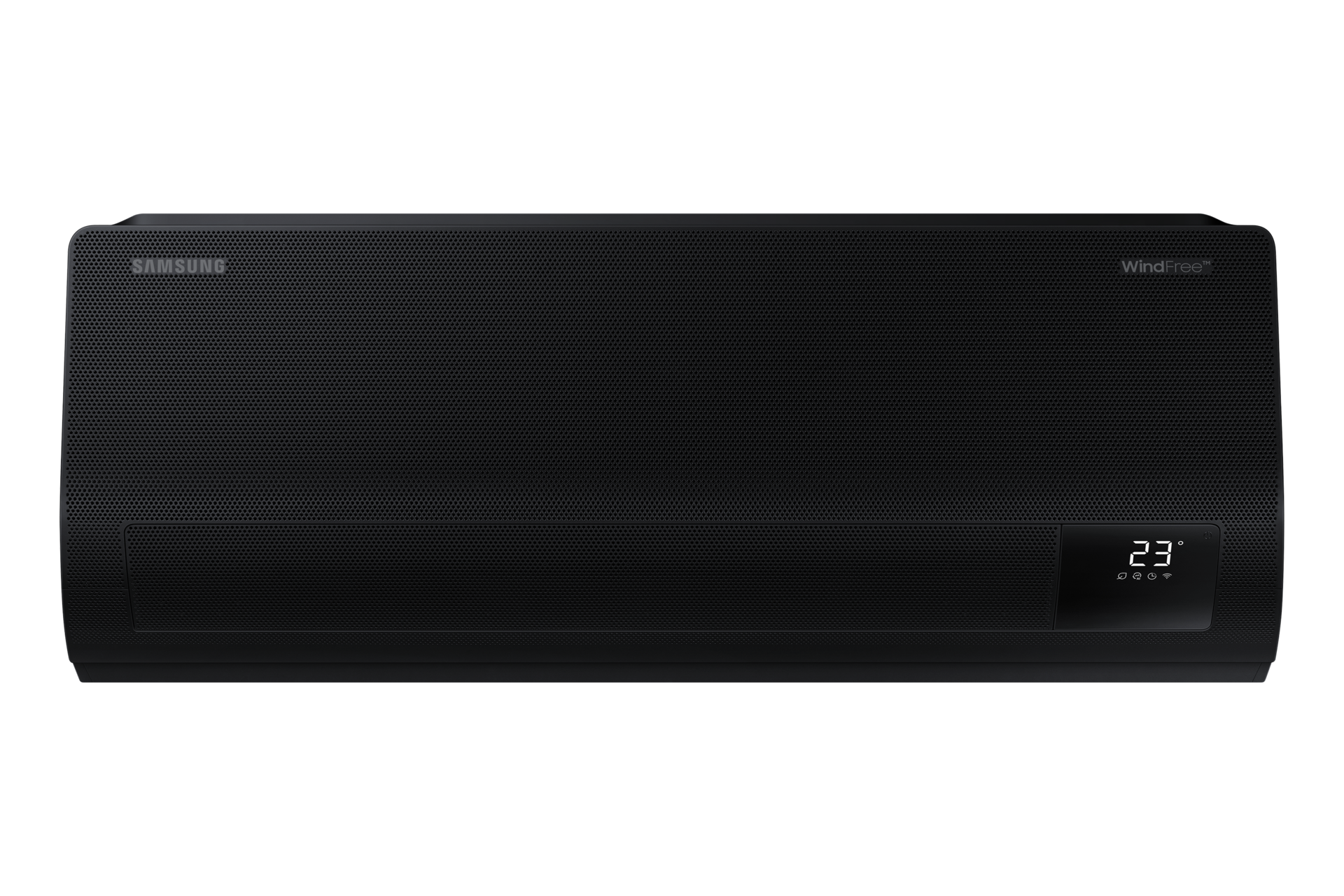

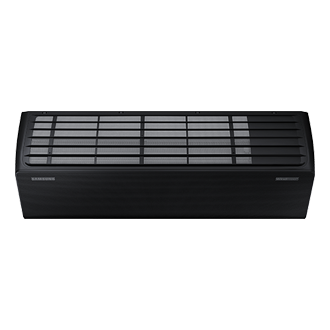

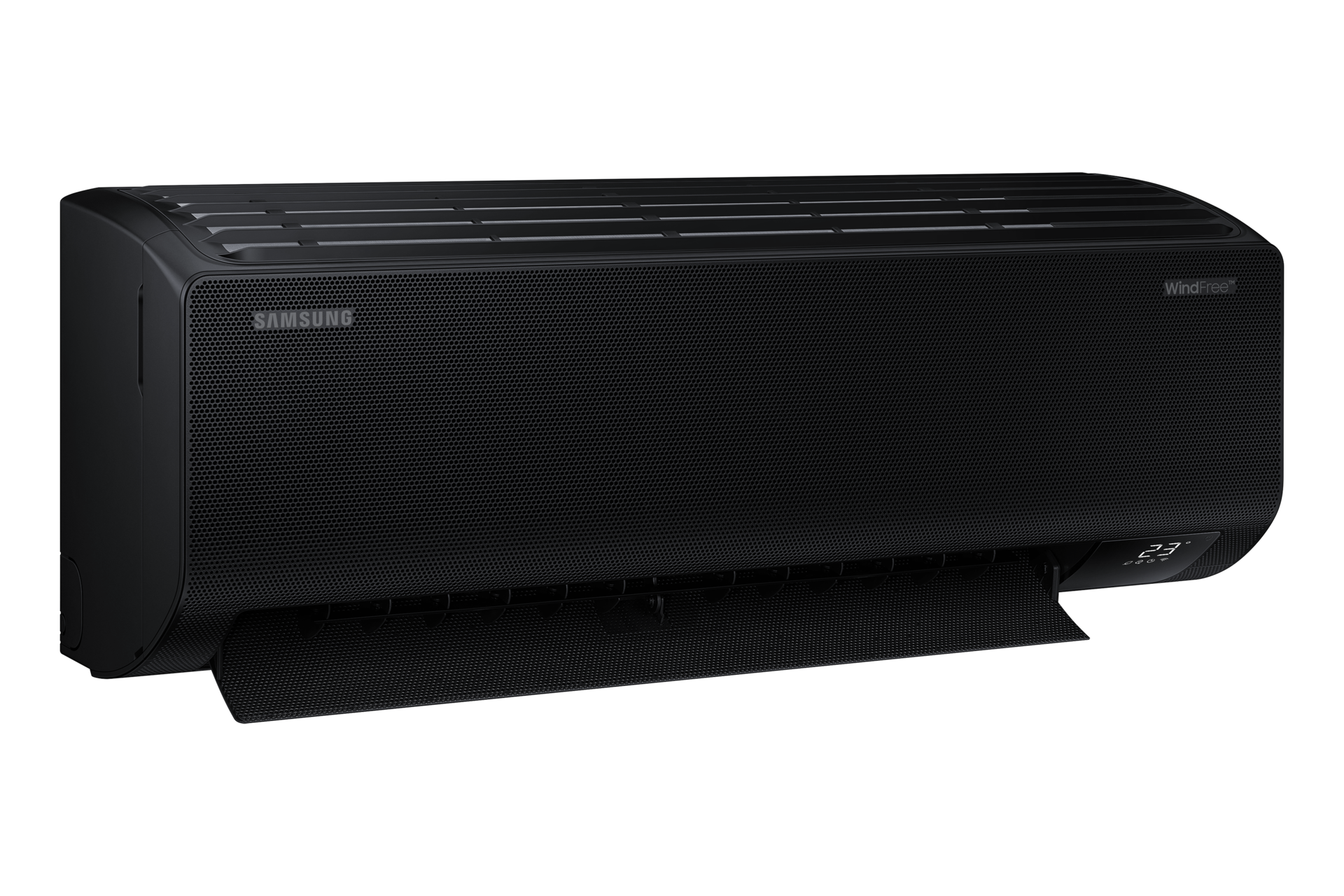

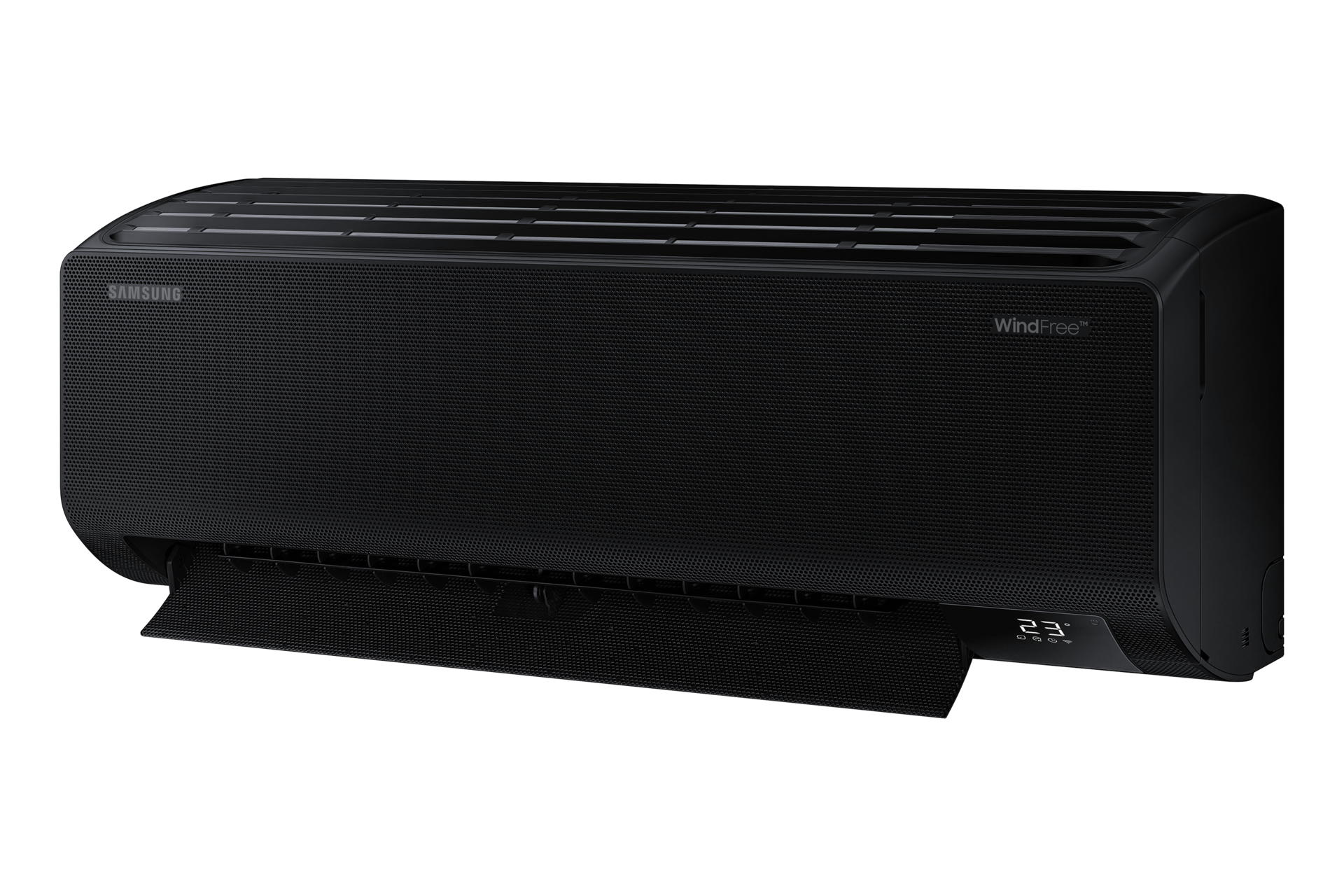

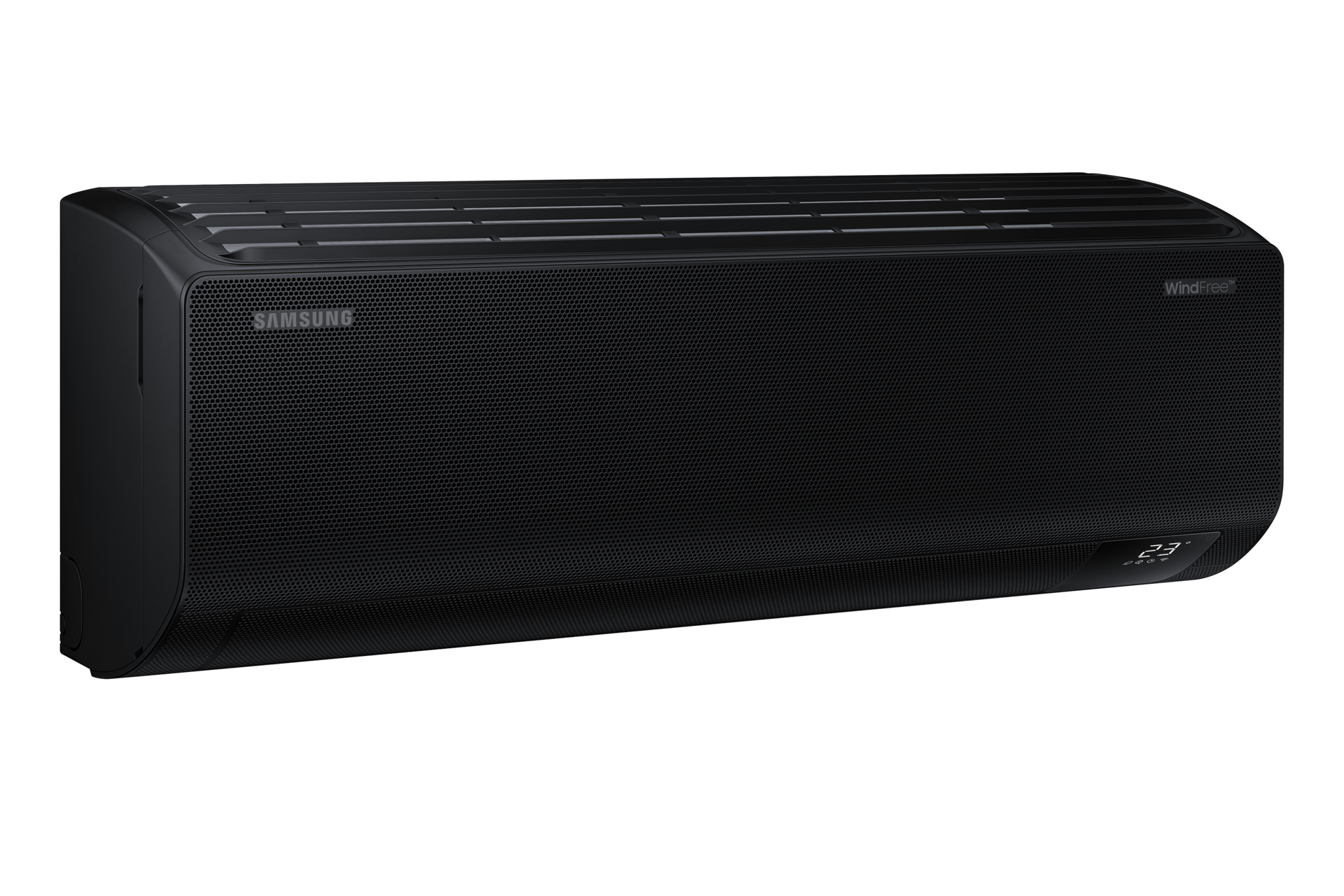

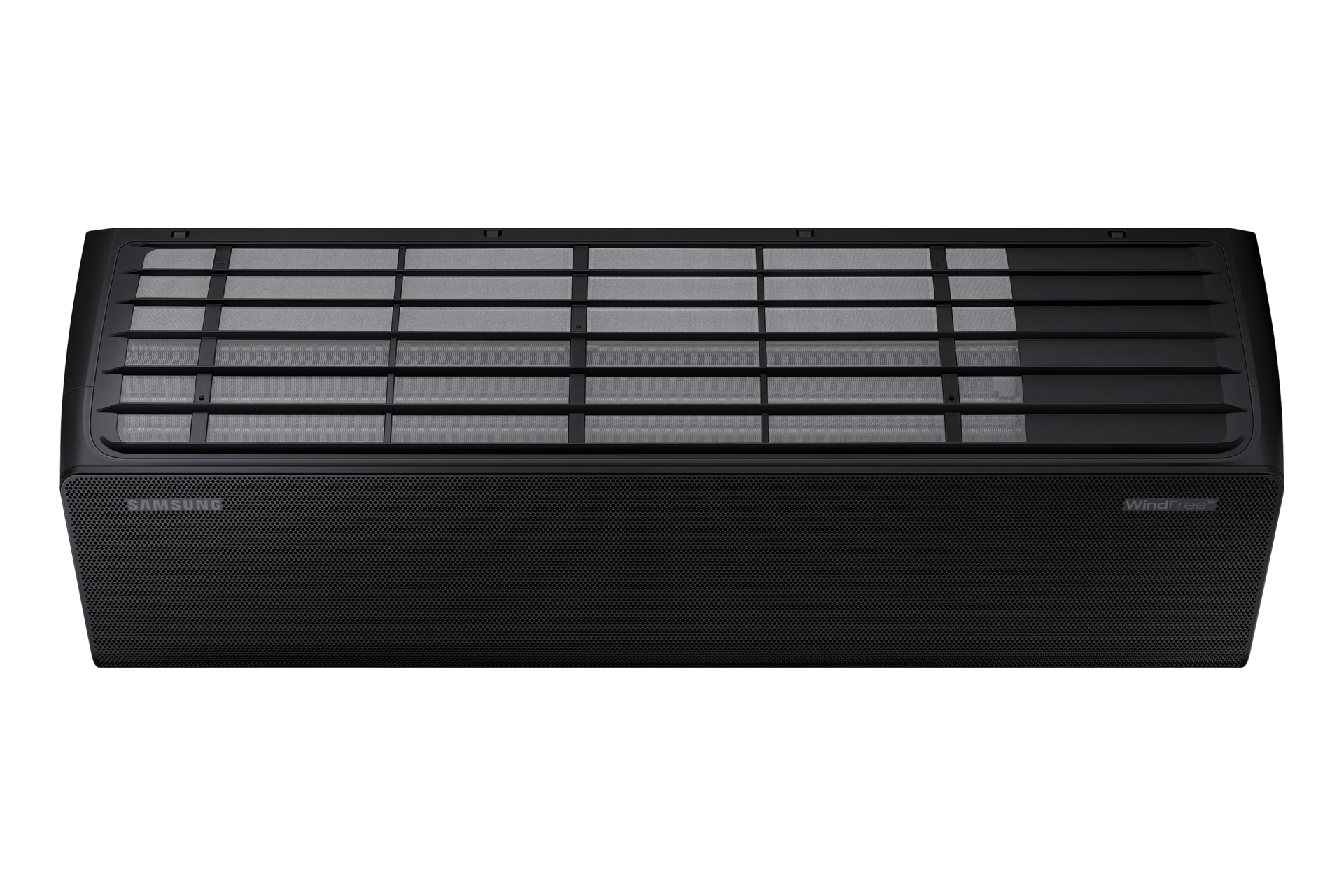

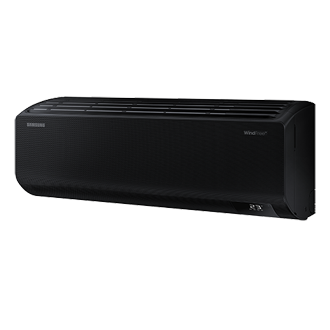

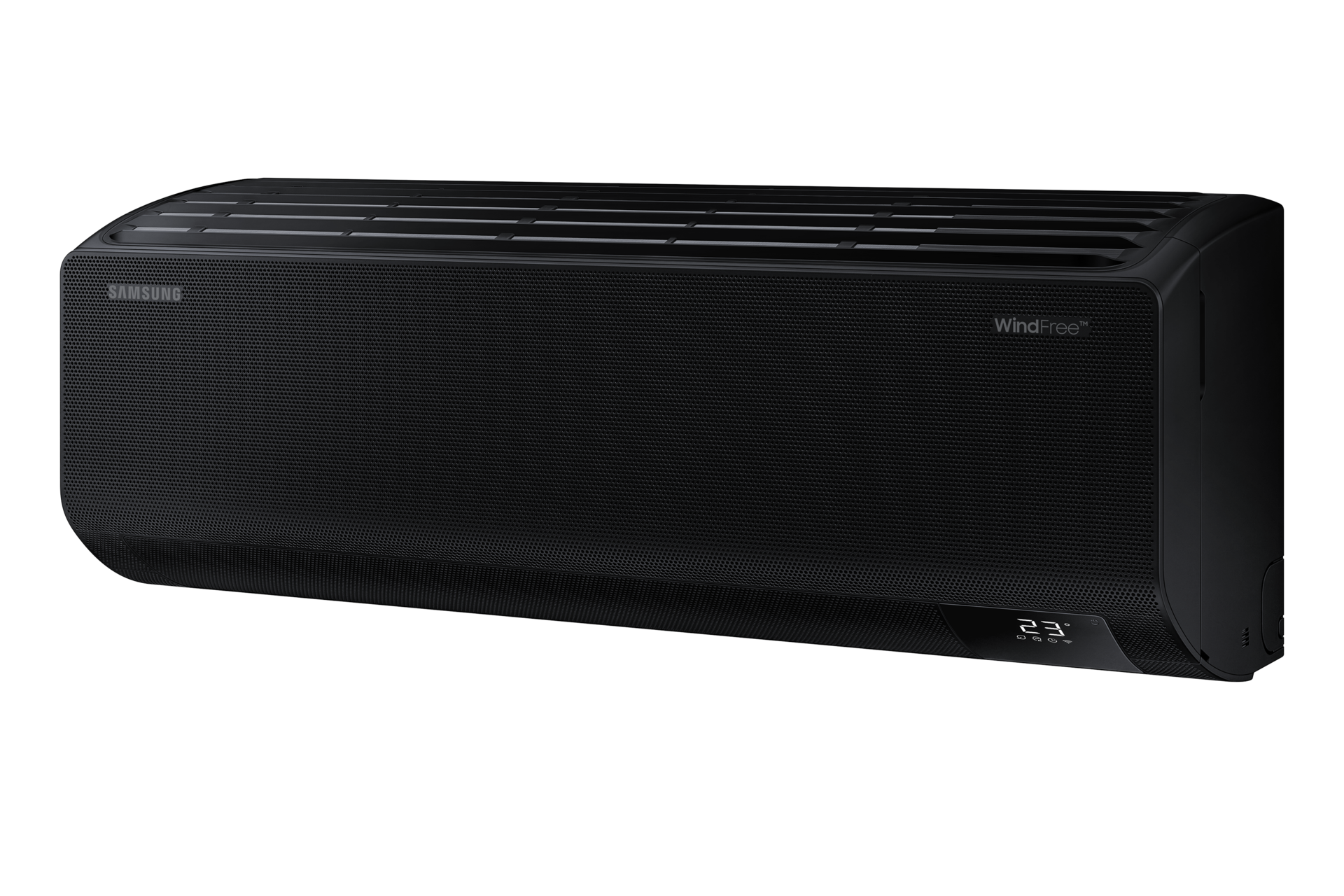

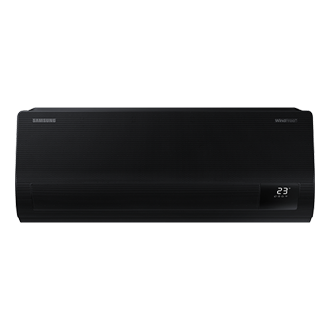

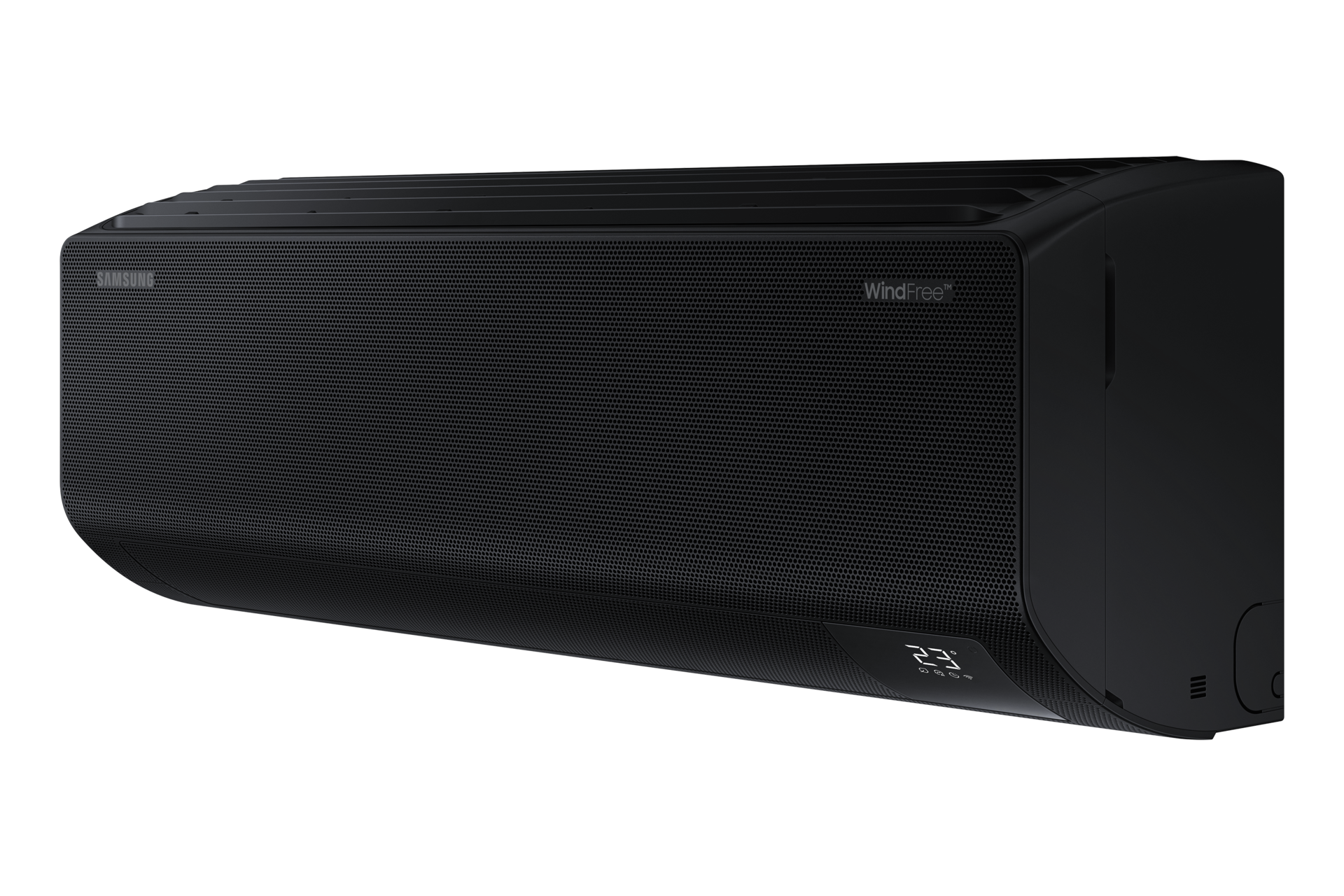

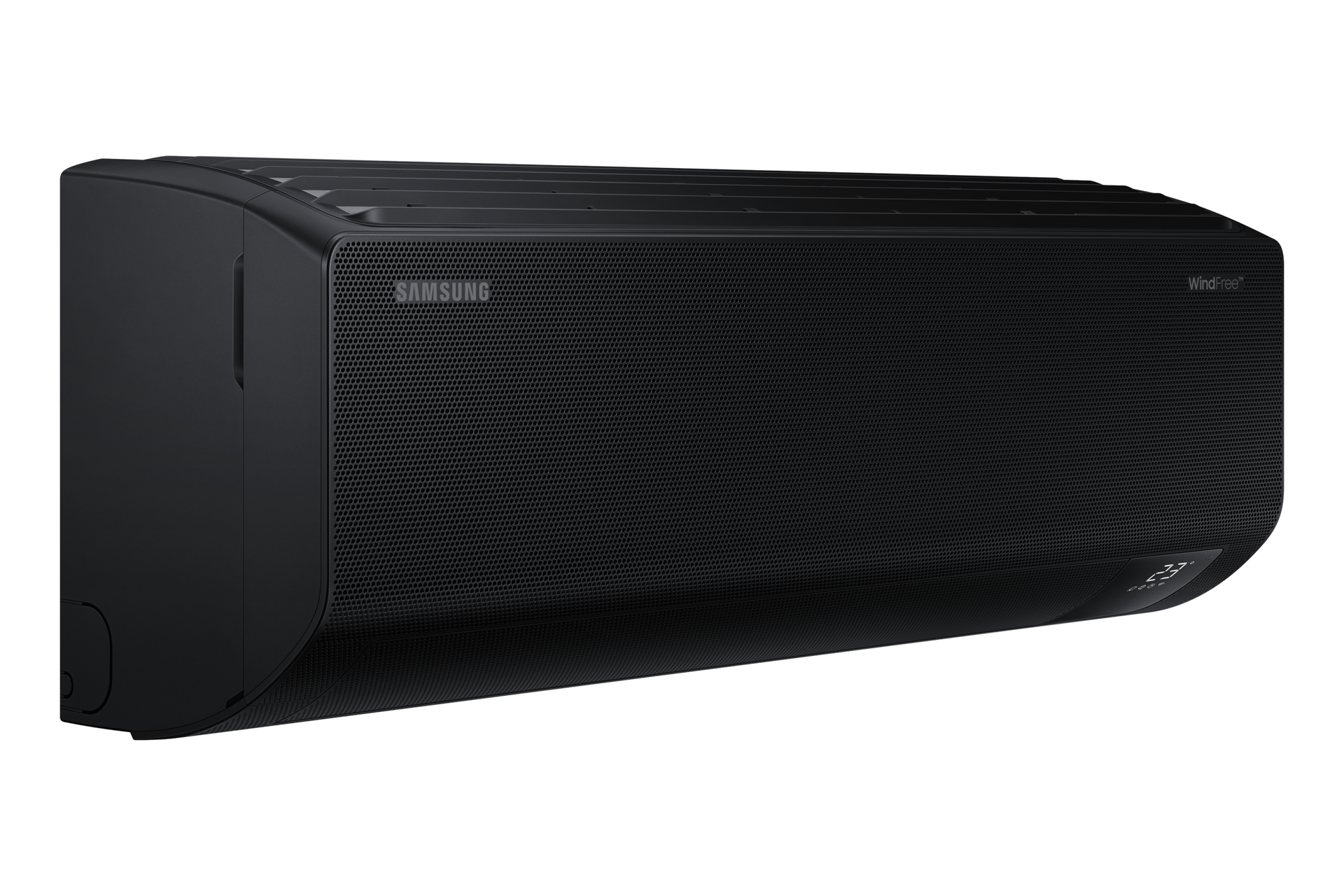

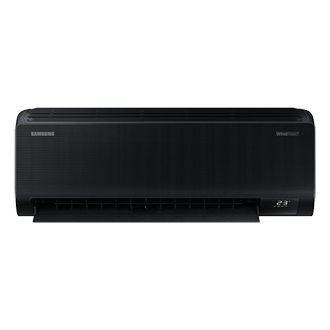

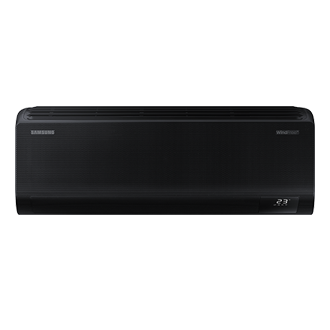

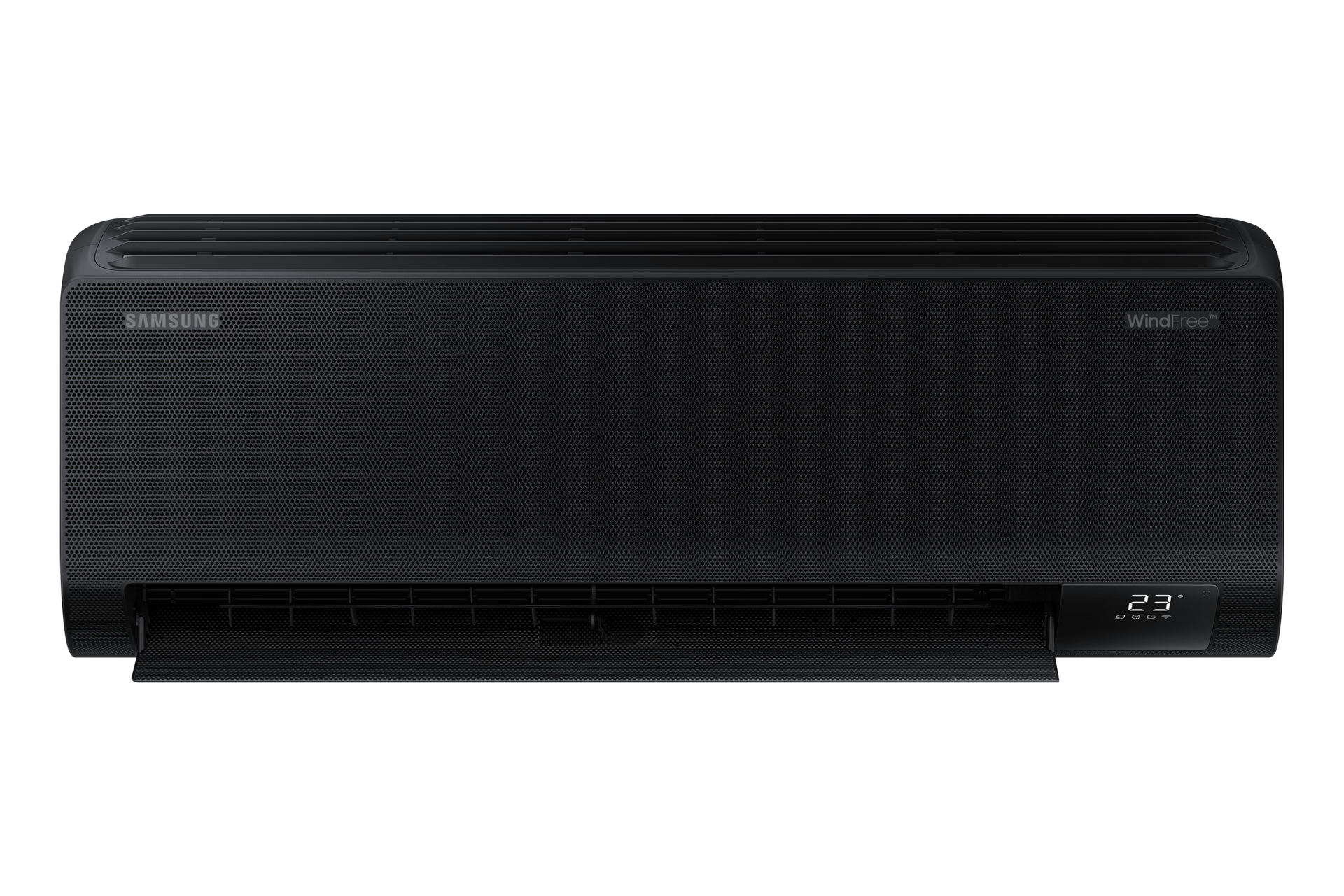

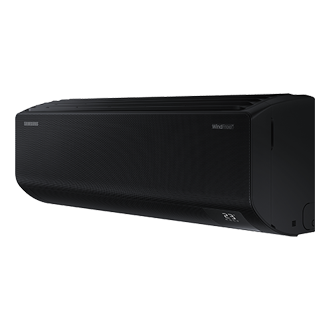

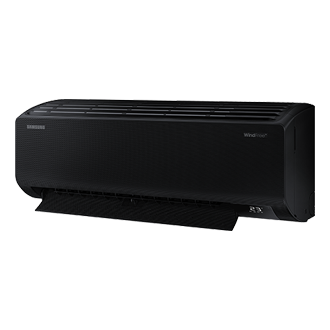

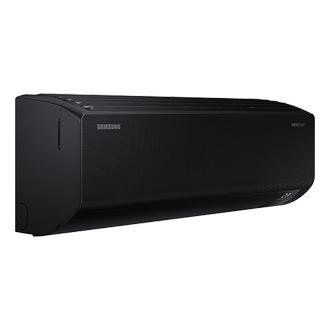

WindFree™ AirConditioner Wall-mount Bespoke AI with AI Energy Mode 11900 Btu/hr
AR70F12D1BBNAP
Please scan the QR Code with your mobile device, and place the product image in desired place.
Features
Bespoke AI WindFree™
Highlights
WindFree™
AI
Performance
Efficiency
SmartThings
Hygiene
Durability
Convenience
Design
Specifications
-
Capacity (Cooling, Btu/hr)
11900 Btu/hr
-
Capacity (Cooling, kW)
3.5 kW
-
EER (Cooling, W/W)
3.39 W/W
-
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
710*540*220 mm
-
Capacity (Cooling, Btu/hr)
11900 Btu/hr
-
Capacity (Cooling, Min - Max, Btu/hr)
3,750 ~ 14,000 Btu/hr
-
Capacity (Cooling, kW)
3.5 kW
-
Capacity (Cooling, Min - Max, kW)
1.1 ~ 4.1 kW
-
SEER(W/W, Energy Label)
Ecuador : 6.6
-
SEER(Btu/hW)
Panama : 21.00
-
EER (Cooling, W/W)
3.39 W/W
-
EER (Cooling, Btu/hW)
11.55 Btu/hW
-
Energy Efficiency Class (Grade)
Ecuador : A++
-
Noise Level (Indoor, High/Low, dBA)
38 / 22 dBA
-
Noise Level (Outdoor, High/Low, dBA)
48 dBA
-
Power Source(Φ/V/Hz)
1/ 220~/ 50/60Hz
-
Power Consumption(Cooling, W)
1030 W
-
Operating Current(Cooling, A)
4.8 A
-
Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)
880*290*375 mm
-
Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
834*620*323 mm
-
Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)
820*299*215 mm
-
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
710*540*220 mm
-
Gross Weight (Indoor, kg)
10.1 kg
-
Gross Weight (Outdoor, kg)
26.4 kg
-
Net Weight (Indoor, kg)
8.7 kg
-
Net Weight (Outdoor, kg)
22.9 kg
-
Loading Quantity (20/40/40Hft without Pipe)
105 / 212 / 252
-
Piping Length (Max, m)
15 m
-
Piping Height (Max, m)
8 m
-
SVC Valve (Liquid (ODxL))
6.35
-
SVC Valve (Gas (ODxL))
9.52
-
Moisture Removal (l/hr)
1.40 l/hr
-
Air Circulation (Cooling, ㎥/min)
10.30 ㎥/min
-
Refrigerant (Type)
R32
-
Refrigerant (Charging, kg)
0.550 kg
-
Refrigerant (Charging, tCO2e)
0.37 tCO2e
-
Low Ambient (Cooling, ℃)
16~46 ℃
-
Outdoor Unit (Compressor Type)
BLDC
-
Outdoor Unit (Anti-Corrosion Fin)
Yes
-
WindFree Cooling
Yes
-
Air Direction Control (Up/Down)
Auto
-
Air Direction Control (Left/Right)
Auto
-
Air Flow Control Step (Cool/Fan)
5/4
-
PM 1.0 Filter
No
-
Tri Care Filter
Yes
-
Copper Anti-bacterial Filter
Yes
-
Auto Clean (Self Cleaning)
Yes
-
Easy Filter Plus
Yes
-
SmartThings
Yes
-
AI Auto Cooling
Yes
-
Motion Detect Sensor
No
-
Freeze Wash
Yes
-
Filter Cleaning Indicatior
Yes
-
Indoor Temp. Display
Yes
-
Display On/Off
Yes
-
Beep On/Off
Yes
-
24-Hour Timer
Yes
-
Auto Changeover
No
-
Auto Restart
Yes
-
Auto Mode
Yes
-
Fast Cool
Yes
-
Dry Comfort
Yes
-
Good Sleep
Yes
-
Eco Mode
Yes
-
Dehumidification
Yes
-
Fan Mode
Yes
-
Quiet
Yes
-
WiFi Embedded
Yes
-
SmartThings App Support
Yes
