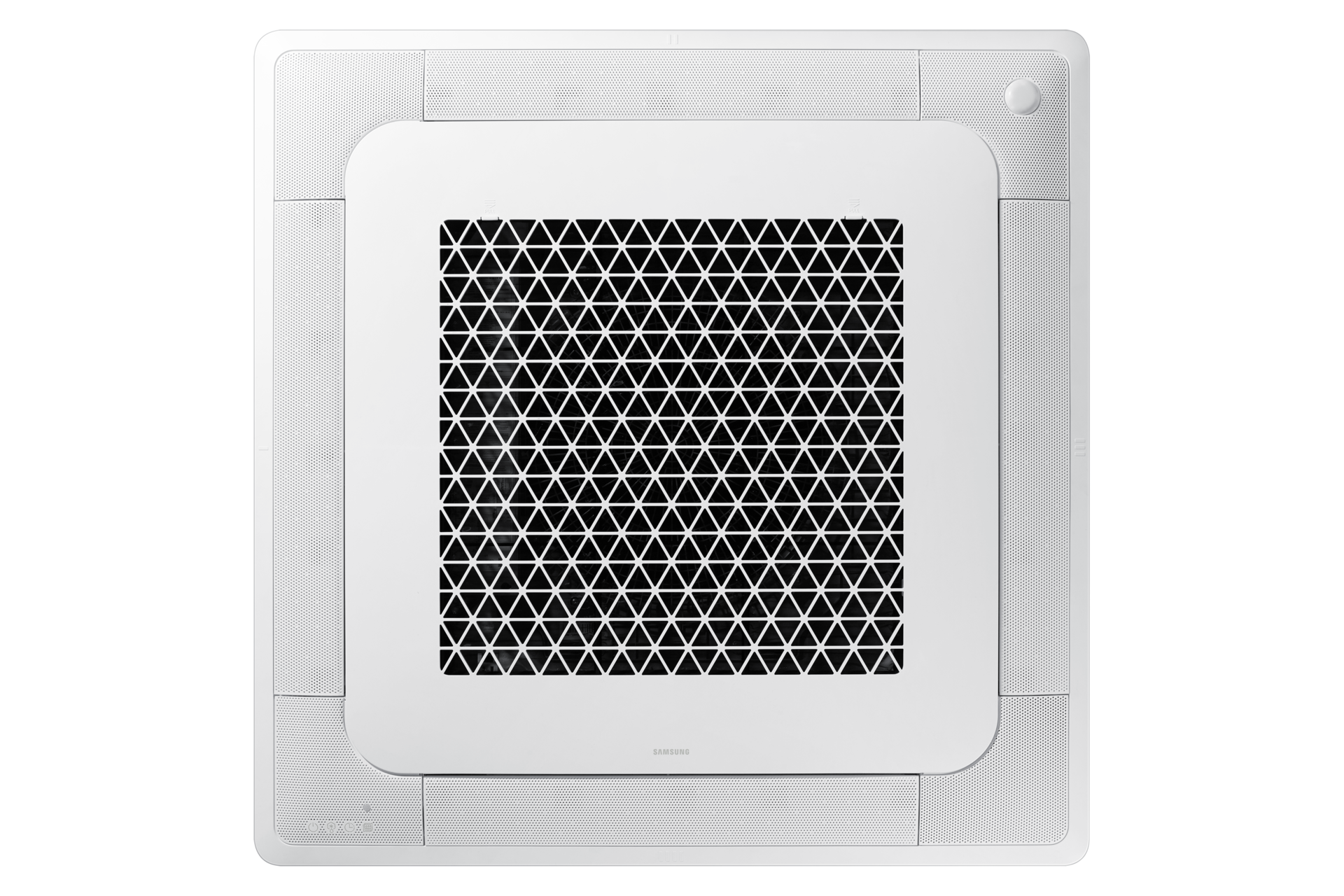

WindFree™ 4-Way Cassette Air-conditioner Inverter 2.0 HP 1-Phase

F-AC052FE4D1W

0 ( 0 )

Choose your Capacity

Choose your Phase

WindFree™ 4-Way Cassette Air-conditioner Inverter 2.0 HP 1-Phase
2.0 HP 1-Phase

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.orignalPrice}} {{price.priceWrapper.info.savePrice}}

Earn 5% back in rewards

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}
{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Choose your colour

Customizable bezels sold separately

Choose your skin colour

Customizable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern type

  • {{item.name}}

    Out Of Stock

Beveled type

  • {{item.name}}

    Out Of Stock

Skin color

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

You have maximum number of Trade-in in cart already. If you wish to add in Trade-in, please remove from cart.

Congratulations, your trade-in request is successful.

  • {{item.discountText1}} {{item.discountPriceText}} {{item.discountText2}} {{item.discountPriceText2}} {{item.specialDiscountText}}

    {{item.displayModelName}}

Your Old Device Value, this value may differ from estimated trade-in value and will be credited upon the collection/drop off of the used device.
Overtrade Bonus, discount will be reflected in cart upon checkout.

Add Another Trade-in

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

Please select Samsung Care+ or No to continue

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description1}}

{{tariffOptionResult.description2}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{offerItem.title}}

{{offerItem.offerText}}

{{offerItem.linkText}}
{{bundle.imgAttr.alt}} {{bundle.imgAttr.alt}}
{{bundle.title}}
{{bundle.price.original}} {{bundle.price.save}} {{bundle.price.now}}
{{bogo.item.headline}}

{{decmain.text}}

{{bogo.item.description.sub}}

{{bogo.item.description.date}}

{{bogo.item.price.original}} {{bogo.item.price.save}} {{bogo.item.price.now}}
{{gift.item.headline}}

{{decmain.text}}

{{gift.item.description.date}}

{{gift.item.learnMoreCta.text}}
{{combo.item.headline}}

{{decmain.text}}

{{combo.item.description.date}}

{{combo.item.learnMoreCta.text}}
{{delightDelivery.item.imgAttr.alt}} {{delightDelivery.item.imgAttr.alt}}
{{delightDelivery.item.headline}}

{{decmain.text}}

Learn more
{{finance.item.iconAttr.alt}} {{finance.item.iconAttr.alt}}
{{finance.item.description.text}}
{{finance.item.emiText}}
{{message.item.iconAttr.alt}} {{message.item.iconAttr.alt}}

{{decmain.text}}

{{offer.headline}}

Features

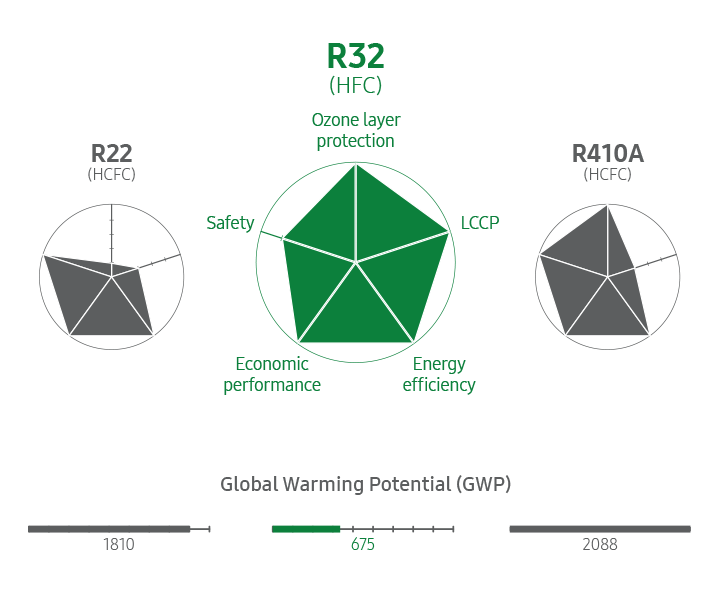

R32 refrigerant-Zero ODP &lower GWP

R32 Refrigerant

R32 refrigerant helps conserve the ozone layer and has less impact on global warming. It has zero Ozone Depletion Potential (ODP) and a lower Global Warming Potential (GWP) compared to conventional R22 or R410A refrigerants* that are commonly used.

* GWP by refrigerant: R32 = 675, R22 = 1810, R410A = 2090.

* GWP by refrigerant: R32 = 675, R22 = 1810, R410A = 2090.

Wider cooling range

Big Blade

Big and optimized blades enable even wider cooling range.

*Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.

Energy saving with WindFree™ Cooling

Energy Saving

WindFree™ Cooling allows efficient energy saving up to 55%.

*Tested on outdoor unit AC140MXADKH, indoor unit AC140NN4DKH when running simultaneously, individual result may vary depending on consumer usage.

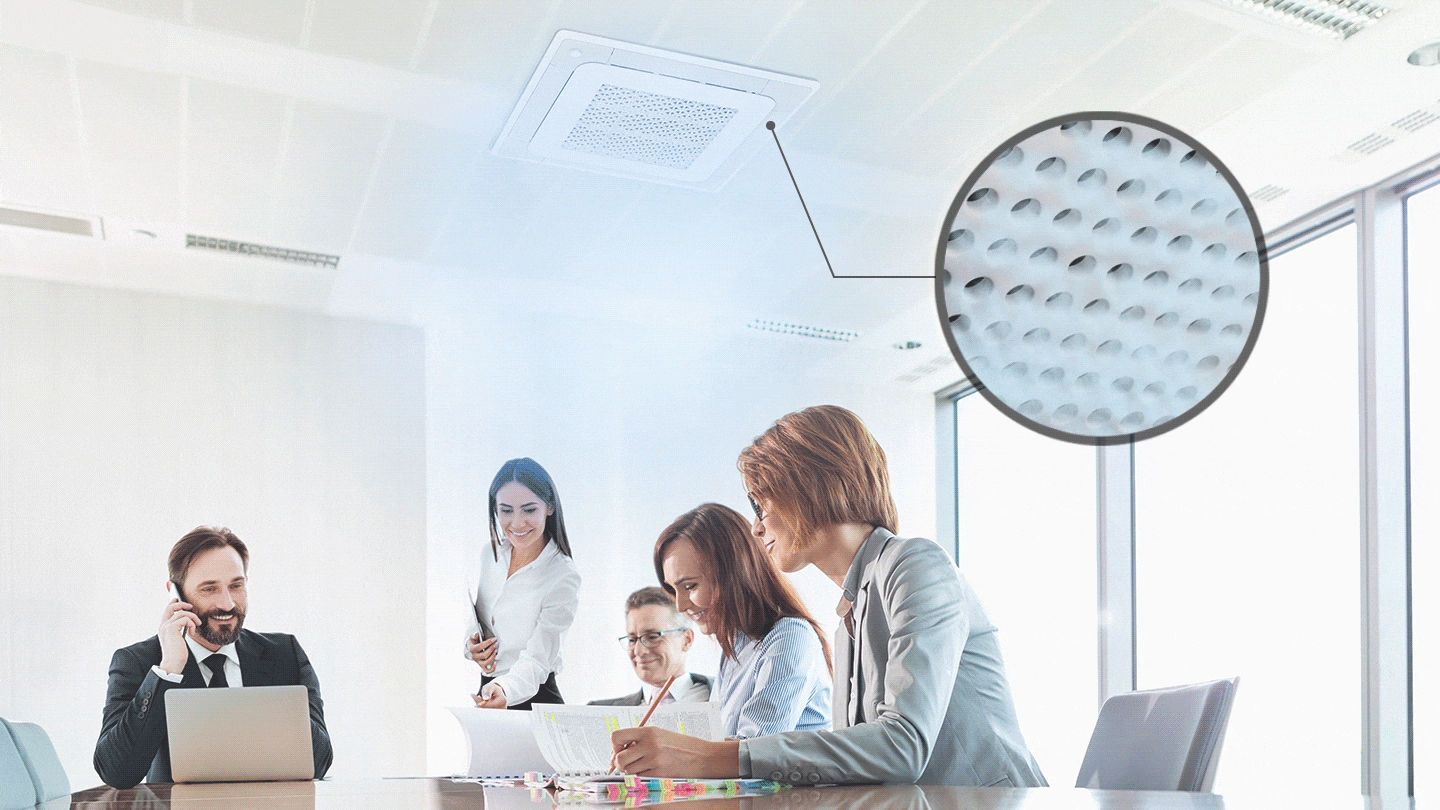

Stay cool without direct wind

WindFree™

WindFree™Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.
Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.

*PC4SUFMAN(4way 600*600) : 8,976 micro hole, PC4NUFMAN(4way) : 15,672 micro hole

Stays fresh & hygienic

Auto Clean

Keep your air conditioner hygienic by doing nothing! After it has been working*, Auto Clean automatically dries the Heat Exchanger** to help prevent the buildup of odors. Initially it checks the internal humidity*** and temperature and then blows air inside for between 0.5 to 20 minutes****.

* Auto Clean is activated when the air conditioner is turned off after using auto cooling, cooling or dry mode.
** The Auto Clean time will vary depending on the condition of the air conditioner.
*** Only WindFree™ models will check the internal humidity.
**** Models without WindFree™ mode will use 3 minutes of auto air flow and 7 minutes of high air flow.

* Auto Clean is activated when the air conditioner is turned off after using auto cooling, cooling or dry mode.
** The Auto Clean time will vary depending on the condition of the air conditioner.
*** Only WindFree™ models will check the internal humidity.
**** Models without WindFree™ mode will use 3 minutes of auto air flow and 7 minutes of high air flow.

Keeps you comfortable

Comfort Humidity Control

Keep your environment feeling comfortable. The Comfort Humidity Control monitors the room temperature and humidity to keep them stable. When the room is close to the target temperature, it adjusts the evaporator temperature, so it is lower than the dew point, to prevent moisture discharge*.

* When the air conditioner is operating in either Auto mode (cooling) or WindFree™ cooling mode. All blades should not be in swing mode.**Test model : 4way 14kW model (AC145BXAFHH1PP / AC145CN4FHH1PP), Test condition : Outdoor dry bulb 27℃ wet bulb 24℃

Added protection

Emergency Stop

Protect your building in an emergency. Using Emergency Stop*, if an emergency alarm, like a fire alarm, goes off a signal is sent** to stop the air conditioning. It helps prevent extra damage, for example, by refrigerant leakage. When safe, it turns the air conditioning back on in standby mode.

* An optional setting is required.
** An optional part (MIM-B14) is required.

Use less energy*

SmartThings AI Energy Mode

Monitor and reduce your air conditioner’s energy use. AI Energy* mode lets you check the power consumption and estimate your electricity bill. By learning your usage patterns and analyzing room conditions, it can reduce energy use** by adjusting the room temperature*** and compressor speed****.

* The SmartThings App is available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Available when system is working in AI comfort mode.** Based on internal testing on a 4way 48k BTU/h model (AC048DN4DKG/AZ, AC048DXADKG/AZ). Test conditions: Internal room (326m3) - Cooling: 35°C[DB]/24°C[WB], Heating: 7°C[DB]/6°C[WB]. Test method: Comparing total power consumption over 8 hours when AI Energy mode is on and off, using AI Comfort mode at 24°C for cooling and 22°C for heating. Results may vary depending on the model used, environmental factors and individual use.*** The target temperature may increase in cooling and decrease in heating when operating in AI Energy mode. If manually adjusted, it will change to normal cooling/heating mode and may not save energy.**** The compressor’s optimized rate can differ between cooling and heating modes.

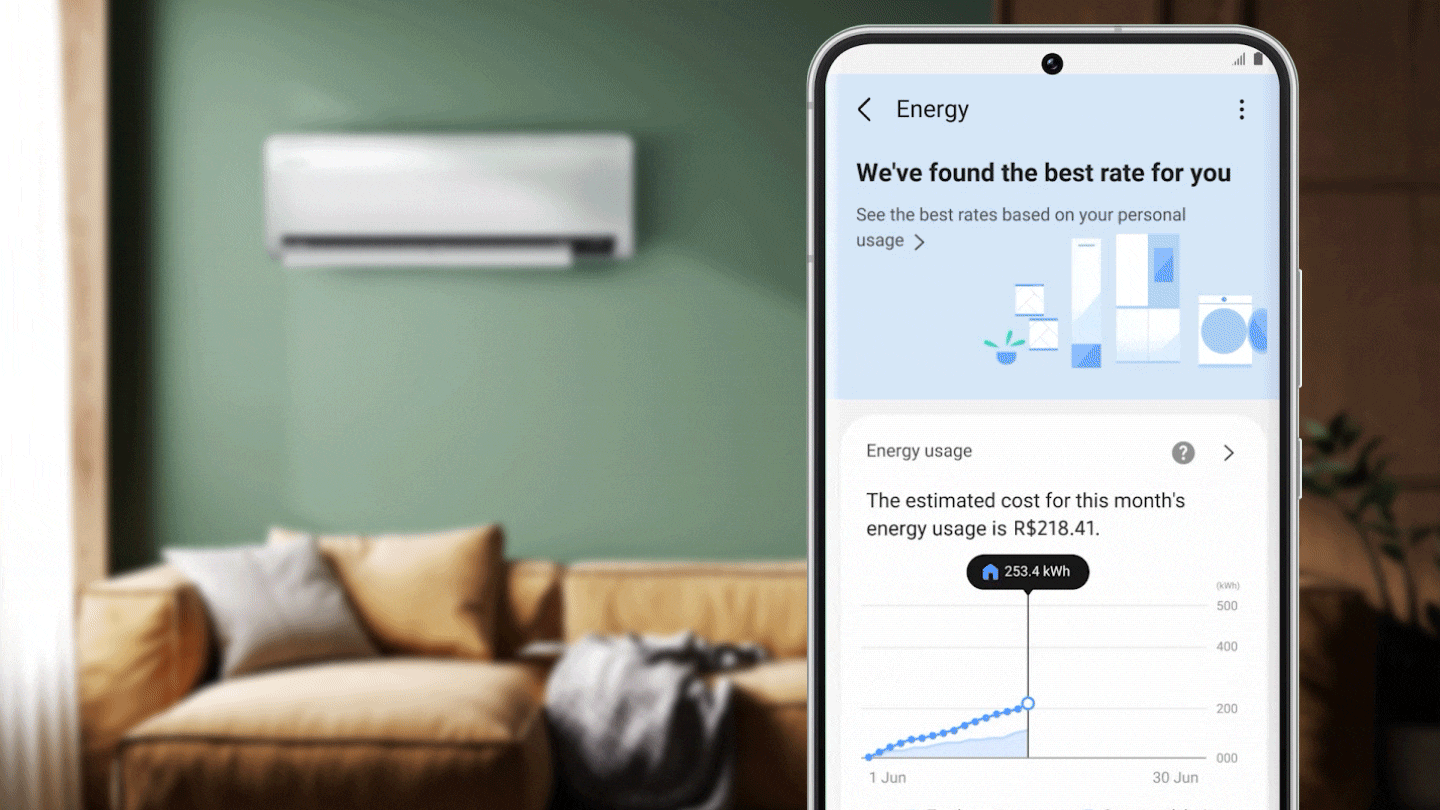

Smart energy control

SmartThings Energy

Monitor and control the air conditioner’s energy use. SmartThings Energy* lets you check your power consumption**. If the estimated amount*** exceeds your target, it adjusts the energy use of all smart appliances. When the air conditioner is on it draws the blinds and alerts you if you go out.

* The SmartThings App is available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** Some Wi-Fi models may not be able to use the Energy Monitor function.*** Only available on models with a power measuring capability.

Comfort welcomes you

Welcome Cooling / Heating (with Geofencing functionality)***

Feel comfortable as soon as you arrive. Welcome Cooling / Heating, part of the SmartThings App*, tracks your location using your smartphone’s GPS**. When you come within a preset distance, it automatically sets the room temperature at the desired level, using the preferred mode*** and settings.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** This function may be affected by the GPS conditions.*** If the model does not have a heating mode, Welcome Heating will not work.

Remotely control anytime, anywhere

SmartThings

Control the temperature in a building anytime and anywhere. Using the SmartThings App* you can remotely control the air conditioner. With just a touch you can turn it on and off, select the cooling mode, schedule its operation and monitor the power use. And it even suggests the best settings.

* The SmartThings App is available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.

* The SmartThings App is available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.

Enjoy a good sleep

WindFree™ Good Sleep

Get a really good night’s sleep every night. The WindFree™ Good Sleep mode**** creates the ideal climate for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™ cooling helps you fall asleep fast, sleep deeply and comfortably, and wake up feeling fully refreshed.

Specifications

  • Features

    4Way

  • Outdoor Unit

    AC052FCADKF/EA

  • System

    Cooling Only

  • EER (Nominal Cooling)

    3.46 W/W

  • Net Dimensions (WxHxD) (mm)

    790x548x285 mm

  • Type

    4Way

  • Indoor Unit

    AC052FE4DKF/EA

  • Outdoor Unit

    AC052FCADKF/EA

  • Mode

    Cooling Only

  • Cooling (Min/Std/Max) [kW]

    1.20 / 5.30 / 6.60 kW

  • Cooling (Min/Std/Max) [Btu/h]

    4100 / 18000 / 22500 Btu/h

  • MCA [A]

    13.5 A

  • Cooling Power Input (Min/Std/Max)

    0.22 / 1.53 / 2.30 kW

  • MFA [A]

    15.0 A

  • Cooling Current Input (Min/Std/Max)

    1.50 / 6.70 / 9.80 A

  • EER (Nominal Cooling)

    3.46 W/W

  • Liquid Pipe (Φ, mm)

    6.35 mm

  • Liquid Pipe (Φ, inch)

    1/4 inch

  • Gas Pipe (Φ, mm)

    12.7 mm

  • Gas Pipe (Φ, inch)

    1/2 inch

  • Installation Max. Length [m]

    30 m

  • Installation Max. Height [m]

    20 m

  • Transmission Cable

    0.75

  • Type

    R32

  • Control Method

    EEV

  • Factory Charging (kg)

    1.10 kg

  • 1, 2, 220-240, 50/60

  • Type

    Turbo

  • Air Flow Rate Cooling (H/M/L) [m³/min]

    15.9 / 15 / 14.1 ㎥/min

  • Motor (Output) [W]

    65 W

  • Number of Unit (EA)

    1 EA

  • 1, 2, 220-240, 50/60

  • Drain Pipe (Φ,mm)

    VP25 (OD32 / ID25)

  • Sound Pressure (High / Mid / Low) [dB(A)]

    35/33/31 dBA

  • Panel Net Weight (kg)

    14.5 kg

  • Shipping Weight (kg)

    18.0 kg

  • Net Dimensions (WxHxD) (mm)

    840x204x840 mm

  • Shipping Dimensions (WxHxD) (mm)

    898x275x898 mm

  • Model Name

    PC4NUFMANW

  • Panel Net Weight (kg)

    6.2 kg

  • Shipping Weight (kg)

    8.4 kg

  • Net Dimensions (WxHxD) (mm)

    950x48x950 mm

  • Shipping Dimensions (WxHxD) (mm)

    1010x117x1000 mm

  • Type

    Twin BLDC Rotary

  • Model Name

    KTN150D42UFZ

  • Output(kW)

    1.19 kW

  • Oil (Type)

    POE

  • Oil (Initial Charge) [cc]

    450 cc

  • Air Flow Rate (Cooling) [m³/min]

    30.0 CMM

  • Sound Pressure (Cooling / Heating) [dB(A)]

    50/-

  • Panel Net Weight (kg)

    29.7 kg

  • Shipping Weight (kg)

    32.0 kg

  • Net Dimensions (WxHxD) (mm)

    790x548x285 mm

  • Shipping Dimensions (WxHxD) (mm)

    913x622x371 mm

  • Cooling (℃)

    -15~50 ℃

  • WiFi Kit

    Built in

  • SmartThings App Support

    Yes
