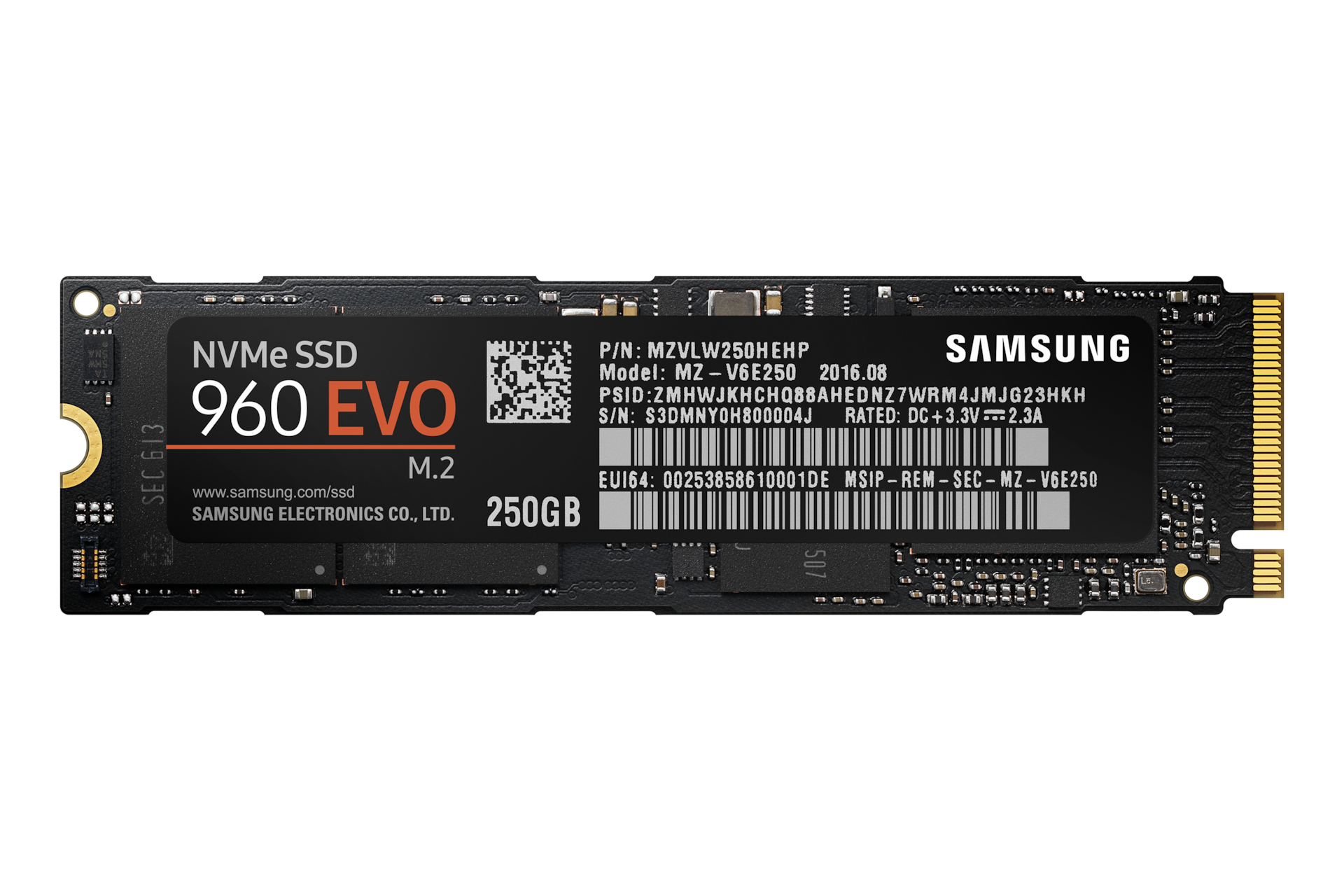

960 EVO NVMe M.2 SSD 250GB
Gallery popup
Scan this QR code with your phone and place the product image in your desired space
Features
The smart choice in NVMe SSDs
If you're looking for the next great advance in PC performance, the Samsung 960 EVO is a smart choice. An NVMe™ interface provides enhanced bandwidth, and a new controller and Samsung's intelligent TurboWrite technology deliver next-generation performance. Included are an advanced maintenance software solution and a 3-year limited warranty, which increases its value.
Raise your performance expectations
The 960 EVO offers the next level of performance in storage for smart consumers who want an experience beyond what the SATA interface can provide. An enhanced bandwidth, provided by the NVMe interface, combined with the new Polaris controller, facilitates sequential R/W speeds up to 3,200/1,900 MB/s and random R/W speeds up to 380/360K IOPS, respectively. Plus, the new Intelligent TurboWrite technology accelerates write speeds even further*.
*Sequential performance measurements based on CrystalDiskMark 5.0.2/IOmeter 1.1.0 and random performance measurements based on IOmeter 1.1.0.Performance may vary based on the SSD`s firmware version,system hardware and configuration.Test system configuration: Intel® Core i7-6700K CPU@4.0 GHz,DDR4 1700MHz 16GB,OS-Window 10 Pro x64,Chipset-ASROCK Z170 EXTREME 7
*Sequential Write performance measurements based on Intelligent TurboWrite technology.The sequential write performances after Intelligent TurboWrite region are 300 MB/s(250GB),600 MB/s(500GB) and 1200 MB/s(1TB).
Rest easy with solid reliability
Great performance is not measured by speed alone. How long the performance can be sustained is also important. The 960 EVO holds its own by boasting up to 400 TBW* for the 1TB model. Dynamic Thermal Guard prevents overheating, protecting the data and ensuring optimal responsiveness. It's all backed by a 3-year limited warranty**.
*TBW : Terabytes Written
**Samsung's warranty does not cover any costs and expenses relating to SSDs' overhaul/assembly and data recovery for repairs or replacements.
Manage your drive like magic
The 960 EVO comes with the newly upgraded Magician—an advanced software solution for users to monitor, manage and maintain the drive. Magician provides personalised firmware checking and additional functions tailored for individual user's drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date.
Specifications
-
Application
Client PCs
-
Interface
PCIe 3.0 x4, NVMe 1.2
-
Dimension (Pack: WxHxD)
Max. 80.15 x 22.15 x 2.38 (mm)
-
Weight
Max 7.7g
-
Sequential Read
Up to 3,200 MB/sec *Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 1,500 MB/sec *Performance may vary based on system hardware & configuration
-
Warranty
3 Year Limited Warranty or 100TBW Limited Warranty
-
Application
Client PCs
-
Rated Capacity
250 GB (1GB=1 Billionbyte by IDEMA) *Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2
-
Interface
PCIe 3.0 x4, NVMe 1.2
-
Dimension (Pack: WxHxD)
Max. 80.15 x 22.15 x 2.38 (mm)
-
Weight
Max 7.7g
-
NAND Type
Samsung V-NAND
-
Controller
Samsung Polaris controller
-
Cache Memory
Samsung 512MB Low Power DDR3
-
TRIM Support
TRIM Supported
-
S.M.A.R.T Support
S.M.A.R.T Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit for User Data Encryption, TCG Opal
-
Device Sleep Mode Support
5mW (L1.2)
-
Sequential Read
Up to 3,200 MB/sec *Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 1,500 MB/sec *Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 330,000 IOPS (Thread 4) *Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 300,000 IOPS (Thread 4) *Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD1)
Up to 14,000 IOPS (Thread 1) *Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD1)
Up to 50,000 IOPS (Thread 1) *Performance may vary based on system hardware & configuration
-
Power Consumption
*Average: Typ. 5.3 Watts, Idle : 40mW *Actual power consumption may vary depending on system hardware & configuration
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0°C to 70°C (Measured by SMART Temperature. Proper airflow recommended)
-
Shock
1500G , duration 0.5m sec, 3 axis
-
Management SW
Magician Software for SSD management
-
Not Available
-
3 Year Limited Warranty or 100TBW Limited Warranty
Reviews
960 EVO NVMe M.2 SSD 250GB
- The SSD is widely praised for its exceptional performance and speed, with users reporting significantly faster boot times, load times, and overall system responsiveness.
- It is described as "blazing fast" and "lightning fast", with sequential read speeds exceeding 3,200 MB/s.
- However, a few users have reported issues with performance degradation and compatibility problems.
- Despite these isolated concerns, the vast majority of reviews are extremely positive, with users highly recommending the drive for its unparalleled speed and reliability.
