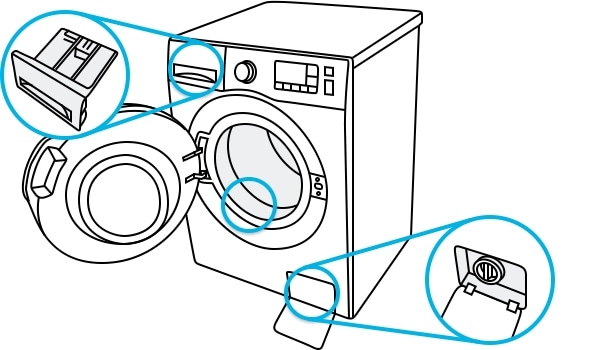

Check the cleaning functions and sections on the washing machine

ECO DRUM CLEAN function will help to clean your washing machine automatically, eliminating mold that may be built up inside the drum. It is recommended that you perform this cycle regularly to clean the drum by removing bacteria from it. This cycle heats the water between 60 °C and 70 °C, and it also removes accumulated dirt from the rubber door gasket.

Basically, you can clean the drum without a cleaning agent when you use the ECO DRUM CLEAN cycle.

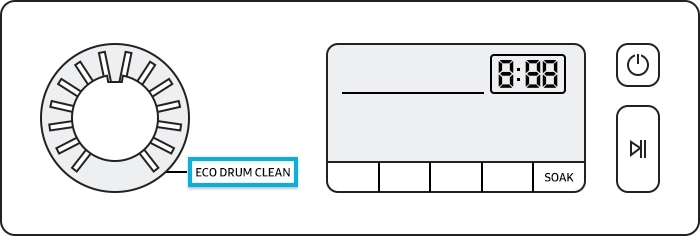

How to use the ECO DRUM CLEAN function

Step 1. Push Power button.

Step 2. Select the ECO DRUM CLEAN course on your display panel.

Step 3. Close the lid and push the Start/Pause button.

ECO DRUM CLEAN+ Function also keeping your washing machine clean improves its performance, reduces the need for unnecessary repairs, and lengthens its life as well as the ECO DRUM CLEAN cycle. You can also clean the drum without a cleaning agent.

The ECO DRUM CLEAN+ reminder blinks on the control panel once every 40 washes. (It is advisable to perform ECO DRUM CLEAN+ regularly. If the alarm occurs, clean the debris filter as well.)

How to use the ECO DRUM CLEAN+

Step 1. Press Power to turn on the washing machine.

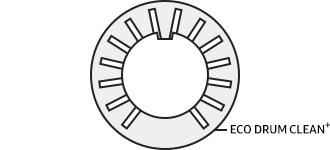

Step 2. Turn the Cycle Selector to select ECO DRUM CLEAN+.

Step 3. Press and hold Start/Pause (Hold to Start).

Warnings

• You can clean the drum without a cleaning agent when you use the ECO DRUM CLEAN cycle. (DO NOT USE a common cleaning agent for the ECO DRUM CLEAN and ECO DRUM CLEAN+ function.)
• Chemical residue in the drum may cause damage to the laundry or the drum of the washing machine.

• Also never use the ECO DRUM CLEAN+ cycle when laundry is in the washing machine. This may result in damage to the laundry or a problem with the washing machine.

About ECO DRUM CLEAN+ reminder

• Depending on the model, the ECO DRUM CLEAN+ reminder is either an icon or an LED.
• For icons, the icon lights up on the control panel.
• For LEDs, the LED lights up next to ECO DRUM CLEAN+, or on the option area of the control panel.
• The ECO DRUM CLEAN+ reminder blinks on the control panel once every 40 washes. It is advisable to perform ECO DRUM CLEAN+ regularly.
• When you first see this reminder blinking, you can ignore the reminder for 6 consecutive washes. From the 7th wash, however, the reminder no longer appears. it will appear again at the second round for 40 washes.
• Even after the last process is terminated, the 0 message may remain.
• You can record the running count of the ECO DRUM CLEAN+ cycle by pressing the Power button. This does not stop or turn off the machine but marks your cycle count.
• Even if 0 does not disappear, the machine operates normally.
• It is recommended to run the cycle regularly for hygienic purposes.

You should check the rubber seal along the edge of the entrance. This is because there are many cases where mold is formed due to the accumulation of water in the rubber seal. After cleaning the rubber seal with a soft brush and kitchen towel, the inside of the washing machine door should be left open until the water is dry.

• Open the washer door and remove any clothing or items from the washer.
• Inspect the grey colored seal between the door opening and the basket for stained areas.

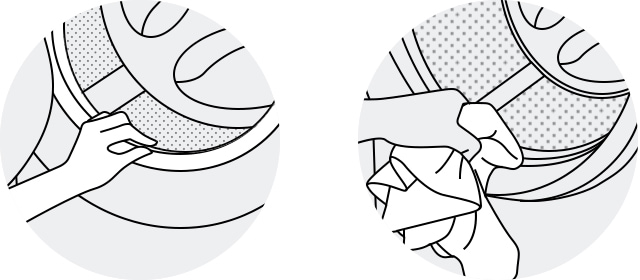

• Pull back the seal to inspect all areas under the seal and to check for foreign objects.
• Wipe the seal area with a soft brush, kitchen towel, or damp cloth.
• If you need to clean with detergent, please mix liquid chlorine bleach and warm tap water.
• Wipe the seal area with the diluted solution using a damp cloth.
• After cleaning the seal area, wipe down the area thoroughly with a dry cloth and leave it to dry.

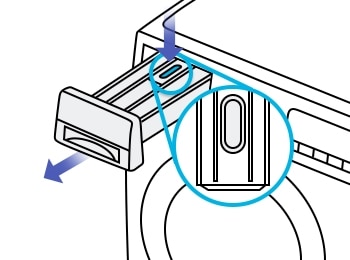

Step 1. While holding the release lever down inside the drawer, slide open the drawer.

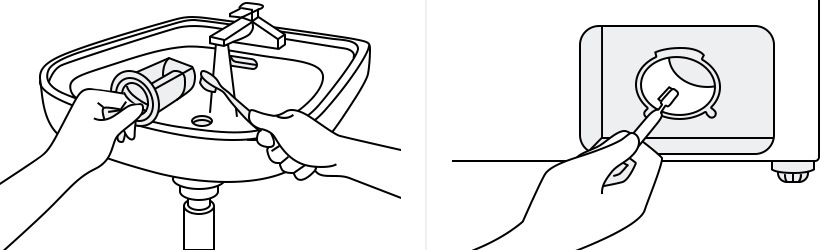

Step 2. Clean the drawer components in running water using a soft brush.

Step 3. Clean the drawer recess using a soft brush.

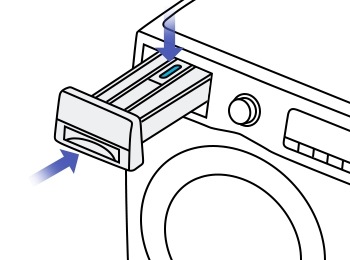

Step 4. Reinsert the liquid detergent container into the drawer. Slide the drawer in to close it.

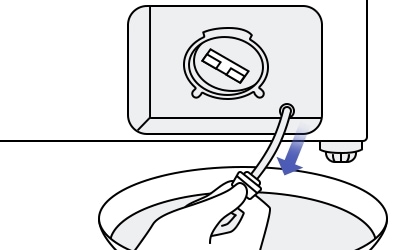

In order to prevent the water supply or draining issue, it is recommended to clean the mesh filter of the water hose once or twice a year. There are two types of filters on the product, one is inside of the water hose and the other is a debris filter on the bottom of the washing machine.

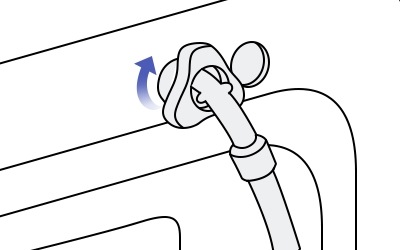

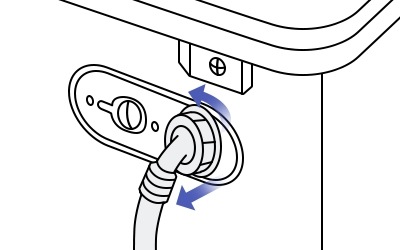

Step 1. Unscrew the hose and pull out the mesh filter.

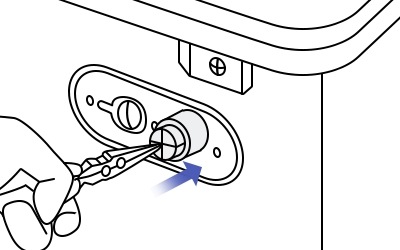

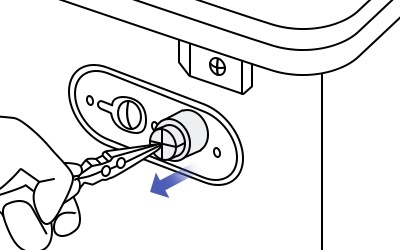

Step 2. With a pair of pliers, gently pull out the mesh filter from the end of the hose.

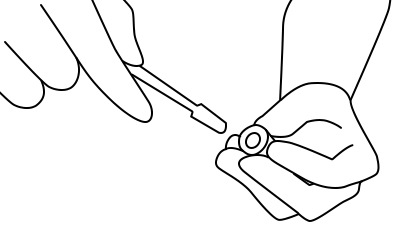

Step 3. Rinse it under water. Besides the mesh filter, also clean the inside and outside of the threaded connector.

Step 4. Push the filter back into place.

Step 5. Screw the hose back onto the washing machine.
