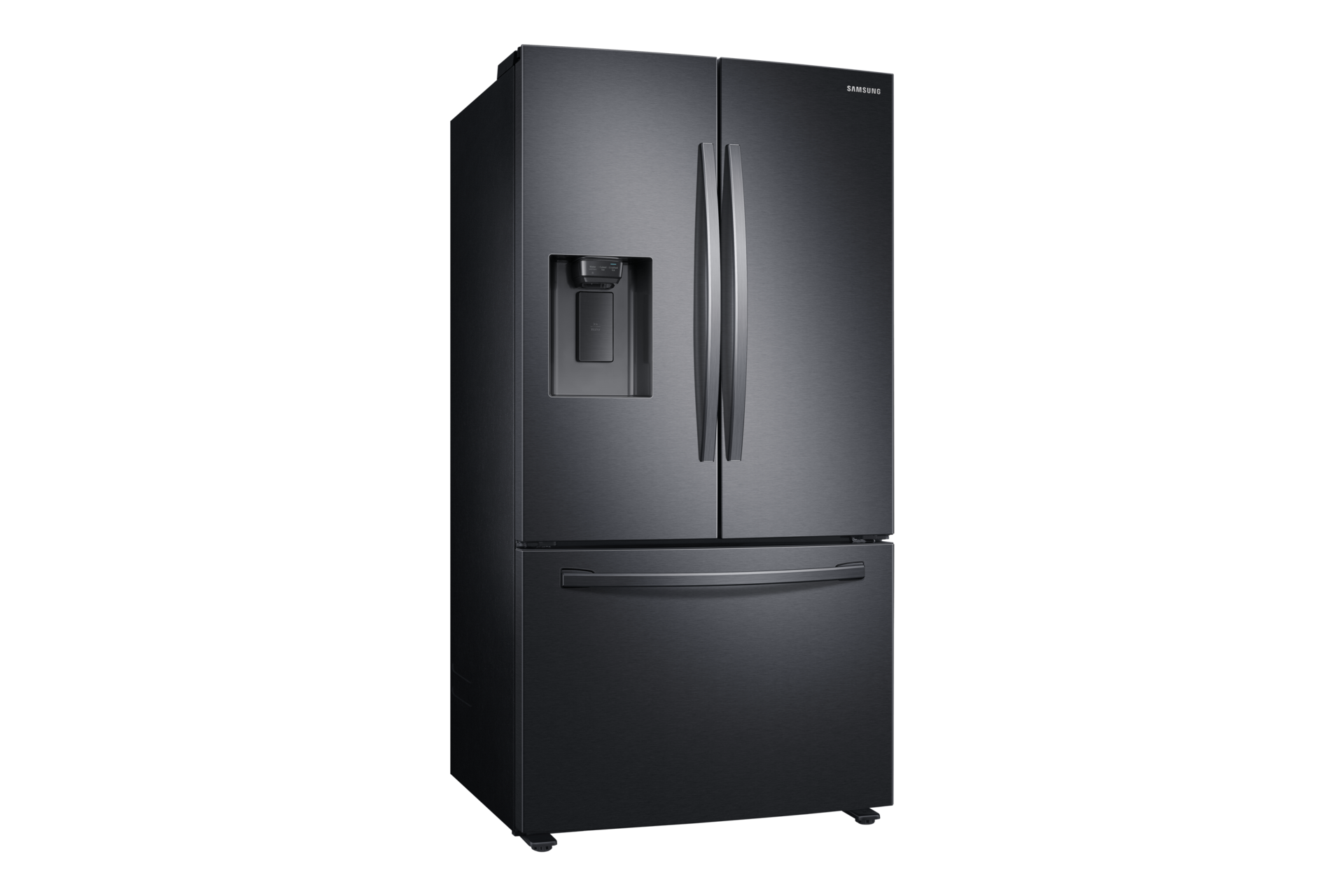

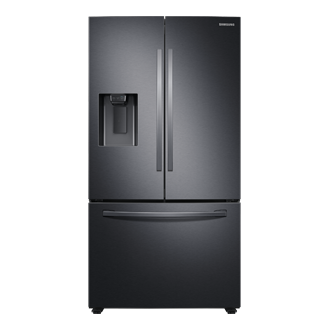

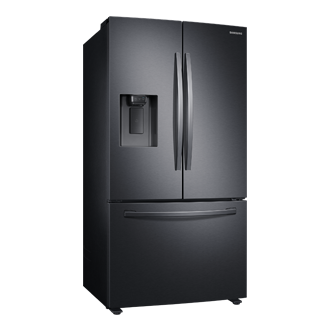

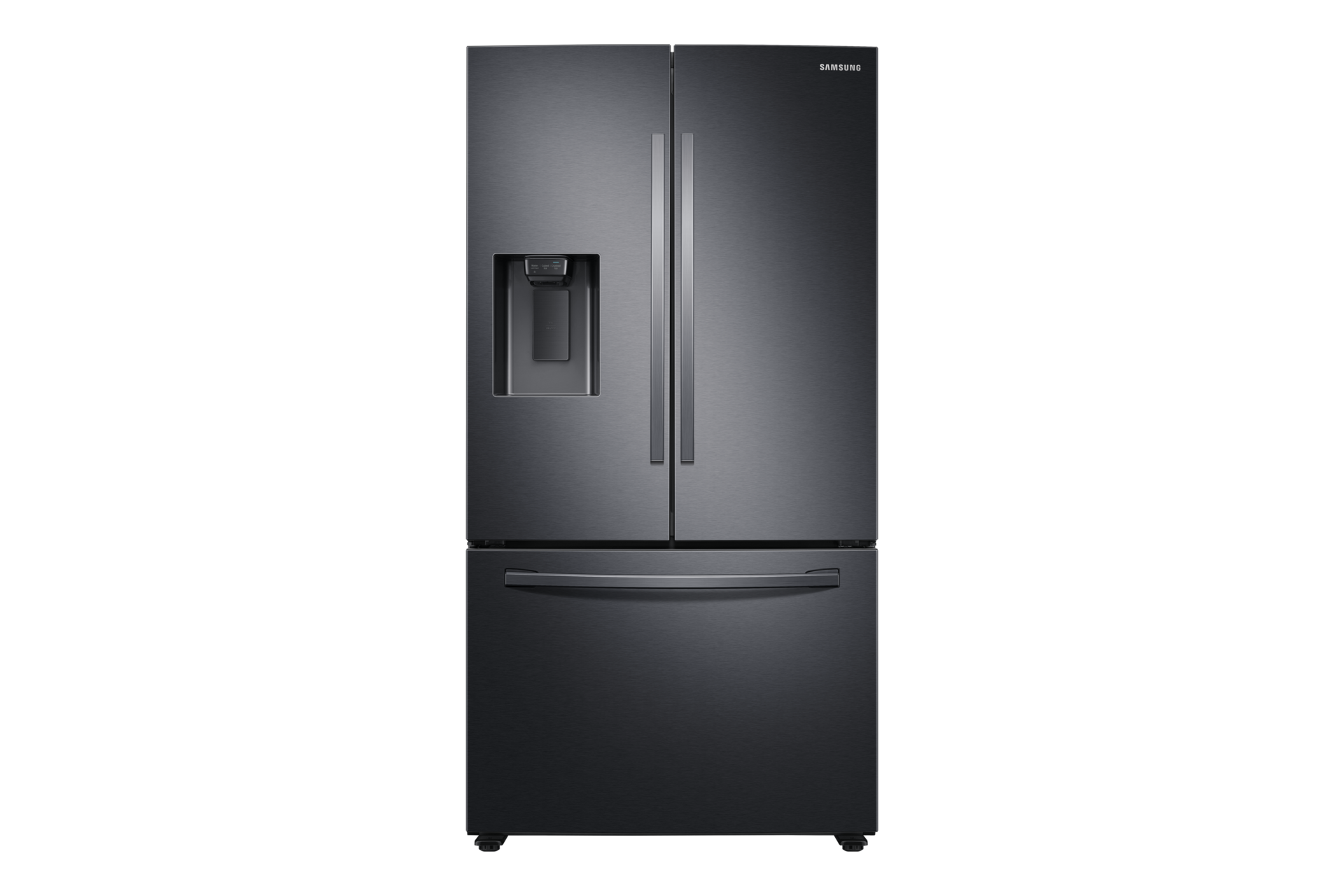

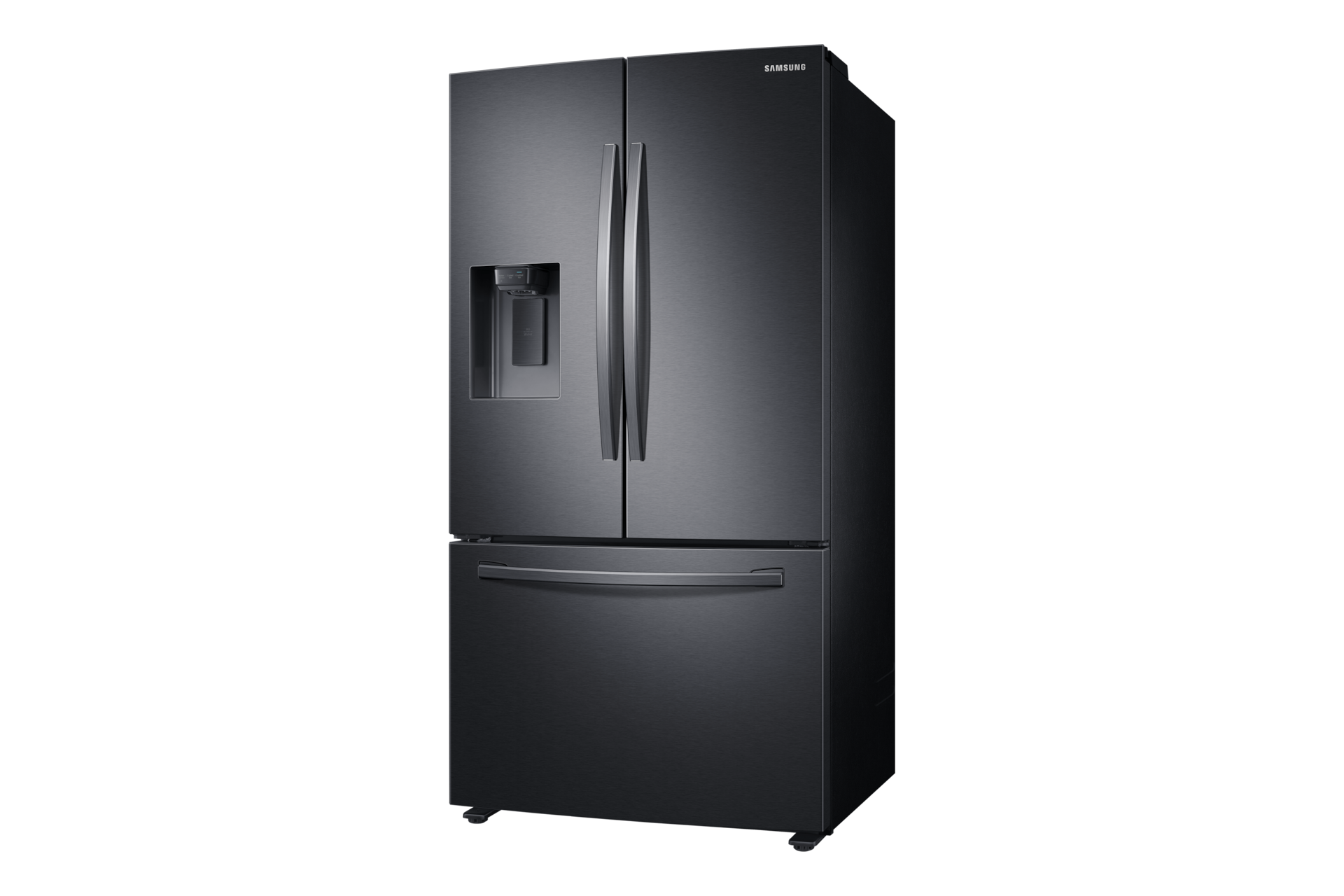

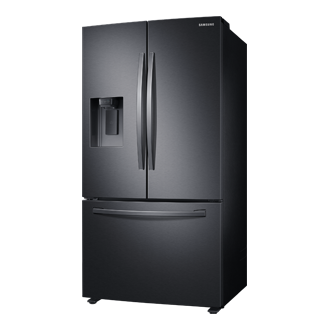

French Door RF27T5201B1/AP 765ℓ
Gallery popup
Please scan the QR Code with your mobile device, and place the product image in desired place.
Choose your color
Choose your Capacity
Dimensions
-
Width
908 mm
-
Height
1777 mm
-
Depth
836 mm
Let's Measure Your Space
Measure your product space in several places for width, depth, and height to determine if it passes through doorway and fits your space.
Your dimensions: W1910 X H980 X D780
{{upgradeResult.displayModelName}}
{{upgradeResult.discountText1}}
{{upgradeResult.description1}}
{{upgradeResult.description2}}
{{offerFinance.title}}
{{offerFinance.learnMoreCta.text}}{{offerFinance.description}}
{{galaxyForeverResult.displayModelName}}
{{galaxyForeverResult.discountText1}}
{{galaxyForeverResult.description1}}
{{galaxyForeverResult.description2}}
Bezel_Choose your color
Customizable bezels sold separately
Choose your skin color
Customizable skin sold separately
-
{{item.name}}
Out Of Stock
Modern Type
-
{{item.name}}
Out Of Stock
Beveled Type
-
{{item.name}}
Out Of Stock
Skin color
-
{{item.name}}
Out Of Stock
Bezel type
- Modern Type
The Frame's custom bezels magnetically click into place. Now, you can switch between styles in a snap.
Bezel type
- Beveled Type
The new Beveled type bezel design offers an elegant 45-degree angled inner edge bezel.
{{tradeIn.title}}
{{tradeIn.learnMoreCta.text}}{{tradeIn.description}}
{{tradeInResult.displayModelName}}
{{tradeInResult.discountText1}}
{{tradeInResult.discountText2}}
{{tradeInResult.discountText3}}
{{tradeInResult.discountText4}}
{{tradeInResult.discountText5}}
{{tradeInResult.discountText6}}
{{tradeInResult.specialDiscountText}}
{{tradeInResult.description}}
{{tradeInResult.contentText}}
DeleteDealer stock quantity
You can check the stock quantity for each region
Please select city
{{assuredBuyBack.title}}
{{newAssuredBuyBack.title}}
{{newAssuredBuyBack.learnMoreCta.text}}{{newAssuredBuyBack.description}}
Please select Samsung Assured Buyback or no coverage
{{care.title}}
{{care.learnMoreCta.text}}{{care.description}}
Please select Samsung Care+ or No to continue
-
-
{{item.specialText}}
{{warrantyResult.displayModelName}}
{{warrantyResult.discountText1}}
{{warrantyResult.description1}}
{{warrantyVdResult.title}}
{{warrantyVdResult.priceDisplay}}
{{delivery.headline}}
{{delivery.errorMessage}}
{{deliveryResult.priorityText}}
{{deliveryResult.mainText}}
{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.
{{deliveryResult.decText}}
{{item.disclaimer}}
{{tariffOptionResult.displayModelName}}
{{tariffOptionResult.discountText1}}
{{tariffOptionResult.description1}}
{{tariffOptionResult.description2}}
{{tariffOptionResult.description}}
{{tariffOptionResult.price}}
{{tariffOptionResult.disclaimer}}
{{embedAddon.title}}
{{embedAddon.description}}
-
{{item.name}}
{{item.modelCode}}
{{item.description}}
{{item.finalPrice}}
{{item.originalPrice}}{{item.savePrice}} Out Of Stock
-
{{item.name}}
{{item.modelCode}}
{{item.description}}
- {{item.dotList1}}
- {{item.dotList2}}
- {{item.dotList3}}
{{item.finalPrice}}
{{item.originalPrice}}{{item.savePrice}} Out Of Stock
{{message.item.tcCTAText}}
{{message.item.periodText}}
Highlights
Large Capacity
Modern Design
All-Around Cooling
Fingerprint Resistant Finish
20 Year Warranty on the Compressor
Features
20 Year Warranty on the Compressor
Durable & Efficient
Enjoy great energy efficiency and a long-lasting performance. The Digital Inverter Compressor automatically adjusts its speed in response to cooling demand. So, it uses significantly less power and is certified to work for 21 years*, backed up by a 20-year warranty**(limited to the compressor only), longest in the industry. 1

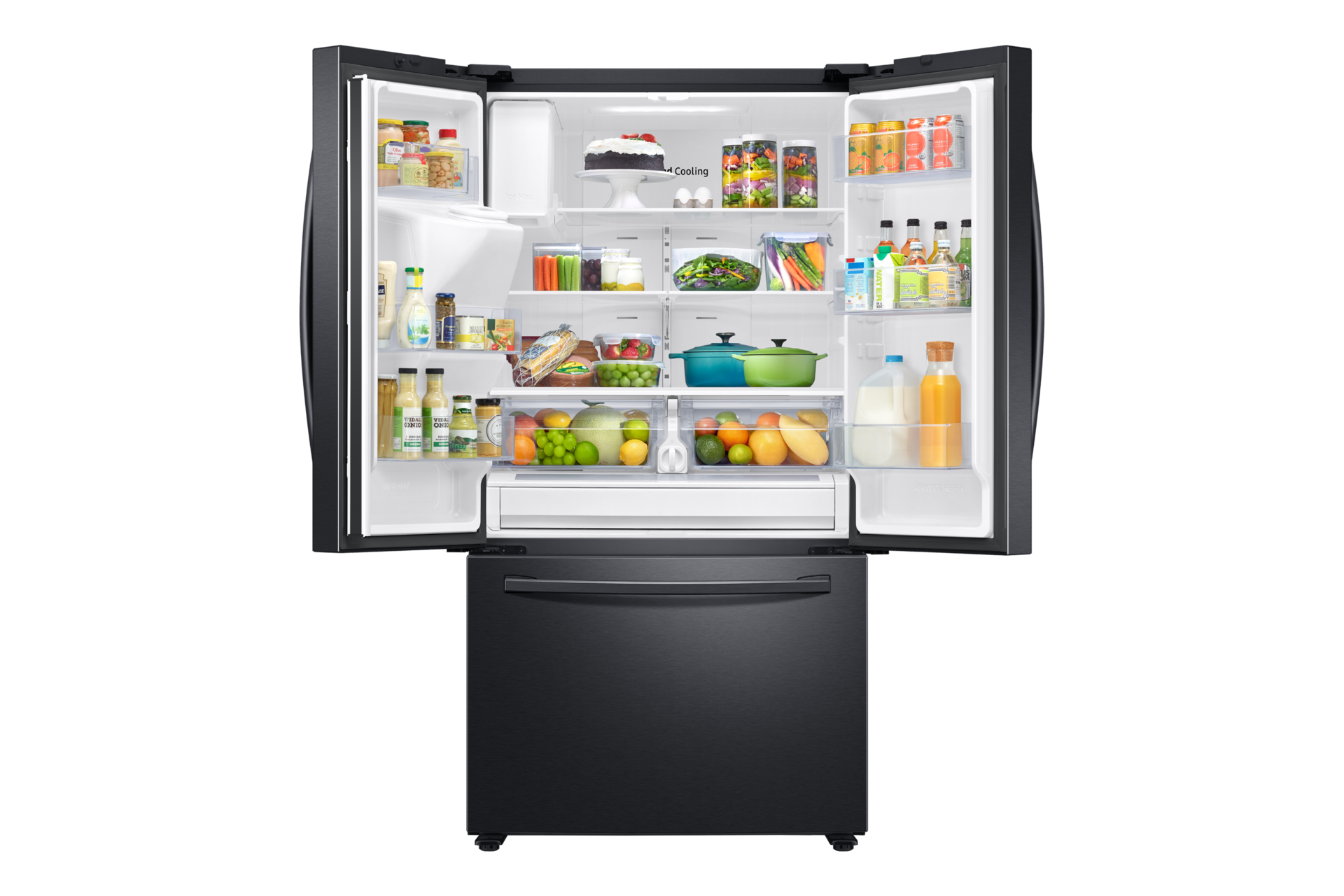

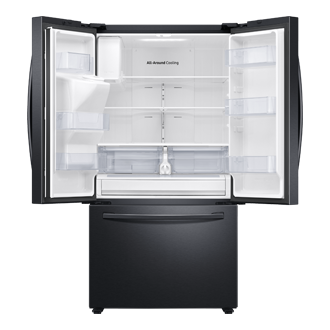

Simply bigger inside, same size outside
Large Capacity (SpaceMax Technology™)

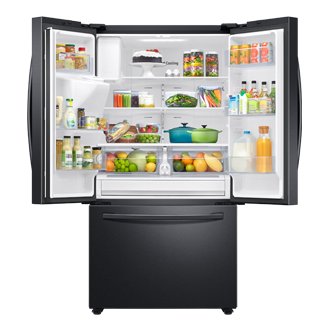

Stock-up all your food with a huge 27 cubic feet* of storage space. SpaceMax Technology™ creates more room inside without increasing external dimensions or compromising energy efficiency.2

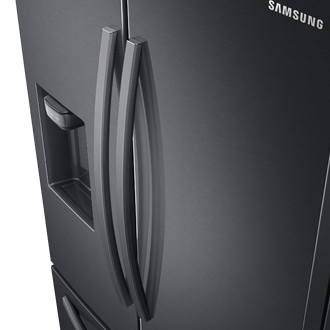

Perfectly harmonious and stylish design
Modern Look Design

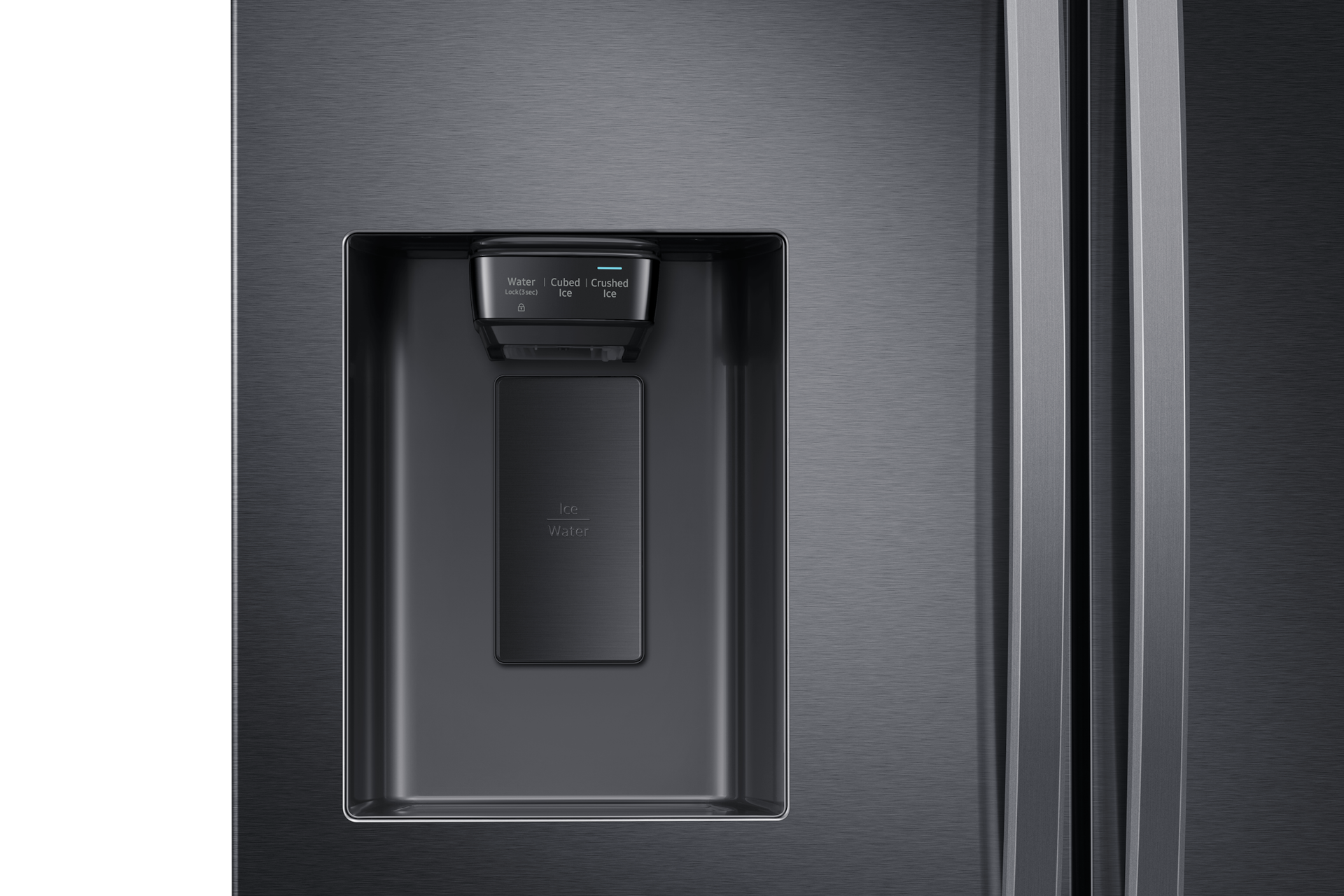

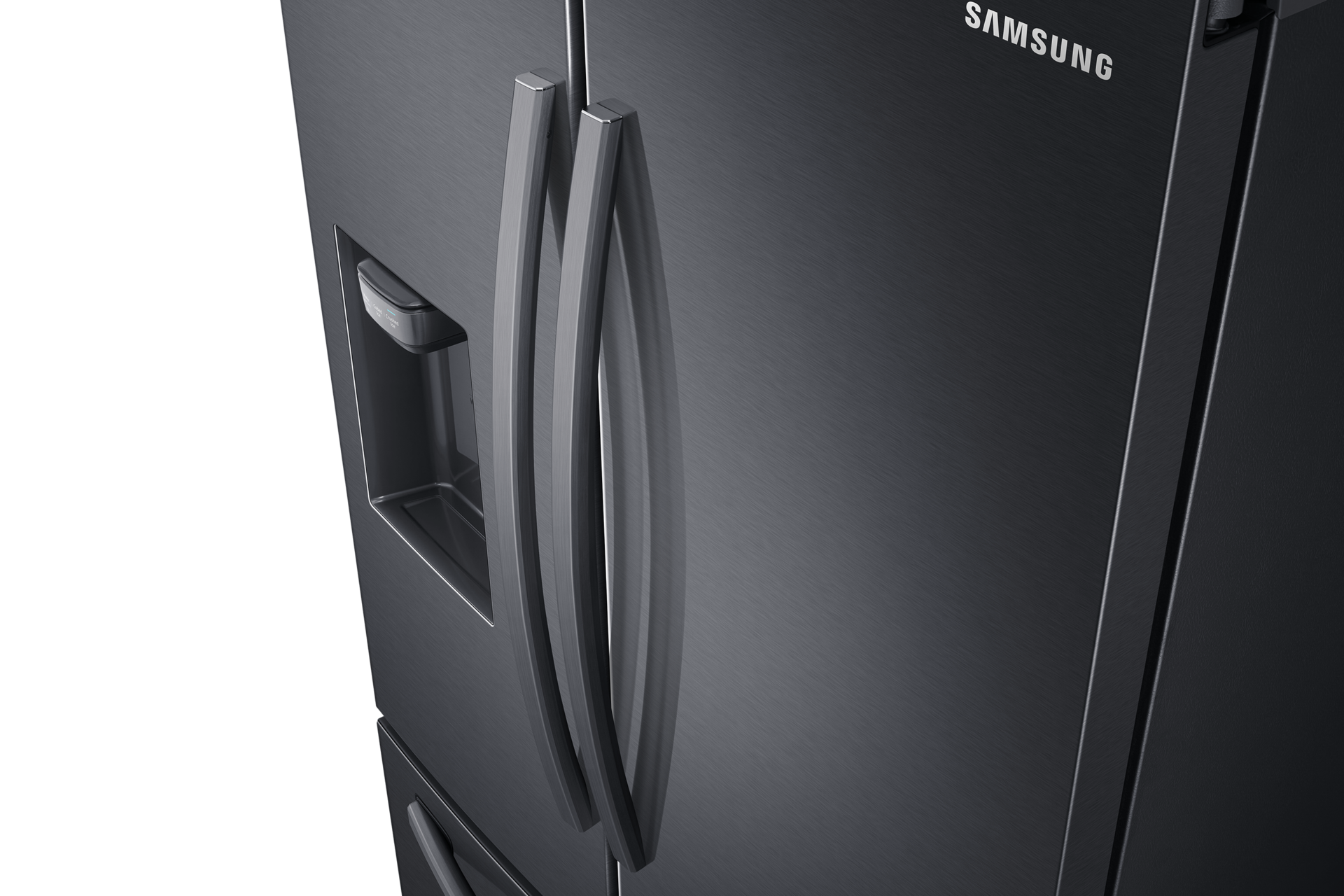

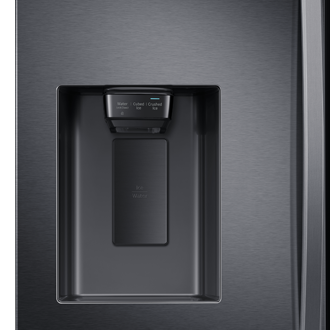

Enjoy sleek and simple design. The sleek edge doors have a sophisticated and timeless style that is accentuated by a minimalist ice and water dispenser and new edge handles. These elements blend seamlessly and harmoniously with any kitchen interior.

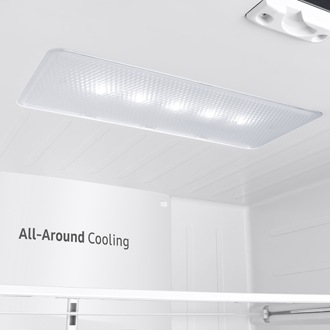

Always fresh food, wherever it is stored

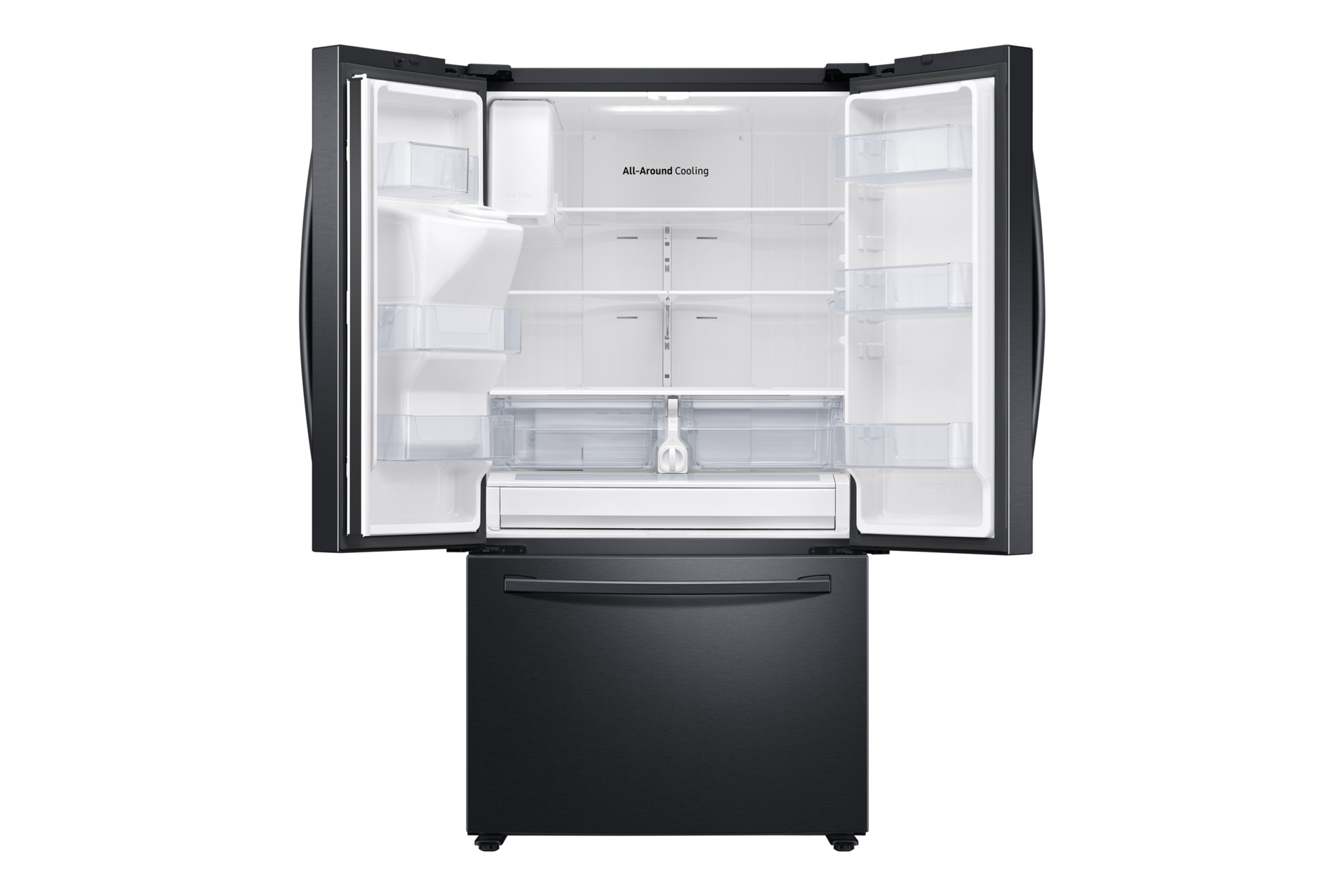

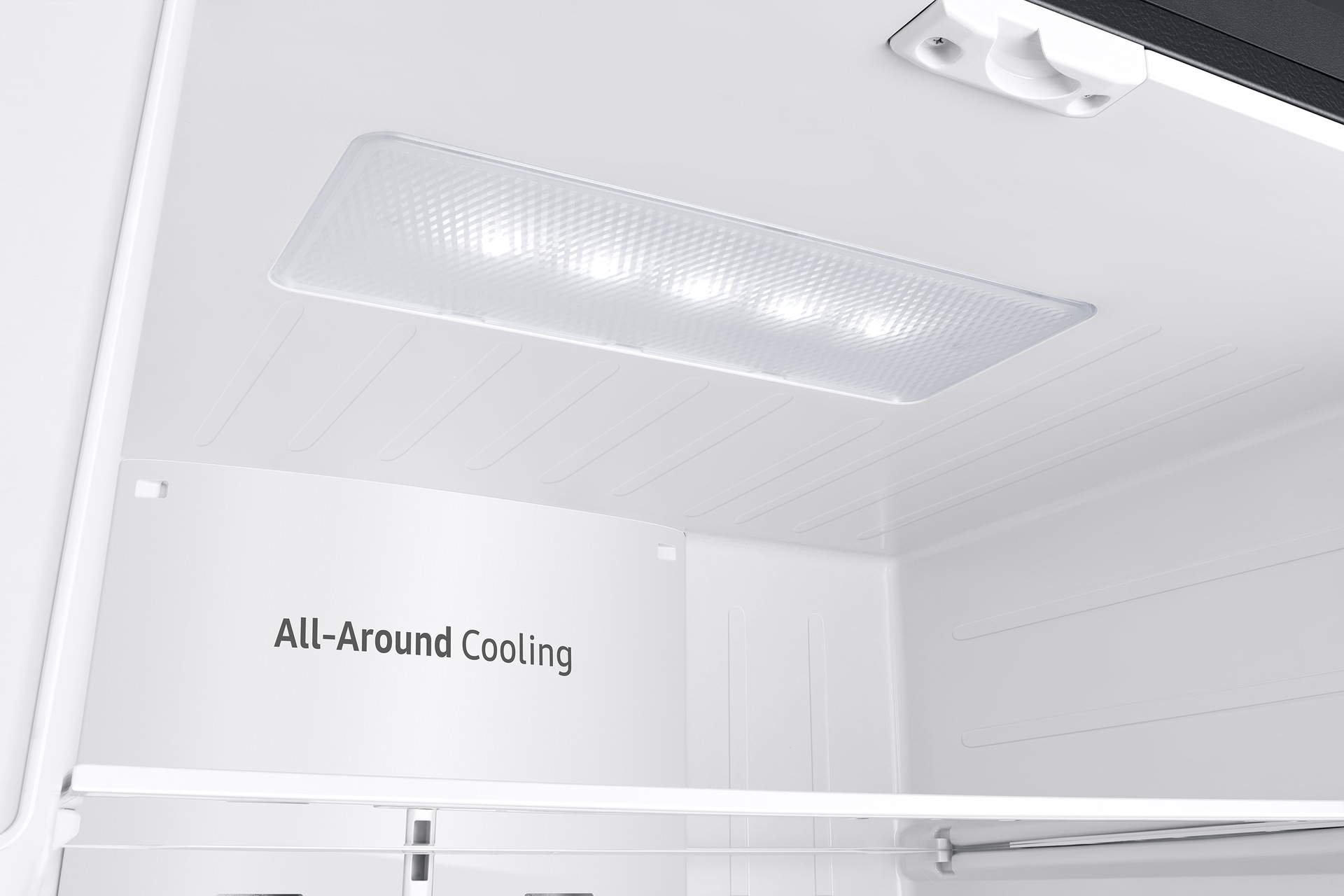

All-Around Cooling
Make sure that all your food is properly cooled – wherever it is. An All-around Cooling system cools the entire fridge evenly from corner to corner. It continually checks the temperature and circulates cool air through strategically placed vents. So every item of food stays fresher for longer.
Always brilliantly clean and smudge free
Fingerprint Resistant Finish
Make sure your kitchen always looks spotlessly clean. A special Fingerprint Resistant Finish prevents surfaces from becoming covered in unsightly fingerprints and other marks and smudges. And they can be quickly wiped away if any do appear. So your home will stay looking flawlessly beautiful.
More ice & space with a slim ice maker
Ice Max™
Make more ice much faster*, and keep your freezer looking neat. The Ice Max’s slim and compact design takes up less space, so there is more room to store food. But it can still produce up to 10lbs of ice a day and store up to 4.2lbs of ice, so you should always be good to go!3
Fast cooling and freezing on demand

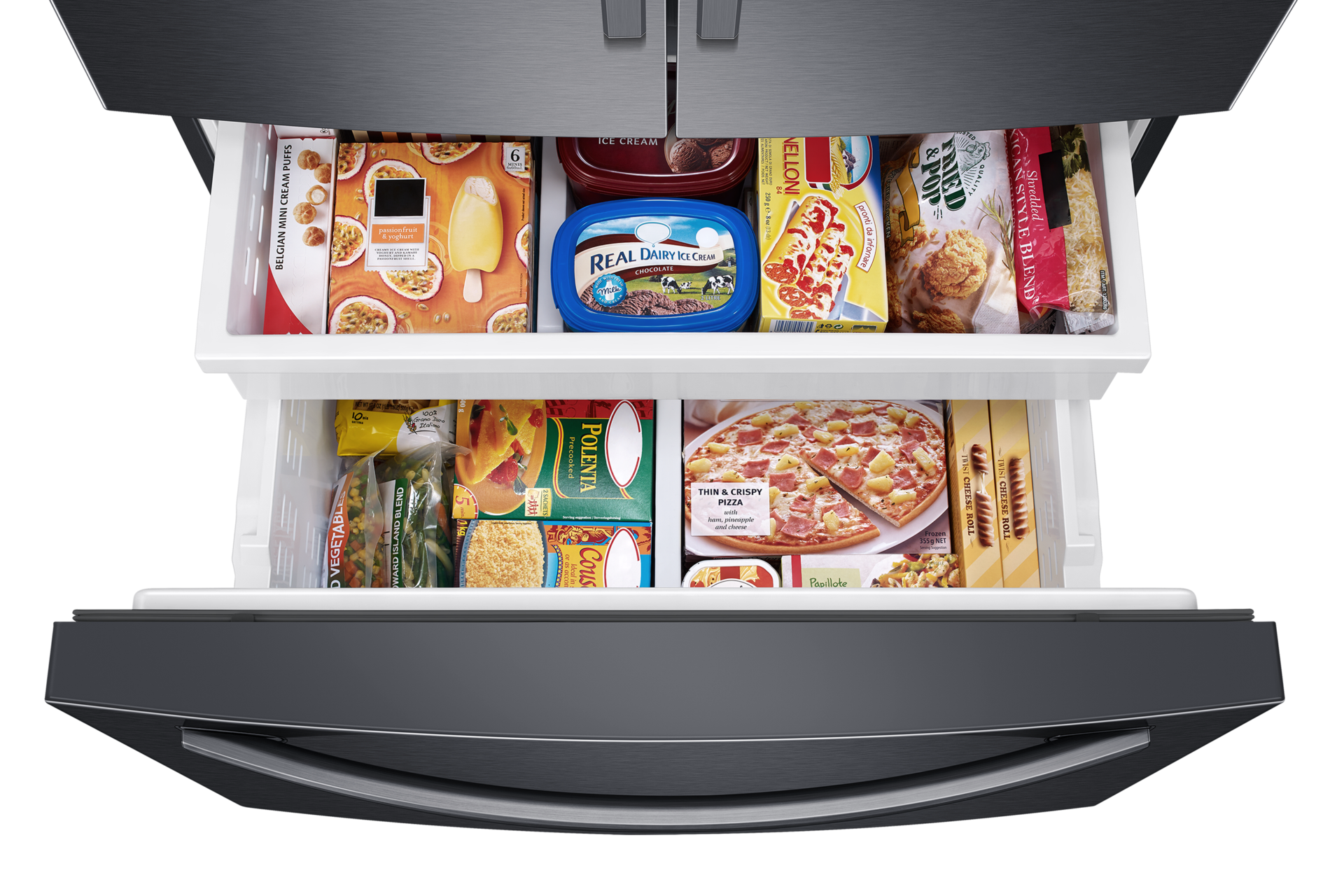

Power Cool / Power Freeze
Enjoy a rapid cooling performance. At the touch of a button, Power Cool blows intensely cold air into the fridge to quickly cool your groceries or favorite drinks. Power Freeze delivers a fast blast of cold air into the freezer. It’s great for freezing or firming up frozen food and making ice.

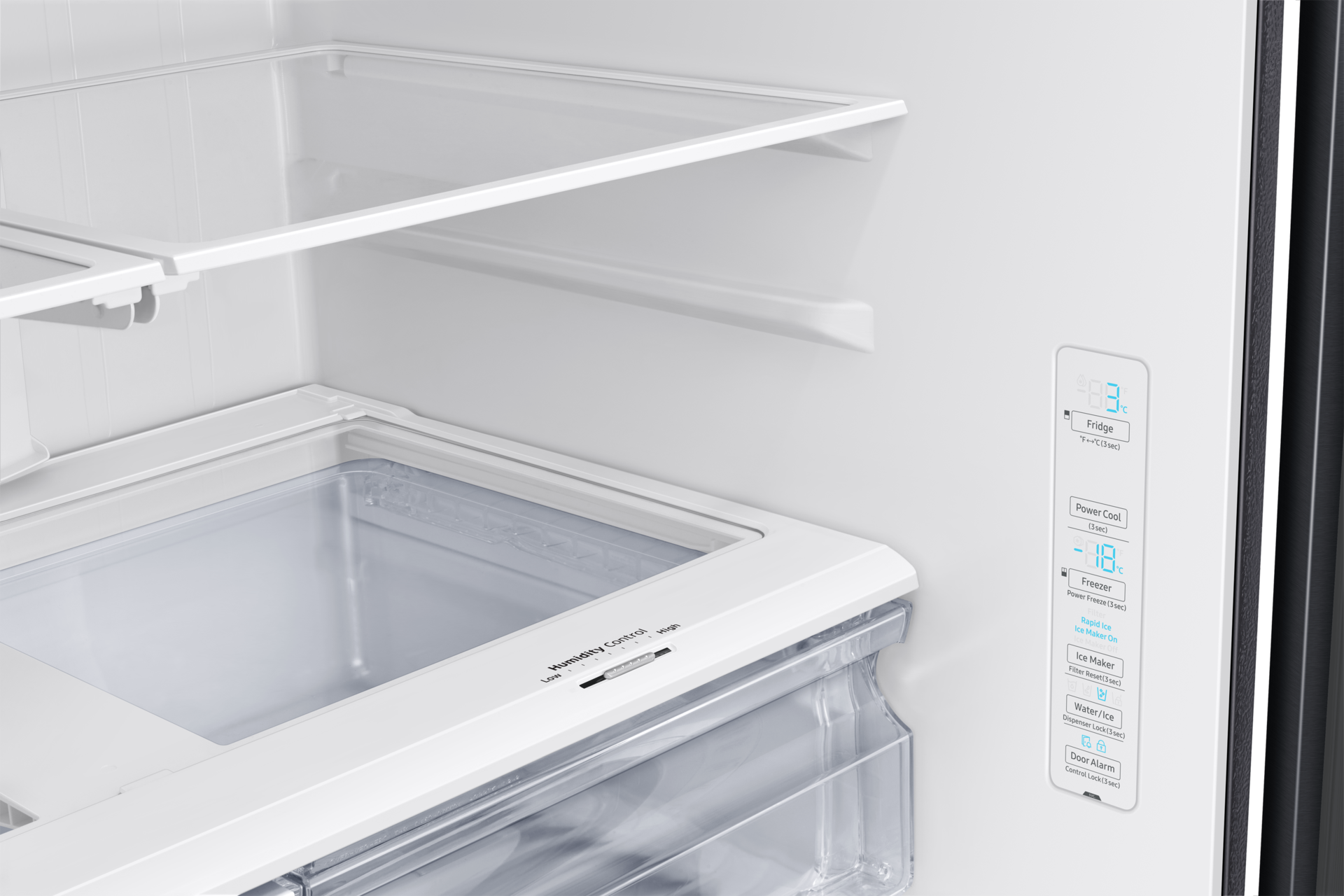

Seamless control with easy accessibility

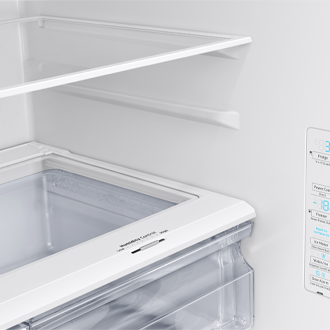

ADA Compliant Display
Use the refrigerator with ease and confidence if you have restricted movement. Its Internal Display is compliant with the standards of the Americans with Disabilities Act (ADA). So the controls are all within arm’s reach and can be used with one hand.

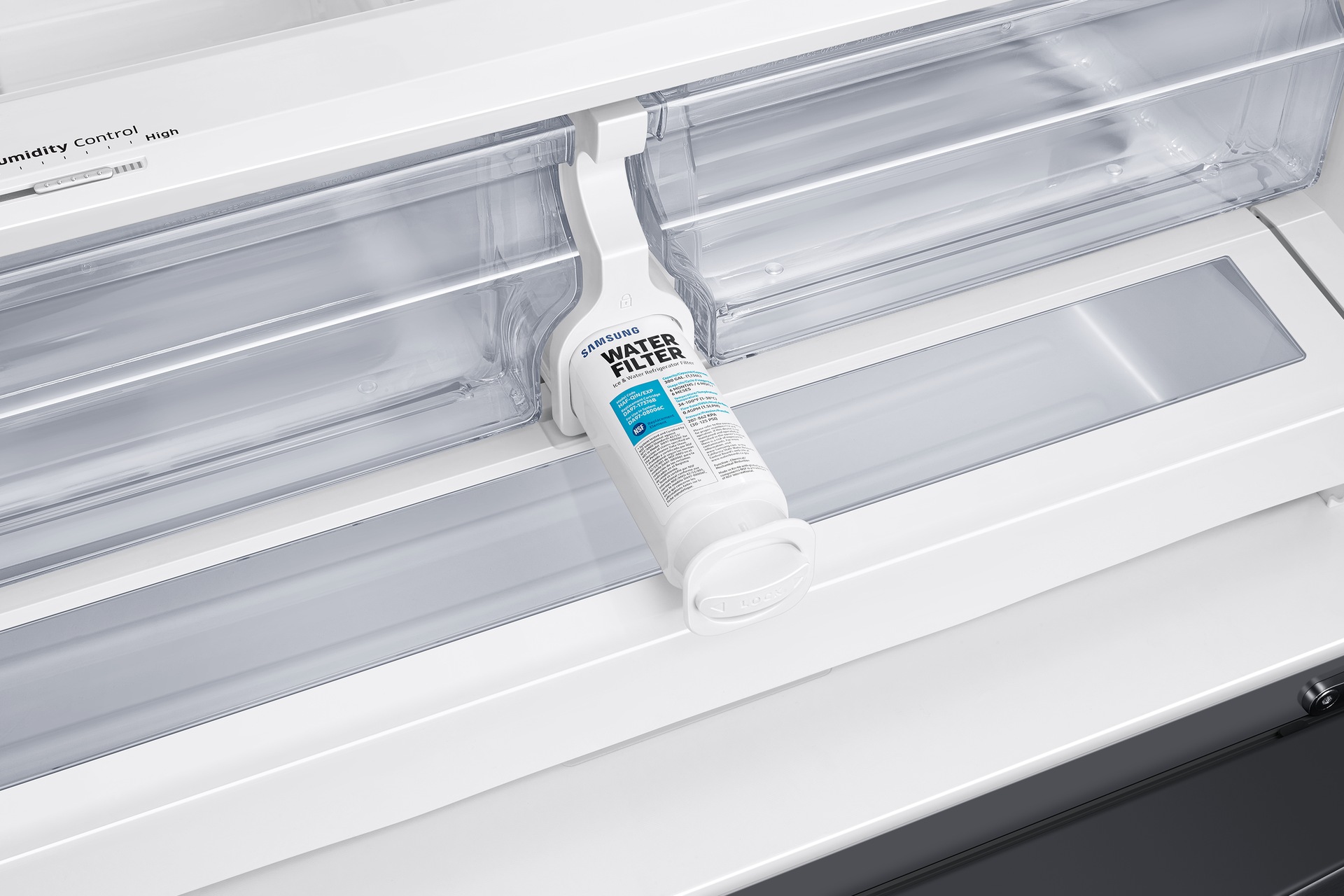

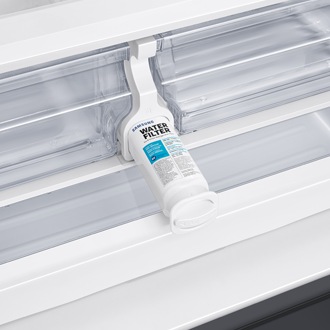

Fresh Filtered Water
Internal Water Filter
Clean water is essential to our health. The internal water filter keeps out more of the bad stuff, up to 80% more than other leading private labels. So you and your family can enjoy the good stuff—pure, clean water that tastes great.
Specifications
-
Net Total(Liter)
765
-
Cooling Type
All Around Cooling
-
Net Width(mm)
908
-
Net Depth with Door Handle(mm)
898
-
Net Case Height with Hinge(mm)
1777
-
Net Weight(kg)
133.8
-
Net Total(Liter)
765
-
Net for Freezer(Liter)
244
-
Net for Fridge(Liter)
521
-
Net Dimension (WxHxD)(mm)
908 x 1777 x 836
-
Net Width(mm)
908
-
Net Case Height with Hinge(mm)
1777
-
Net Case Height without Hinge(mm)
1749
-
Net Depth with Door Handle(mm)
898
-
Net Depth without Door Handle(mm)
836
-
Net Depth without Door(mm)
735
-
Packing Dimension (WxHxD)(mm)
958 x 1913 x 912
-
Packing Width(mm)
958
-
Packing Height(mm)
1913
-
Packing Depth(mm)
912
-
Net Weight(kg)
133.8
-
Packing Weight(kg)
138.1
-
20/40/40H (Container)
26(40 ft)
-
No Frost
Yes
-
Multi Flow
Yes
-
Cooling Type
All Around Cooling
-
CoolSelect Pantry
Yes
-
Number of Shelf (Total)
4 EA
-
Shelf Material
Tempered Glass
-
Number of Vegetable&Fruit Drawer
2 EA
-
Number of Door Pocket
6 EA
-
Power Cool Function
Yes
-
Icemaker
Auto Ice Maker
-
Interior LED Light
LED Lighting
-
Number of Drawer
1 EA
-
Power Freeze Function
Yes
-
Freezer Divider
Fixed Divider
-
Door Alarm
Yes
-
Refrigerant
R-600a
-
Tactile, Electronic Control
Electronic Control
-
Compressor
Digital Inverter Compressor
-
Door Type
Sleek Edge Door
-
Door Handle
Flat Handle
-
Color
Black DOI
-
Dispenser Type
I&W Dispenser
-
Energy Consumption (kWh/month)
45
-
Free Standing
Yes
-
WiFi Embedded
No
User manual & downloads
Solutions & Tips
- What should I do if water drips from the dispenser?
- How to set the vacation mode or the lock function on my refrigerator?
- How to connect to SmartThings on my Family Hub refrigerator?
- How to turn off the ice maker on the refrigerator?
- What should I do when water leaks from the drain tray of the refrigerator?
* Key feature may different from Key Spec
