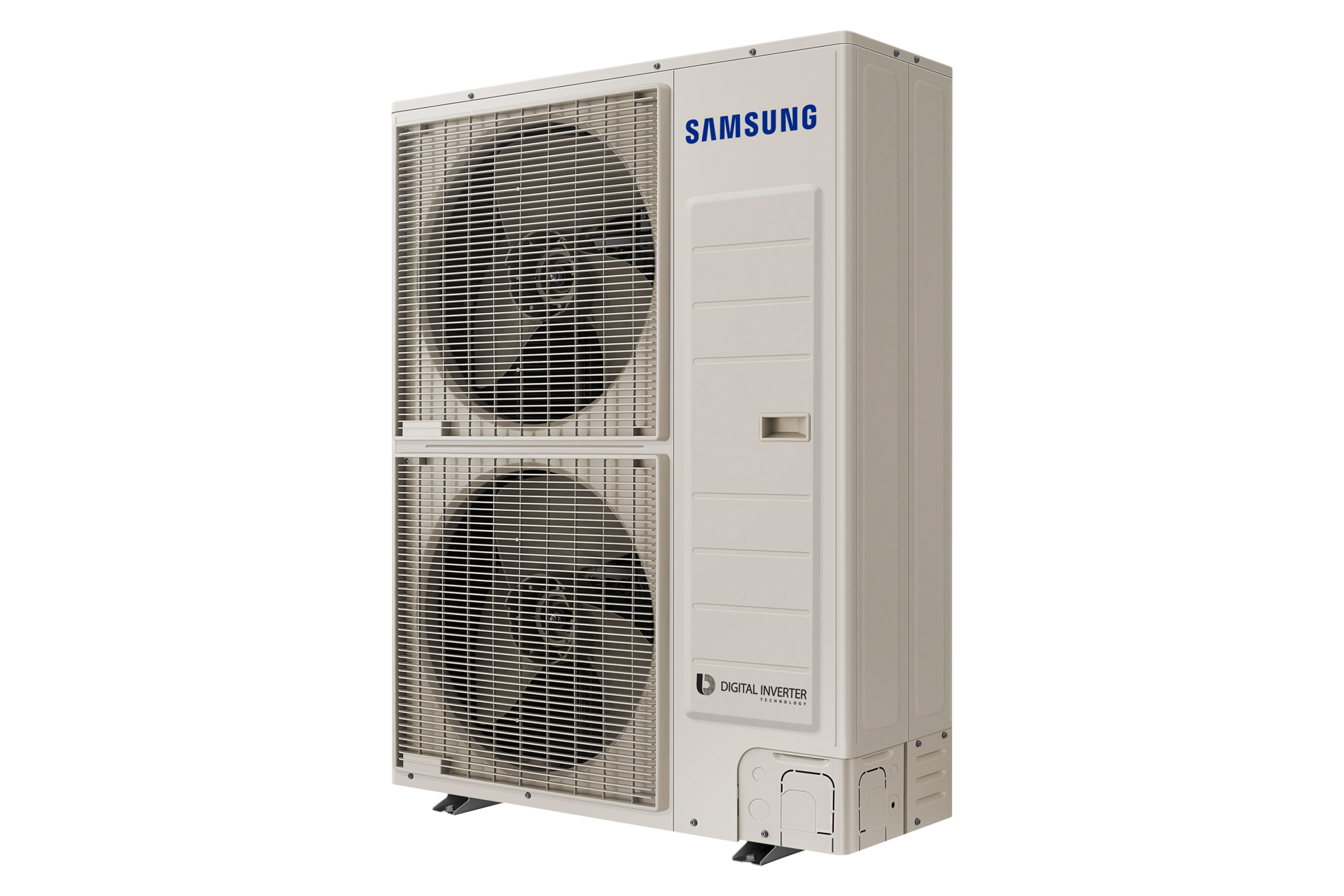

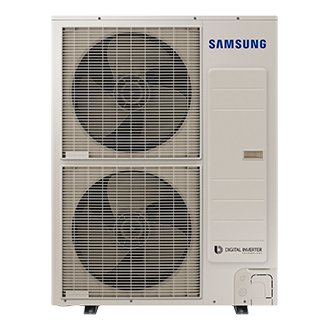

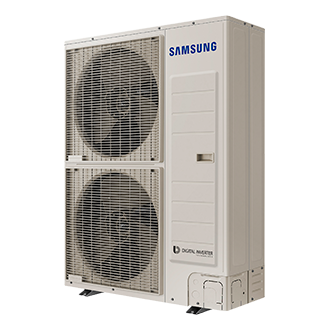

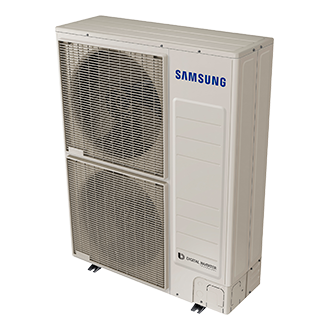

AC Outdoor unit with Digital Inverter Technology, 42000 BTU/hr 380 / 3Φ / 3 Phase
AC048TX4PHH/SU
Scan this QR code with your phone and place the object in your space.
Highlights
Features
Stay cool without direct wind
WindFree™
WindFree™Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.
*PC4SUFMAN(4way 600*600) : 8,976 micro hole, PC4NUFMAN(4way) : 15,672 micro hole
Energy saving with WindFree™ Cooling
Energy Saving
WindFree™ Cooling allows efficient energy saving up to 55%.
*Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running simultaneously. Individual result may vary depending on consumer usage.
Wider cooling range
Big Blade
Big and optimized blades enable even wider cooling range.
*Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.
Optimized operation by MDS
Motion Detect Sensor
Motion Detect Sensor enables customized air flow and energy effcient operation.
Specifications
-
Cooling [Btu/h]
15200 / 42000 / 53000 Btu/h
-
Capacity
4.47 / 12.30 / 15.55 kW
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Features
4Way
-
Type
4Way
-
Indoor Unit
AC048TN4PHH/SU
-
Outdoor Unit
AC048TX4PHH/SU
-
Mode
Heat Pump
-
Cooling [kW]
4.47 / 12.30 / 15.55 kW
-
Cooling [Btu/h]
15200 / 42000 / 53000 Btu/h
-
Heating [kW]
4.08 / 16.00 / 18.00 kW
-
Cooling Power Input (Min/Std/Max)
1.00 / 3.39 / 6.10 kW
-
Heating Power Input (Min/Std/Max)
0.74 / 4.70 / 7.00 kW
-
Cooling Current Input (Min/Std/Max)
1.70 / 5.50 / 9.40 A
-
Heating Current Input (Min/Std/Max)
1.50 / 7.30 / 11.00 A
-
EER (Nominal Cooling) [(Btu/h)/W]
12.4 Btu/Wh
-
COP (Nominal Heating)
3.4 W/W
-

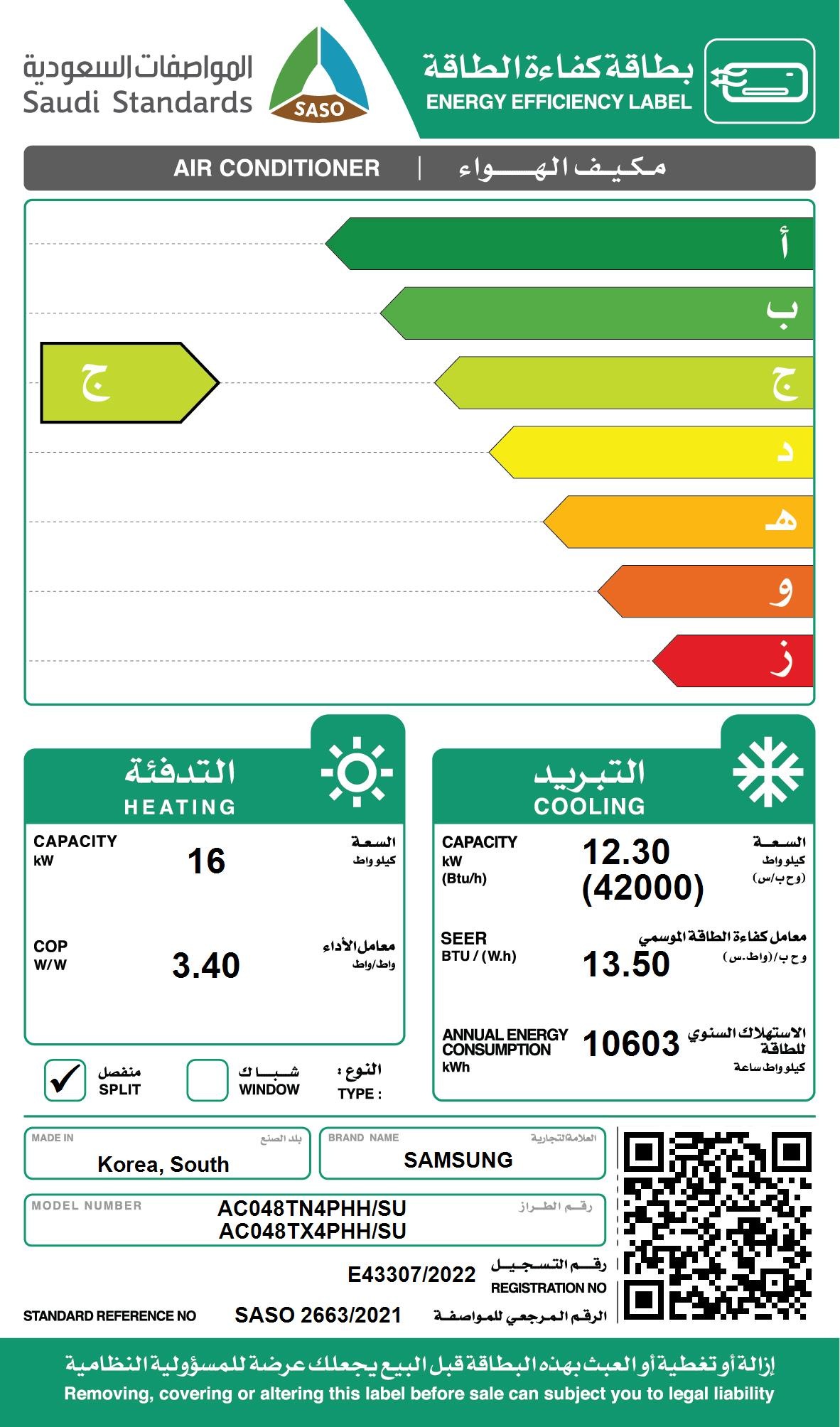

SEER (Cooling Energy Grade)
C
-
SEER (Cooling) [Btu/Wh]
13.50 Btu/Wh
-
Liquid Pipe (Φ, mm)
9.52 mm
-
Liquid Pipe (Φ, inch)
3/8"
-
Gas Pipe (Φ, mm)
19.05 mm
-
Gas Pipe (Φ, inch)
3/4"
-
Installation Max. Length [m]
75 m
-
Installation Max. Height [m]
30 m
-
Type
R-410A
-
Factory Charging (kg)
3.80 kg
-
1,2,230,60
-
Type
Turbo
-
Air Flow Rate Cooling (H/M/L) [m³/min]
34.0/27.5/21.5 ㎥/min
-
Motor (Output) [W]
97 W
-
Number of Unit (EA)
1 EA
-
3,4,400,60
-
Sound Pressure (High / Mid / Low) [dB(A)]
45 / 41 / 37 dBA
-
Panel Net Weight (kg)
20.0 kg
-
Shipping Weight (kg)
23.5 kg
-
Net Dimensions (WxHxD) (mm)
840 x 288 x 840 mm
-
Shipping Dimensions (WxHxD) (mm)
898 x 357 x 898 mm
-
Type
Twin BLDC Rotary
-
Model Name
UG5TK5450FJX
-
Output(kW)
4.12 kW
-
Oil (Type)
POE
-
Oil (Initial Charge) [cc]
1700 cc
-
Air Flow Rate (Cooling) [m³/min]
115 ㎥/min
-
Sound Pressure Level (Cooling)
55 dBA
-
Panel Net Weight (kg)
98.0 kg
-
Shipping Weight (kg)
108.0 kg
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Shipping Dimensions (WxHxD) (mm)
995 x 1598 x 426 mm
-
Cooling (℃)
-15~54 ℃
-
Heating (℃)
-20~24 ℃
