Which ports does the Galaxy Book have?
Connect the devices you love to your Galaxy Book via USB, HDMI or Thunderbolt 3, increase storage capacity via MicroSD or UFS and enjoy listening to music or connecting a microphone using the 3.5mm audio jack.
|
Port |
Book S |
Book Flex |
Book Ion |
|---|---|---|---|
|
HDMI |
No |
No |
Yes |
|
Thunderbolt 3 |
No |
Yes - 2 |
Yes - 1 |
|
USB |
2 x USB-C |
1 x USB-C |
2 x USB 3.0 |
|
Headphone / Mic |
Yes |
Yes |
Yes |
|
SIM |
Yes |
No |
No |
|
MicroSD |
Yes |
Yes |
Yes - up to 2 TB |
|
UFS |
No |
Yes |
Yes - up to 512 GB |

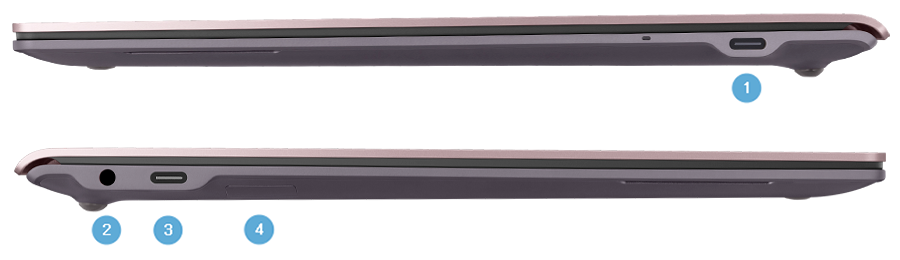

Book S has two USB-C ports, one on either side, which can be used to charge the laptop. There is an earphone jack on the left hand side as well as a combination microSD and SIM card tray which slides out of the laptop.
|
Ref |
Port |
|---|---|
|
1 |
USB-C |
|
2 |
3.5mm earphone jack |
|
3 |
USB-C |
|
4 |
SIM / MicroSD |

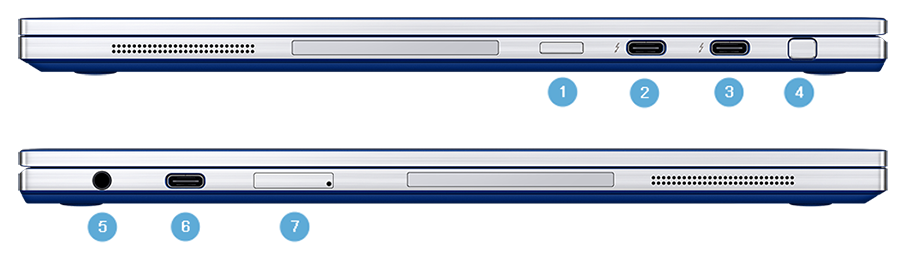

On the right hand side of the Book Flex, are two Thunderbolt 3 ports, as well as the S Pen slot. On the left hand side are the charging port, a USB-C port, the earphone jack and the microSD/UFS reader.
|
Ref |
Port |
|---|---|
|
1 |
Power button |
|
2 |
Thunderbolt 3 |
|
3 |
Thunderbolt 3 |
|
4 |
S Pen slot |
|
5 |
Headphone / Mic |
|
6 |
USB-C |
|
7 |
MicroSD / UFS |

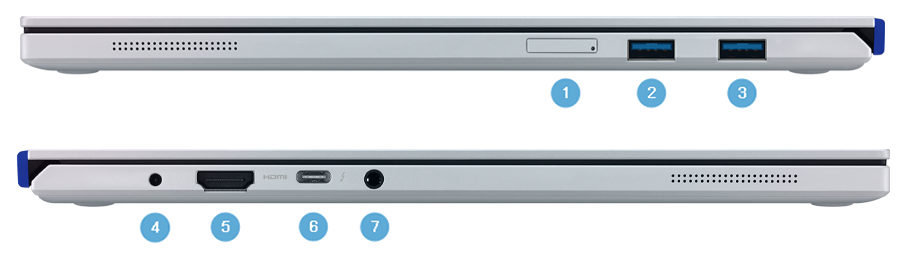

On the left hand side of the Book Ion, you'll find the charging port, HDMI, Thunderbolt 3, and the earphone jack. On the right hand side, are two USB 3.0 ports and for an easy storage boost, there's the UFS/MicroSD card slot that supports up to 2TB for an SD card and 512GB for a UFS card.
|
Ref |
Port |
|---|---|
|
1 |
MicroSD / UFS |
|
2 |
USB 3.0 |
|
3 |
USB 3.0 |
|
4 |
Charging port |
|
5 |
HDMI |
|
6 |
Thunderbolt 3 |
|
7 |
Headphone / Mic |
