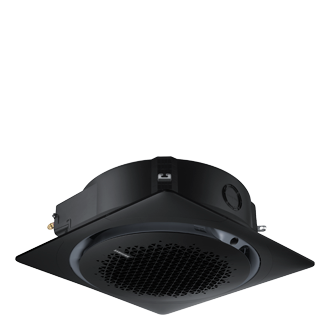

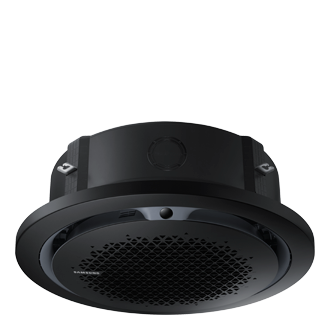

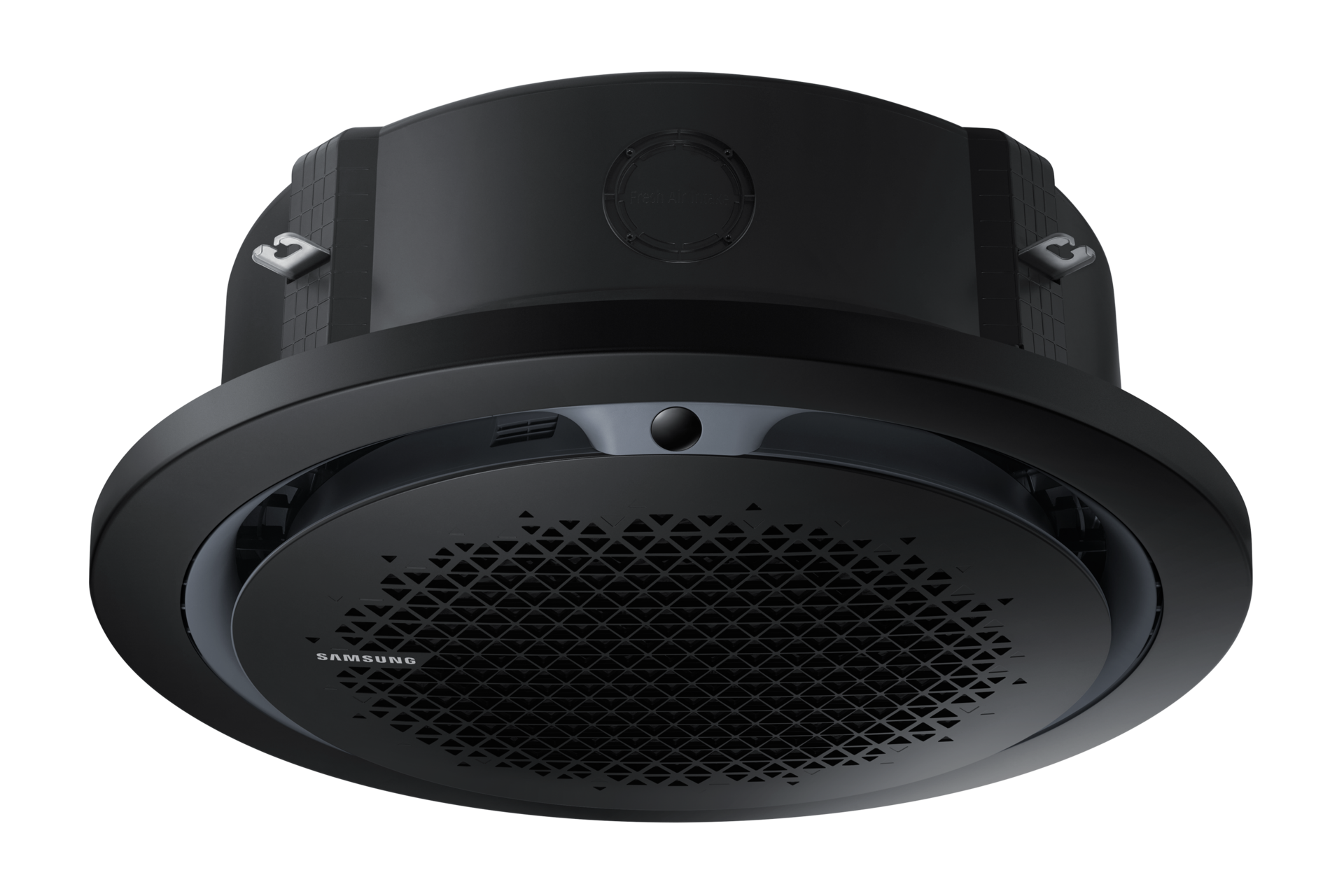

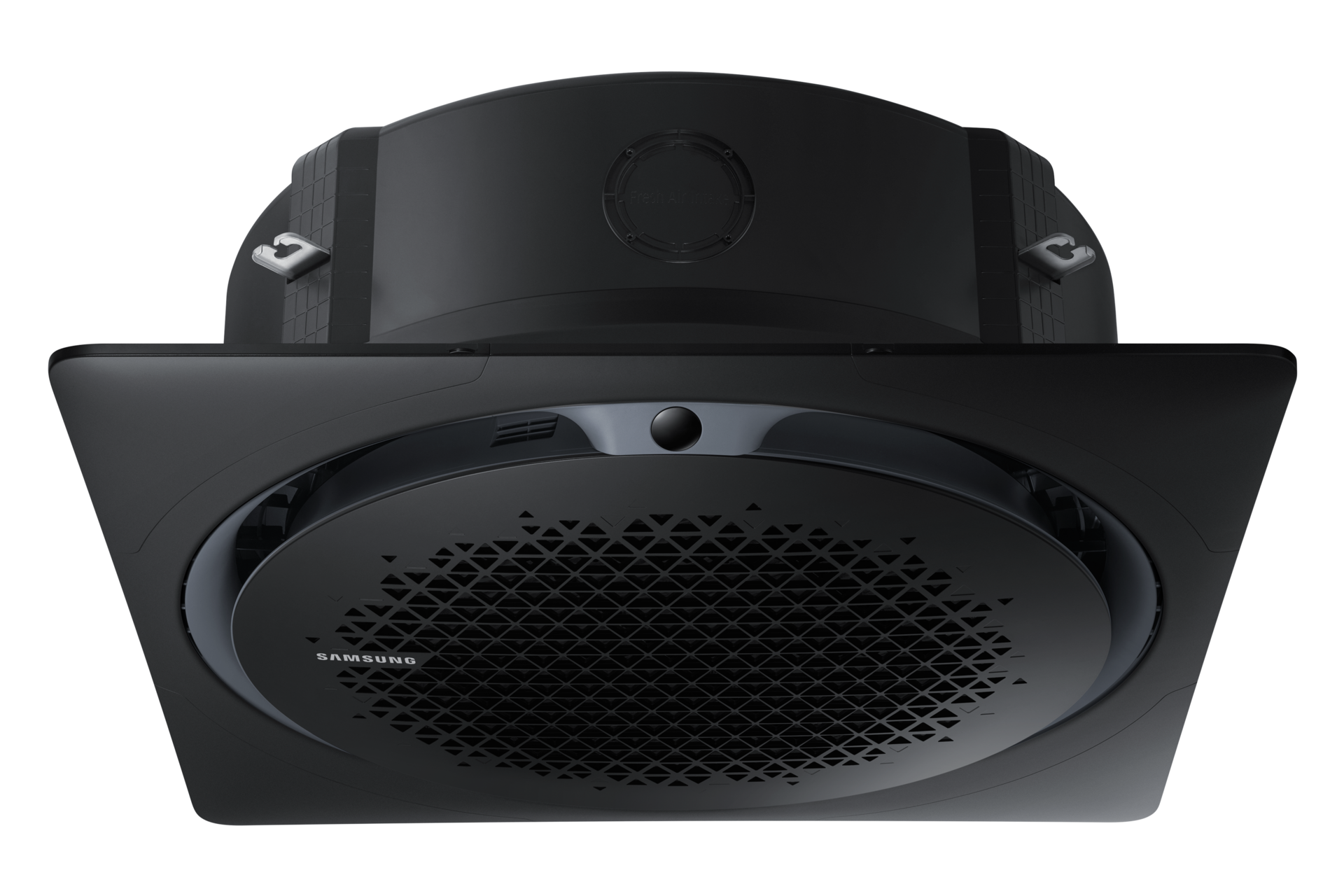

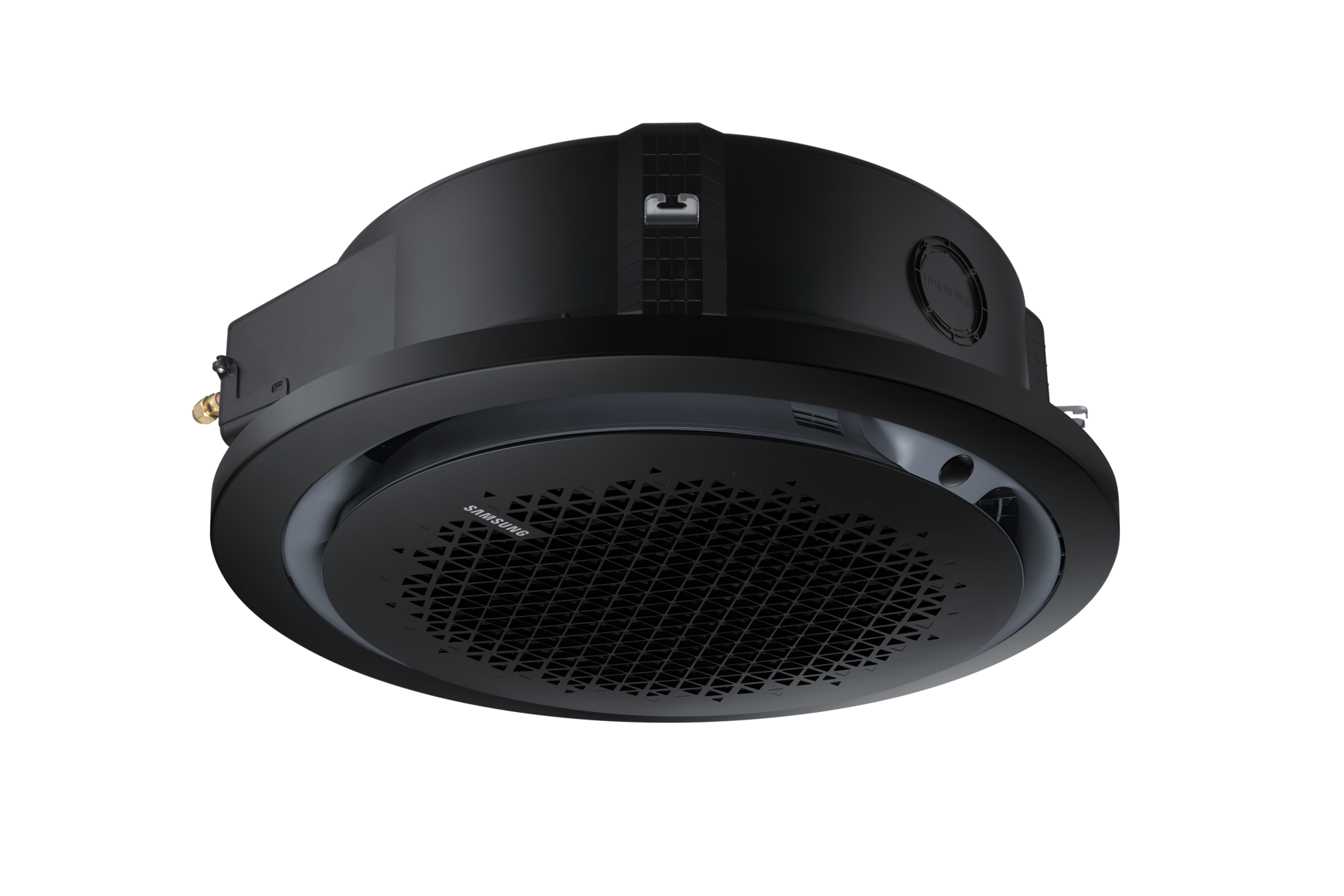

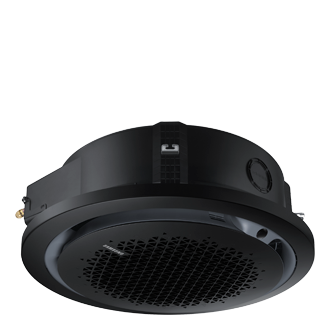

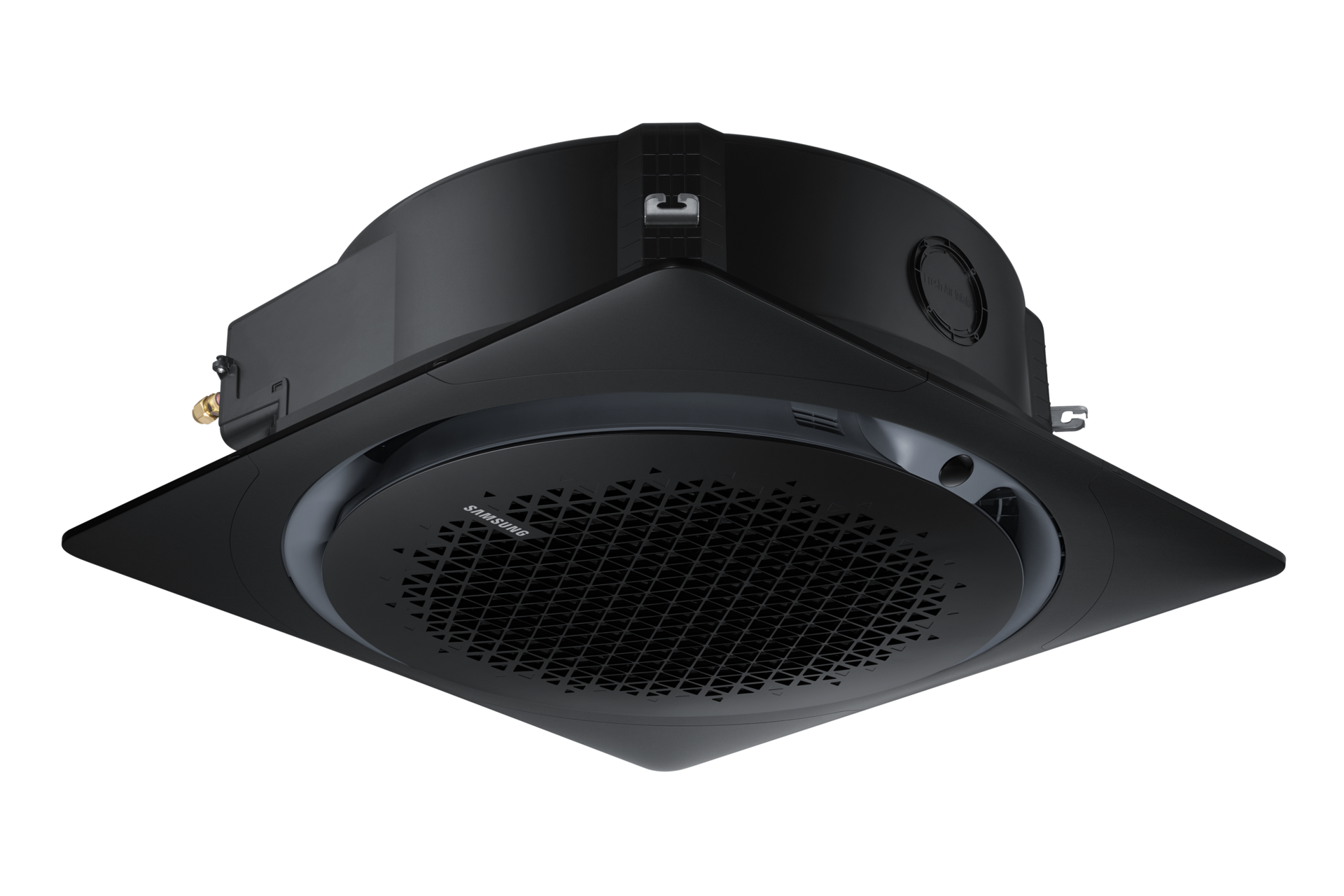

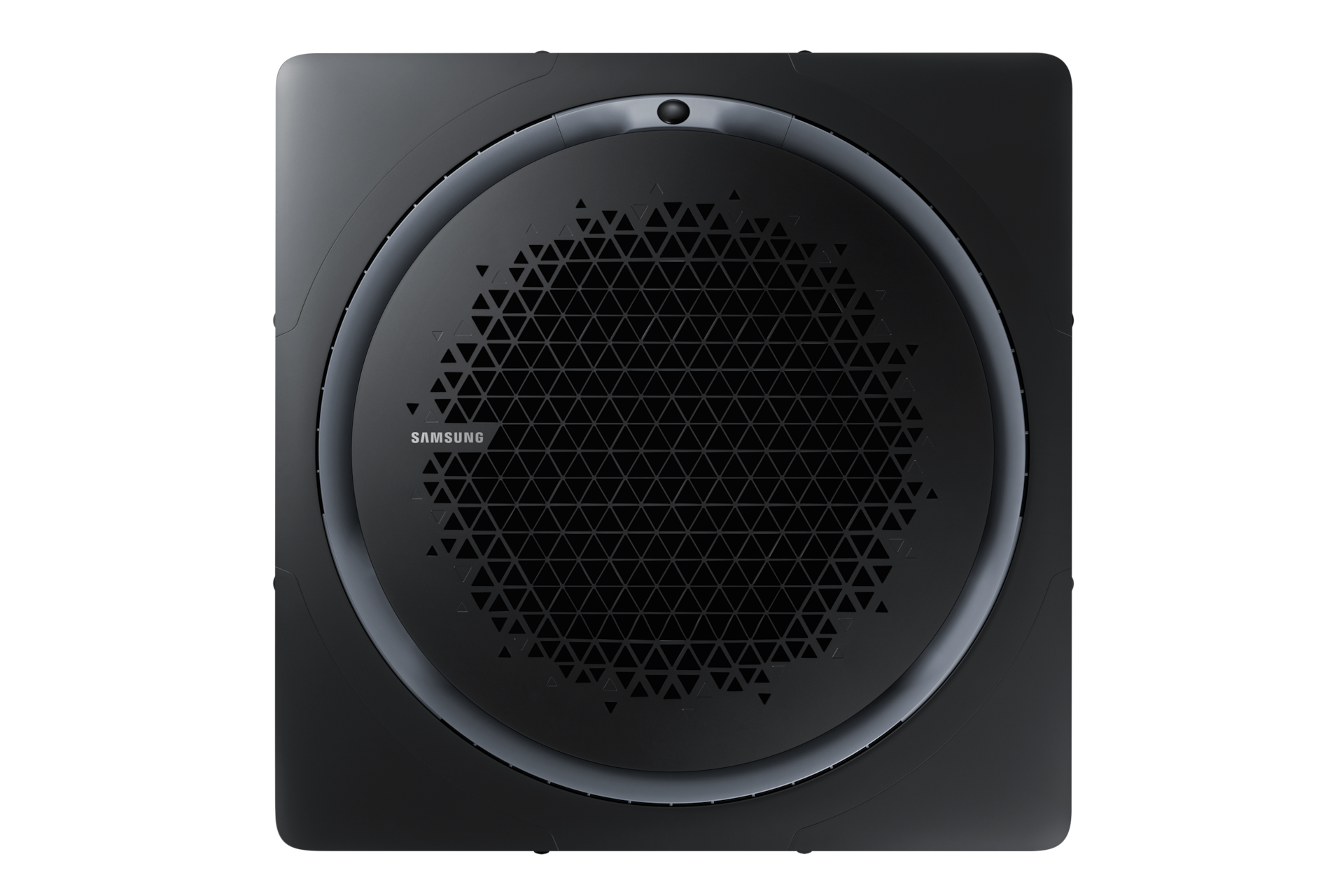

Indoor unit 360 Cassette AC with Digital Inverter and Bladeless design, Cooling/Heating 42000 BTU/hr 220 / 1Φ
AC048TN4FCH/SU
Scan this QR code with your phone and place the object in your space.
Features
Evenly circulates &cools every corner

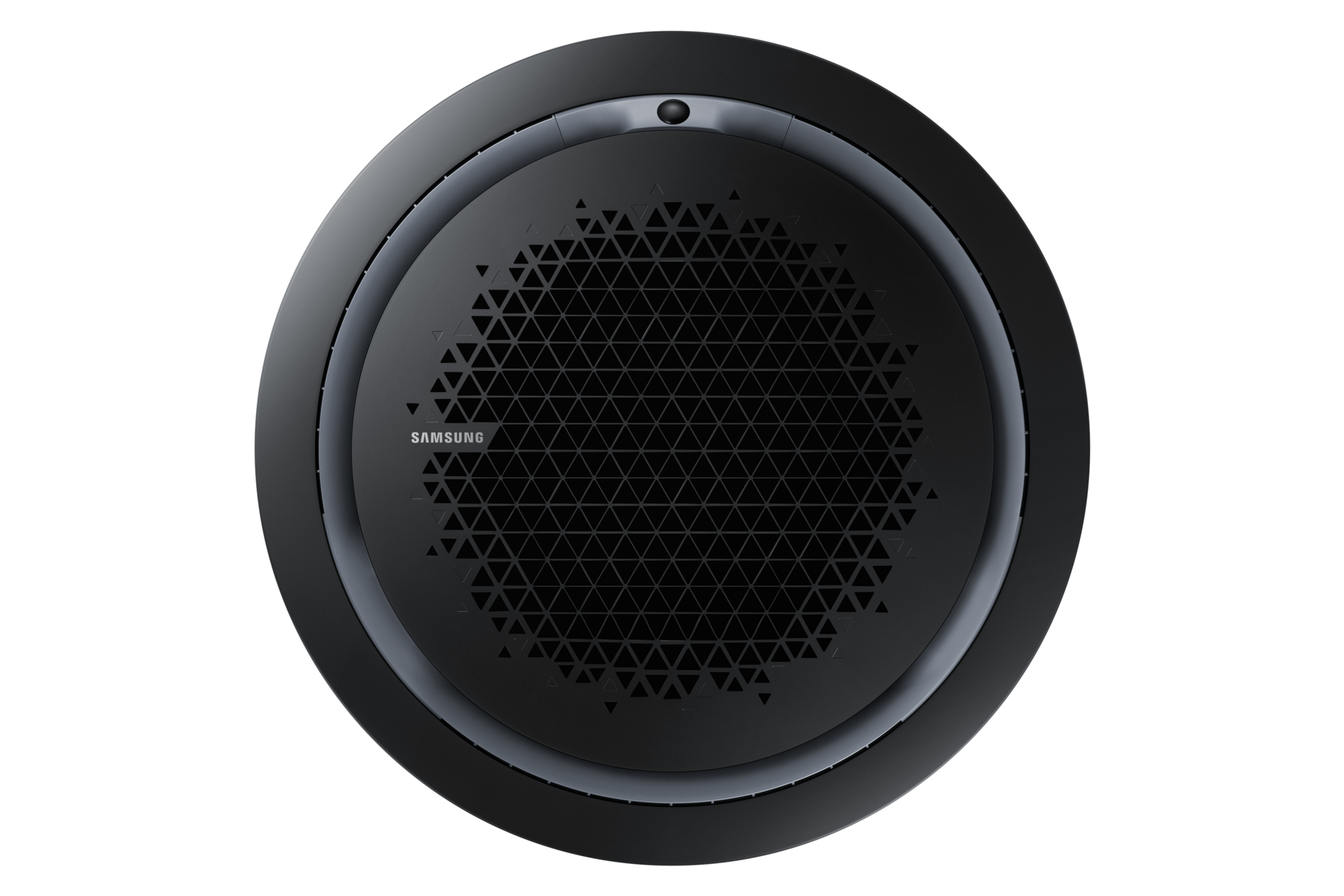

Omnidirectional outlet
Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach*, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature**.
* Samsung testing compared to a general 4 way cassette type air conditioner.** Within an 9.3m radius the temperature difference is less than 0.6°C.
Spreads much more air in many more ways
Booster Fan
An innovative Booster Fan enables cool air to be expelled at much lower angles. It creates a low pressure area around the outlet, so that cool air comes out parallel to the ceiling and disperses across a wider area.
* Samsung testing compared to a general 4 way cassette type air conditioner.
* Samsung testing compared to a general 4 way cassette type air conditioner.
Specifications
-
Cooling [Btu/h]
15200 / 42000 / 53000 Btu/h
-
Capacity
4.47 / 12.3 / 15.55 kW
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Features
360 CST
-
Type
360 CST
-
Indoor Unit
AC048TN4FCH/SU
-
Outdoor Unit
AC048TXQFCH/SU
-
Mode
Heat Pump
-
Cooling [kW]
4.47 / 12.3 / 15.55 kW
-
Cooling [Btu/h]
15200 / 42000 / 53000 Btu/h
-
Heating [kW]
4.08 / 16.0 / 18.0 kW
-
MCA [A]
33.5 A
-
Cooling Power Input (Min/Std/Max)
1.00 / 3.44 / 6.10 kW
-
MFA [A]
40.0 A
-
Heating Power Input (Min/Std/Max)
0.74 / 4.70 / 7.00 kW
-
Cooling Current Input (Min/Std/Max)
4.7 / 15.2 / 27.5 A
-
Heating Current Input (Min/Std/Max)
4.2 / 20.5 / 31.0 A
-
EER (Nominal Cooling) [(Btu/h)/W]
12.2 Btu/Wh
-
COP (Nominal Heating)
3.4 W/W
-

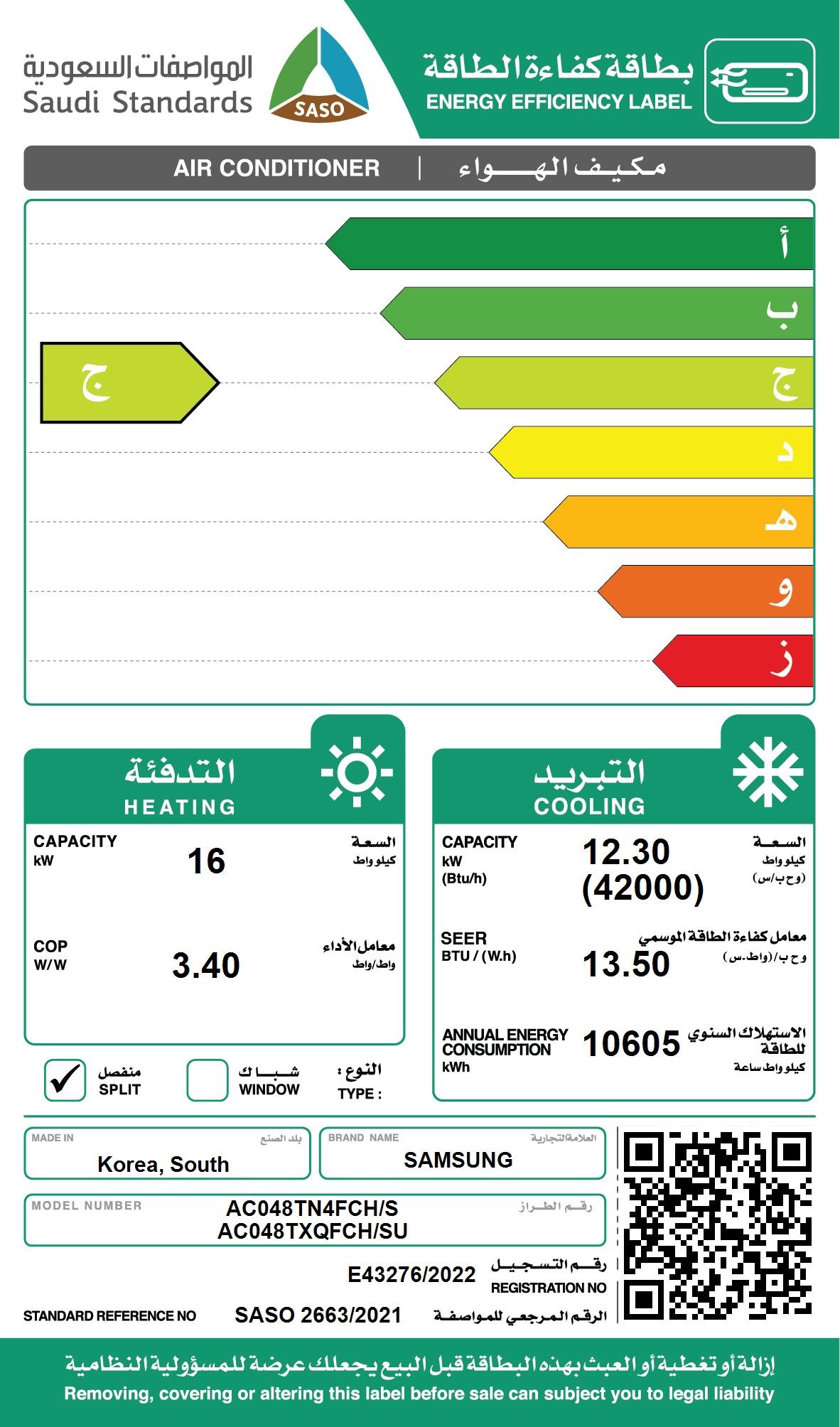

SEER (Cooling Energy Grade)
C
-
SEER (Cooling) [Btu/Wh]
13.50 Btu/Wh
-
Liquid Pipe (Φ, mm)
9.52 mm
-
Liquid Pipe (Φ, inch)
3/8"
-
Gas Pipe (Φ, mm)
19.05 mm
-
Gas Pipe (Φ, inch)
3/4"
-
Installation Max. Length [m]
75 m
-
Installation Max. Height [m]
30 m
-
Power Source Wire
0.75
-
Transmission Cable
0.75
-
Type
R-410A
-
Factory Charging (kg)
3.80 kg
-
1,2,230,60
-
Type
Turbo
-
Air Flow Rate Cooling (H/M/L) [m³/min]
32.7 / 27.0 / 22.3 ㎥/min
-
Motor (Output) [W]
97 W
-
Number of Unit (EA)
1 EA
-
1,2,230,60
-
Drain Pipe (Φ,mm)
VP25(OD32,ID25)
-
Sound Pressure (High / Mid / Low) [dB(A)]
45 / 41 / 37 dBA
-
Panel Net Weight (kg)
25.8 kg
-
Shipping Weight (kg)
30.5 kg
-
Net Dimensions (WxHxD) (mm)
947 x 365 x 947 mm
-
Shipping Dimensions (WxHxD) (mm)
990 x 414 x 990 mm
-
Model Name
PC4NUDMAN
-
Panel Net Weight (kg)
3.6 kg
-
Shipping Weight (kg)
6.3 kg
-
Net Dimensions (WxHxD) (mm)
1000 x 66 x 1000 mm
-
Shipping Dimensions (WxHxD) (mm)
1093 x 85 x 1093 mm
-
Type
Twin BLDC Rotary
-
Model Name
UG5TK5450FJX
-
Output(kW)
4.12 kW
-
Oil (Type)
POE
-
Oil (Initial Charge) [cc]
1700 cc
-
Air Flow Rate (Cooling) [m³/min]
115 ㎥/min
-
Sound Pressure Level (Cooling)
55 dBA
-
Panel Net Weight (kg)
98.0 kg
-
Shipping Weight (kg)
108.0 kg
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Shipping Dimensions (WxHxD) (mm)
995 x 1598 x 426 mm
-
Cooling (℃)
-15~54 ℃
-
Heating (℃)
-20~24 ℃
