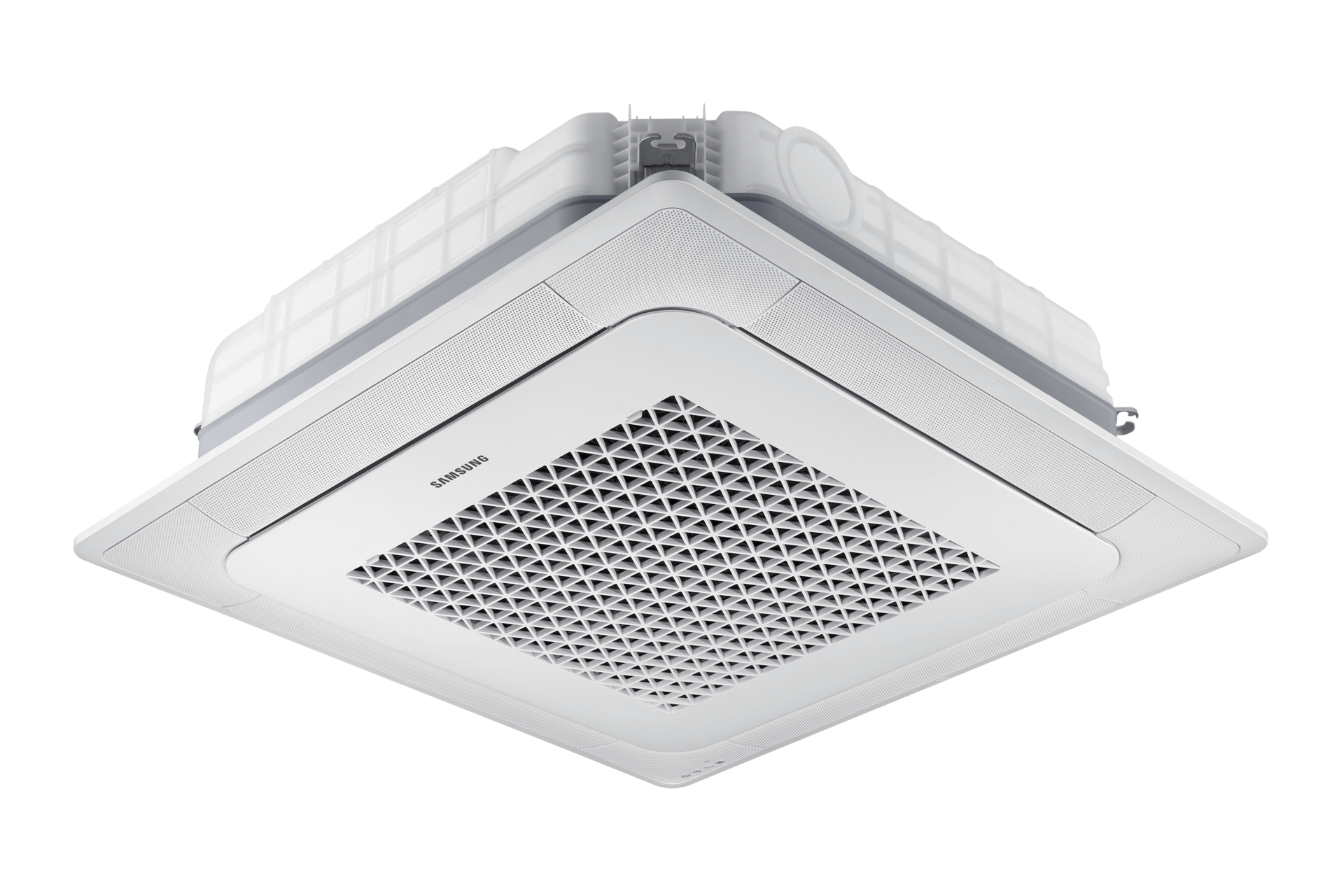

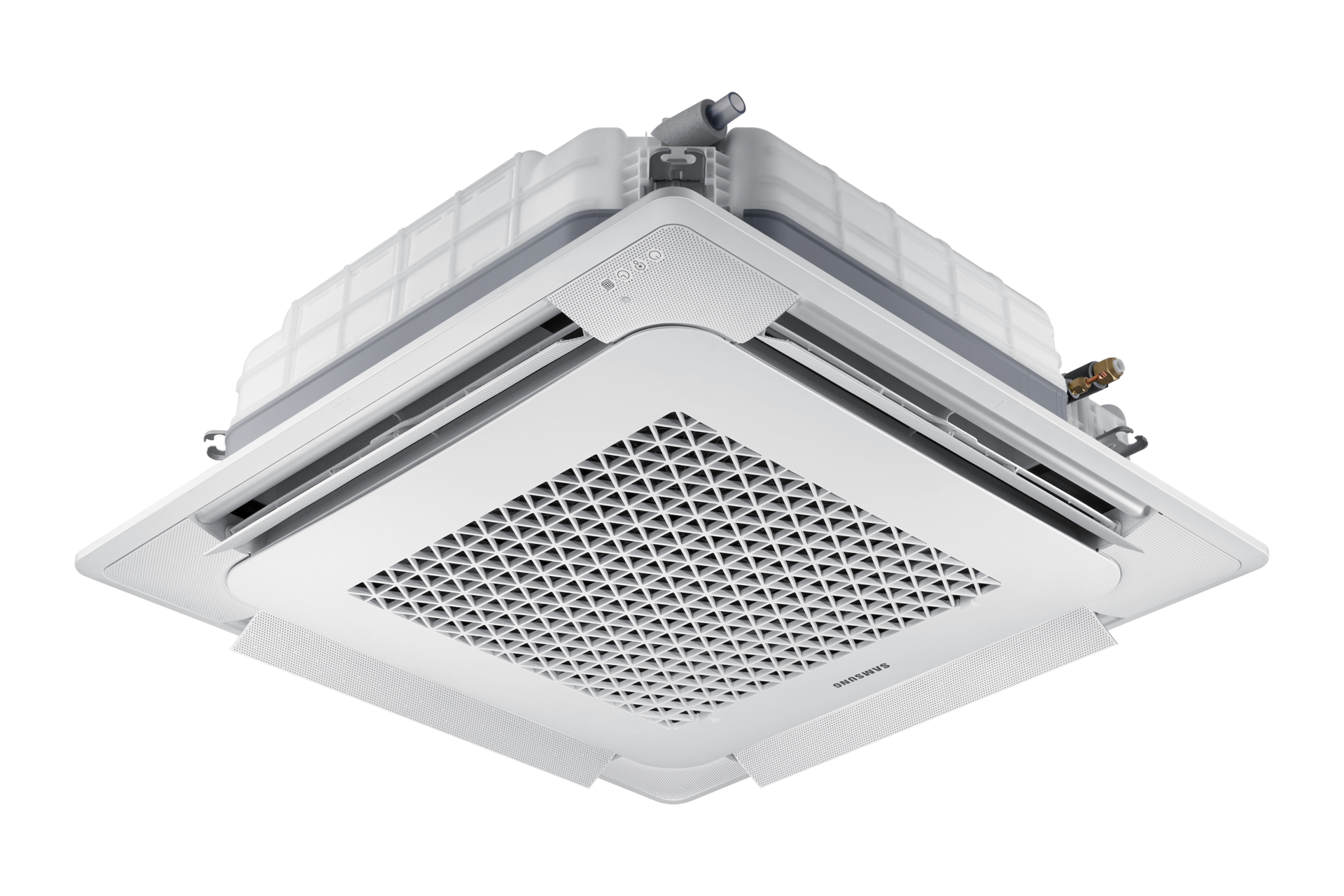

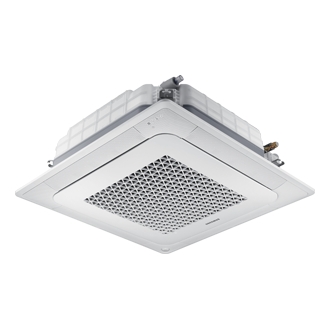

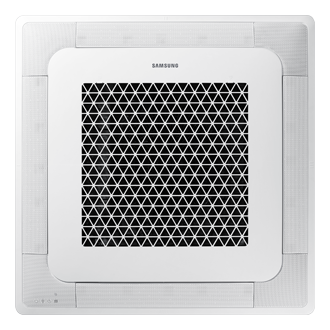

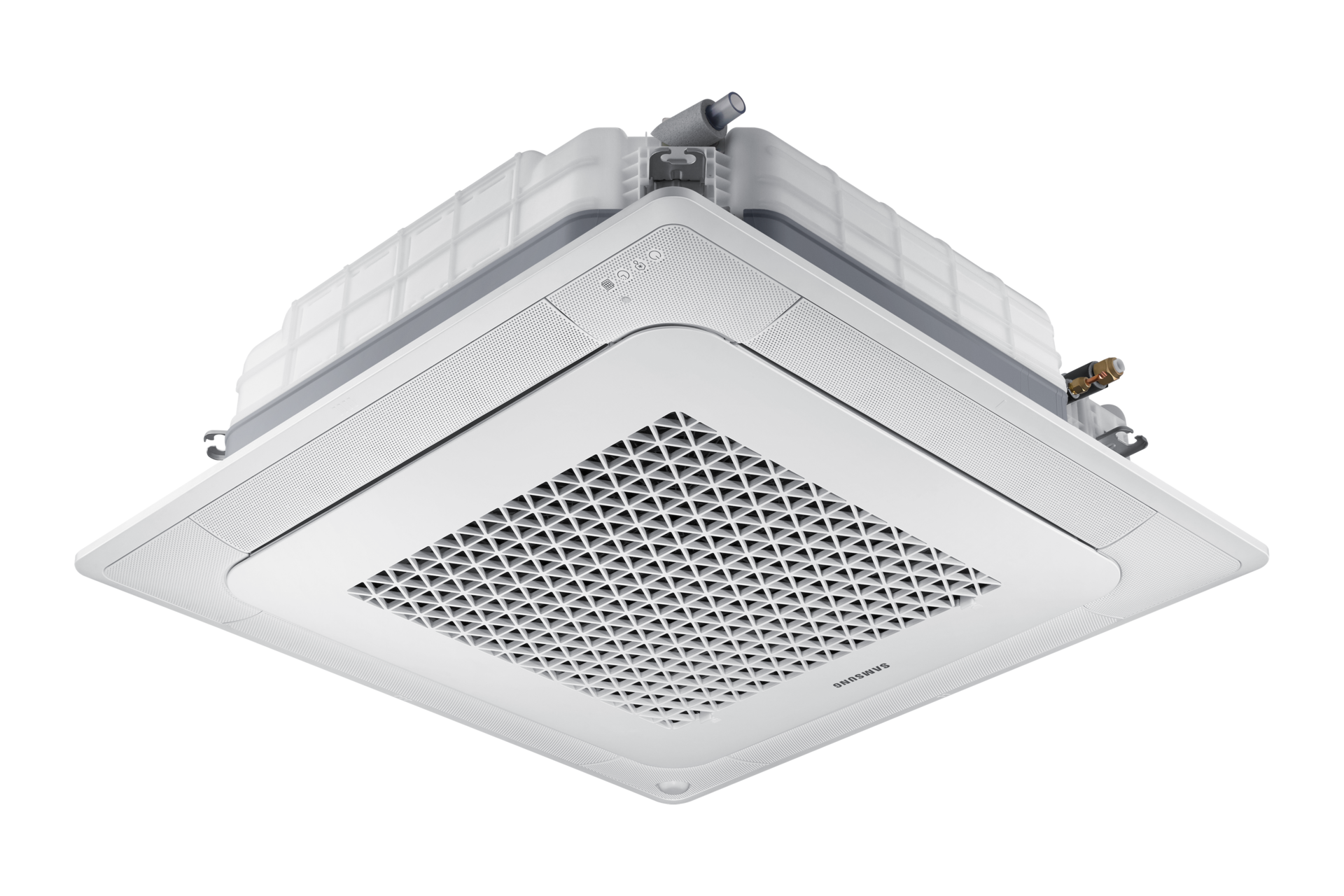

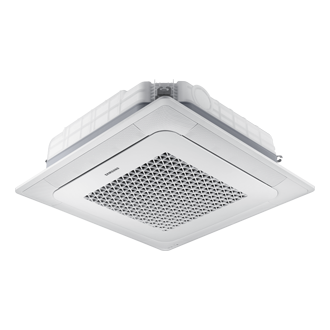

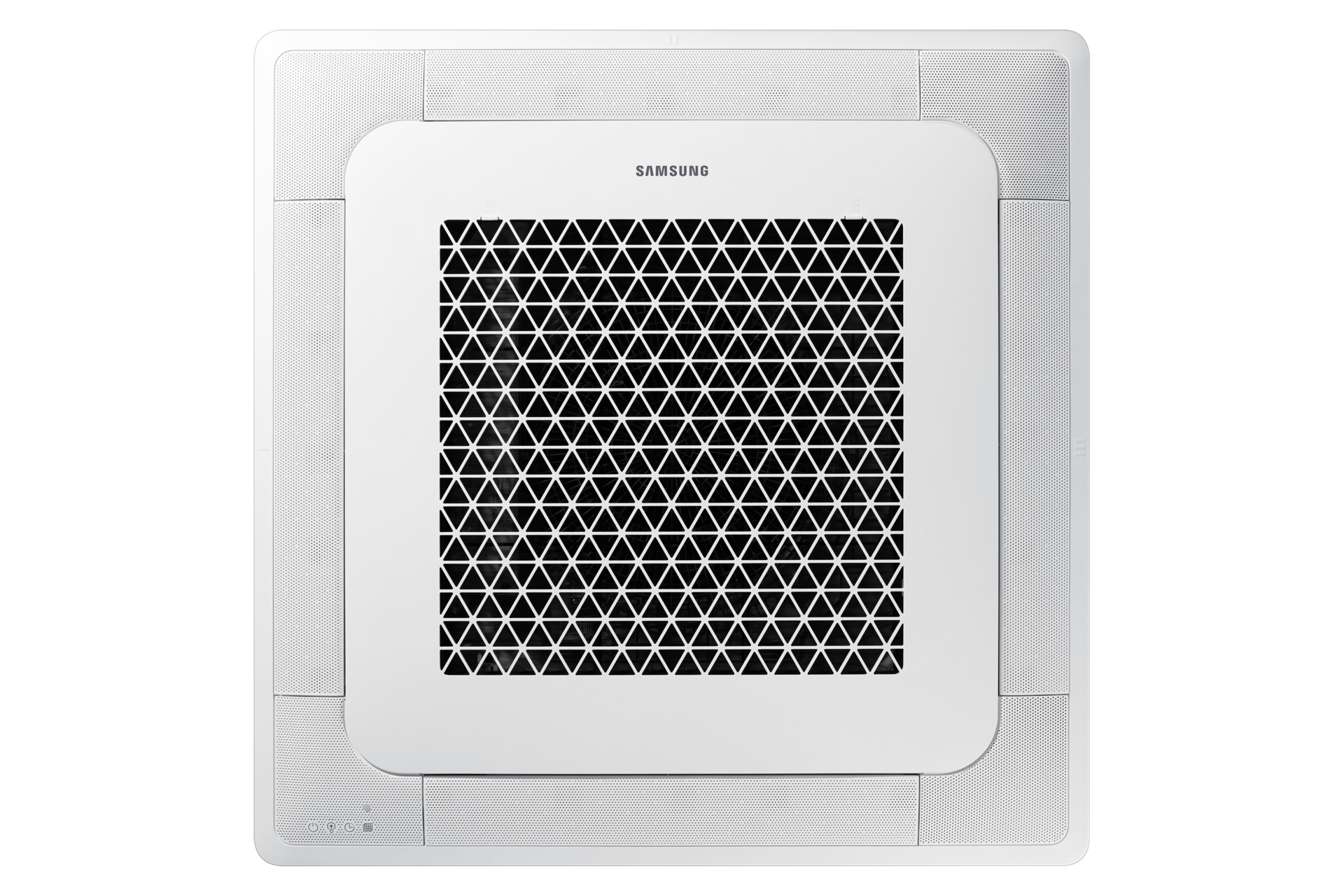

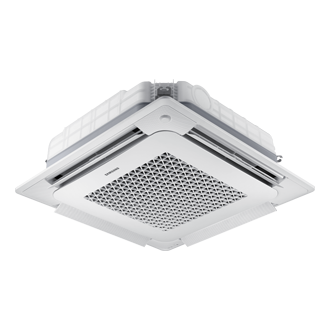

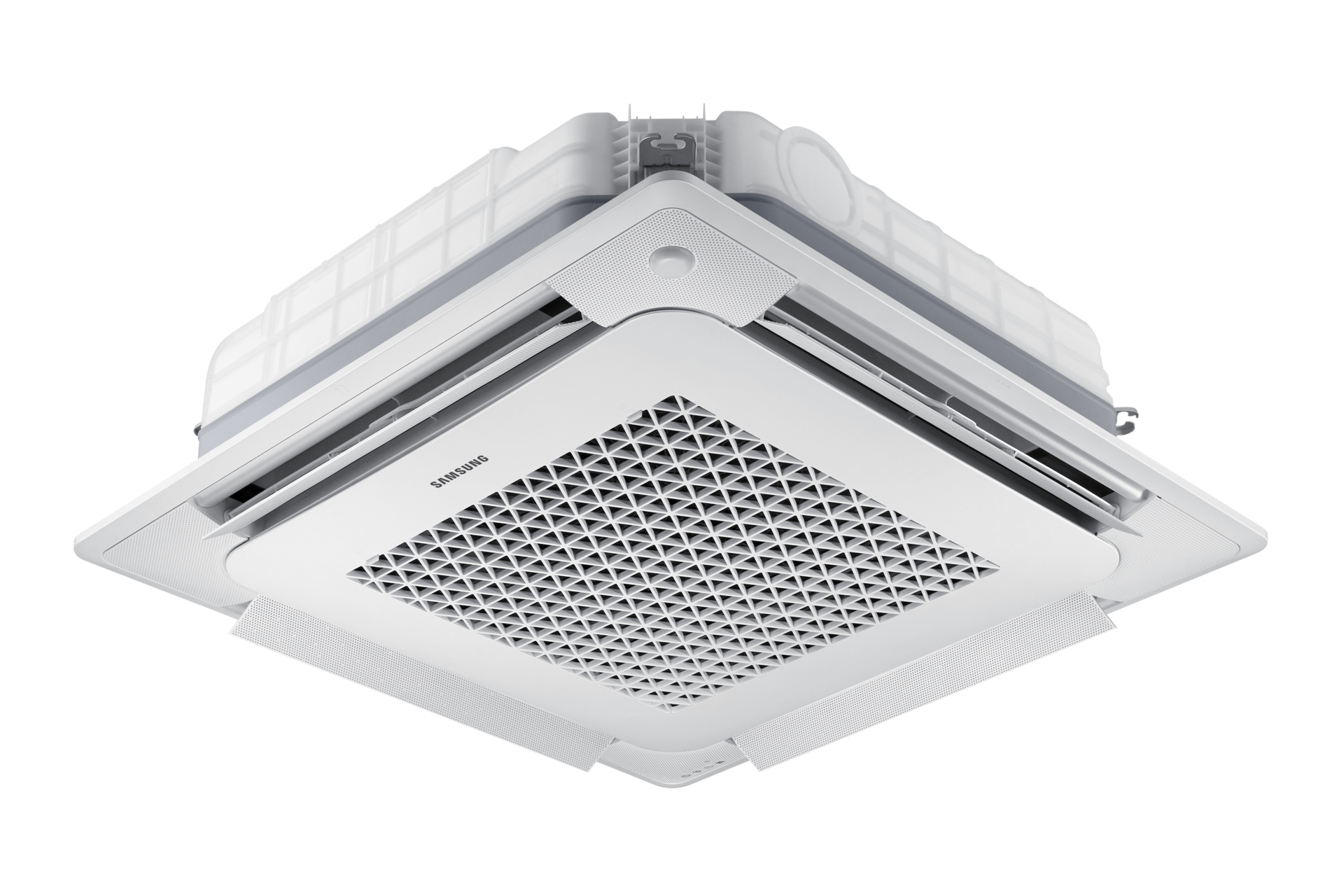

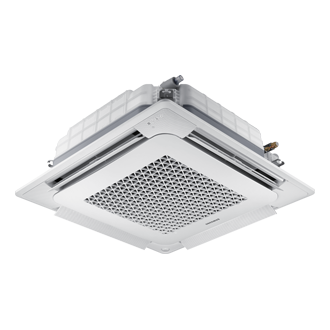

Indoor unit 4Way WindFree Cassette AC with Digital Inverter, CoolOnly 18000 BTU/hr 220 / 1Φ

Features
Gallery
Spec
Review
Support
Compare

Energy saving with WindFree™ Cooling

Energy Saving

WindFree™ Cooling allows efficient energy saving up to 55%.

*Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running simultaneously. Individual result may vary depending on consumer usage.

Specifications

Cooling [Btu/h] 6800 / 18000 / 22000 Btu/h
Capacity 5.28 kW
Net Dimensions (WxHxD) (mm) 880 x 638 x 310 mm
Features 4Way

Features

Type 4Way

Model Name

Indoor Unit AC018TN4PCC/SU
Outdoor Unit AC018TX4PCC/SU

System

Mode Cooling Only

Capacity

Cooling [kW] 5.28 kW
Cooling [Btu/h] 6800 / 18000 / 22000 Btu/h

Power

Cooling Power Input (Min/Std/Max) 0.35 / 1.45 / 3.00 kW
Cooling Current Input (Min/Std/Max) 2.30 / 6.60 / 15.30 A

Energy Efficiency

EER (Nominal Cooling) [(Btu/h)/W] 12.4 Btu/Wh
SEER (Cooling Energy Grade) C
SEER (Cooling) [Btu/Wh] 14.90 Btu/Wh

Piping Connections

Liquid Pipe (Φ, mm) 6.35 mm
Liquid Pipe (Φ, inch) 1/4"
Gas Pipe (Φ, mm) 12.7 mm
Gas Pipe (Φ, inch) 1/2"
Installation Max. Length [m] 30 m
Installation Max. Height [m] 20 m

Refrigerant

Type R-410A
Factory Charging (kg) 1.45 kg

Power Supply (Indoor Unit) [Φ, #, V, Hz]

1,2,230,60

Fan

Type Turbo
Air Flow Rate Cooling (H/M/L) [m³/min] 19.5 / 16.5 / 14.3 ㎥/min
Motor (Output) [W] 65 W
Number of Unit (EA) 1 EA

Power Supply (Outdoor Unit) [Φ, #, V, Hz]

1,2,230,60

Sound

Sound Pressure (High / Mid / Low) [dB(A)] 38 / 36 / 34 dBA

External Dimension (Indoor Unit)

Panel Net Weight (kg) 14.5 kg
Shipping Weight (kg) 18.0 kg
Net Dimensions (WxHxD) (mm) 840 x 204 x 840 mm
Shipping Dimensions (WxHxD) (mm) 898 x 275 x 898 mm

Compressor

Type Twin BLDC Rotary
Model Name UG4T200FUAE4
Output(kW) 1.79 kW
Oil (Type) POE
Oil (Initial Charge) [cc] 650 cc

Fan (Outdoor Unit)

Air Flow Rate (Cooling) [m³/min] 51 ㎥/min

Sound (Outdoor Unit)

Sound Pressure Level (Cooling) 50 dBA

External Dimension (Outdoor Unit)

Panel Net Weight (kg) 43.5 kg
Shipping Weight (kg) 46.5 kg
Net Dimensions (WxHxD) (mm) 880 x 638 x 310 mm
Shipping Dimensions (WxHxD) (mm) 1023 x 730 x 413 mm

Operating Temp. Range

Cooling (℃) -15~54 ℃
