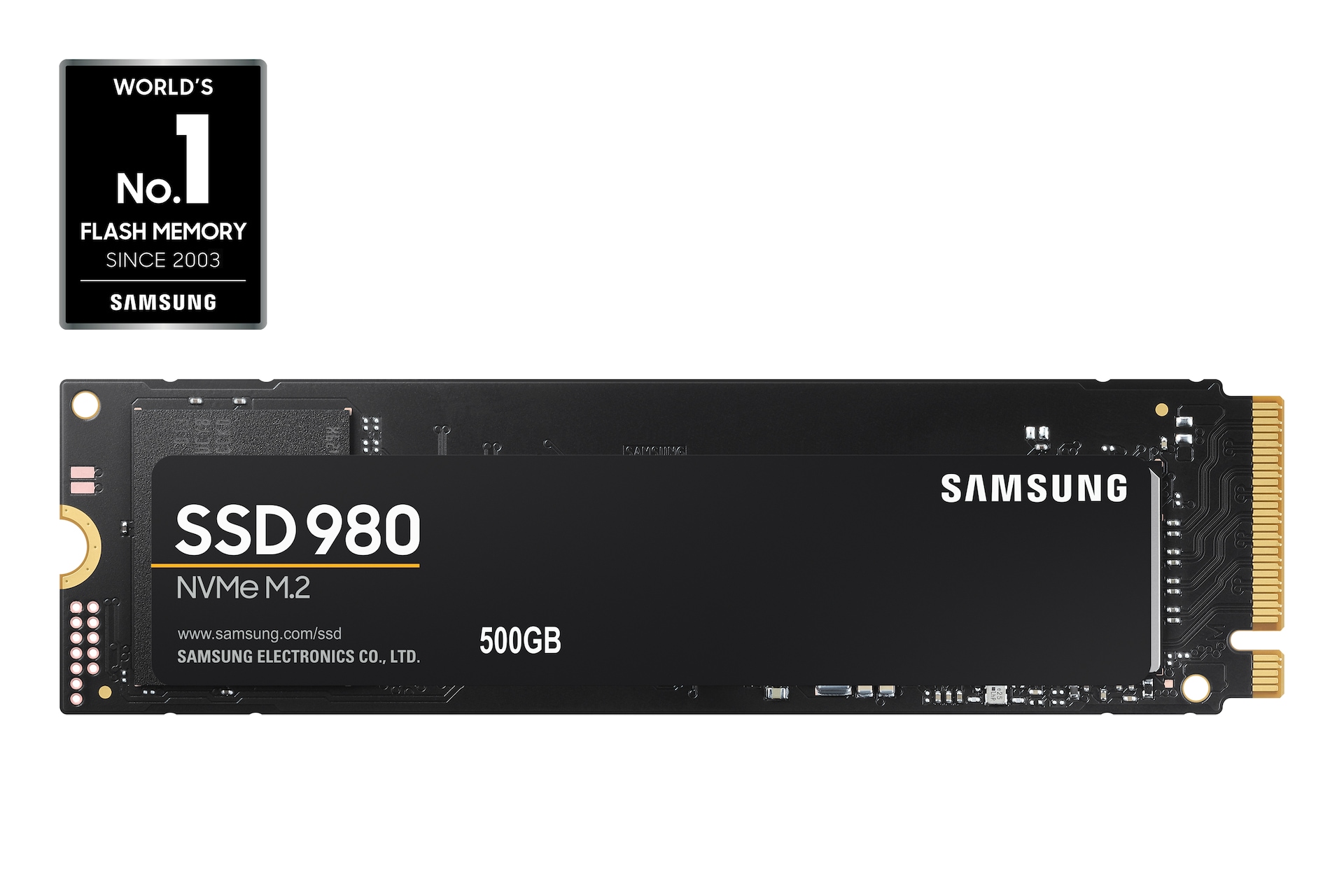

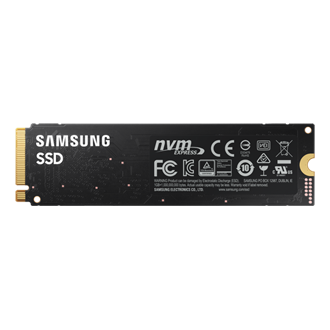

980 NVMe™ M.2 SSD 500GB

Name: 980 NVMe™ M.2 SSD 500GB
Brand: Samsung
SKU: MZ-V8V500BW

Black 500 GB

MZ-V8V500BW

Not for sale

980 NVMe™ M.2 SSD 500GB

Dimension

Spin the angle

Highlights

Interface

Durable

Temperature Control

Features

Packed with speed

Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.

* Performance may vary depending on the SSD’s firmware version, system and hardware configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology activated. Intelligent TurboWrite operates only within a specific data transfer size. For detailed information, please contact your local service center* Test system configuration: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz,DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+* Results are based on a comparison with Samsung SATA SSDs.* HMB (Host Memory Buffer) technology enables the SSD to use the DRAM of the host system for read/write caching and buffering.

Upgrade to breathtaking NVMe™ speed

It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance and it's all backed by an NVMe interface and PCIe 3.0 technology.

* The NVM Express® design mark is a registered trademark of NVM Express, Inc.

Keep moving with Full Power Mode

Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games or even normal PC usage.

Built for the long run

Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW and a 5-year limited warranty, the 980's optimised endurance comes with proven reliability thanks to Samsung's in-house solutions, from the state-of-the-art controller to V-NAND and the latest firmware.

*TBW : Terabytes written* Warrantied TBW for 980: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model.* 5 years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

Reliable thermal control

High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Smart thermal solution

Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980's temperature at optimal levels.

Samsung Magician software

Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

World's No. 1 Flash Memory

Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

*Source: 2003-Q4.2021 OMDIA data: NAND suppliers' revenue market share.

Specifications

Form Factor

M.2 (2280)
Interface

PCIe Gen 3.0 x4, NVMe 1.4
Storage Memory

Samsung V-NAND 3-bit MLC
Sequential Read

Up to 3,100 MB/s * Performance may vary based on system hardware & configuration
Sequential Write

Up to 2,600 MB/s * Performance may vary based on system hardware & configuration
Warranty

5-Year Limited Warranty or 300 TBW Limited Warranty

Application

Client PCs
Capacity

500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor

M.2 (2280)
Interface

PCIe Gen 3.0 x4, NVMe 1.4
Dimension (WxHxD)

80.15 x 22.15 x 2.38 (mm)
Weight

Max 8.0 g Weight
Storage Memory

Samsung V-NAND 3-bit MLC
Controller

Samsung Pablo Controller
Cache Memory

HMB(Host Memory Buffer)

TRIM Support

Supported
S.M.A.R.T Support

Supported
GC (Garbage Collection)

Auto Garbage Collection Algorithm
Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support

Not supported
Device Sleep Mode Support

Yes

Sequential Read

Up to 3,100 MB/s * Performance may vary based on system hardware & configuration
Sequential Write

Up to 2,600 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)

Up to 400,000 IOPS* Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)

Up to 470,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)

Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)

Up to 54,000 IOPS * Performance may vary based on system hardware & configuration

Average Power Consumption (system level)

*Average: 4.3 W*Maximum: 5.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)

Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage

3.3 V ± 5 % Allowable voltage
Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)
Operating Temperature

0 - 70 ℃ Operating Temperature
Shock

1,500 G & 0.5 ms (Half sine)

Installation Kit

Not Available

Management SW

Magician Software for SSD management

5-Year Limited Warranty or 300 TBW Limited Warranty

980 NVMe™ M.2 SSD 500GB
