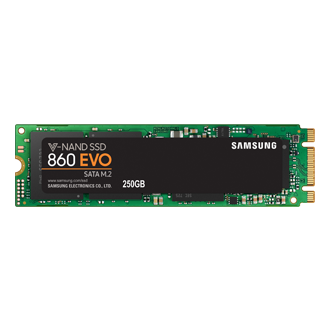

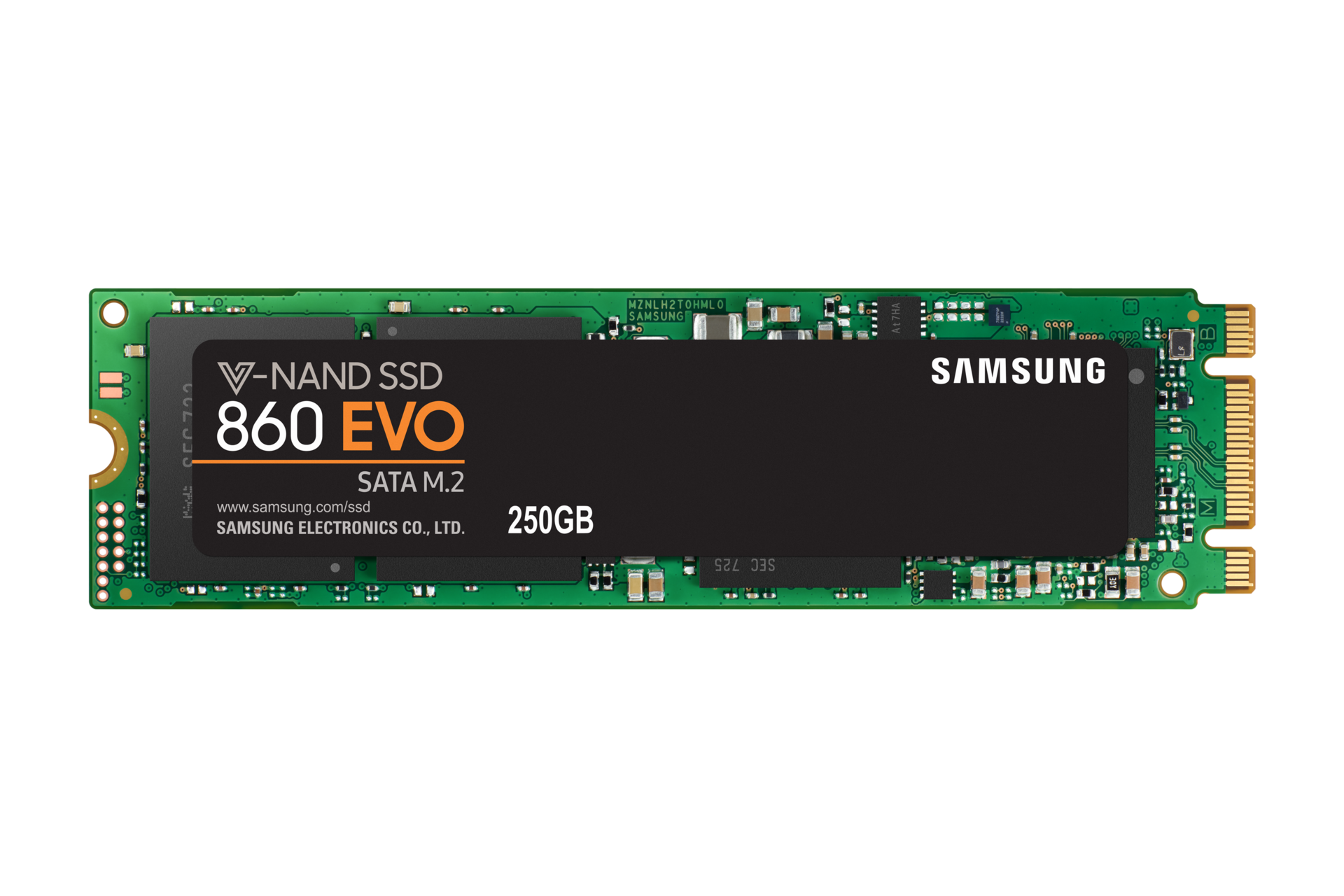

860 EVO M.2 SATA SSD 250GB SATA III

Name: 860 EVO M.2 SATA SSD 250GB SATA III
Brand: Samsung
SKU: MZ-N6E250BW

250 GB

MZ-N6E250BW

Not for sale

+5 more

860 EVO M.2 SATA SSD 250GB SATA III

Dimension

Spin the angle

Features

The SSD to trust

The newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

* Sources: NPD (US data from Jan. 2015 to Oct. 2017) and GfK (EU5 data from Jan. 2015 to Sep. 2017, China data from Jan. 2016 to Sep. 2017)

Enhanced performance

Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s* with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s. The TurboWrite buffer size* is upgraded from 12 GB to 78 GB for faster file transfer.

* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology. Sequential performance measurements based on CrystalDiskMark v.5.0.2 and IOmeter 1.1.0. The sequential write performances after Intelligent TurboWrite region are 300 MB/s for 250/500 GB and 500 MB/s for 1 TB. * Test system configuration: Intel Core i5-3550 CPU @ 3.3 GHz, DDR3 1333 MHz 4 GB, OS – Windows 7 Ultimate x64, Chipset: ASUS P8H77-V * The TurboWrite buffer size varies based on the capacity of the SSD‡ 12 GB for 250 GB model, 22 GB for 500 GB model, 42 GB for 1 TB model and 78 GB for 2/4 TB. For more information on the TurboWrite, please visit www.samsungssd.com.

Boosted endurance

Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written)* than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.*

* Warrantied TBW for 860 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model. * 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package

Smart compatibility

Benefit from faster, more fluid communication with your host system. The refined ECC* algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system.

* Error Correction Code

Multi form factors

Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.

Samsung Magician

Management software

Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.

Firmware update

Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.

Perf. benchmark

Check your SSD†s sequential and random read/write speeds, so you can maintain superb performance.

Data security

Protect data by selecting security options. The 860 EVO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.

Specifications

Application

Client PCs
Interface

SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Dimension (WxHxD)

Max 80.15 x Max 22.15 x Max.2.38 (mm)
Weight

Max. 8g
Sequential Read

Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration
Sequential Write

Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration
Warranty

5 Years Limited Warranty or 150 TBW Limited Warranty

Application

Client PCs
Capacity

250 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor

M.2 2280
Interface

SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Dimension (WxHxD)

Max 80.15 x Max 22.15 x Max.2.38 (mm)
Weight

Max. 8g
NAND Type

Samsung V-NAND 3bit MLC
Controller

Samsung MJX Controller
Cache Memory

Samsung 512 MB Low Power DDR4 SDRAM

TRIM Support

TRIM Supported
S.M.A.R.T Support

S.M.A.R.T Supported
GC (Garbage Collection)

Auto Garbage Collection Algorithm
Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support

World Wide Name supported
Device Sleep Mode Support

Yes

Sequential Read

Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration
Sequential Write

Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32)

Up to 97,000 IOPS Random Read * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32)

Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)

Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1)

Up to 42,000 IOPS Random Write * Performance may vary based on system hardware & configuration

Power Consumption

*Average: 2.2 W*Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)
Operating Temperature

0 - 70 ℃ Operating Temperature
Shock

1,500 G & 0.5 ms (Half sine)

Management SW

Magician Software for SSD management

Not Available

5 Years Limited Warranty or 150 TBW Limited Warranty
