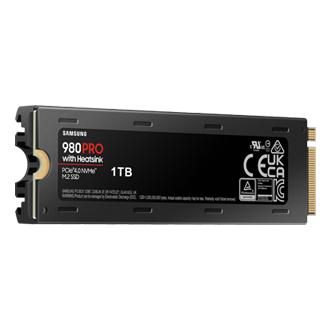

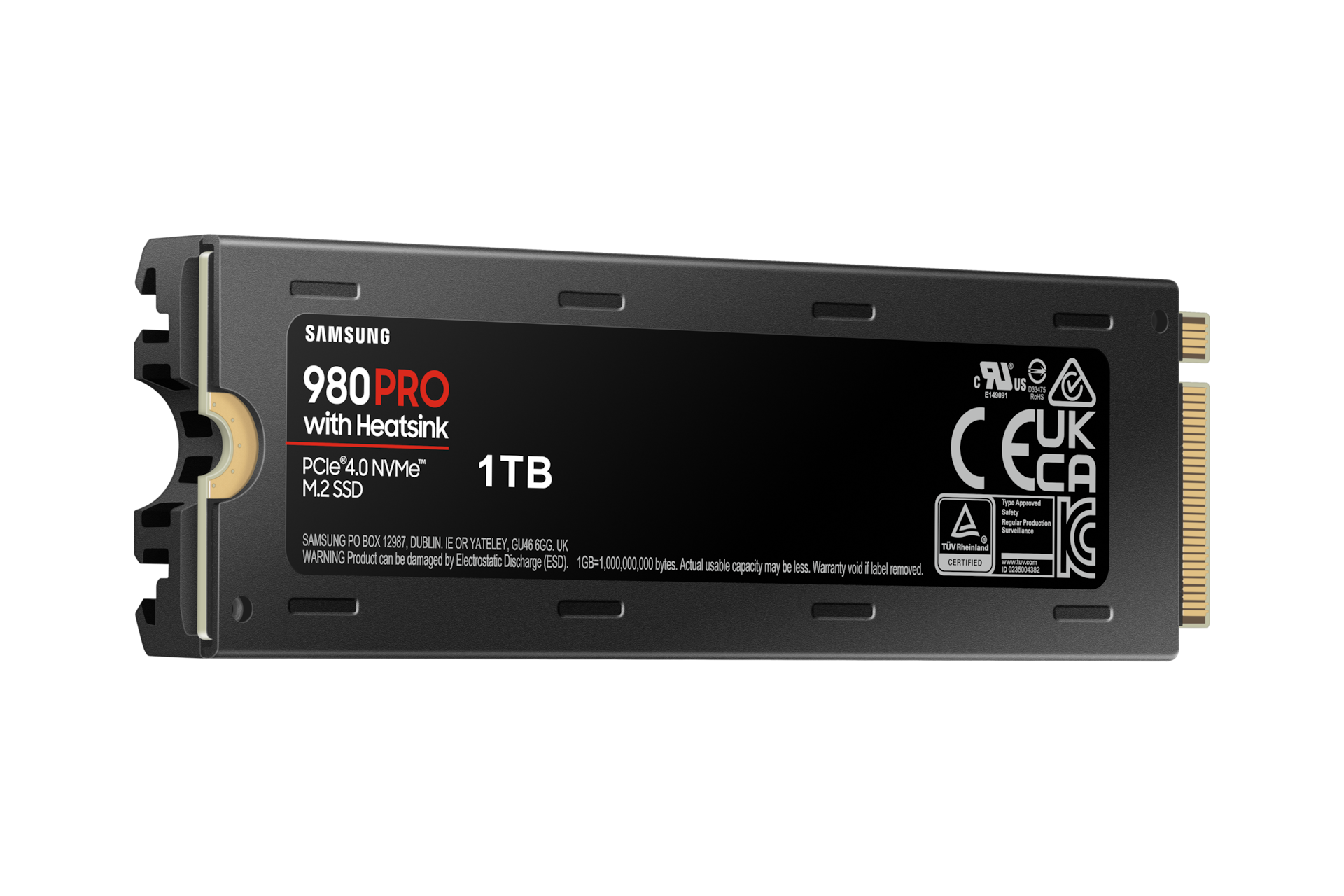

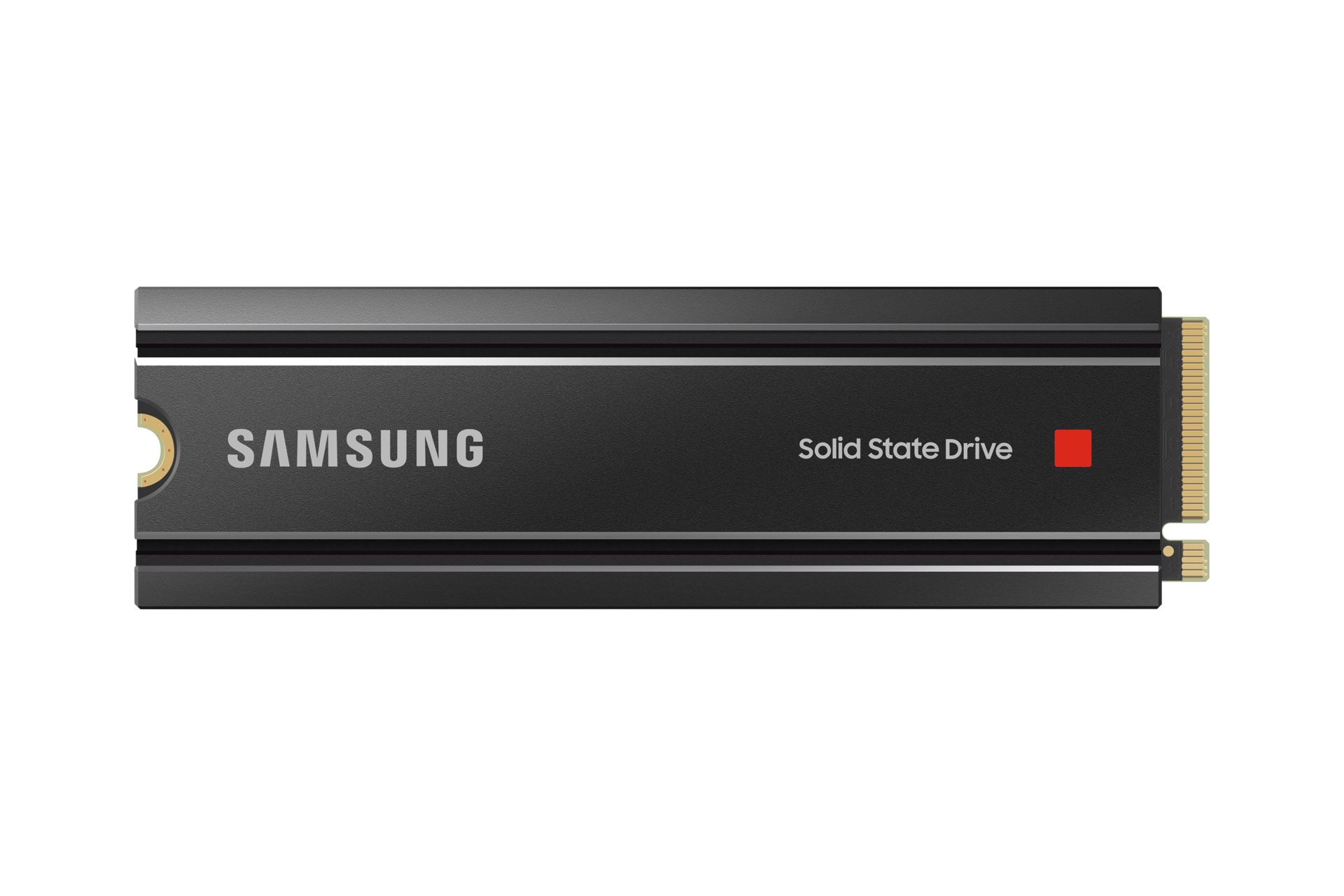

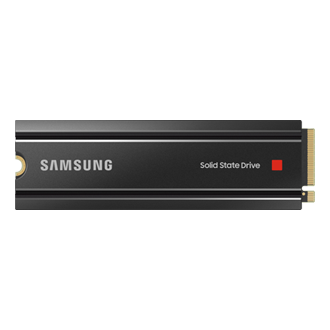

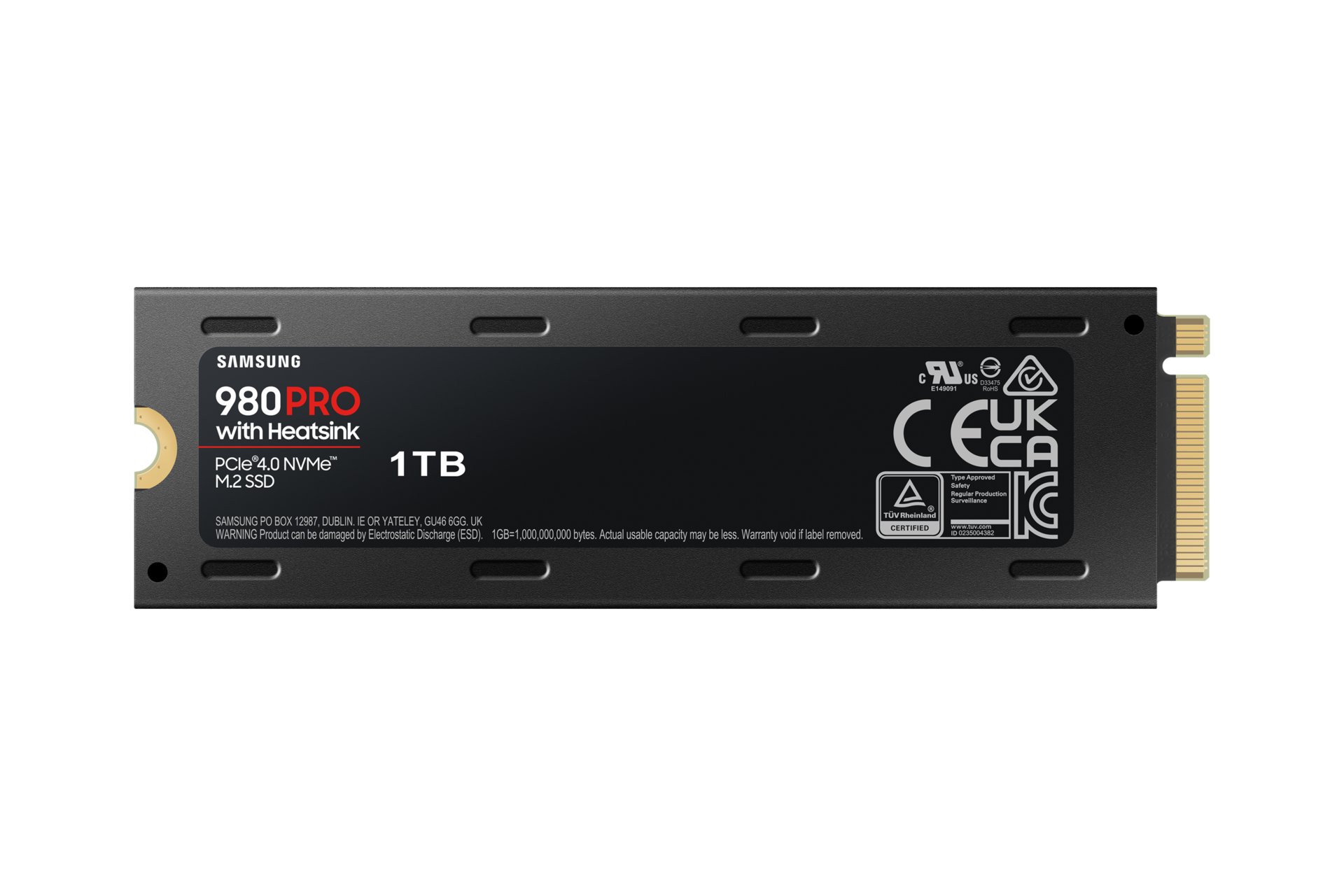

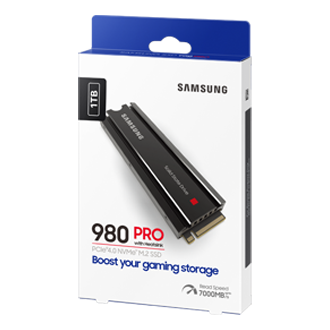

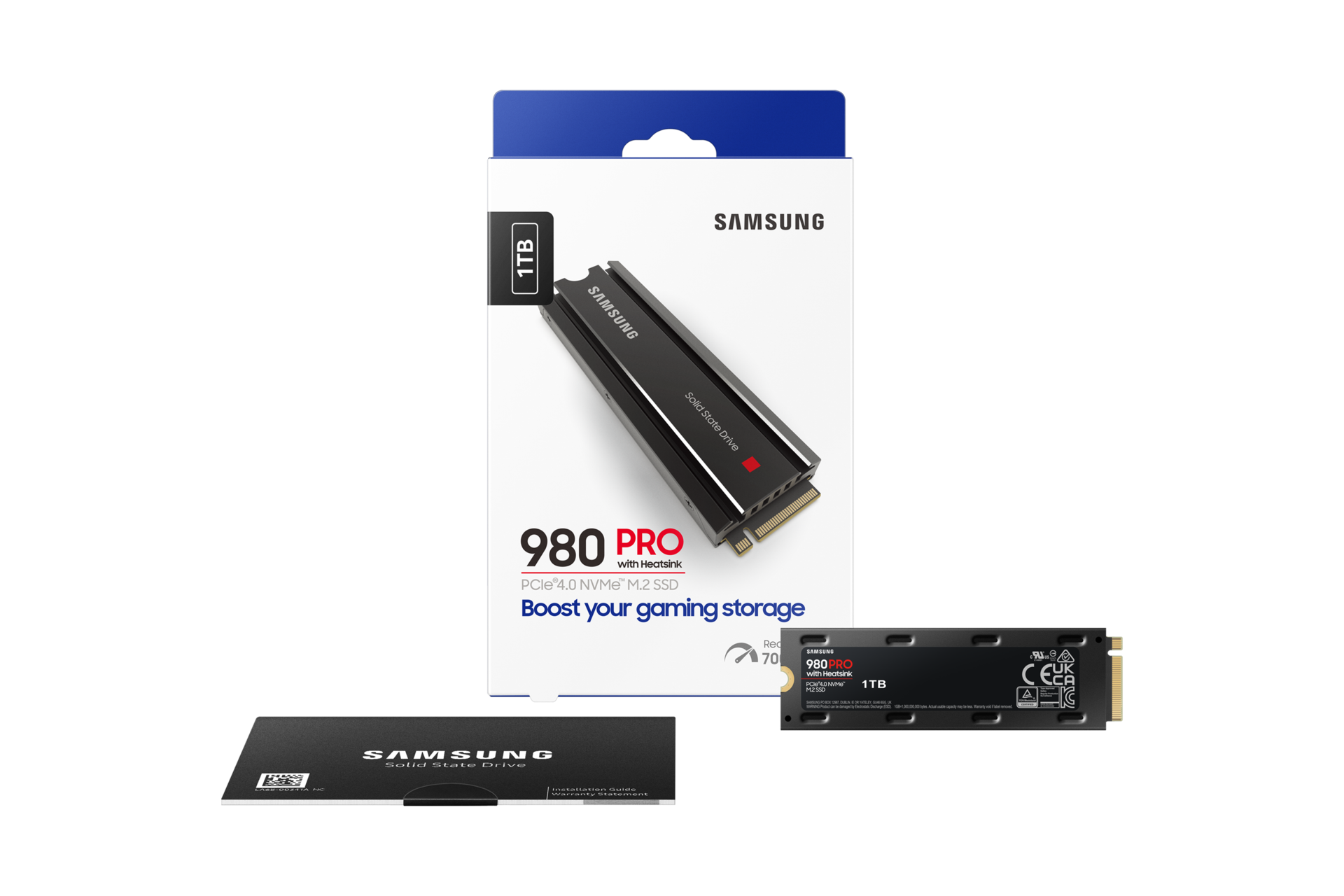

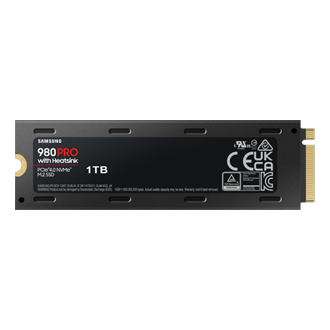

980 PRO PCIe 4.0 NVMe M.2 固態硬碟 1TB (含散熱片)
Gallery popup
功能特色
高水準的固態硬碟效能
三星 PCIe® 4.0 NVMe™ SSD 980 PRO 系列固態硬碟通過釋放其強大效能,為您提供高水準的計算效能。憑藉 PCIe® 4.0 介面的優勢,980 PRO 系列固態硬碟實現兩倍於 PCIe® 3.0 的資料傳輸速率,同時向下相容 PCIe® 3.0,確保了更廣泛的應用。配備的散熱器能提升速度、電源效率,並有效進行散熱控制,以最大限度地提高遊戲體驗。
* NVMe™ 設計標誌是 NVM Express, Inc. 的註冊商標。
強悍的速度
980 PRO 系列固態硬碟搭載了三星專為 PCIe® 4.0 固態硬碟訂製的內部控制器,對速度進行了優化,其讀取速度高達 7,000 MB/s,比 PCIe® 3.0 固態硬碟快2倍,比 SATA 固態硬碟快12.7倍。980 PRO 系列固態硬在 PCIe® 4.0 上實現的最高速度,在其他環境中可能會略有下降。
* 連續與隨機寫入性能是通過啟動智慧 TurboWrite 技術進行測量。智慧 TurboWrite 技術僅在特定的數據傳輸大小內運行。性能可能會因 SSD 的韌體版本以及系統硬體和系統組態的不同而異。如欲瞭解更多資訊,請聯繫當地的服務據點。 * 測試系統組態:AMD Ryzen 9 3900X 12 核處理器 CPU @ 3.79GHz,DDR4 2666 MHz 16GBx2,作業系統 - Windows 10 Pro 64 位元,晶片組 - ASUS-X570-ROG CROSSHAIR VIII FORMULA 。 * 上述結果為與三星 PCIe 3.0 NVMe 固態硬碟和 SATA 固態硬碟的比較得出。 * 為了最大程度地發揮 980 PRO 的性能,請在 Intel 或 AMD 網站上確認您的系統是否支援 PCIe 4.0。
智慧散熱控制
三星的鍍鎳控制器能可靠管理 NAND 芯片的熱量水平,980 PRO 的散熱標籤也能對晶片進行有效的散熱控制。980 PRO 的散熱片採用成熟的資料中心固態硬碟散熱技術,可在大多數遊戲機和 PC 系統上長久運行高性能遊戲。
成功卓越的組合
980 PRO 系列固態硬碟專為遊戲鐵粉和技術發燒友設計,可為遊戲、圖形、資料分析等領域中的重負荷應用提供高性能頻寬和輸送量。遊戲載入速度迅捷,讓您玩得過癮。智慧散熱管理功能更能減低冷卻風扇的運行及其擾人的噪音,以實現身臨其境的遊戲體驗。
高效 M.2 SSD 固態硬碟
帶有散熱片的 980 PRO 以 8.6mm 的輕薄機身大幅度減少了空間限制,並兼容符合 PCI-SIG® D8 規格的 PlayStation®5、桌上型與筆記型電腦。嚴謹的 M.2 外型,可輕鬆插入桌上型和筆記型電腦,匹配主機板的多樣性,以構建高效、高性能的系統。
* PCI-SIG® D8 標準規格: 8.8mm
三星管理魔術師
三星管理魔術師透過簡單直接的介面與先進的工具讓 980 Pro 的效能發揮到極致。監控硬碟的運行狀況、優化效能、保護重要數據,並定期為您的硬碟提供重要更新,魔術師軟體總能確保讓您從硬碟中獲得最佳效能。
快閃記憶體的首選
2003 年起的世界領導品牌讓您體驗卓越的效能和可靠性。所有韌體與組件,包含三星享譽全球的 DRAM 和 NAND,皆為內部生產,提升端對端整合能帶給您信賴的質量。
* 來源: 2003-2020 IHS Market 數據: NAND 供應商的收入市場佔有率。
* 來源: 2003-2020 IHS Market 數據: NAND 供應商的收入市場佔有率。
產品規格
-
介面
PCIe Gen 4.0 x4, NVMe 1.3c
-
連續讀取速度
最高 7,000 MB/s * 效能可能因系統硬體配置而異
-
連續寫入速度
最高 5,000 MB/s * 效能可能因系統硬體配置而異
-
應用
個人電腦、遊戲
-
重量
約 30.5g
-
實體規格 ( 寬 X 長 X 高 )
80 x 24 x 8.6 mm (含散熱片)
-
應用
個人電腦、遊戲
-
容量
1,000GB (1GB=1 Billion byte by IDEMA) * 一部分容量用於系統文件和維護用途,實際容量可能與產品標示不同。
-
類型
M.2 (2280)
-
介面
PCIe Gen 4.0 x4, NVMe 1.3c
-
實體規格 ( 寬 X 長 X 高 )
80 x 24 x 8.6 mm (含散熱片)
-
重量
約 30.5g
-
Storage Memory
Samsung V-NAND 3-bit MLC
-
控制晶片
三星內部控制器
-
快取記憶體
Samsung 1GB Low Power DDR4 SDRAM
-
TRIM
TRIM 支援
-
S.M.A.R.T
S.M.A.R.T 支援
-
垃圾回收
垃圾自動回收演算法
-
資料加密
AES 256位元加密 (Class 0), TCG/Opal, IEEE1667 (加密驅動器)
-
全球通用名稱 (World Wide Name)
不支援
-
睡眠模式
有
-
連續讀取速度
最高 7,000 MB/s * 效能可能因系統硬體配置而異
-
連續寫入速度
最高 5,000 MB/s * 效能可能因系統硬體配置而異
-
隨機讀取速度 (4KB, QD32)
最高 1,000,000 IOPS * 效能可能因系統硬體配置而異
-
隨機寫入速度 (4KB, QD32)
最高 1,000,000 IOPS * 效能可能因系統硬體配置而異
-
平均功率消耗
*平均: 6.2 W *最高: 8.9 W (突發模式) * 實際功率消耗可能因系統硬體配置而異
-
功率消耗 (閒置模式)
Max. 35 mW * 實際功率消耗可能因系統硬體配置而異
-
允許電壓
3.3 V ± 5 % Allowable voltage
-
可靠性 (MTBF)
1.5 百萬小時 *MTBF: 平均故障間隔 (平均連續無故障時間)
-
作業溫度
0 - 70 ℃
-
抗震
1,500 G & 0.5 ms (Half sine)
-
管理軟體
管理魔術師軟體
-
無
