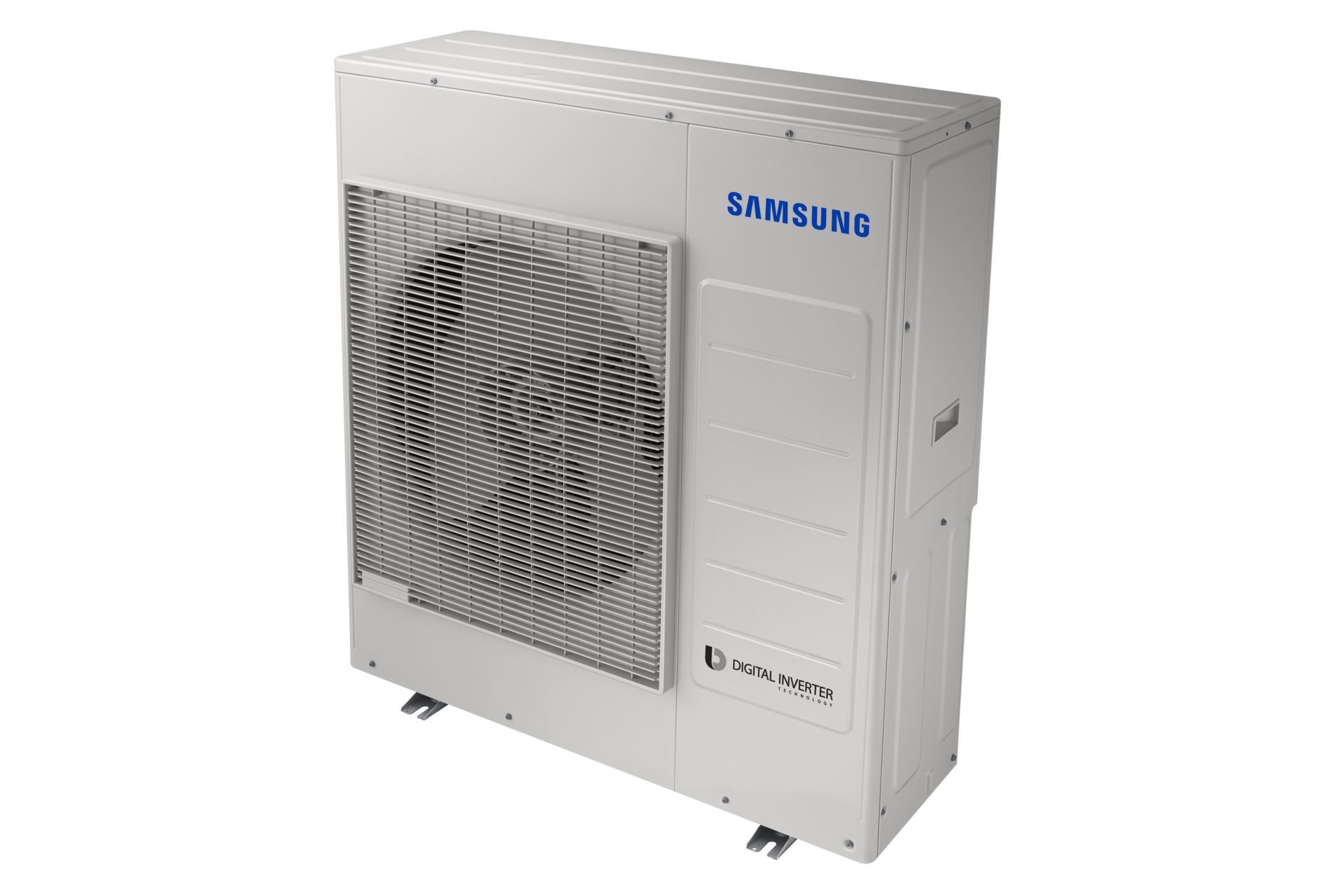

Multi Split (FJM) Inverter Outdoor Unit10.0kW (5 Room)

Features
GALLERY
Spec
Support
Compare

Where to buy

High Performance by Twin BLDC Compressor

Twin BLDC Compressor

A key contributor to Samsung Free Joint Multi(FJM)'s efficiency is its advanced compressor technology. Adopting Twin Brushless Direct Current(BLDC) rotary compressor with premium moving parts, Samsung FJM delivers efficient and reliable performance.

* Please note that the product image in the picture may be different from the actual one.

Wide Operation Outdoor Temperature Range

Smart Inverter System

Samsung FJM cools in outdoor temperature in 46°C and warms in -15℃*, eliminating need for additional units to cope with adverse weather. Its smart inverter system delivers your set temperature quickly, and keeps performing fine-tune adjustments to ensure a constant, comfortable environment.

* Test condition in accordance with EN 14511-2:2011.** Please note that the product image in the picture may be different from the actual one.

Specifications

Capacity 34100Btu/hr
Capacity (Cooling, kW) 10.0kW
Capacity (Heating, kW) 12.0kW
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) 940 x 998 x 330mm

Features

Type FREE JOINT MULTI

Model Name

Outdoor Unit AJ100TXJ5KH/EA

Power Supply (Outdoor Unit) [Φ, #, V, Hz]

1,2,220~240,50/60

System

Mode HEAT PUMP

Performance (nominal)

5 HP

Capacity

Cooling [kW] 10.0 kW
Cooling [Btu/h] 34,100 Btu/h
Heating [kW] 12.0 kW
Heating [Btu/h] 40,900 Btu/h

Power Input (Nominal)

Cooling 1) 2.90 kW
Heating 2) 2.93 kW

Current Input (Nominal)

Cooling 1) 13.3 A
Heating 2) 13.4 A

Power

MCA [A] 25.0 A
MFA [A] 28.8 A

Energy Efficiency

EER (Nominal Cooling) 3.45
COP (Nominal Heating) 4.10
Energy Grade (Cooling) 6.60(A++)
Energy Grade (Heating) 4.10(A+)

Compressor

Type Twin BLDC Rotary
Output(kW) 9.17 kW
Model UG8T300FUBJU
Oil (Type) PVE
Oil (Initial Charge) [cc] 1200 cc

Fan

Type Propeller Fan
Motor (Output) [W] 125 W
Air Flow Rate (High / Mid / Low) [CMM] 72.7 CMM
Air Flow Rate(High/Mid/Low)[L/S] 1,212

Piping Connections

Liquid Pipe (Ø,mm x EA) 6.35 x 5
Liquid Pipe (Ø,inch x EA) 1/4 x 5
Gas Pipe (Ø,mm x EA) 9.52 x 2 + 12.70 x 3
Gas Pipe (Ø,inch x EA) 3/8 x 2 + 1/2 x 3
Installation Max. Length [m] 70 m
Installation Max. Height [m] 15 m

Field Wiring

Power Source Wire 4.0 ~ 4.0
Transmission Cable 0.75 ~ 1.5

Refrigerant

Type R410A
Factory Charging (kg) 3.3 kg
Factory Charging (tCO2e) 6.89 tCO2e

Sound

Sound Pressure 54 dBA
Sound Power 70 dBA

External Dimension (Outdoor Unit)

Net Weight(kg) 76.5 kg
Shipping Weight (kg) 82.0 kg
Net Dimensions (WxHxD) (mm) 940 x 998 x 330 mm
Shipping Dimensions (WxHxD) (mm) 995 x 1,096 x 426 mm

Operating Temp. Range

Cooling (℃) -10.0 ~ 46.0 ℃
Heating (℃) -15.0 ~ 24.0 ℃
