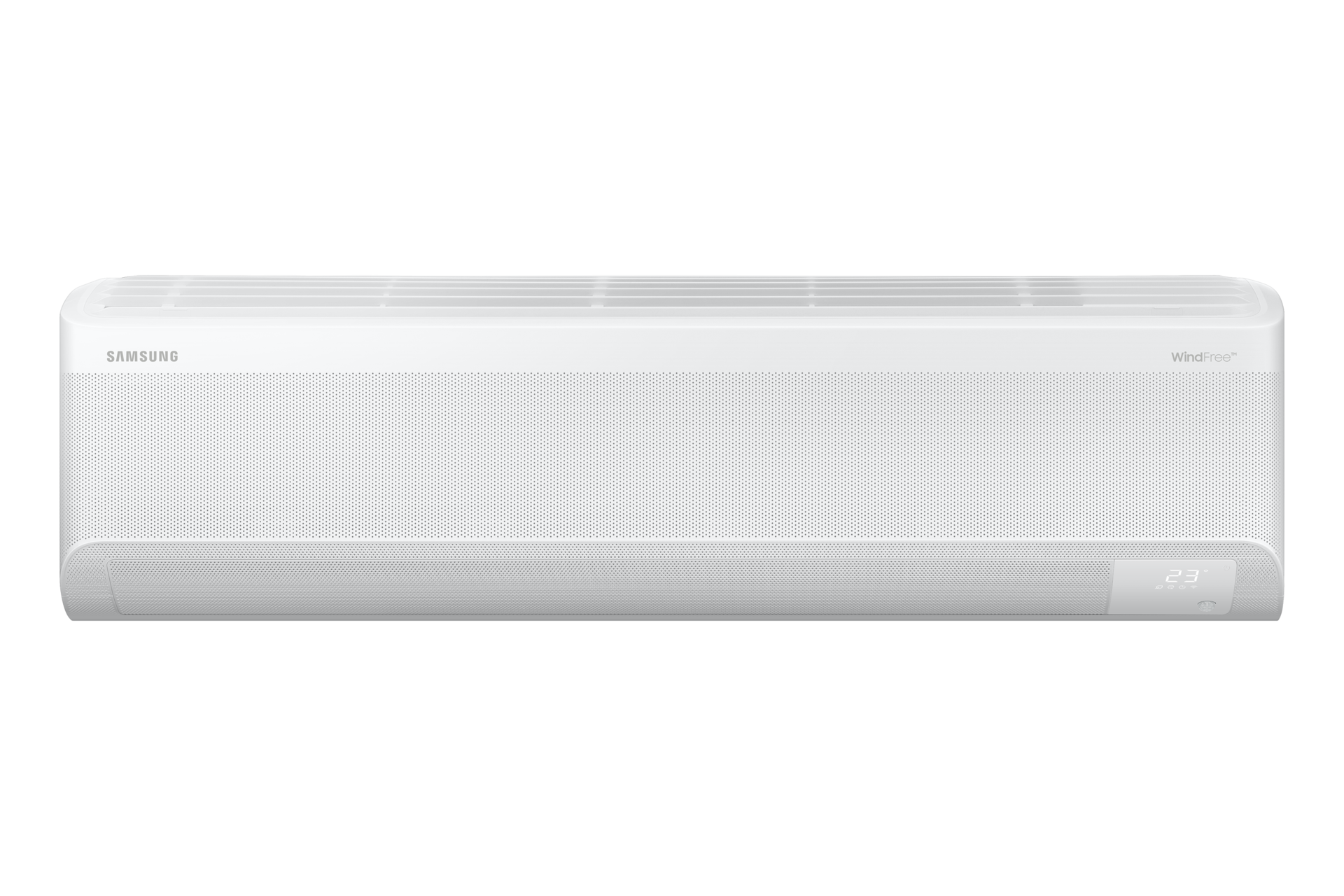

2.5HP Bespoke AI WindFreeᵀᴹ Inverter Heat Pump Split Type AR70F24CACWNSH
AR70F24CACWNSH
Please scan the QR Code with your mobile device, and place the product image in desired place.
Features


Experience Zone
Fortress Store
Shop 4 on G/F and Shop B2 on Basement,
Good Hope Building,13-19 Sai Yeung Choi Street South, Kowloon


Chat with Samsung authorized distributor
for product and installation enquiry via Whatsapp
Click here
Bespoke AI WindFree™
Highlights
WindFree™
AI
Performance
Efficiency
SmartThings
Hygiene
Durability
Convenience
Specifications
-
Capacity
22179 Btu/hr
-
Capacity (Cooling, kW)
6.55 kW
-
EER (Cooling, W/W)
3.32 W/W
-
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
880*638*310 mm
-
Capacity (Cooling, Btu/hr)
22179 Btu/hr
-
Capacity (Heating, Btu/hr)
25250 Btu/hr
-
Capacity (Cooling, Min - Max, Btu/hr)
4913 - 26956 Btu/hr
-
Capacity (Heating, Min - Max, Btu/hr)
4504 - 30368 Btu/hr
-
Capacity (Cooling, kW)
6.55 kW
-
Capacity (Heating, kW)
7.41 kW
-
Capacity (Cooling, Min - Max, kW)
1.44 - 7.9 kW
-
Capacity (Heating, Min - Max, kW)
1.32 - 8.9 kW
-
EER (Cooling, W/W)
3.32 W/W
-
COP (Heating, W/W)
3.15 W/W
-
EER (Cooling, Btu/hW)
11.32 Btu/hW
-
COP (Heating, Btu/hW)
10.74 Btu/hW
-
HSPF
4.50
-
CSPF
5.00
-
Energy Efficiency Class (Grade)
Ticks : 1 / 1
-
Noise Level (Indoor, High/Low, dBA)
45 / 26 dBA
-
Noise Level (Outdoor, High/Low, dBA)
54 dBA
-
Power Source(Φ/V/Hz)
1 / 220-240 / 50
-
Power Consumption(Cooling, W)
1960 W
-
Power Consumption(Heating, W)
2350 W
-
Operating Current(Cooling, A)
8.8 A
-
Operating Current(Heating, A)
10.3 A
-
Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)
1115*290*375 mm
-
Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
1023*724*413 mm
-
Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)
1055*299*215 mm
-
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
880*638*310 mm
-
Gross Weight (Indoor, kg)
13.1 kg
-
Gross Weight (Outdoor, kg)
42.0 kg
-
Net Weight (Indoor, kg)
11.5 kg
-
Net Weight (Outdoor, kg)
38.6 kg
-
Loading Quantity (20/40/40Hft without Pipe)
65 / 138 / 154
-
Piping Length (Max, m)
30 m
-
Piping Height (Max, m)
15 m
-
SVC Valve (Liquid (ODxL))
6.35
-
SVC Valve (Gas (ODxL))
15.88
-
Moisture Removal (l/hr)
2.3 l/hr
-
Air Circulation (Cooling, ㎥/min)
15.9 ㎥/min
-
Refrigerant (Type)
R32
-
Refrigerant (Charging, kg)
1.15 kg
-
Refrigerant (Charging, tCO2e)
0.78 tCO2e
-
Low Ambient (Cooling, ℃)
-10~46 ℃
-
Low Ambient (Heating, ℃)
-15~24 ℃
-
Outdoor Unit (Compressor Type)
BLDC
-
Outdoor Unit (Anti-Corrosion Fin)
Yes
-
WindFree Cooling
Yes
-
Air Direction Control (Up/Down)
Auto
-
Air Direction Control (Left/Right)
Auto
-
Air Flow Control Step (Cool/Fan)
5/4
-
4-in-1 Care Filter
Yes
-
Copper Anti-bacterial Filter
Yes
-
Auto Clean (Self Cleaning)
Yes
-
SmartThings
Yes
-
AI Auto Cooling
Yes
-
Motion Detect Sensor
Yes
-
Freeze Wash
Yes
-
Filter Cleaning Indicatior
Yes
-
Indoor Temp. Display
Yes
-
Display On/Off
Yes
-
Beep On/Off
Yes
-
24-Hour Timer
Yes
-
Auto Changeover
Yes
-
Auto Restart
Yes
-
Auto Mode
Yes
-
Fast Cool
Yes
-
Dry Comfort
Yes
-
Good Sleep
Yes
-
Eco Mode
Yes
-
Dehumidification
Yes
-
Fan Mode
Yes
-
Quiet
Yes
-
WiFi Embedded
Yes
-
SmartThings App Support
Yes
