How to connect Composite(A/V) cable in Samsung Smart TV?

Last Update Date : Dec 26. 2018

CLICK HERE to know how to connect Component cable in Samsung Smart TV.



Note: Composite Cable Port is available in selected TV Models. Please check your TV specification and manual for the availability of Composite Cable Port.

1 Locate the Input connectors on your TV.
How to connect Composite(A/V) cable in Samsung Smart TV?
2 Connect the AV cable to the AV1 input connectors on your TV.
How to connect Composite(A/V) cable in Samsung Smart TV?
3 Locate the AV output connector on your device.
How to connect Composite(A/V) cable in Samsung Smart TV?

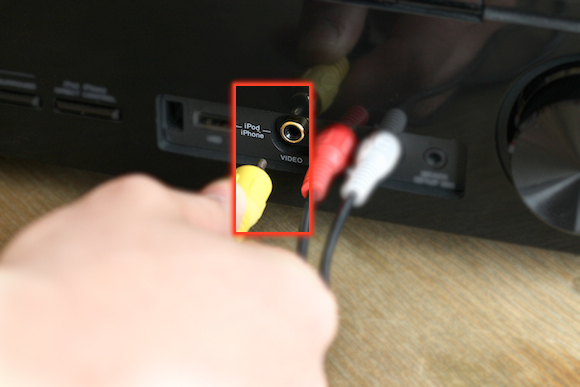

4 Connect the other end of the AV cable to the AV output connector on your device.
How to connect Composite(A/V) cable in Samsung Smart TV?

Note: Connect Red jack into Red port (R), white jack into white port(L) & Yellow jack into yellow port (V) then select SOURCE to AV
