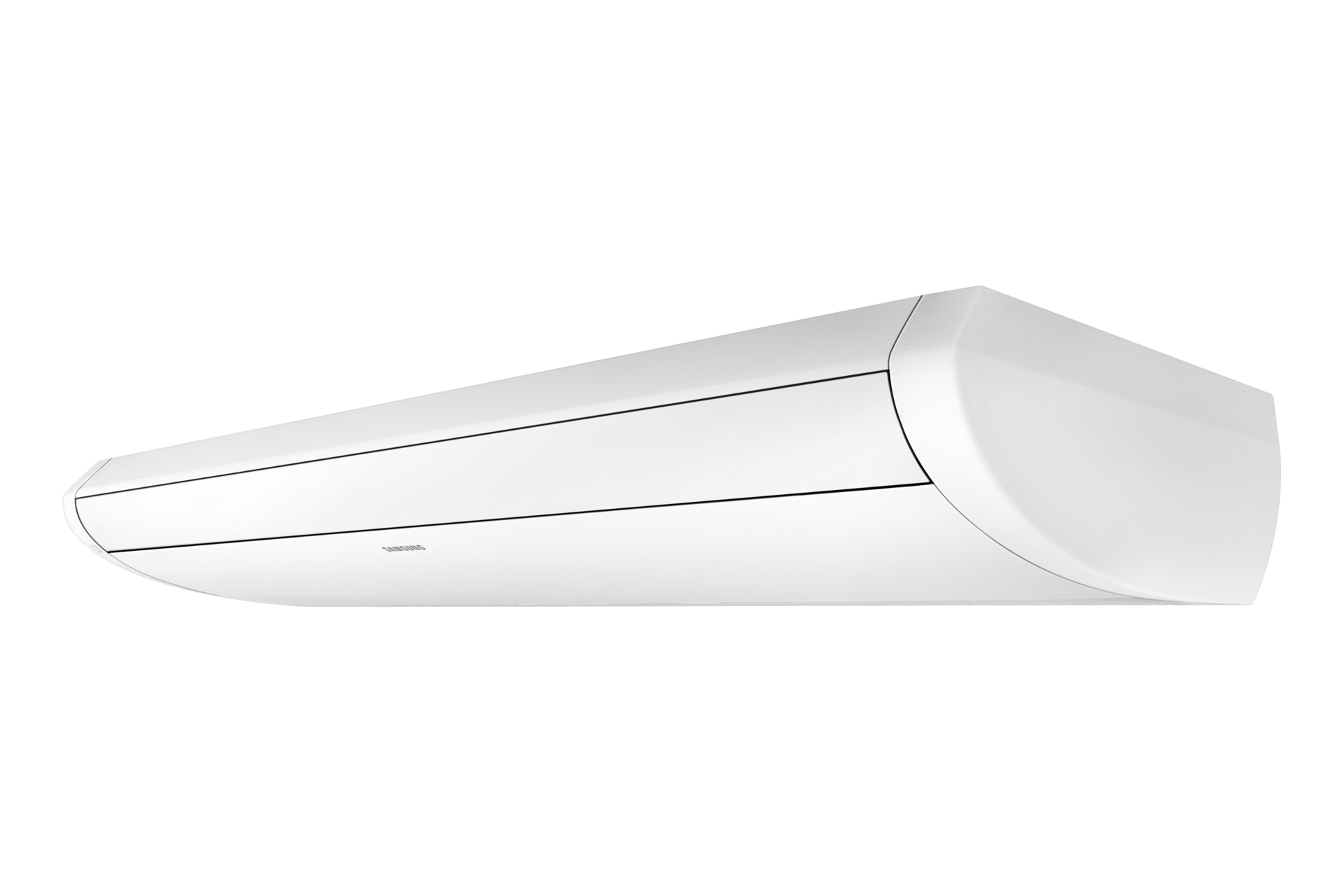

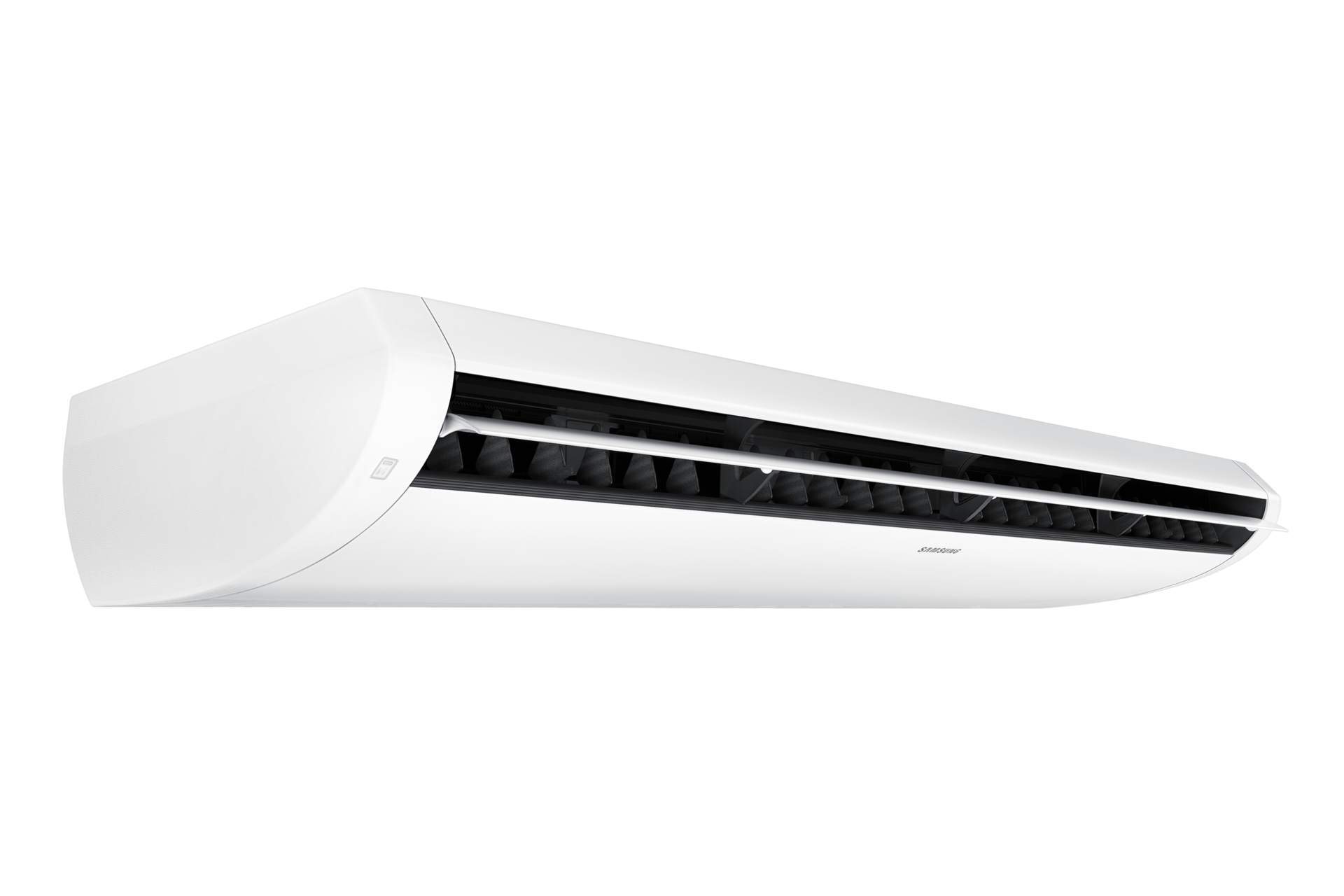

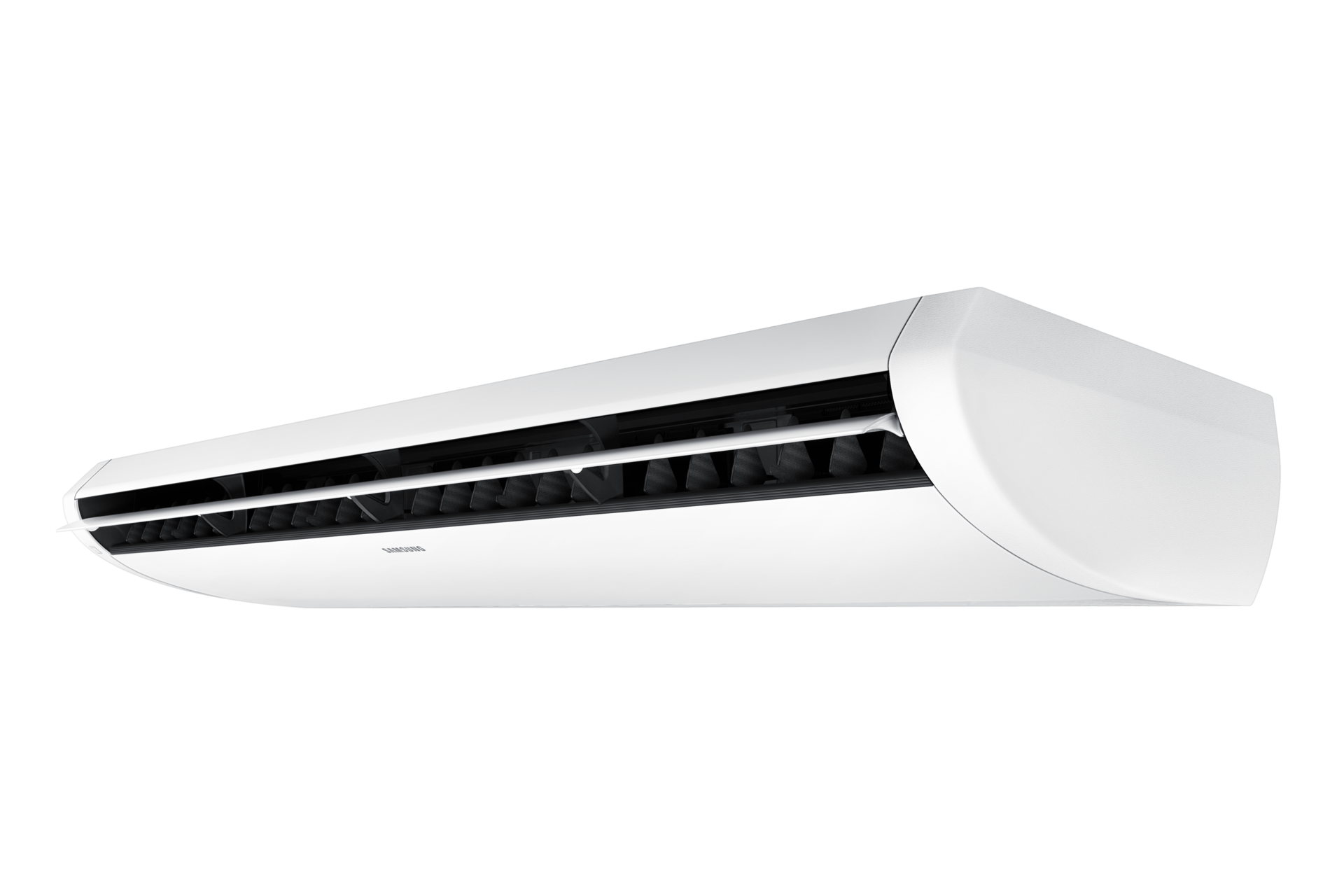

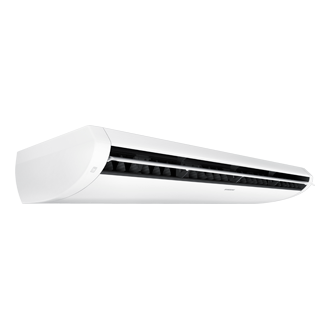

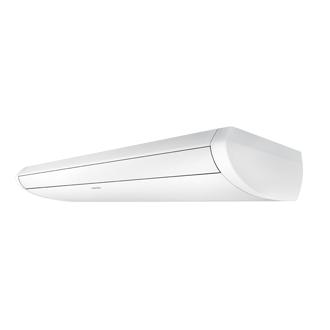

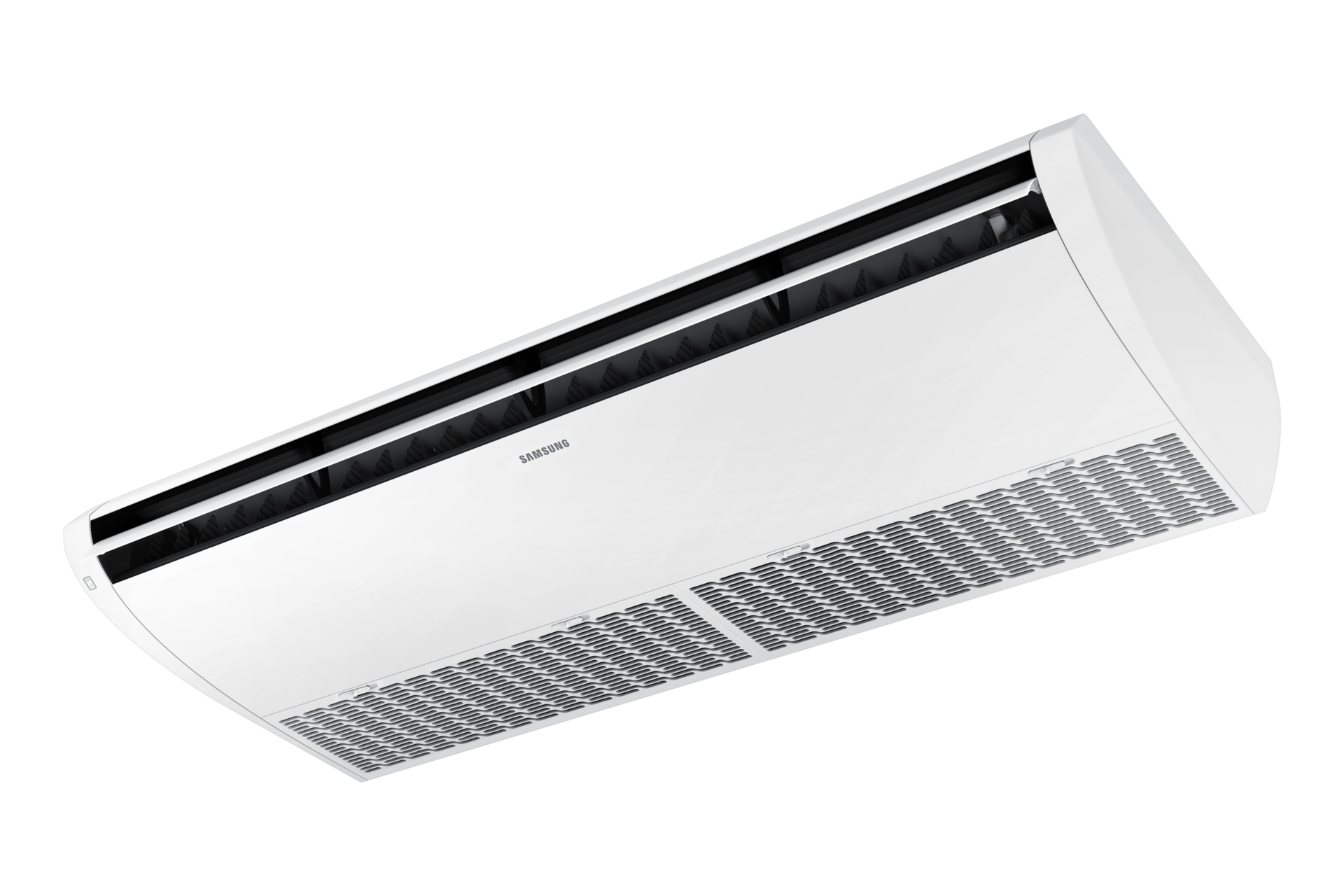

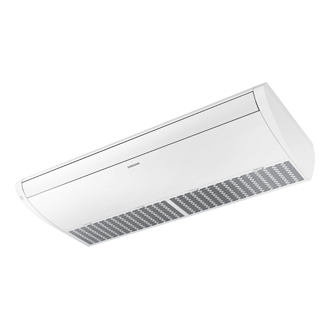

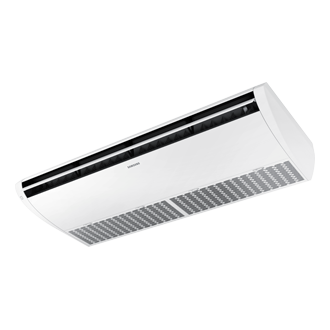

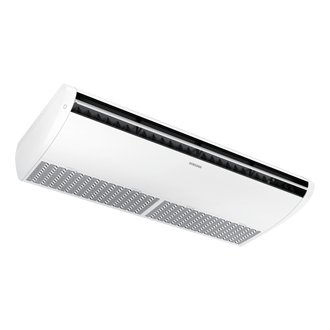

System Air Conditioner Ceiling Suspended Digital Inverter Technology 2.5 HP

AC071TNCDKC/TC

0 ( 0 )

Choose your Capacity

System Air Conditioner Ceiling Suspended Digital Inverter Technology 2.5 HP
2.5 HP

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.orignalPrice}} {{price.priceWrapper.info.savePrice}}

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}
{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Choose your color

Customizable bezels sold separately

Choose your skin color

Customizable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern type

  • {{item.name}}

    Out Of Stock

Beveled type

  • {{item.name}}

    Out Of Stock

Skin color

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

You have maximum number of Trade-in in cart already. If you wish to add in Trade-in, please remove from cart.

{{tradeInResult.displayModelName}}

{{tradeInResult.discountText1}}

{{tradeInResult.discountText2}}

{{tradeInResult.discountText3}}

{{tradeInResult.discountText4}}

{{tradeInResult.discountText5}}

{{tradeInResult.discountText6}}

{{tradeInResult.specialDiscountText}}

{{tradeInResult.description}}

{{tradeInResult.contentText}}

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description1}}

{{tariffOptionResult.description2}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{offerItem.title}}

{{offerItem.offerText}}

{{offerItem.linkText}}
{{bundle.imgAttr.alt}} {{bundle.imgAttr.alt}}
{{bundle.title}}
{{bundle.price.original}} {{bundle.price.save}} {{bundle.price.now}}
{{bogo.item.headline}}

{{decmain.text}}

{{bogo.item.description.sub}}

{{bogo.item.description.date}}

{{bogo.item.price.original}} {{bogo.item.price.save}} {{bogo.item.price.now}}
{{gift.item.headline}}

{{decmain.text}}

{{gift.item.description.date}}

{{gift.item.learnMoreCta.text}}
{{combo.item.headline}}

{{decmain.text}}

{{combo.item.description.date}}

{{combo.item.learnMoreCta.text}}
{{delightDelivery.item.imgAttr.alt}} {{delightDelivery.item.imgAttr.alt}}
{{delightDelivery.item.headline}}

{{decmain.text}}

Learn more
{{finance.item.iconAttr.alt}} {{finance.item.iconAttr.alt}}
{{finance.item.description.text}}
{{finance.item.emiText}}
{{message.item.iconAttr.alt}} {{message.item.iconAttr.alt}}

{{decmain.text}}

{{offer.headline}}

Features

Two-way installation

The two-way installation option enables users to choose the best solution for their specific requirements. This flexible unit can be deployed under the ceiling or as a free-standing floor unit. If space is limited and airflow needs to come from above, the ceiling setting is ideal, while the floor-standing option is perfect when room is abundant. This two-way design is efficient, cost-effective and elegant.

Compact but powerful

The Samsung Ceiling Type air conditioning unit is slim and compact, offering a wider choice of installation locations. At just half the size of competitor units, this air conditioning system's cooling power is comparable to larger products. Its smaller size and lighter weight mean your business benefits from reduced set-up costs.

Anti-Virus Filter

The anti-virus filter lets businesses and their users benefit from cleaner air in their premises. This feature is specifically designed to keep local air free from dust particles and to minimise the spread of mould spores and harmful bacteria. This generates a more comfortable and safe environment for business users.

Specifications

  • Liquid Pipe (Φ, mm)

    6.35 mm

  • Control Method

    EEV

  • Power Supply (Outdoor Unit) [Φ, #, V, Hz]

    1,2,220-240,60

  • Shipping Weight (kg)

    38.0 kg

  • Net Dimensions (WxHxD) (mm)

    1350 X 235 X 675 mm

  • Oil (Type)

    POE

  • Type

    7.1kW-1Φ-Ceiling

  • Indoor Unit

    AC071TNCDKC/TC

  • Outdoor Unit

    AC071TXADKC/TC

  • Mode

    COOLING ONLY

  • Cooling [kW]

    2.3 / 7.1 / 9.2 kW

  • Cooling 1)

    0.4/2.0/3.3 kW

  • Cooling

    2.4/9.5/15.0 A

  • MCA [A]

    22.5 A

  • MFA [A]

    25.0 A

  • EER (Nominal Cooling) [W/W]

    3.55

  • Liquid Pipe (Φ, mm)

    6.35 mm

  • Liquid Pipe (Φ, inch)

    1/4"

  • Gas Pipe (Φ, mm)

    15.88 mm

  • Gas Pipe (Φ, inch)

    5/8"

  • Installation Max. Length [m]

    50 m

  • Installation Max. Height [m]

    30 m

  • Transmission Cable

    0.75↑

  • Type

    R410A

  • Control Method

    EEV

  • Factory Charging (kg)

    2.00 kg

  • 1,2,220-240,60

  • Type

    Sirocco

  • Motor (Output) [W]

    153 W

  • Number of Unit (EA)

    3 EA

  • Air Flow Rate (High / Mid / Low) [CMM]

    23.0/19.0/15.0 CMM

  • Drain Pipe (Φ,mm)

    VP25 (OD 32,ID 25)

  • Sound Pressure (High / Mid / Low) [dB(A)]

    45/40/35 dBA

  • Panel Net Weight (kg)

    32.6 kg

  • Shipping Weight (kg)

    38.0 kg

  • Net Dimensions (WxHxD) (mm)

    1350 X 235 X 675 mm

  • Shipping Dimensions (WxHxD) (mm)

    1439 X 321 X 758 mm

  • 1,2,220-240,60

  • Type

    Twin BLDC Rotary

  • Model Name

    UG8T265FXAEW

  • Output(kW)

    2.32 kW

  • Oil (Type)

    POE

  • Oil (Initial Charge) [cc]

    700 cc

  • Air Flow Rate (Cooling) [CMM]

    76 CMM

  • Sound Pressure (Cooling / Heating) [dB(A)]

    50 dBA

  • Panel Net Weight (kg)

    52.5 kg

  • Shipping Weight (kg)

    56.5 kg

  • Net Dimensions (WxHxD) (mm)

    880 x 798 x 310 mm

  • Shipping Dimensions (WxHxD) (mm)

    1023 x 881 x 413 mm

  • Cooling (℃)

    -15 ~ 50 ℃

  • WiFi Kit

    Yes

  • SmartThings App Support

    Yes
