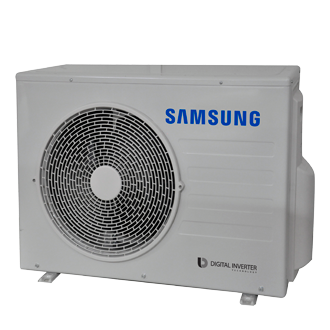

AC Outdoor unit with Digital Inverter Technology, 18000 BTU/hr 220 / 1Φ
AC018TXQLCC/SU
Scan this QR code with your phone and place the object in your space.
Highlights
Features
Evenly circulates &cools every corner
Omnidirectional outlet
Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach*, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature**.
* Samsung testing compared to a general 4 way cassette type air conditioner.** Within an 9.3m radius the temperature difference is less than 0.6°C.
Comfortable cool, not unpleasantly cold
Bladeless Design
A bladeless design softly disperses cool air across the room, making you comfortably cool without feeling a cold draft**. With no blades to block the air flow, it also expels 25% more air* and spreads it farther.
* Samsung testing compared to a general 4 way cassette type air conditioner.** Within a 5m radius, no cold draft between 0~1.5m in height (with 14.0kw).
Spreads much more air in many more ways
Booster Fan
An innovative Booster Fan enables cool air to be expelled at much lower angles. It creates a low pressure area around the outlet, so that cool air comes out parallel to the ceiling and disperses across a wider area.
* Samsung testing compared to a general 4 way cassette type air conditioner.
* Samsung testing compared to a general 4 way cassette type air conditioner.
All round simpler & intuitive control
Wireless Remote Controller + Circular LED Display
Intuitively control its performance and see where the air is going. The Wireless Remote Controller’s* Jog shuttle and button offer a fun way to adjust the air flow and a Circular LED Display shows its direction.
* Optional.
* Optional.
Specifications
-
Cooling [Btu/h]
6800 / 18000 / 22000 Btu/h
-
Capacity
5.28 kW
-
Net Dimensions (WxHxD) (mm)
880 x 638 x 310 mm
-
Features
360 CST
-
Type
360 CST
-
Indoor Unit
AC018TN4LCC/SU
-
Outdoor Unit
AC018TXQLCC/SU
-
Mode
Cooling Only
-
Cooling [kW]
5.28 kW
-
Cooling [Btu/h]
6800 / 18000 / 22000 Btu/h
-
Cooling Power Input (Min/Std/Max)
0.35 / 1.45 / 3.00 kW
-
Cooling Current Input (Min/Std/Max)
2.30 / 6.60 / 15.30 A
-
EER (Nominal Cooling) [(Btu/h)/W]
12.4 Btu/Wh
-
SEER (Cooling Energy Grade)
C
-
SEER (Cooling) [Btu/Wh]
14.90 Btu/Wh
-
Liquid Pipe (Φ, mm)
6.35 mm
-
Liquid Pipe (Φ, inch)
1/4"
-
Gas Pipe (Φ, mm)
12.7 mm
-
Gas Pipe (Φ, inch)
1/2"
-
Installation Max. Length [m]
30 m
-
Installation Max. Height [m]
20 m
-
Type
R-410A
-
Factory Charging (kg)
1.50 kg
-
1,2,230,60
-
Type
Turbo
-
Air Flow Rate Cooling (H/M/L) [m³/min]
18.7 / 16.9 / 15.1 ㎥/min
-
Motor (Output) [W]
65 W
-
Number of Unit (EA)
1 EA
-
1,2,230,60
-
Sound Pressure (High / Mid / Low) [dB(A)]
38 / 36 / 34 dBA
-
Panel Net Weight (kg)
20.0 kg
-
Shipping Weight (kg)
24.5 kg
-
Net Dimensions (WxHxD) (mm)
947 x 281 x 947 mm
-
Shipping Dimensions (WxHxD) (mm)
990 x 330 x 990 mm
-
Type
Twin BLDC Rotary
-
Model Name
UG4T200FUAE4
-
Output(kW)
1.79 kW
-
Oil (Type)
POE
-
Oil (Initial Charge) [cc]
650 cc
-
Air Flow Rate (Cooling) [m³/min]
51 ㎥/min
-
Sound Pressure Level (Cooling)
50 dBA
-
Panel Net Weight (kg)
43.5 kg
-
Shipping Weight (kg)
46.5 kg
-
Net Dimensions (WxHxD) (mm)
880 x 638 x 310 mm
-
Shipping Dimensions (WxHxD) (mm)
1023 x 730 x 413 mm
-
Cooling (℃)
-15~54 ℃
