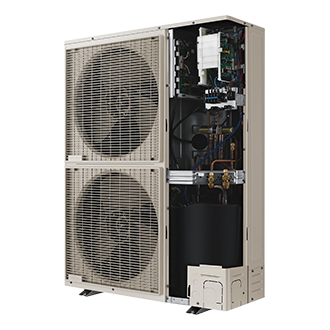

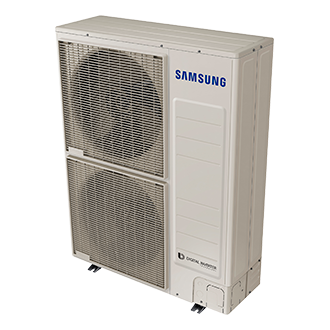

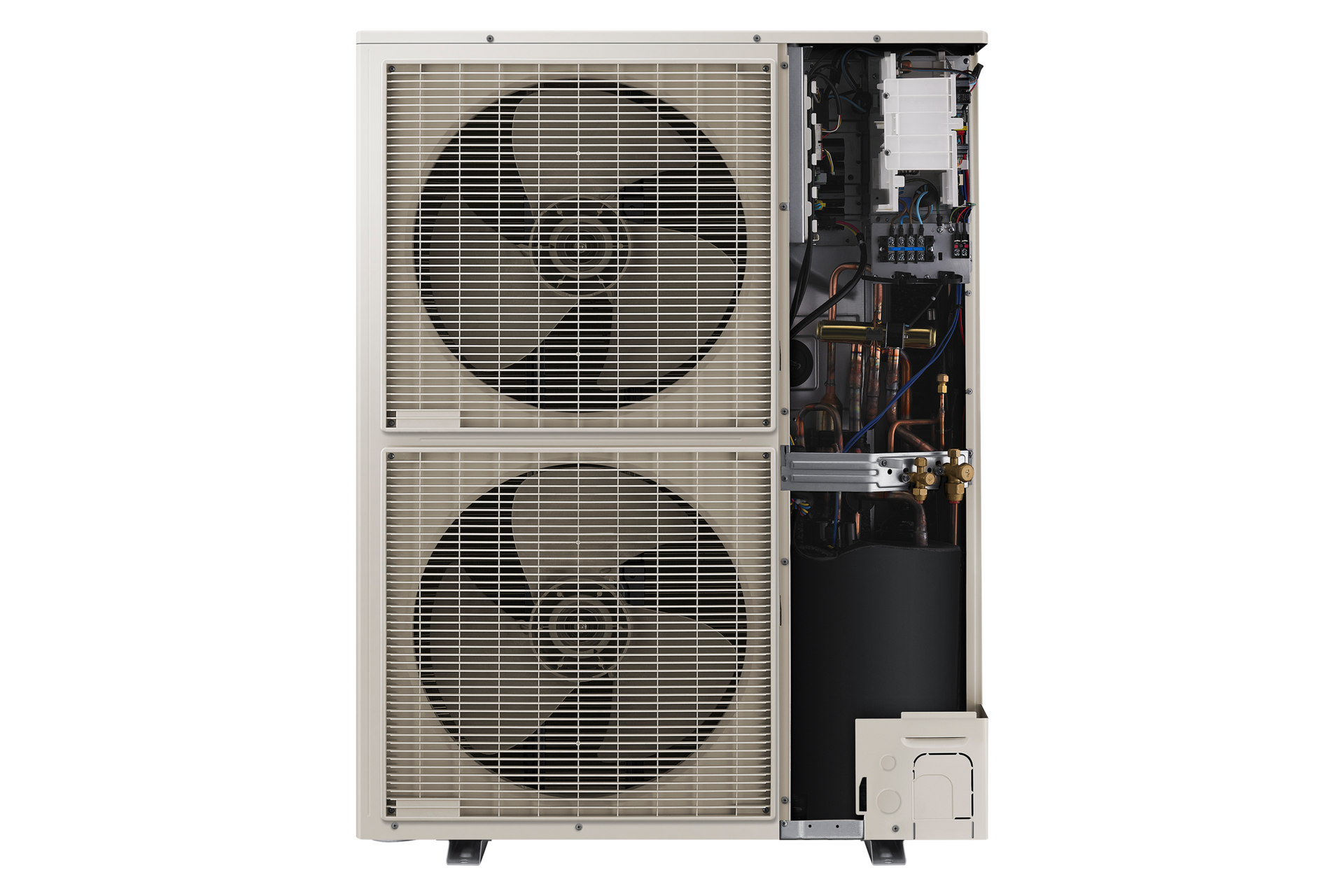

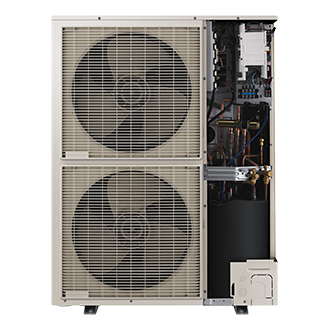

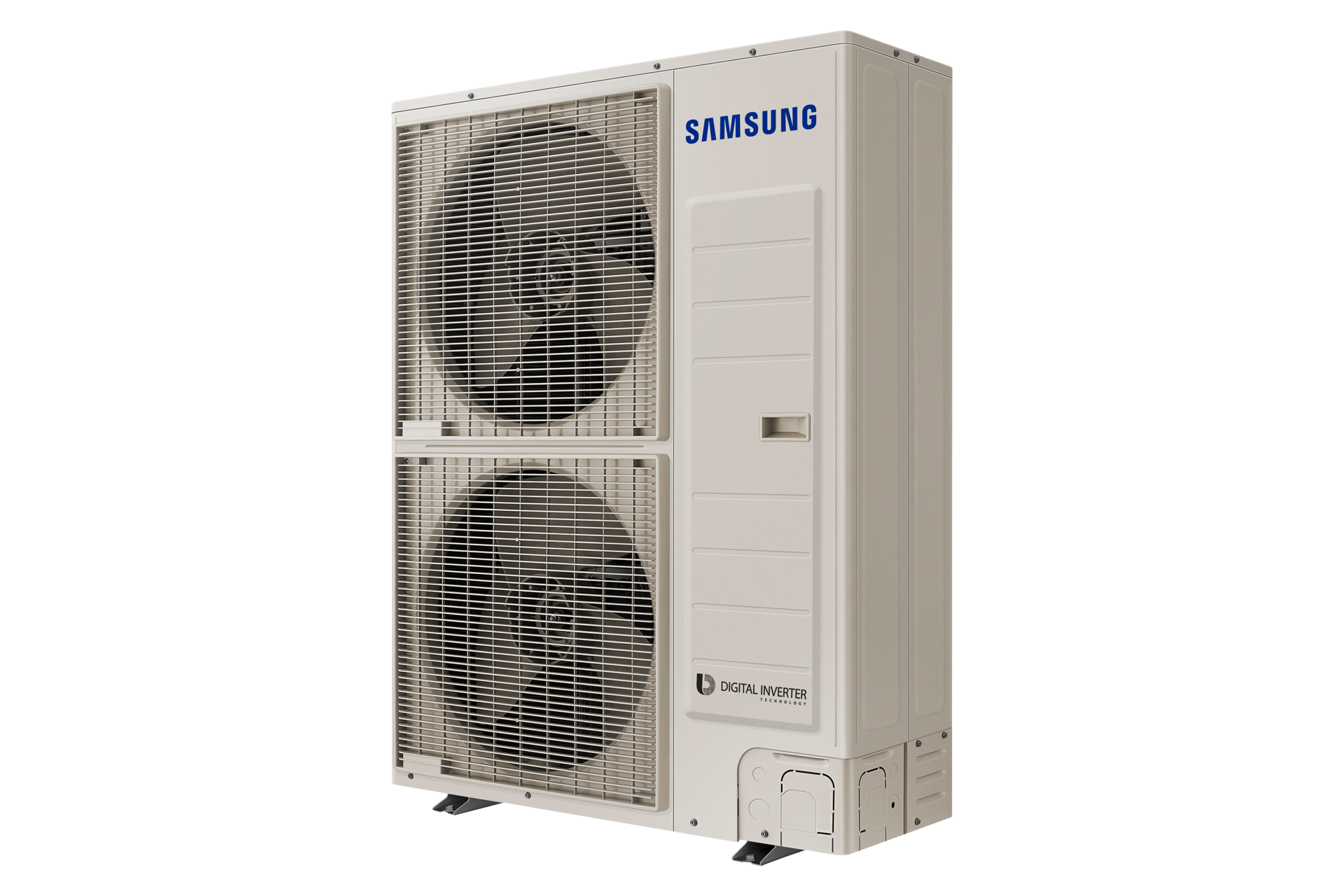

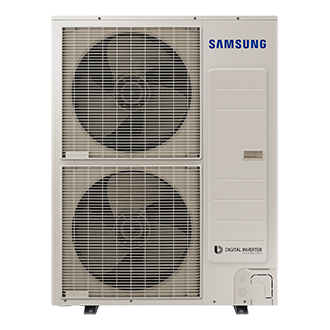

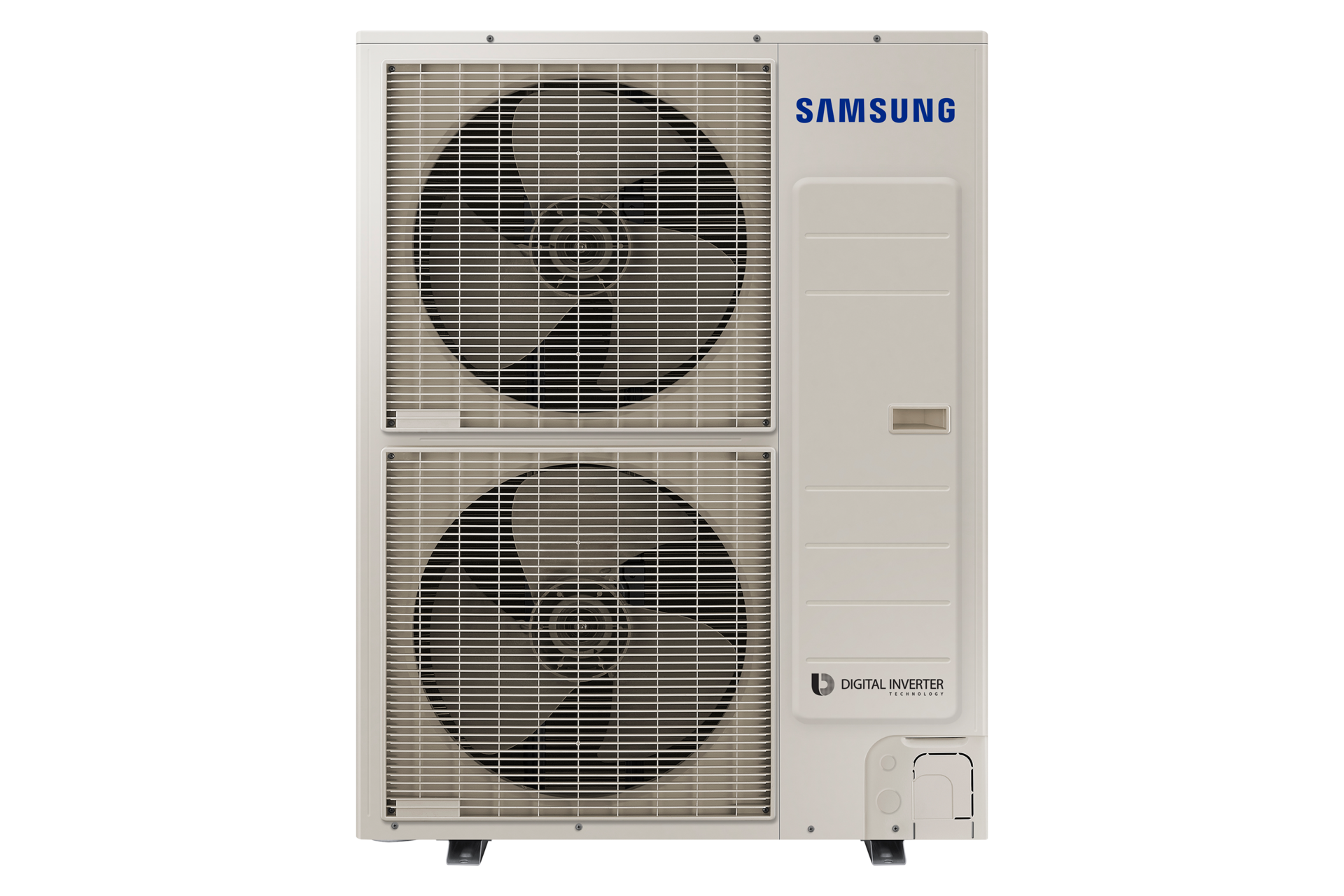

AC Outdoor unit with Digital Inverter Technology,47000 BTU/hr 380 / 3Φ / 3 Phase
AC048TXMPHH/SU
Scan this QR code with your phone and place the object in your space.
Specifications
-
Capacity
13.75 kW
-
Cooling [Btu/h]
15000 / 47000 / 60000 Btu/h
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Type
Duct
-
Indoor Unit
AC048TNMPHH/SU
-
Outdoor Unit
AC048TXMPHH/SU
-
Mode
Heat Pump
-
Cooling [kW]
13.75 kW
-
Cooling [Btu/h]
15000 / 47000 / 60000 Btu/h
-
Heating [kW]
4.10 / 16.00 / 21.00 kW
-
Cooling Power Input (Min/Std/Max)
1.30 / 3.79 / 6.50 kW
-
Heating Power Input (Min/Std/Max)
0.85 / 4.57 / 8.10 kW
-
Cooling Current Input (Min/Std/Max)
2.50 / 6.00 / 10.00 A
-
Heating Current Input (Min/Std/Max)
1.70 / 7.10 / 13.00 A
-
EER (Nominal Cooling) [(Btu/h)/W]
12.4 Btu/Wh
-
COP (Nominal Heating)
3.5 W/W
-

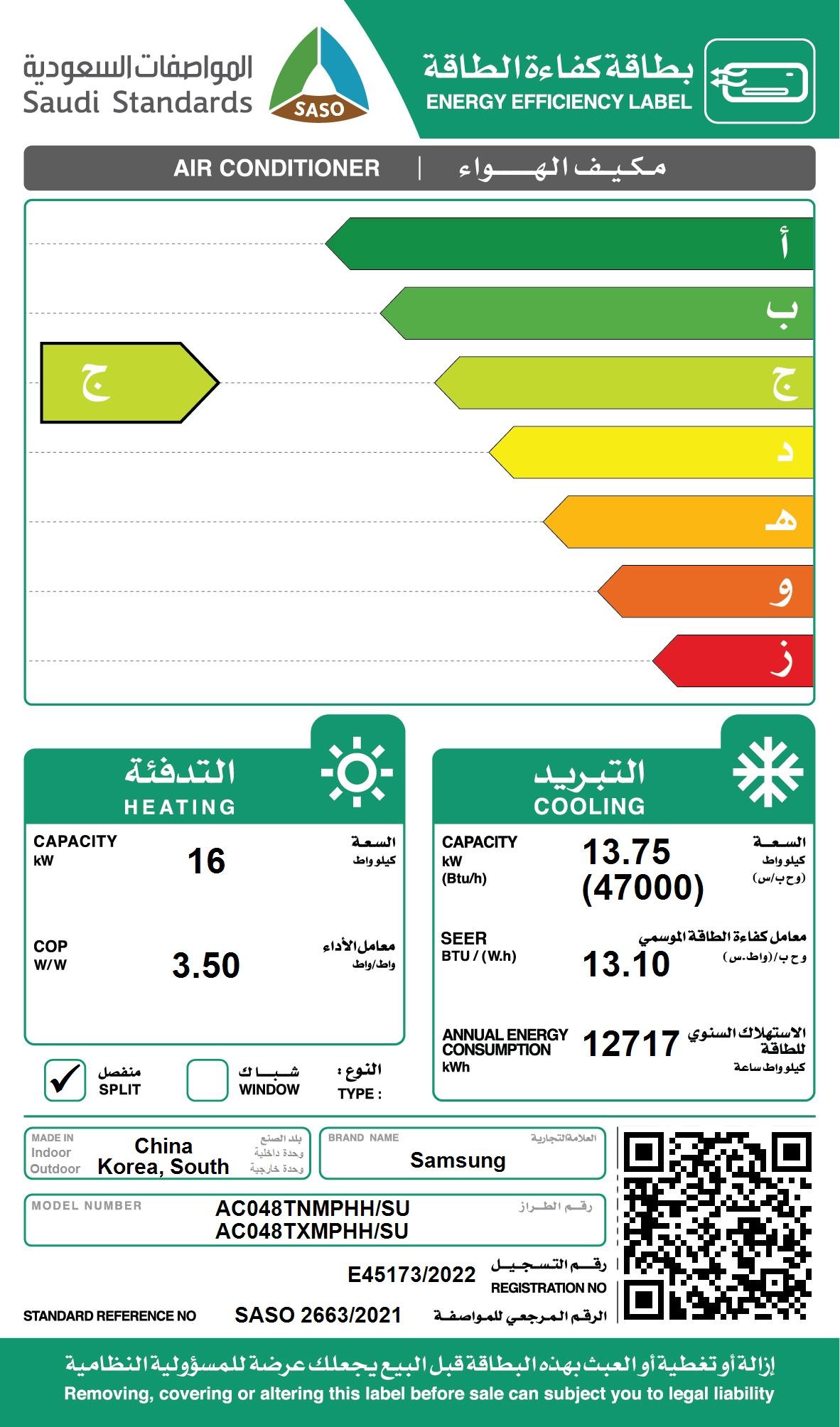

SEER (Cooling Energy Grade)
C
-
SEER (Cooling) [Btu/Wh]
13.10 Btu/Wh
-
Liquid Pipe (Φ, mm)
9.52 mm
-
Liquid Pipe (Φ, inch)
3/8"
-
Gas Pipe (Φ, mm)
19.05 mm
-
Gas Pipe (Φ, inch)
3/4"
-
Installation Max. Length [m]
75 m
-
Installation Max. Height [m]
30 m
-
Type
R-410A
-
Factory Charging (kg)
3.80 kg
-
1,2,230,60
-
Type
Sirocco
-
Air Flow Rate Cooling (H/M/L) [m³/min]
51/43/35 ㎥/min
-
Motor (Output) [W]
350 W
-
Number of Unit (EA)
2 EA
-
3,4,400,60
-
Sound Pressure (High / Mid / Low) [dB(A)]
43 / 38 / 33 dBA
-
Panel Net Weight (kg)
53.5 kg
-
Shipping Weight (kg)
60.5 kg
-
Net Dimensions (WxHxD) (mm)
1200 x 360 x 650 mm
-
Shipping Dimensions (WxHxD) (mm)
1456 x 440 x 778 mm
-
Type
Twin BLDC Rotary
-
Model Name
UG5TK5450FJX
-
Output(kW)
4.12 kW
-
Oil (Type)
POE
-
Oil (Initial Charge) [cc]
1700 cc
-
Air Flow Rate (Cooling) [m³/min]
115 ㎥/min
-
Sound Pressure Level (Cooling)
55 dBA
-
Panel Net Weight (kg)
98.0 kg
-
Shipping Weight (kg)
108.0 kg
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Shipping Dimensions (WxHxD) (mm)
995 x 1598 x 426 mm
-
Cooling (℃)
-15~54 ℃
-
Heating (℃)
-20~24 ℃
