How to connect to an Audio system with cable?

Last Update Date : Jan 10. 2018

[Solution]

You can connect to an Audio system with various Cable. Choose one of the three methods for connecting to an Audio

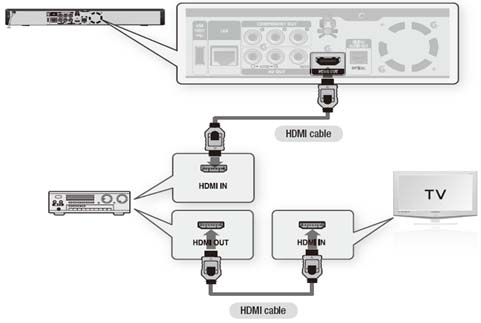

1. CONNECTING TO AN AUDIO SYSTEM (HDMI SUPORTED AMPLIFIER) - BEST QUALITY (RECOMMENED)

    1) Using the HDMI cable (not included), connect the HDMI OUT terminal on the rear of the Blu-ray Disc Player to the HDMI IN terminal of your Amplifier.

    2) Using the HDMI cable, connect the HDMI OUT terminal of the Amplifier to the HDMI IN terminal of your TV.

    3) Turn on the Blu-ray Disc Player, TV, and Amplifier.

    4) Press the input select button of the Amplifier to select the external input in order to hear sound from the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

    Important

    • Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

    • Please set the audio in the menu screen according to the Amplifier.

    • The position of HDMI terminals may vary depending on the Amplifier. Please refer to the user's manual of your Amplifier

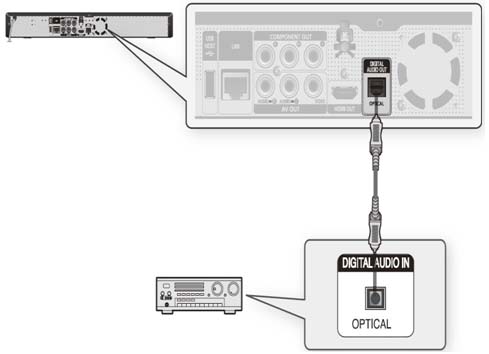

2. CONNECTING TO AN AUDIO SYSTEM (DOLBY DIGITAL, DTS AMPLIFIER) - BETTER QUALITY

    1) Using the optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of the Blu-ray Disc Player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier.

    2) Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminals of your TV.

    3) Turn on the Blu-ray Disc Player, TV, and Amplifier.

    4) Press the input select button of the Amplifier to select the external input in order to hear sound from the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

    Important

    • Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

    • Please set the audio in the menu screen according to the Amplifier.

    • The position of terminals may vary depending on the Amplifier.  Please refer to the user's manual of your Amplifier.

    • When using this connection, discs with LPCM audio soundtracks will only be heard over the front two channels.

3. Connecting to an AUDIO System (2CHANNEL AMPLIFIER) - GOOD QUALITY

    1) Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc Player to the AUDIO (red and white) In terminals of your Amplifier.

    2) Using the video signal cable(s), connect the HDMI,  COMPONENT or VIDEO OUT terminals on the rear of the Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO In terminal of your TV.

    3) Turn on the Blu-ray Disc Player, TV and Amplifier. Press the input select button of the Amplifier to select the external input in order to hear sound from the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.

    ※ Note

    • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

    • Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567&other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. ⓒ 1996-2008 DTS, Inc. All Rights Reserved.
