Use Smart Edge Blending with The Freestyle 2023

Last Update date : Sep 20. 2023
Two The Freestyle projectors are displayed

Samsung’s portable projector, The Freestyle 2023, can freely configure a variety of images with its compact design. If you have two of these projectors, you can use the Smart Edge Blending feature, which connects both units to form one seamless image. This lets you utilize a wide space in your home or office to show off artwork.

Note: The Smart Edge Blending feature is now available on The Freestyle's 2023 model. It is expected to be supported on The Freestyle’s 2022 model in the near future.

Two The Freestyle projectors are displaying a landscape on a wall

Smart Edge Blending lets you place two The Freestyle units next to each other in order to view a wide image, such as a piece of artwork. This can be done horizontally or vertically to view a landscape or portrait image. The overlapping area of the two images is automatically adjusted as if it were a single image.

Two The Freestyle projectors are displaying a landscape in a living room Two The Freestyle projectors are displaying a landscape in a living room

Landscape image

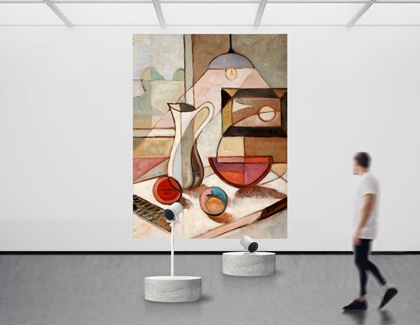

Two The Freestyle projectors are displaying a art piece on a wall Two The Freestyle projectors are displaying a art piece on a wall

Portrait image

A Galaxy phone is displaying The Freestyle screen from SmartThings next to a The Freestyle projector

Before you can use Smart Edge Blending, you will need to set up both projectors and then add them to the SmartThings app on your phone.

1 Connect the included USB-C power adapter to the charging cable, and then plug one end into a power source. Plug the other end into The Freestyle, and then tap the Power button to turn it on.
The Freestyle projector is plugged into a wall outlet
2 Wait a moment for the screen to begin projecting. Select your preferred language, and then select the Smartphone option.
3 Using your phone, navigate to and open the SmartThings app.
A Galaxy phone is displaying a SmartThings screen next to The Freestyle
4 Tap the Devices tab, then tap the Add icon (the plus sign), and then tap Add device.
5 Tap Scan under "Scan QR code", and then use your phone’s camera to scan the code on The Freestyle or its packaging. If you cannot locate the QR code, you can tap Scan under "Scan for nearby devices" instead.
6 Tap Add next to Samsung Projector, and then select a Location and Room for it. Tap Next.

Note: You will need to add the PIN that is shown on the projector’s screen to the SmartThings app.

7 Follow the on-screen instructions to finish adding The Freestyle to SmartThings.
8 Then, repeat the above steps with the second projector.

Note: Steps may differ depending on model, device, and software.

Two The Freestyle projectors are displaying the Edge Blending pattern on a wall

To set up Smart Edge Blending with two The Freestyle projectors, you will need to make sure they are both added to the same Wi-Fi network. In addition, at least one of the projectors must be added to the SmartThings app on your phone (refer to the section above if you need assistance).

1 Place the two The Freestyle projectors in your desired positions. Make sure they are parallel to each other on a flat surface.
2 Next, open the SmartThings app on your phone. Then, tap the Devices tab.
Two The Freestyle projectors are next to a Galaxy phone displaying a SmartThings screen
3 Look for one of The Freestyle, and then tap its card.
Two The Freestyle projectors are next to a Galaxy phone displaying a SmartThings screen
4 Tap Smart Edge Blending, and then tap New Configuration.
Two The Freestyle projectors are next to a Galaxy phone displaying the Smart Edge Blending screen
5 Then, select the second Freestyle on the Smart Edge Blending Device Settings screen. Tap Next.
Two The Freestyle projectors are next to a Galaxy phone displaying the Smart Edge Blending Settings screen
6 Select Landscape or Portrait, and then tap Next.
Two The Freestyle projectors are next to a Galaxy phone displaying the Smart Edge Blending Layout screen
7 Then, manually adjust each projector. Ensure the sticker and the shadow on the guide screen overlap as much as possible, and then tap Next.
Two The Freestyle projectors are next to a Galaxy phone displaying the Smart Edge Blending pattern
8 You will need to set the Edge Blending pattern. Position your phone in such a way that you can clearly see the projected guide screen image through the viewfinder. Once you are satisfied with the visual alignment, tap Blend.
A Galaxy phone displaying the Smart Edge Blending pattern
  • All eight rectangular markers on the guide screen should remain visible without overlapping.
  • The symbols that distinguish each projector on the left and right should remain visible.
  • All markings on the guide screen should be clearly visible and not curved or protruding.

Note: A brightly lit room may decrease the guide screen’s visibility.

9 Then, tap Confirm on the next screen to confirm the blending area.
Two The Freestyle projectors are next to a Galaxy phone displaying the Confirm Blending Area screen
10 Next, choose the image to display by tapping My Photos, and then selecting your desired image. Using your finger, resize and move the image so that it fits properly on the screen. You can also select the options for Smart Crop and Screen Fit. Then, tap View on Blended Screen.
Two The Freestyle projectors are next to a Galaxy phone displaying a My Photos screen
11 To stop Smart Edge Blending, simply tap End Smart Edge Blending in the SmartThings app. Or, select the Return button on The Freestyle’s remote control.
Two The Freestyle projectors are next to a Galaxy phone displaying a Smart Edge Blending screen

Notes:

  • When using the Smart Edge Blending feature, set the projection direction of both Freestyles to the front (with the Samsung logo pointing down). If you set the direction to the ceiling or rear, the function may not work properly.
  • It is recommended to position The Freestyle unit facing forward.
  • The Smart Edge Blending feature requires SmartThings version 1.8.5.24 or later on Android devices and SmartThings version 1.7.5.21 or later on iOS devices.
  • Galaxy devices support both image and video formats. iOS devices support images only.
  • The Picture Mode for Smart Edge Blending is automatically set to be the same for both projectors.
  • Only the Return, Power, and Launch app buttons will function on The Freestyle’s remote control during Smart Edge Blending.
Two The Freestyle projectors are displaying two different landscape on a wall

If you’d like to display multiple images with Smart Edge Blending, you can create a slideshow.

1 After you’ve set up Smart Edge Blending using the steps in the previous section, navigate back to the SmartThings app, and then tap The Freestyle’s card. Tap Smart Edge Blending, and then tap My Photos.
Two The Freestyle projectors are next to a Galaxy phone displaying a My Photos screen
2 Select your photos, and then tap Next.
Two The Freestyle projectors are next to a Galaxy phone displaying a My Photos screen

Note: Up to 30 photos can be selected when creating a slideshow.

3 Tap the Make a Slideshow icon at the top of the screen to open the Slideshow settings.
Two The Freestyle projectors are next to a Galaxy phone displaying a Slideshow screen
4 Select your desired slideshow options:
Two The Freestyle projectors are next to a Galaxy phone displaying a Slideshow Settings screen
  • Slideshow Duration: Set your desired duration, such as 3 minutes, 30 minutes, or 1 hour.
  • Slideshow random: Tap the switch to shuffle the images at random.
  • Photo Options: Select Smart Crop to automatically crop the images to fit the screen or Screen Fit to display the images perfectly within the screen dimensions without any cropping or stretching.
5 Tap Back, and then tap View on Blended Screen.
Two The Freestyle projectors are next to a Galaxy phone displaying a Slideshow screen
6 Your images will be sent to the projectors and the slideshow will start.
Two The Freestyle projectors are next to a Galaxy phone displaying a Slideshow screen
Two The Freestyle projectors are displaying a landscape by mirroring what is displayed on Galaxy phone

Smart View allows you to mirror your phone’s screen to a larger screen, which makes it easier to watch videos or other content. You can use this feature with Smart Edge Blending.

1 After you’ve set up Smart Edge Blending using the steps in the first section, navigate back to the SmartThings app, and then tap The Freestyle’s card. Tap Smart Edge Blending, and then tap Smart View.
Two The Freestyle projectors are next to a Galaxy phone displaying a Smart Edge Blending screen
2 Tap Start now on the pop-up when prompted.
Two The Freestyle projectors are next to a Galaxy phone displaying a Smart Edge Blending screen
3 Smart View will connect to the projectors and you can begin mirroring your phone’s screen.
Two The Freestyle projectors are next to a Galaxy phone displaying a Smart Edge Blending screen

Notes:

  • Depending on the network status, you may experience audio or video interruptions while using Smart View.
  • Mirroring (Smart View) may not function properly when using a 2.4 GHz connection. 5.0 GHz is recommended for both The Freestyles.
  • Mirroring (Smart View) is supported only on Samsung Galaxy devices.
Two The Freestyle projectors are next to a Galaxy phone displaying the Smart Edge Blending Settings screen

The following settings can be adjusted in the SmartThings app. To find these settings, tap The Freestyle’s card, then tap Smart Edge Blending, and then tap the Settings icon next to Smart Edge Blending.

Two The Freestyle projectors are next to a Galaxy phone displaying a Smart Edge Blending screen
  • Brightness: The brightness can be adjusted for each projector. If you are using Landscape mode, select Left Screen or Right Screen; if you are using Portrait mode, select Top Screen or Bottom Screen. Then, tap the minus or plus sign under Brightness. You can also tap Reset next to Brightness Reset to start over if needed.
Two The Freestyle projectors are next to a Galaxy phone displaying the Brightness screen
  • Focus: The focus can be adjusted for each projector. If you are using Landscape mode, select Left Screen or Right Screen; if you are using Portrait mode, select Top Screen or Bottom Screen. Then, tap the arrows under Focus. You can also tap Auto Focus to automatically focus the image if needed.
Two The Freestyle projectors are next to a Galaxy phone displaying the Focus screen
  • Screen Adjustment: This can be used to fine-tune the results of Smart Edge Blending. Select the point you want to adjust and then use the directional arrows to move the image. Use the back and forward arrows to adjust the angle. Tap Reset next to Screen Adjustment Reset to start over if needed. When you are finished, tap Apply.
Two The Freestyle projectors are next to a Galaxy phone displaying the Screen Adjustment screen
  • Sound Output: You can use both projectors’ speakers for stereo sound output. Select Simultaneous or Separate to set your desired sound output.
Two The Freestyle projectors are next to a Galaxy phone displaying the Screen Output screen

Note: Only Galaxy devices support the Sound Output functions.
