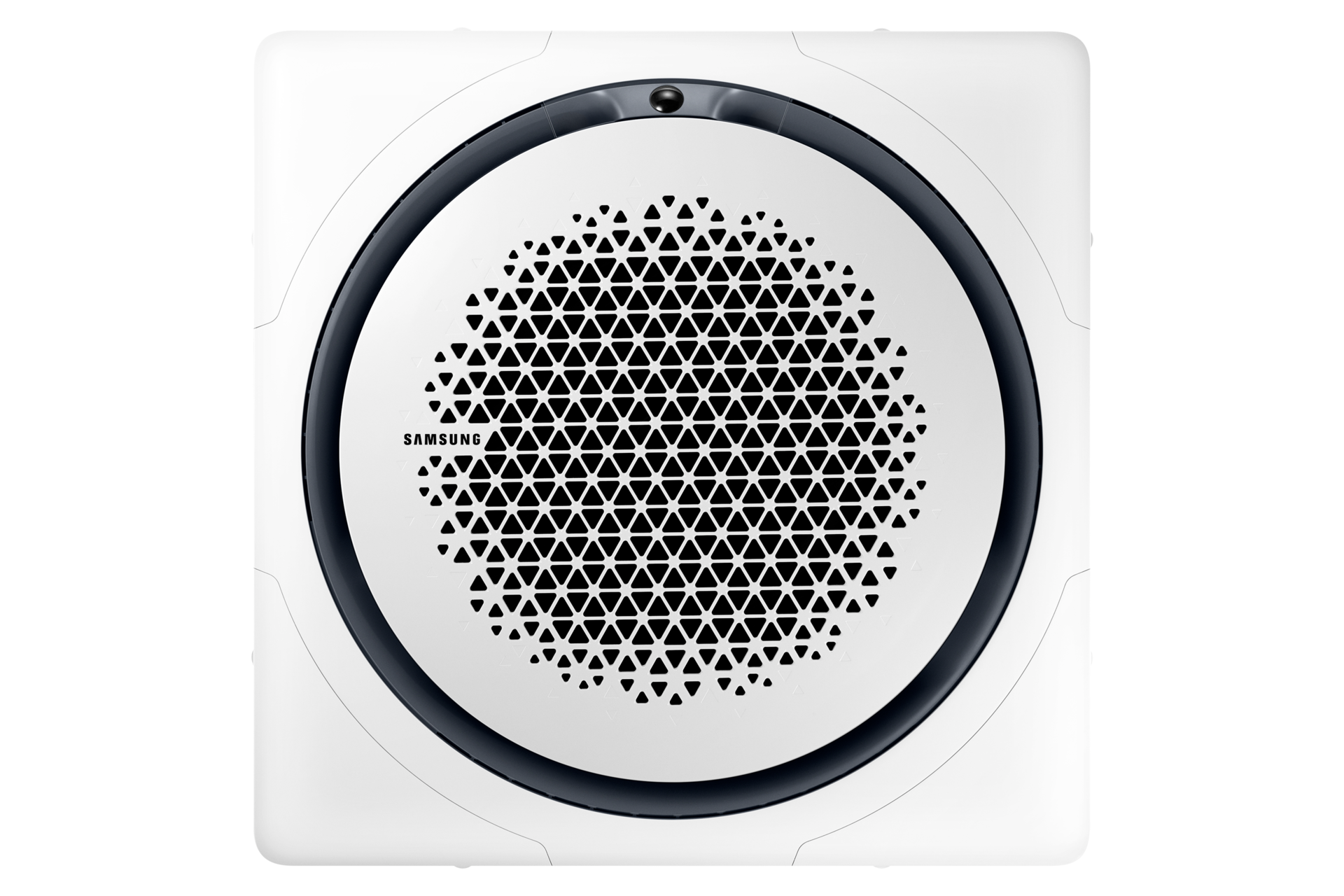

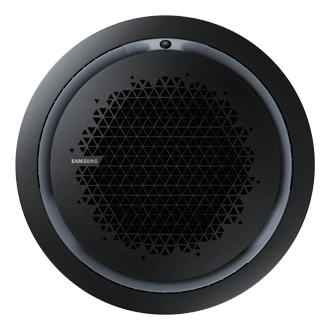

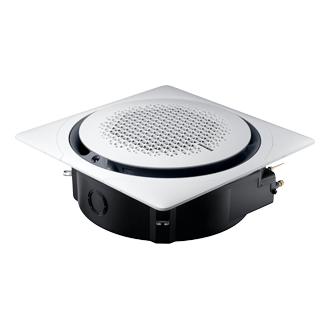

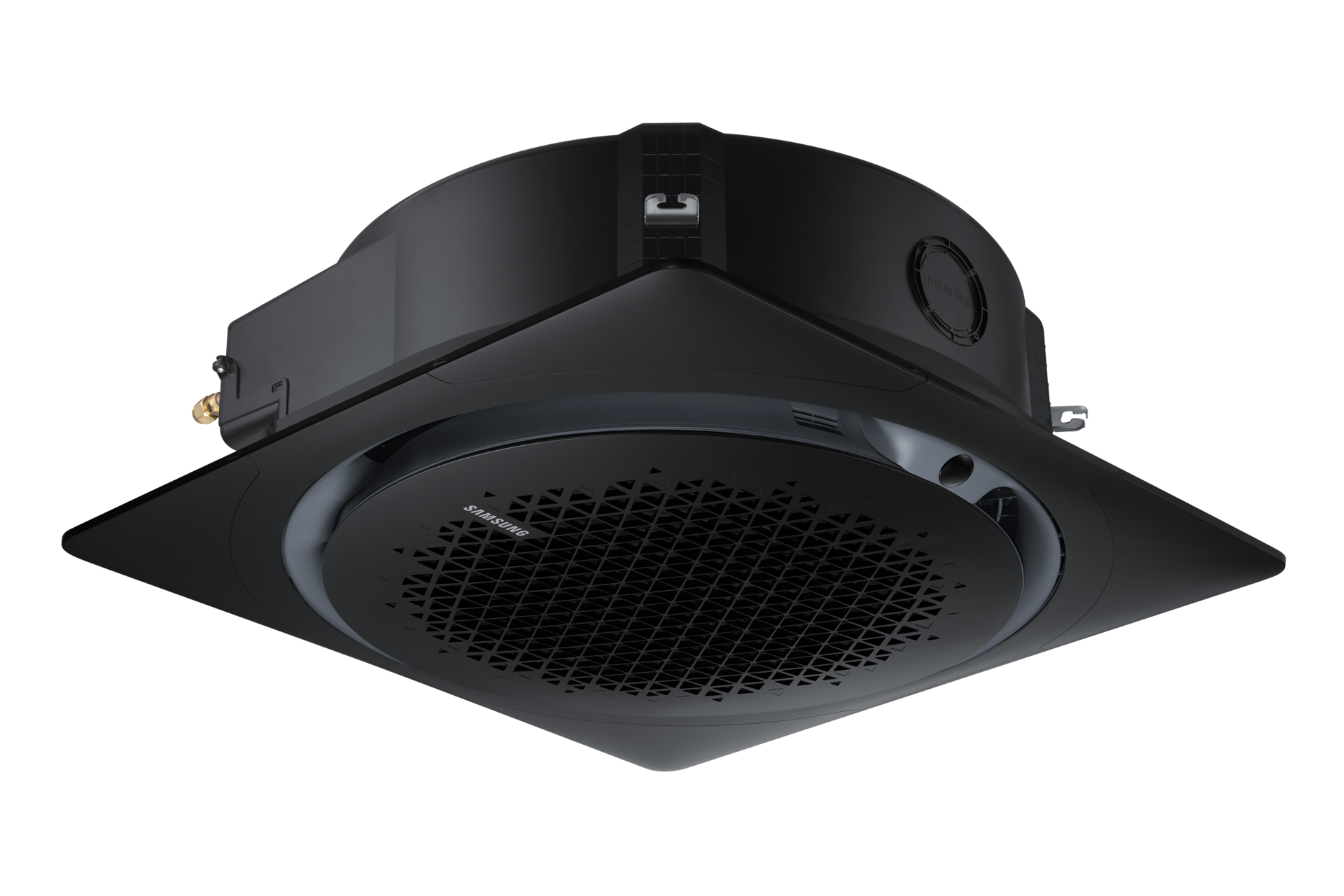

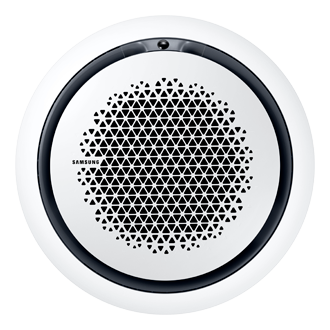

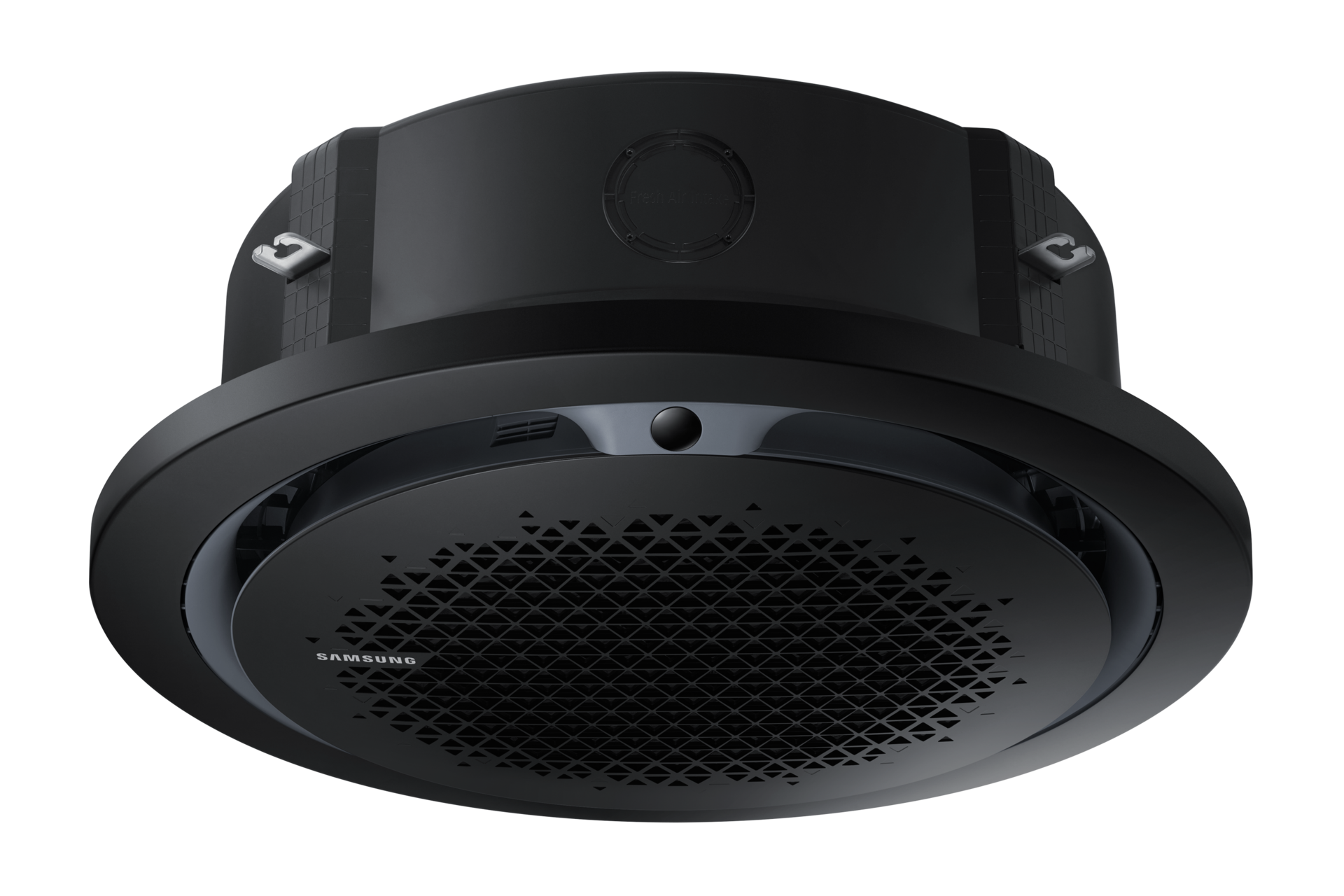

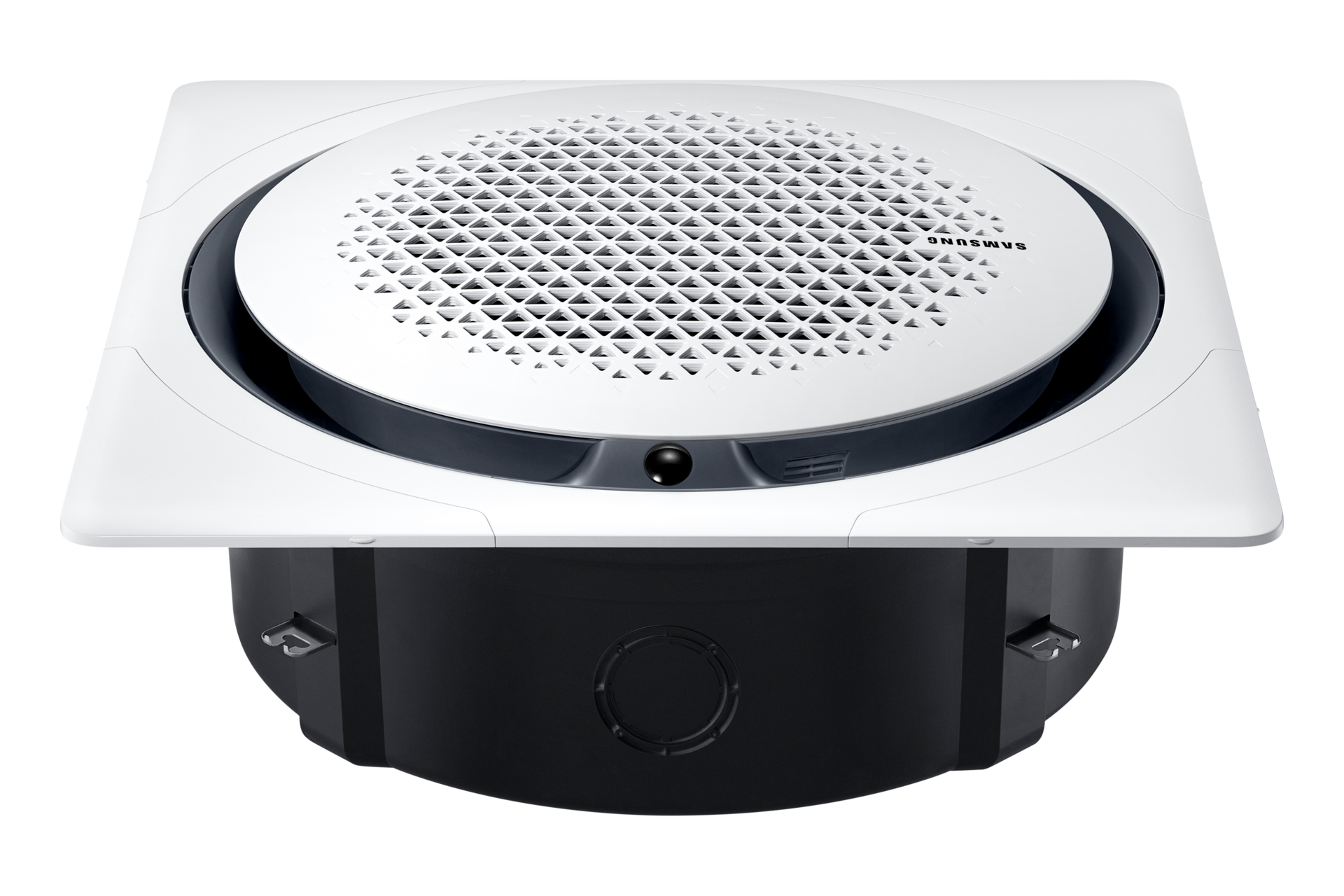

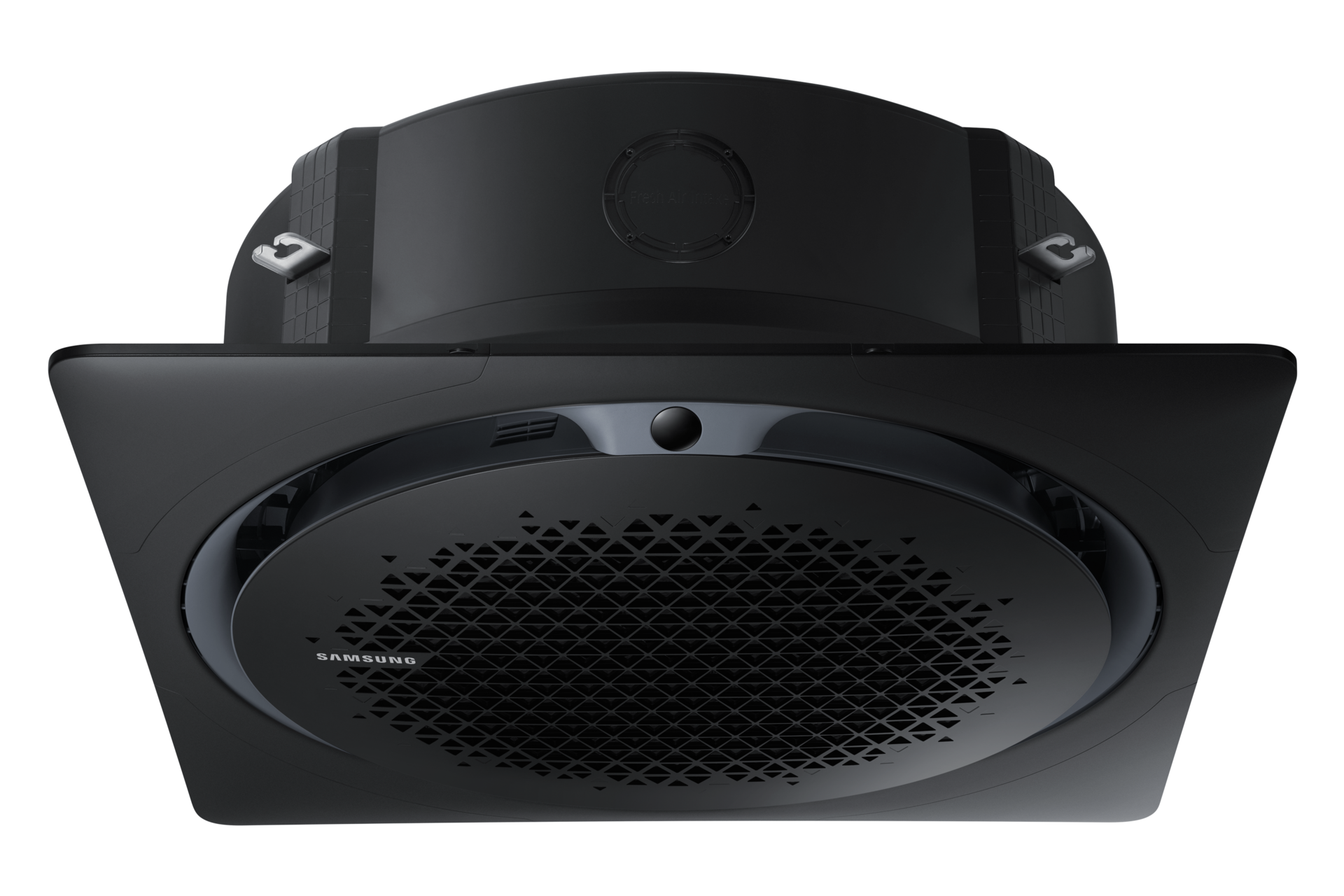

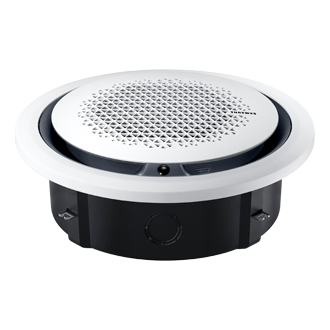

Air conditioning 360 Cassette With Omnidirectional outlet 3.5 HP

White 3.5 HP

AC100TN4PKC/TS

ရောင်းရန်မဟုတ်ပါ

+8 နောက်ထပ်

Air conditioning 360 Cassette With Omnidirectional outlet 3.5 HP

Dimension

Spin the angle

အကျိုးရလဒ်များ

Evenly circulates & cools every corner

Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach*, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature**.

* Samsung testing compared to a general 4 way cassette type air conditioner.** Within an 9.3m radius the temperature difference is less than 0.6°C.

Comfortable cool, not unpleasantly cold

A bladeless design softly disperses cool air across the room, making you comfortably cool without feeling a cold draft**. With no blades to block the air flow, it also expels 25% more air* and spreads it farther.

* Samsung testing compared to a general 4 way cassette type air conditioner.** Within a 5m radius, no cold draft between 0~1.5m in height (with 14.0kw).

Circular to perfectly fit in everywhere

Its innovative circular design can match a multitude of interior designs, so it perfectly fits in everywhere. Its minimalist modern styling creates a sophisticated look and its circular shape stands out beautifully.

Spreads more air in more ways

An innovative Booster Fan enables cool air to be expelled at much lower angles. It creates a low pressure area around the outlet, so that cool air comes out parallel to the ceiling and disperses across a wider area.

* Samsung testing compared to a general 4 way cassette type air conditioner.

All round simpler & intuitive control

Intuitively control its performance and see where the air is going. The Wireless Remote Controller’s* Jog shuttle and button offer a fun way to adjust the air flow and a Circular LED Display shows its direction.

* Optional.

အသေးစိတ်ဖော်ပြချက်များ

Cooling [kW]

3.0 / 10.0 / 12.0 kW
Cooling [Btu/h]

10,240 / 34,000 / 40,940 Btu/h
EER (Nominal Cooling)

3.20
Net Dimensions (WxHxD)

940 x 998 x 330 mm

Type

10kW-1Φ-360 CST

Indoor Unit

AC100TN4PKC/TS
Outdoor Unit

AC100TXADKC/TS

Mode

COOLING ONLY

Cooling [kW]

3.0 / 10.0 / 12.0 kW
Cooling [Btu/h]

10,240 / 34,000 / 40,940 Btu/h

Cooling 1)

0.6/3.125/4.7 kW

Cooling

3.0/14.8/20.4 A

MCA [A]

26.0 A
MFA [A]

30.0 A

EER (Nominal Cooling)

3.20

Liquid Pipe (Φ, mm)

9.52 mm
Liquid Pipe (Φ, inch)

3/8"
Gas Pipe (Φ, mm)

15.88 mm
Gas Pipe (Φ, inch)

5/8"
Installation Max. Length [m]

50 m
Installation Max. Height [m]

30 m

Transmission Cable

0.75↑

Type

R410A
Control Method

EEV
Factory Charging (kg)

3.00 kg

1,2,220-240,50

Type

Turbo Fan
Motor (Output) [W]

97 W
Number of Unit (EA)

1 EA
Air Flow Rate (High / Mid / Low) [CMM]

31.2/25.5/19.8 CMM

1,2,220-240,50

Drain Pipe (Φ,mm)

VP25 (OD 32,ID 25)

Sound Pressure (High / Mid / Low) [dB(A)]

44 / 39 / 33 dBA

Panel Net Weight (kg)

25.5 kg
Shipping Weight (kg)

30.3 kg
Shipping Dimensions (WxHxD) (mm)

990 x 414 x 990 mm

Model Name

PC4NUDMAN
Panel Net Weight (kg)

3.6 kg
Shipping Weight (kg)

6.3 kg
Shipping Dimensions (WxHxD) (mm)

1093 x 85 x 1083 mm

Drain Pump

Built in
Drain Pump Max. Lifting Height/Displacement

750 /24

Type

Twin BLDC Rotary
Model Name

UG8T300FUBJU
Output(kW)

2.82 kW
Oil (Type)

POE
Oil (Initial Charge) [cc]

1200 cc

Air Flow Rate (Cooling) [m³/min]

72 CMM

Sound Pressure (Cooling / Heating) [dB(A)]

53 dBA

Panel Net Weight (kg)

71.0 kg
Shipping Weight (kg)

76.0 kg
Net Dimensions (WxHxD) (mm)

940 x 998 x 330 mm
Shipping Dimensions (WxHxD) (mm)

995 x 1096 x 426 mm

Cooling (℃)

-15 ~ 50 ℃

WiFi Kit

Yes

SmartThings App Support

Yes

Air conditioning 360 Cassette With Omnidirectional outlet 3.5 HP
