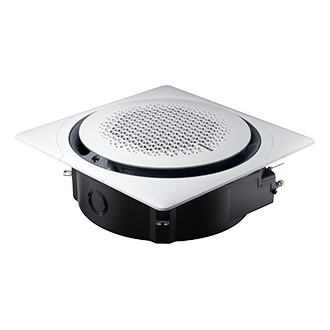

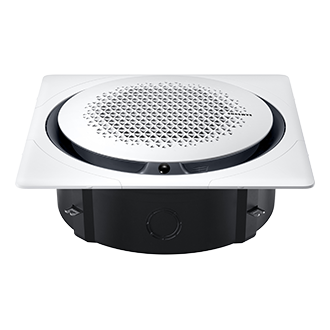

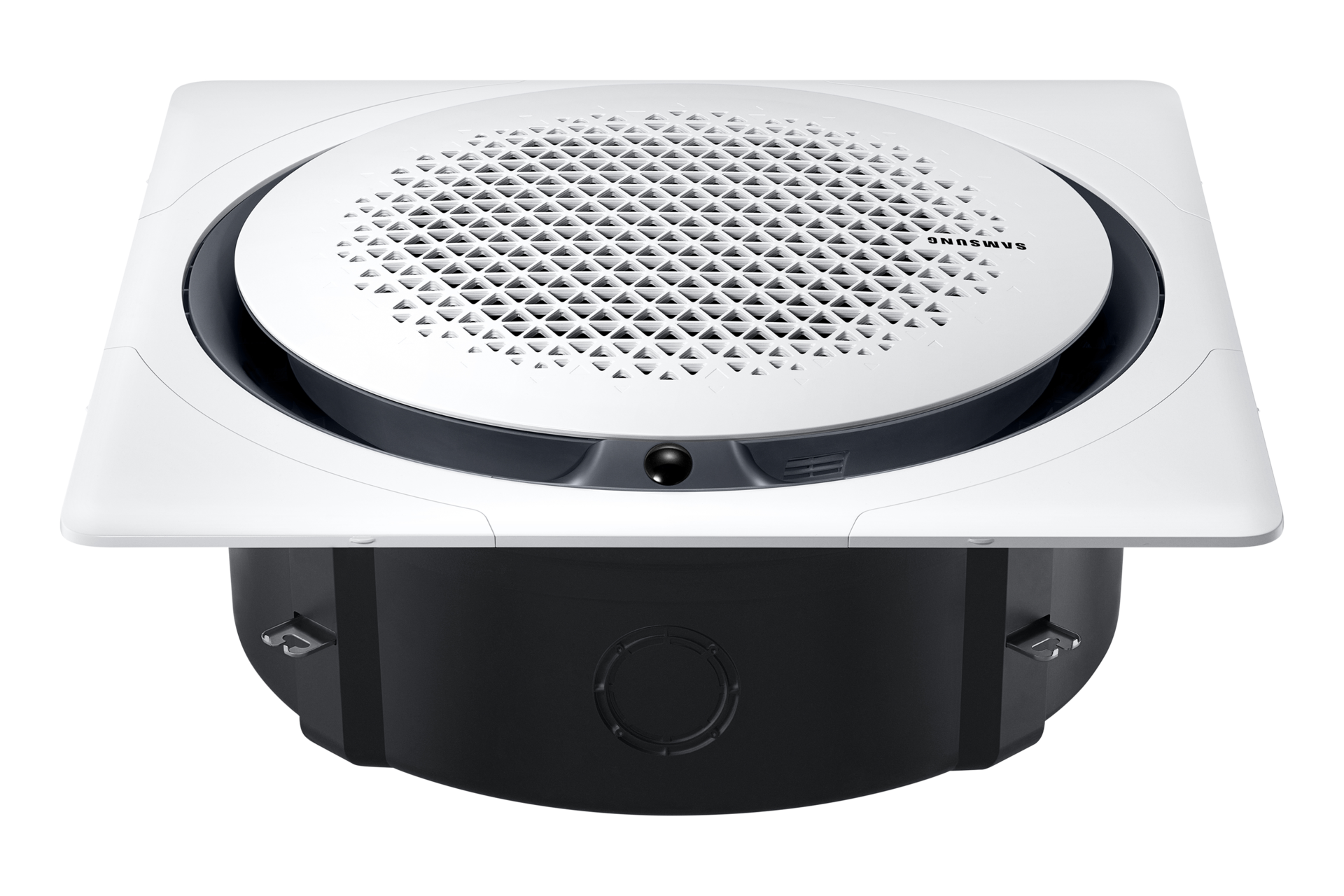

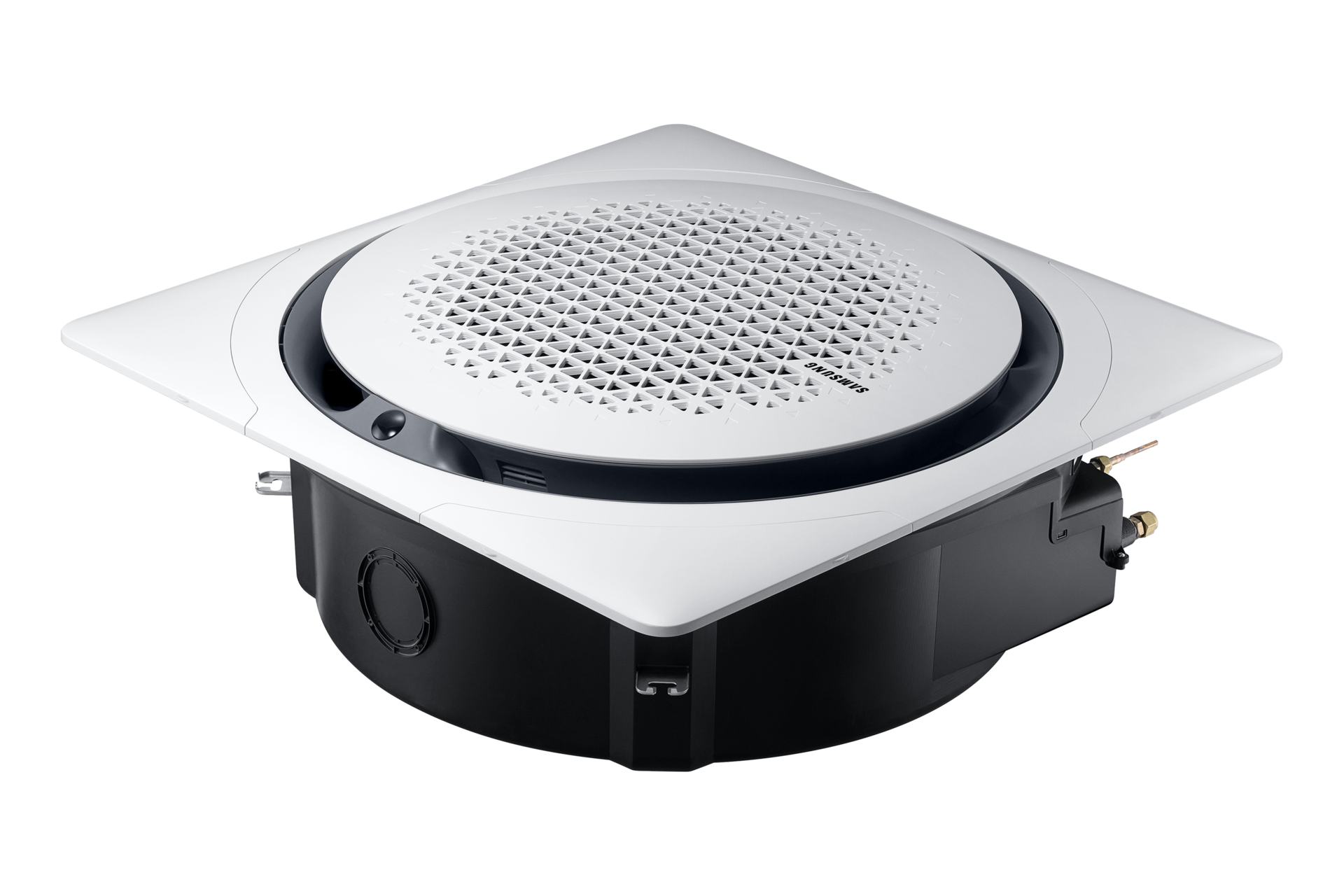

360 Round Cassette Split System 13.6 kW

White 13.6 kW

Product Ratings : 0 (Number of Ratings :0) AC140TN4PKG/SA

Not for sale

Amazing add-ons

+2 more

360 Round Cassette Split System 13.6 kW

Dimension

Spin the angle

Highlights

Bladeless Design

Innovative circular design

Omnidirectional outlet

Features

Buying a Samsung Air Conditioner?
Find an authorised Samsung installer near you

Find Installer

R32 refrigerant-Zero ODP & lower GWP

R32 Refrigerant

R32 refrigerant helps conserve the ozone layer and has less impact on global warming. It has zero Ozone Depletion Potential (ODP) and a lower Global Warming Potential (GWP) compared to conventional R22 or R410A refrigerants* that are commonly used.¹

Comfortable cool, not unpleasantly cold

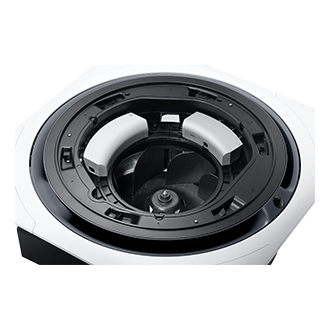

Bladeless Design

A bladeless design softly disperses cool air across the room, making you comfortably cool without feeling a cold draft**. With no blades to block the air flow, it also expels 25% more air* and spreads it farther.²

Spreads much more air in many more ways

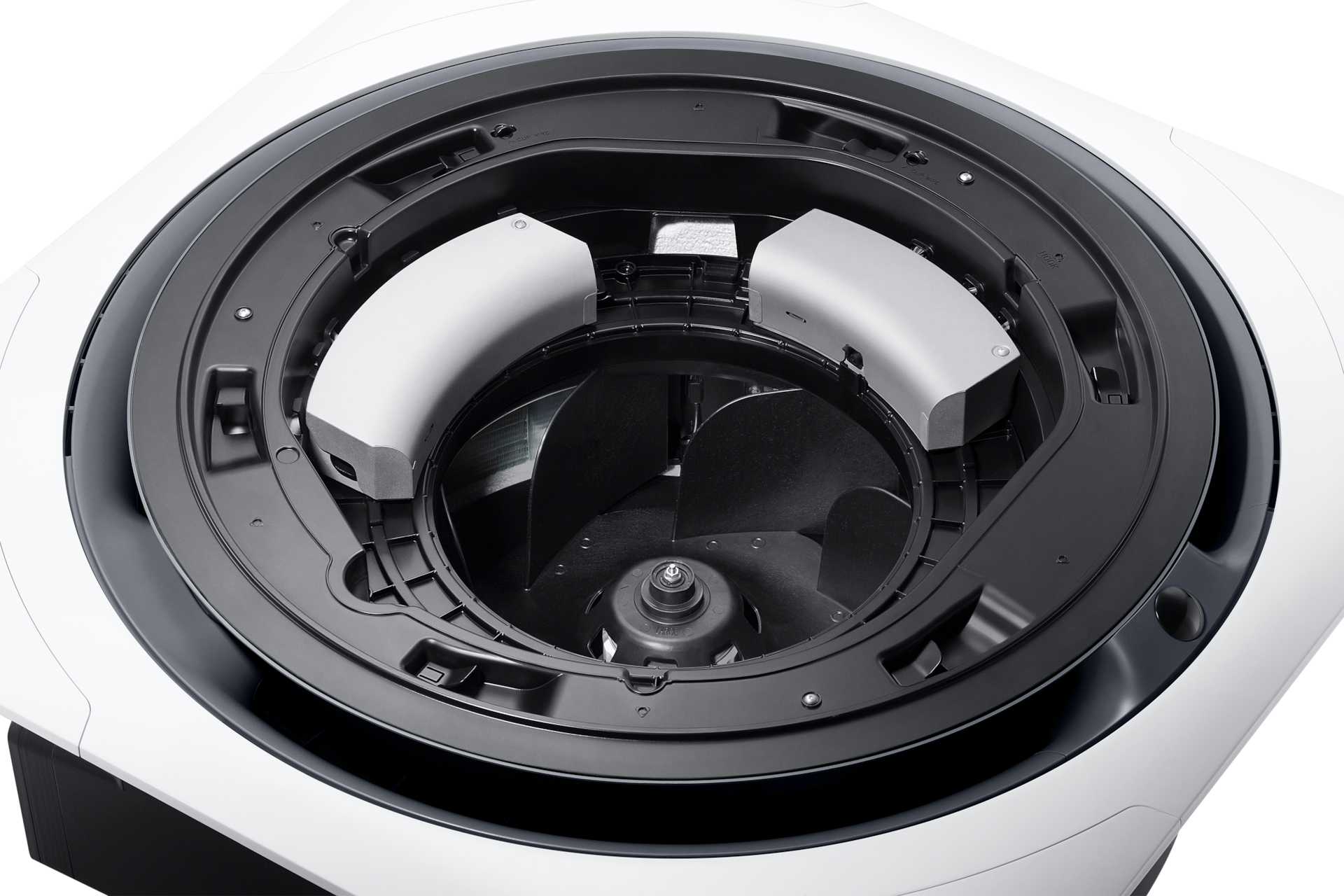

Booster Fan

An innovative Booster Fan enables cool air to be expelled at much lower angles. It creates a low pressure area around the outlet, so that cool air comes out parallel to the ceiling and disperses across a wider area.³

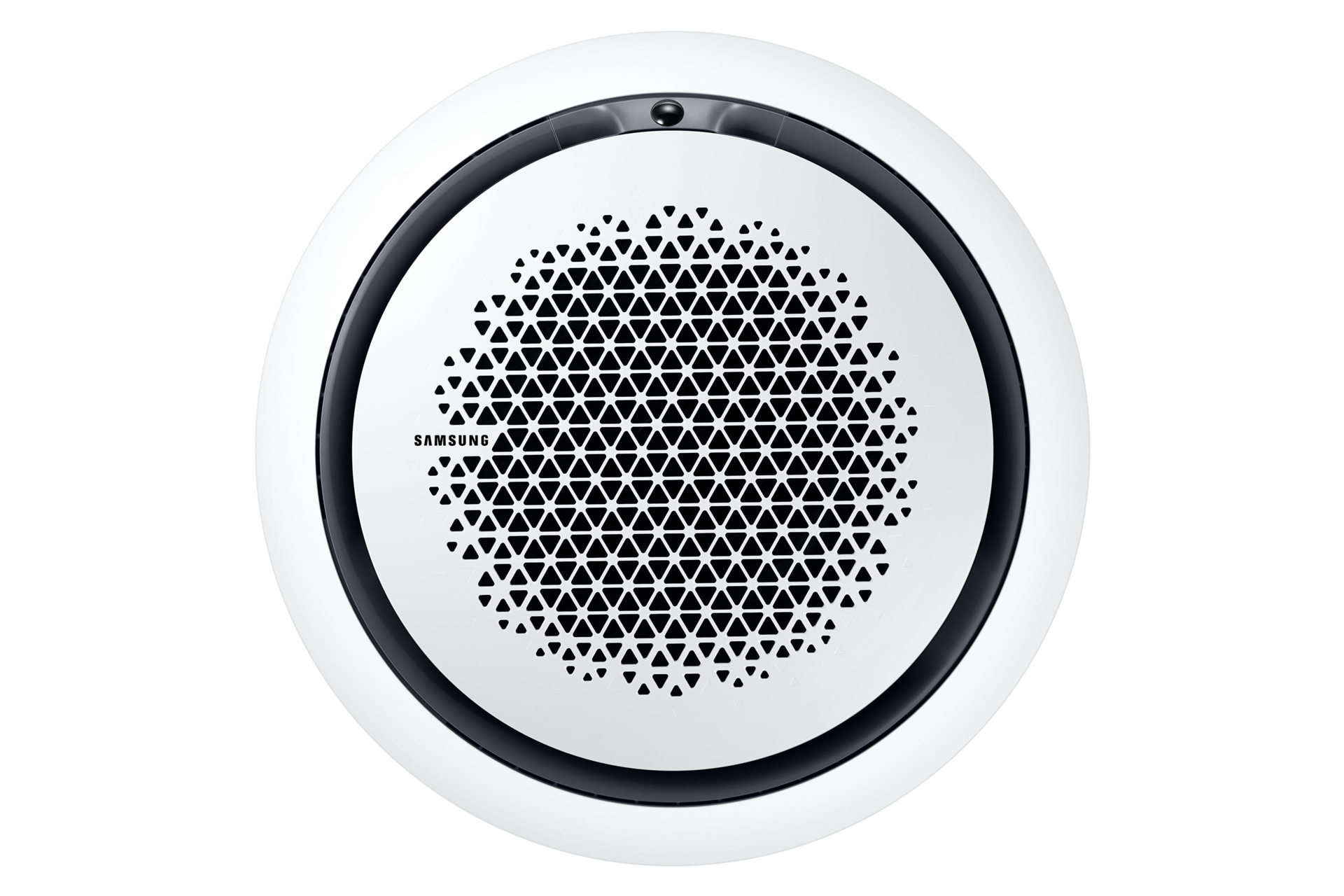

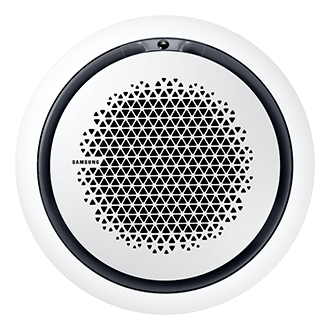

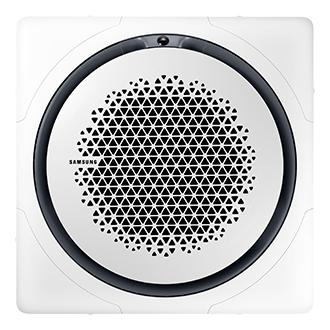

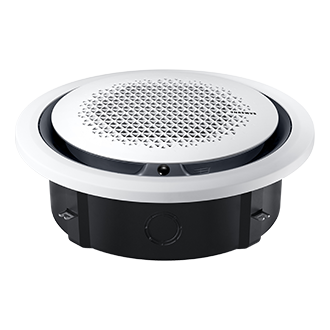

Circular to perfectly fit in everywhere

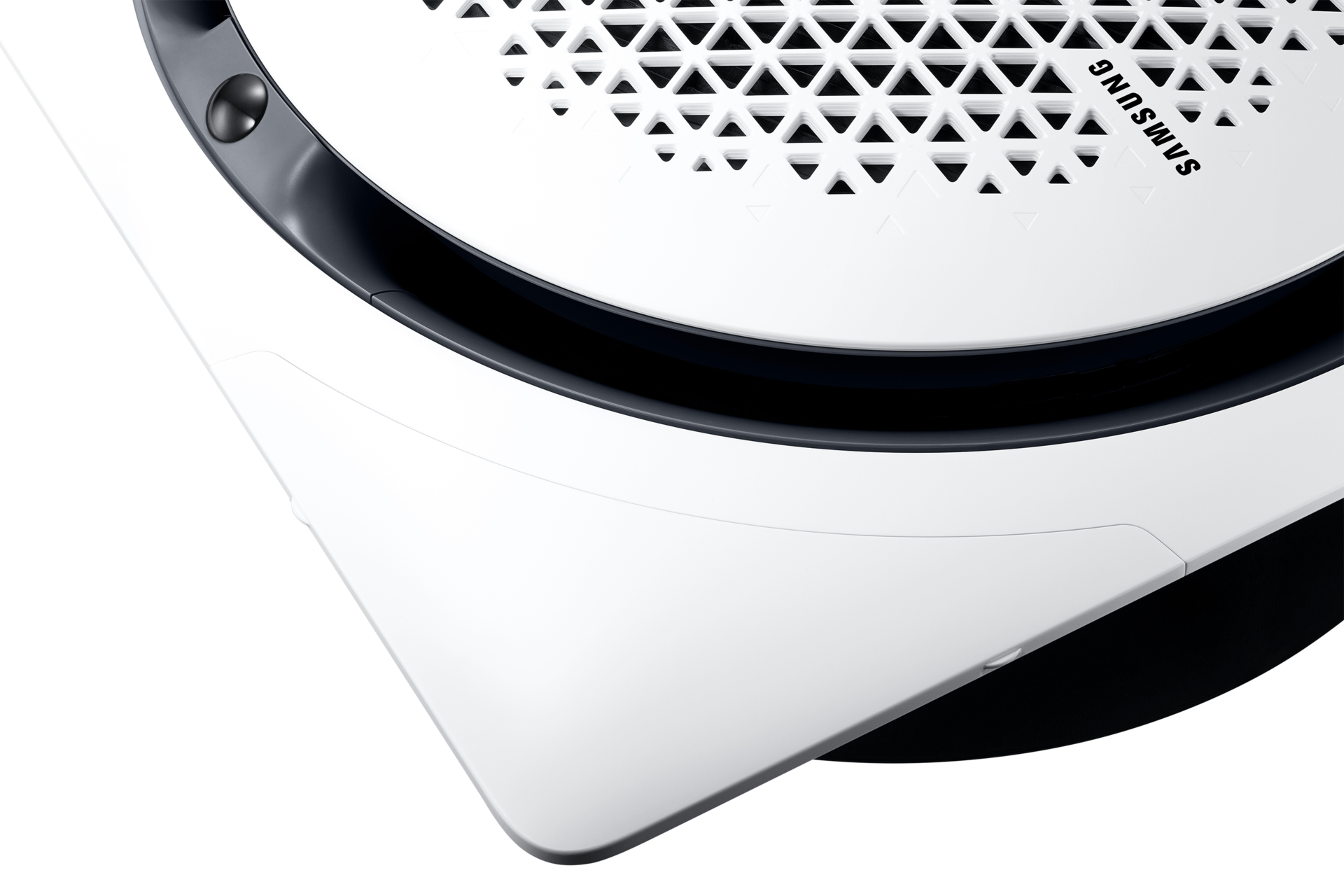

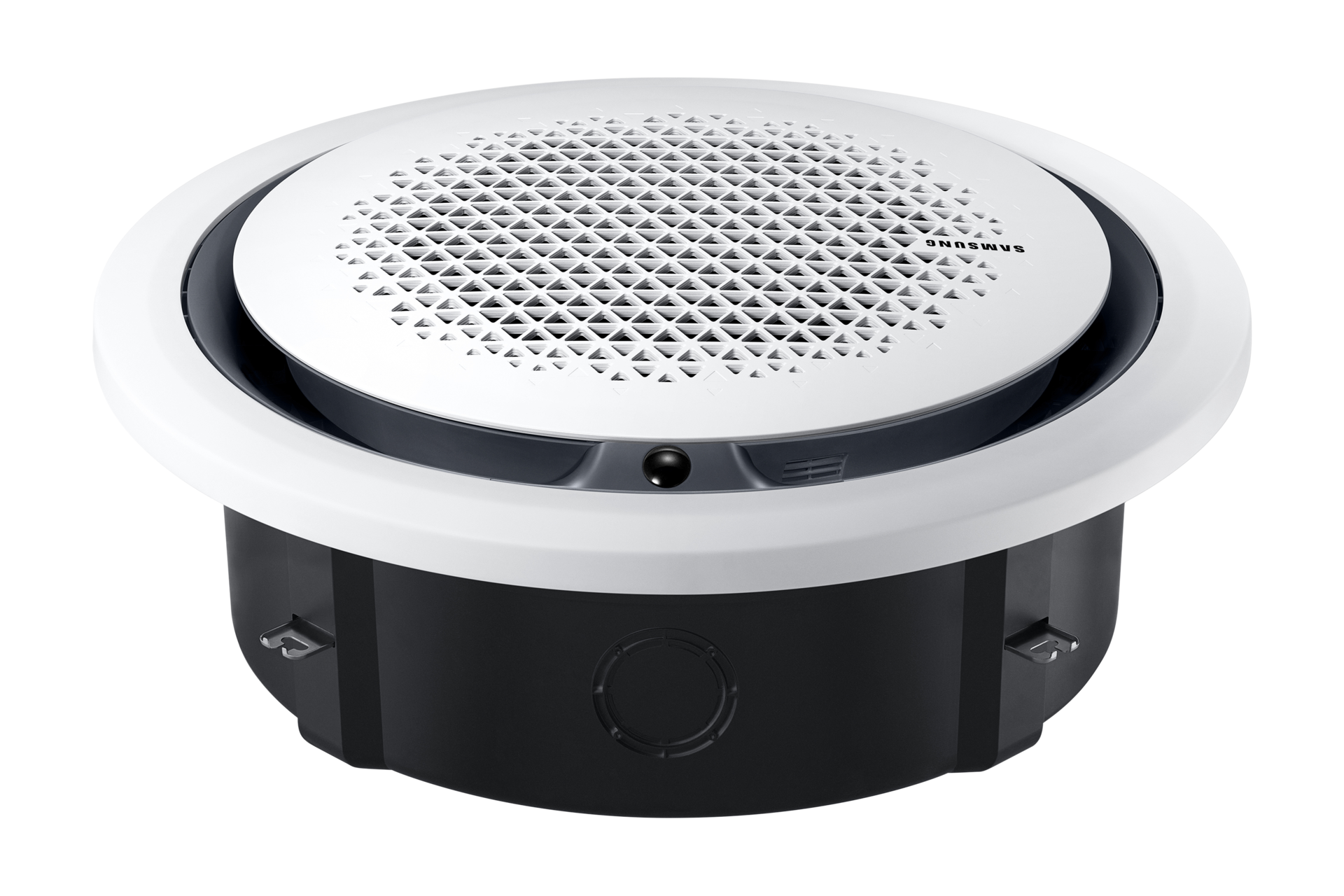

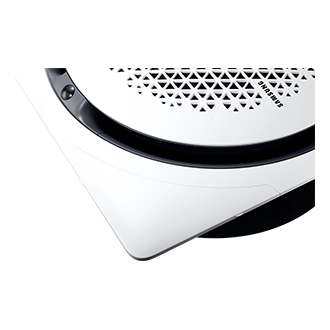

Circular design

Its innovative circular design can match a multitude of interior designs, so it perfectly fits in everywhere. Its minimalist modern styling creates a sophisticated look and its circular shape stands out beautifully.

Circular to perfectly fit in everywhere

Circular design

Circular to perfectly fit in everywhere

Circular design

Evenly circulates & cools every corner

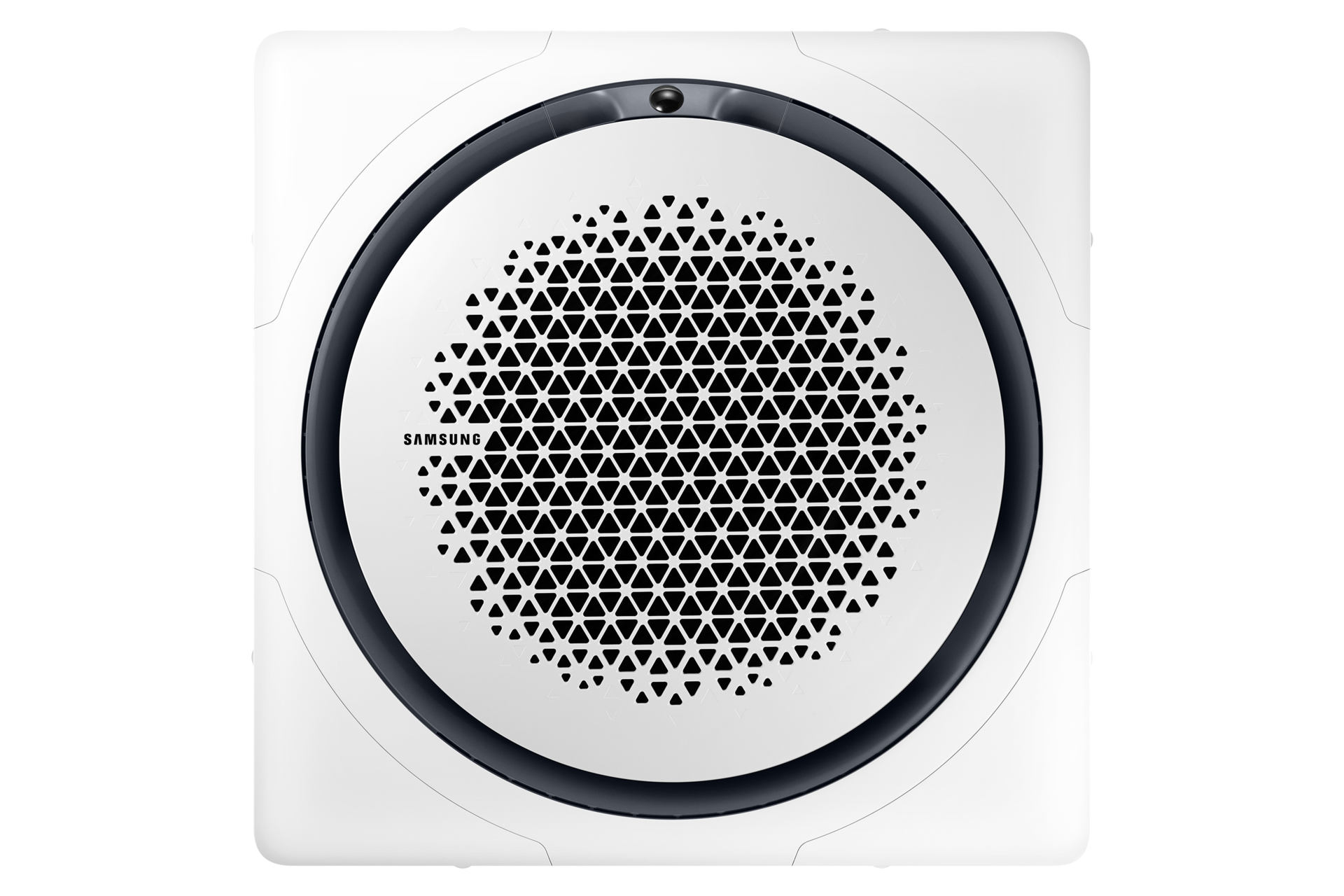

Omnidirectional outlet

Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach*, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature**.⁴

Specifications

Cooling [kW]

4.7 / 13.6 / 15.5 kW
EER (Nominal Cooling)

3.20
Net Dimensions (WxHxD) (mm)

940 x 1420 x 330 mm

Type

14.0kW-1Φ-360 CST

Indoor Unit

AC140TN4PKG/SA
Outdoor Unit

AC140TXAPKG/SA

Mode

Heat Pump

Cooling [kW]

4.7 / 13.6 / 15.5 kW
Heating [kW]

4.0 / 16.0 / 18.0 kW

Cooling 1)

0.95 / 4.25 / 5.90 kW
Heating 2)

0.75 / 4.85 / 6.80 kW

Cooling

5.2 / 19.0 / 27.0 A
Heating

4.1 / 21.7 / 31.0 A

MCA [A]

33.5 A
MFA [A]

40.0 A

EER (Nominal Cooling)

3.20
COP (Nominal Heating)

3.30
Energy Grade (Cooling)

AEER 3.19
Energy Grade (Heating)

ACOP 3.29

Liquid Pipe (Φ, mm)

9.52 mm
Gas Pipe (Φ, mm)

15.88 mm
Installation Max. Length [m]

85 m
Installation Max. Height [m]

30 m

Transmission Cable

0.75mm2 ↑

Type

R32
Control Method

EEV
Factory Charging (kg)

3.5 kg
Factory Charging (tCO2e)

2.36 tCO2e

1Φ, 220~240V, 50Hz

Type

Turbo
Motor (Output) [W]

97 W
Number of Unit (EA)

1 EA
Air Flow Rate (High / Mid / Low) [CMM]

33/28/24 CMM

1Φ, 220~240V, 50Hz

Drain Pipe (Φ,mm)

OD 32 / ID 25 mm

Sound Pressure (High / Mid / Low) [dB(A)]

44 / 40 / 36 dBA
Sound Power (Cooling) [dB(A)]

61 dBA

Panel Net Weight (kg)

25.5 kg
Shipping Weight (kg)

30.3 kg
Net Dimensions (WxHxD) (mm)

947 x 365 x 947 mm
Shipping Dimensions (WxHxD) (mm)

990 x 414 x 990 mm

Model Name

PC4NUDMAN
Panel Net Weight (kg)

3.6 kg
Shipping Weight (kg)

6.0 kg
Net Dimensions (WxHxD) (mm)

1000 x 66 x 1000 mm
Shipping Dimensions (WxHxD) (mm)

1093 x 85 x 1083 mm

Drain Pump

DC (Include)
Drain Pump Max. Lifting Height/Displacement

750 / 24

Type

Twin BLDC Rotary
Model Name

UB5TN5450FJXSG
Output(kW)

4.25 kW
Oil (Type)

POE
Oil (Initial Charge) [cc]

1,700 cc

Air Flow Rate (Cooling) [m³/min]

128 CMM

Sound Pressure (Cooling / Heating) [dB(A)]

54 / 56 dBA
Sound Power (Cooling) [dB(A)]

70 dBA

Panel Net Weight (kg)

100.5 kg
Shipping Weight (kg)

109.5 kg
Net Dimensions (WxHxD) (mm)

940 x 1420 x 330 mm
Shipping Dimensions (WxHxD) (mm)

995 x 1598 x 426 mm

Cooling (℃)

-15~50 ℃
Heating (℃)

-20~24 ℃

WiFi Kit

Yes

SmartThings App Support

Yes

1. * GWP by refrigerant: R32 = 675, R22 = 1810, R410A = 2090. Go to feature
2. * Samsung testing compared to a general 4 way cassette type air conditioner.** Within a 5m radius, no cold draft between 0~1.5m in height (with 14.0kw). Go to feature
3. * Samsung testing compared to a general 4 way cassette type air conditioner. Go to feature
4. * Samsung testing compared to a general 4 way cassette type air conditioner.** Within an 9.3m radius the temperature difference is less than 0.6°C. Go to feature
