How to connect Cablebox/Satellite to QLED?

Last Update date : Sep 16. 2020

Please follow the Settings listed below :

Connect the cable wire into the coaxial cable > Verify cable connection > Connect an HDMI cable into the HDMI out port of your Cable box > Select Live TV.> Select Set Up TV > Select Next > Select the Wireless Network > Select Next.> Confirm your ZIP Code > Please wait while the TV is identifying > press Next > Select the appropriate service provider > Select Next.> Select Done

Pictorial representation of the above settings are as follows :

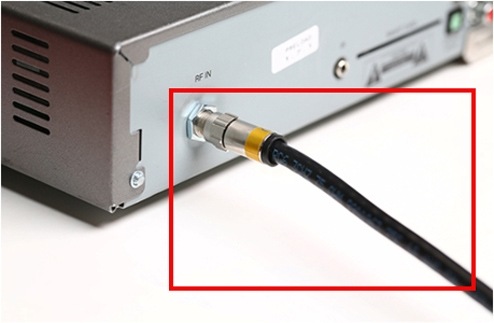

1 Connect the cable wire into the coaxial cable port of your Cable box/Satellite receiver.
How to connect Cablebox/Satellite to QLED?
2 Verify that the cable connection is properly connected.
How to connect Cablebox/Satellite to QLED?
3 Connect an HDMI cable into the HDMI out port of your Cable box/Satellite receiver.
How to connect Cablebox/Satellite to QLED?
4 Connect the other end of the HDMI cable into the HDMI In port of the One Connect Box.
How to connect Cablebox/Satellite to QLED?
5 Select Live TV.
How to connect Cablebox/Satellite to QLED?

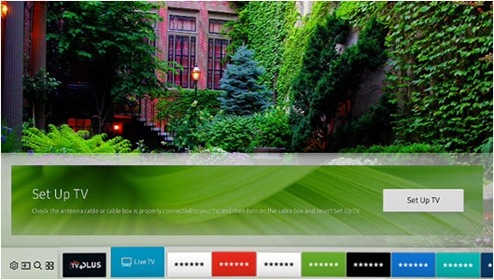

6 Select Set Up TV.
How to connect Cablebox/Satellite to QLED?

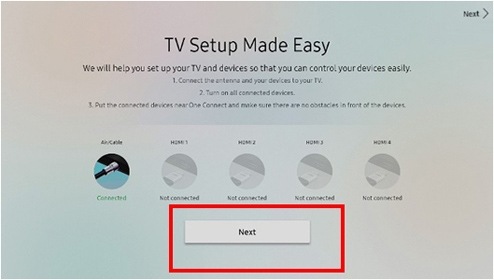

7 Select Next.
How to connect Cablebox/Satellite to QLED?

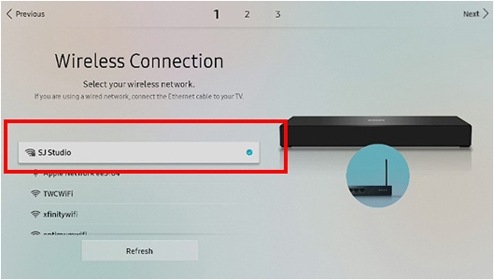

8 Select the Wireless Network that you would like to connect to. For this example, select SJ Studio.
How to connect Cablebox/Satellite to QLED?

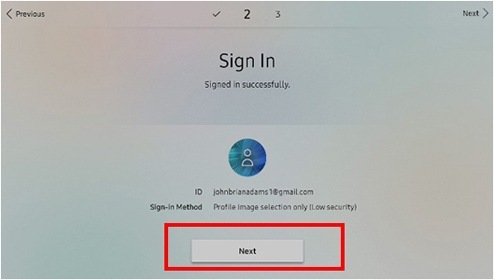

9 Select Next.
How to connect Cablebox/Satellite to QLED?
10 Confirm your ZIP Code and then select Next.
How to connect Cablebox/Satellite to QLED?

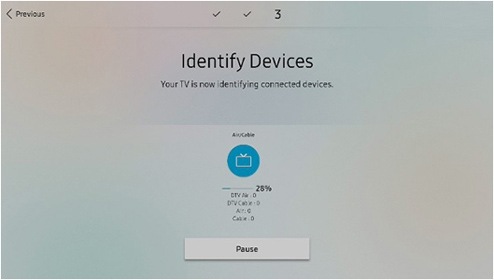

11 Please wait while the TV is identifying connected devices.
How to connect Cablebox/Satellite to QLED?

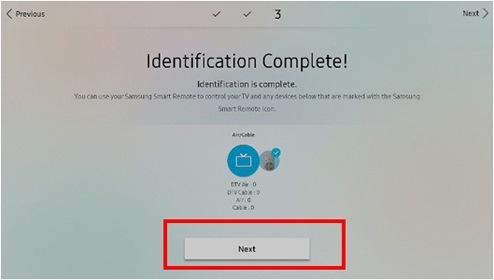

12 When the Identification is complete, Press Next.
How to connect Cablebox/Satellite to QLED?
13 Select the appropriate service provider. For this example select My service provider is not listed.
How to connect Cablebox/Satellite to QLED?
14 Select Next.
How to connect Cablebox/Satellite to QLED?

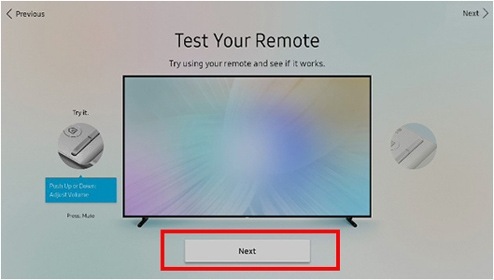

15 To test your remote, follow the on-screen instructions, push the volume and channel buttons up or down, and then select Next.
How to connect Cablebox/Satellite to QLED?

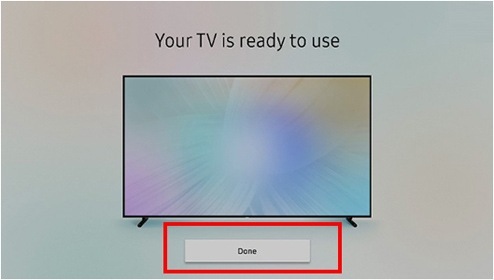

16 Select Done.
How to connect Cablebox/Satellite to QLED?
