How to use Samsung Galaxy Note9 S Pen?

Last Update Date : Sep 12. 2018
note9-s-pen

The new S Pen is equipped with Bluetooth, so you can use it as a remote control. It’s perfect for selfies, presentations, and more. Beside, the battery charges quickly when you insert your S Pen into your phone, so there’s no rush. Just click the S Pen button, and launch a new experience.

Remote Control - How to take photosClick to Expand
note9-take-photo

With the new Galaxy Note9’s S Pen remote control function, you can click the S Pen button to launch the camera, choose the right camera mode, and snap a remote selfie. Capture more natural poses, intuitively and conveniently.

  • Press and Hold: Launch camera
  • Single press: Take a picture
  • Double press: Change between front & rear camera
Remote Control - How to control various AppsClick to Expand
note9-customize-apps

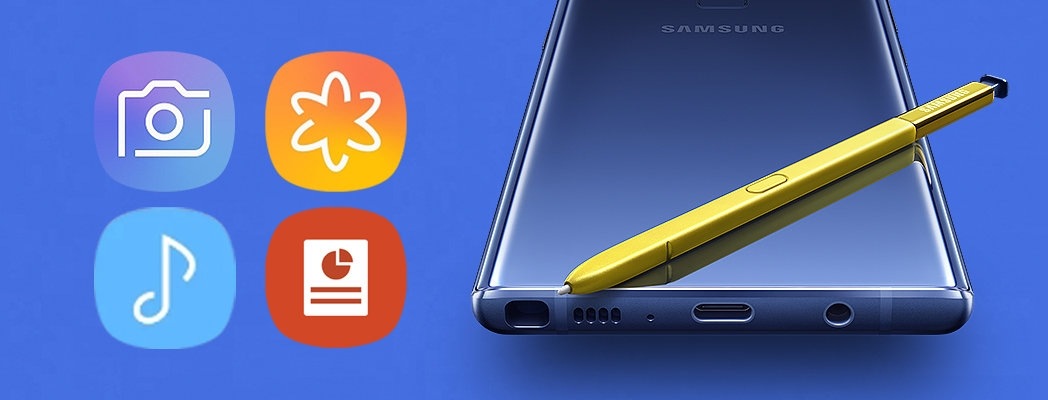

When you set up your S Pen as a remote control, you can customize its functions. For example, if you want to launch your favorite app in an instant, you can opt to press and hold the S Pen button. You can also decide which app functions to control with a single or double press.



Gallery App
• Single Press : Next Item
• Double Press : Previous Item



Media Player
• Single Press : Play / pause

• Double Press : Next Track or Video



Presentation
• Single Press : Next Slide

• Double Press : Previous Slide

Please note: All 3rd party music player apps based on Android OS standard can support the remote control feature

How to connect / reset S Pen?Click to Expand

How to activate or connect to S Pen?

1 Tap Setting
tapsetting
2 Tap Advanced Features
tapadvancedfeatures

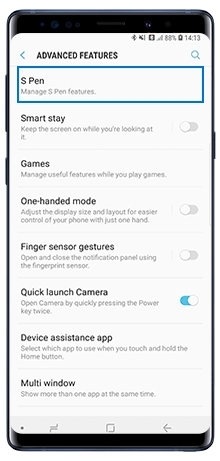

3 Tap S Pen
tapspen

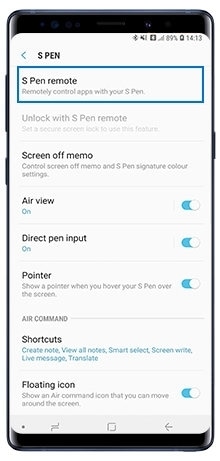

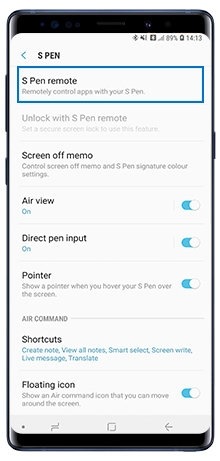

4 Tap S Pen remote. Swipe the slider to the right to connect S Pen
tapspenremote

Please note:
• You can only connect Samsung-approved S Pens that support Bluetooth Low Energy (BLE)

• Do not detach the S Pen from the device when it is being connected. Doing so will interrupt the process

How to reset new S Pen?

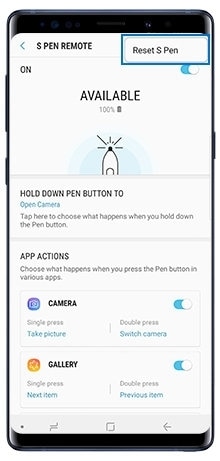

1 From Settings screen, tap Advanced features > S Pen > S Pen remote. In the S Pen Remote screen, select More (3 vertical dots icon on the right) and tap Reset S Pen.
reset-s-pen

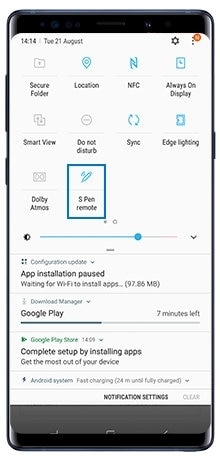

2 Alternatively, long press the S Pen remote icon on the Notification panel and when the S Pen remote setting screen appears, tap More > Reset S Pen
s-pen-notification-panel
How to unlock screen using S Pen?Click to Expand

If the screen is locked while the S Pen is connected, you can unlock the screen by pressing the S Pen button (Default OFF).

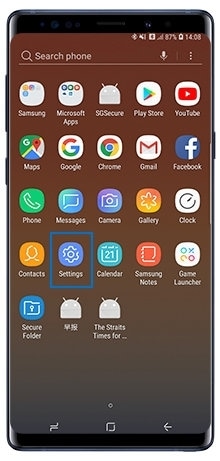

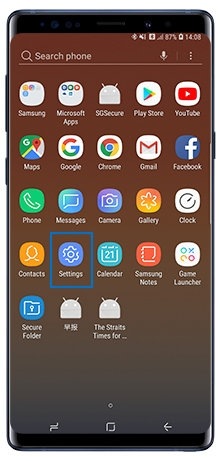

1 Launch the Settings App
tap-settings

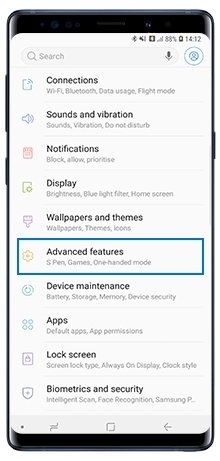

2 Tap Advanced Features
tap-advanced-features
3 Tap S Pen
tap-s-pen

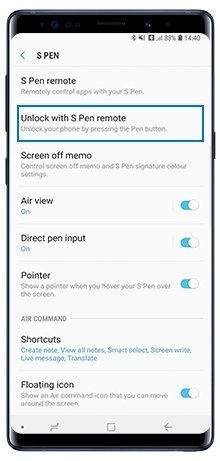

4 Tap Unlock with S Pen remote
tap-unlock-with-s-pen-remote

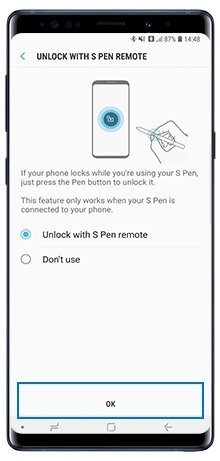

5 Tap OK
tap-ok
6 Unlock the screen using the preset screen lock method. Now you can unlock the screen by pressing the S Pen button

Please note:
• The Unlock with S Pen remote feature is available only when the screen lock method is set

• To use this feature, the S Pen must be connected to your device

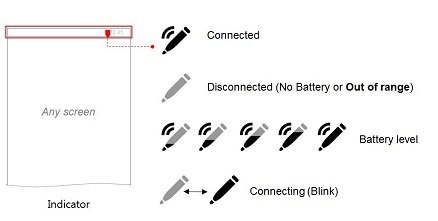

How to charge S Pen?Click to Expand

The S Pen must be charged before you can control Apps remotely by using the S Pen button. When you insert the S Pen into the slot, charging will automatically start. It take 40 sec to fully charge the S Pen with usage of 30 min. standby time or 200 clicks.

Please note:
• If the back of your device comes into contact with a magnet, the device may not recognize the S Pen and it will fail to charge the S Pen

• Even if the S Pen has been fully discharged, you can use other S Pen features, such as tapping the touchscreen or the Air command features

note9-s-pen-charging-status-1
What are the new Live message features?Click to Expand
note9-live-message

Live Message has gotten even better, with three new writing styles and the option to customize the background. You can also select a picture, tap Share by Live Message and add a handwritten note before sending it. It gives your messages a personal touch. Show you care in a creative, fun way.



• Three formats to choose from: High-res GIF, standard GIF, MP4

• Share Live Messages directly from Gallery

How to change screen off memo pen colour?Click to Expand
note9-screen-off-mode

In Galaxy Note9, screen off memo function has also improved with the ability to write in the same colour as the S Pen's exterior colour. The S Pen's color can be also applied as-is, even if the memo's pinned to the AOD.



By default, the color is the same as the S Pen's exterior color. However, the user can change it to gray, as supported by Screen off memo, by changing the settings:

1 Tap Setting
tap-settings
2 Tap Advanced Features
tap-advanced-features
3 Tap S Pen
tap-s-pen

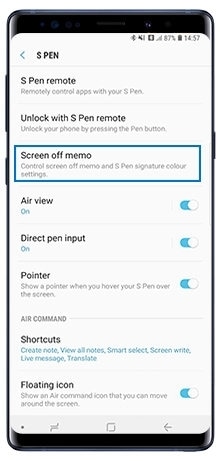

4 Tap Screen Off Memo
tap-screen-off-memo

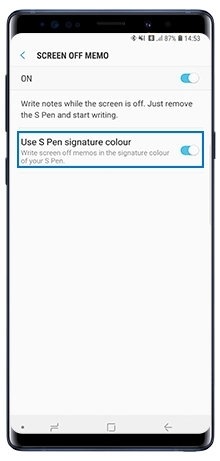

5 Tap Use S Pen signature color and swipe the slider to the left to turn it OFF
s-pen-signature-colour
How to replace S Pen Nib?Click to Expand

To replace the S Pen nib, just follow these steps:

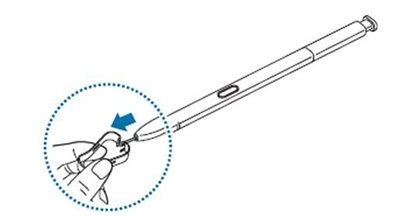

1 Firmly hold the nib with the tweezers and remove it
remove-nib-from-s-pen

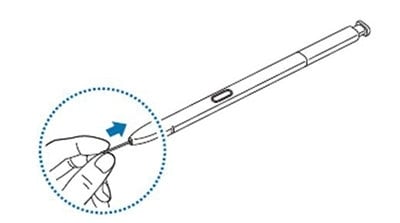

2 Insert a new nib into the S Pen
insert-new-nib-into-s-pen

Please note:
• Do not reuse old nibs. Doing so may cause the S Pen to malfunction

• Do not press the nib excessively when inserting the nib into the S Pen

• Do not insert the round end of the nib into the S Pen. Doing so may cause damage to the S Pen or your device

• Do not bend or apply excessive pressure with the S Pen while using it. The S Pen may be damaged or the nib may be deformed

• Do not hard press on the screen with the S Pen. The pen nib may be deformed

• If you use the S Pen at sharp angles on the screen, the device may not recognize the S Pen actions

• If water enters the S Pen slot, gently shake the device to remove the water from the slot before using it
