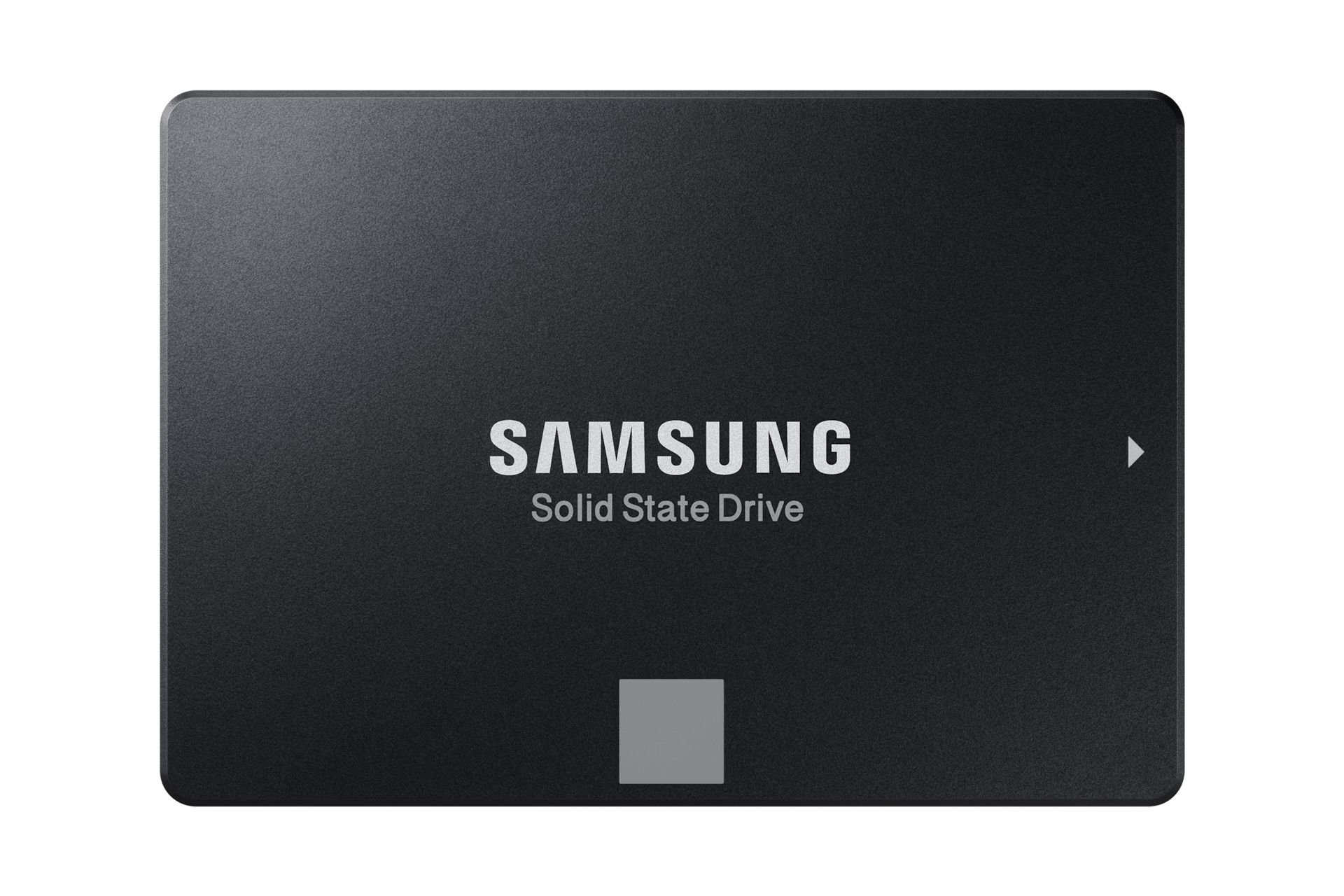

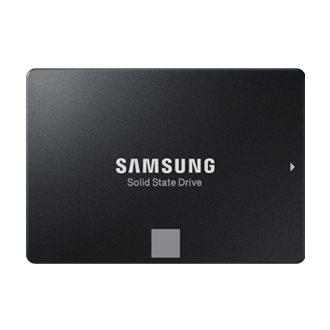

860 EVO SATA 2.5" SSD 500GB

860 EVO SATA 2.5" SSD 500GB

MZ-76E500BW

  • Samsung VNAND technology
  • Up to 550 MB/s sequential read and 520 MB/s write
  • 5year limited warranty

Choose your Memory

The SSD to trust

The newest edition to Singapore’s best-selling1SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

1Based on third party independent data in Singapore.

Enhanced performance

Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s1 with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s1. The TurboWrite buffer size2 is upgraded from 12 GB to 78 GB for faster file transfer.

1 Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology. Sequential performance measurements based on CrystalDiskMark v.5.0.2 and IOmeter 1.1.0. The sequential write performances after Intelligent TurboWrite region are 300 MB/s for 250/500 GB and 500 MB/s for 1 TB. Test system configuration: Intel Core i5-3550 CPU @ 3.3 GHz, DDR3 1333 MHz 4 GB, OS – Windows 7 Ultimate x64, Chipset: ASUS P8H77-V. All performance data was measured with the SSD as a 2 The TurboWrite buffer size varies based on the capacity of the SSD; 12 GB for 250 GB model, 22 GB for 500 GB model, 42 GB for 1 TB model and 78 GB for 2/4 TB. For more information on the TurboWrite, please visit www.samsungssd.com.

Boosted endurance

Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Total Bytes Written)1 than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.2

1 Warrantied TBW for 860 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model.
2 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

Smart compatibility

Benefit from faster, more fluid communication with your host system. The refined ECC1 algorithm and a new MJX controller generate higher speeds2, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system.

1 Error Correction Code
2 Compared with SSD 850, MGX and MEX controller

Multi form factors

Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.

Samsung Magician

Management software

Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.

Firmware update

Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.

Perf. benchmark

Check your SSD's sequential and random read/write speeds, so you can maintain superb performance.

Data security

Protect data by selecting security options. The 860 EVO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.

Specifications

Download
  • Application Client PCs
  • Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
  • Dimension (Pack: WxHxD) 100 X 69.85 X 6.8 (mm)
  • Weight Max 50.0g Weight
  • Sequential Read Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration
  • Sequential Write Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration
View more
Hide All Specs

Support

Find answers to the questions you have about the product

Product Support See More Content

FAQ
