How to connect Subwoofer to Samsung Soundbar?

Last Update Date : May 15. 2018

The Subwoofer is automatically linked to the Soundbar, once the devices are plugged in and turn on. If for some reason that both devices are not connected properly, read the Manual Connection section instead.

Automatic Connection

Automatic ConnectionClick to Expand
1 Plug the power cord into power supply port located on the rear panel of the soundbar. Connect the power cord to the wall outlet

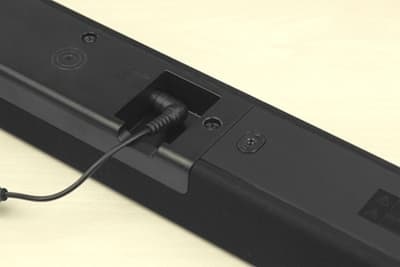

Connect power cord to Samsung Soundbar
2 Plug the power cord into power supply port located on the rear panel of the subwoofer. Connect the power cord to the wall outlet

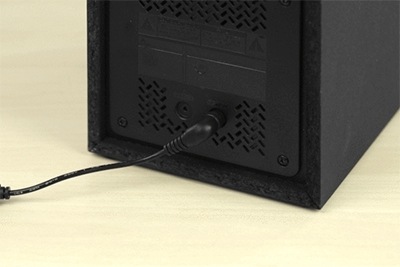

Connect power cord to Subwoofer
3 Turn on the soundbar

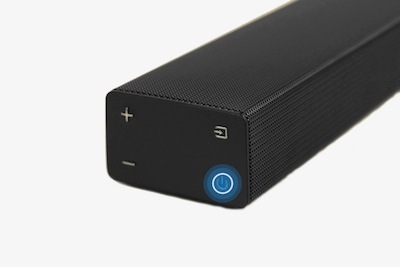

Turn on Soundbar
4 When the subwoofer is completely connected, the blue LED LINK Indicator on the subwoofer stops blinking and glows continuously.

If the blue LED does not stop blinking, the linking process has failed. Please refer to the Manual Connection section below.

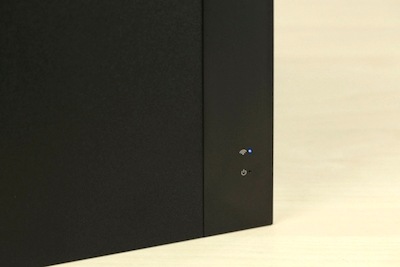

Subwoofer LED blinking

Manual Connection

Manual ConnectionClick to Expand
1 Plug the power cord into power supply port located on the rear panel of the soundbar. Connect the power cord to the wall outlet
Connect power cord to Samsung Soundbar
2 Plug the power cord into power supply port located on the rear panel of the subwoofer. Connect the power cord to the wall outlet
Connect power cord to Subwoofer
3 Press the ID SET button on the back of the subwoofer using a small, pointed object like a paper clip

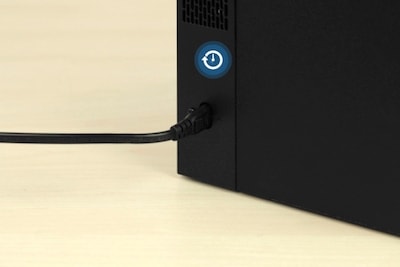

Press the ID SET button on the back of the subwoofer
4 Continue holding until the STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly
5 While the main unit is powered off (STANDBY mode), press SAT MUTE on the remote control for 5 seconds
6 Continue holding until the ID SET message appears on the soundbar's display

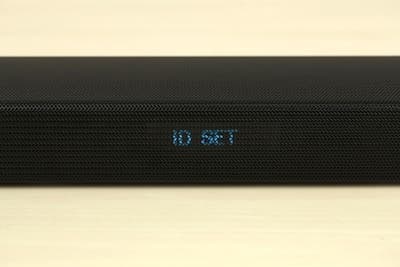

Continue holding until the ID SET message appears on the soundbar's display
7 To finalize the link, turn on the soundbar while the subwoofer's Blue LED blinks
Turn on the Soundbar
8 The main unit and the subwoofer should now be linked (connected) and the Blue LED solid. If the Blue LED is still blinking, the linking process has failed. Turn off the main unit and start again from Step 2.

LED Indicator Lights on the Rear of Subwoofer

LED Indicator Lights on the Rear of SubwooferClick to Expand



Table



LED





Status





Description





Resolution



Blue



On

Successfully connected
(normal operation)

-

Blinking

Recovering the connection

Check if the power cable to the
main Soundbar unit is connected properly or wait for a while

Red

On



Standby (with the Soundbar
main unit turned off)



Check if the power cable
to the main Soundbar unit
is connected properly

Connection failed

Connection again

Red and Blue



Blinking



Malfunction

Visit Samsung Service Centre for further assistance
