How to use the slide show, rotate, zoom functions on Home Cinema System (HT-BD1252)?

Last Update date : Nov 19. 2020

When viewing a picture, you can use additional 3 functions including Slide Show, Rotate, and Zoom function.

Slide Show/Speed

To setup, follow these steps:

1 Insert a JPEG disc into the Disc Slot

• The Menu screen is displayed

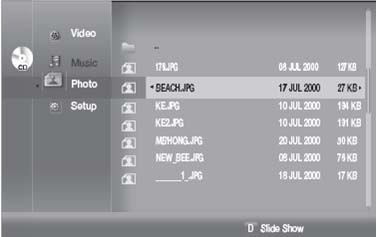

2 Press the ▲▼ buttons to select Photo, then press the ENTER button

• The Photo List is displayed
3 Press the BLUE (D) button

• The slide show starts

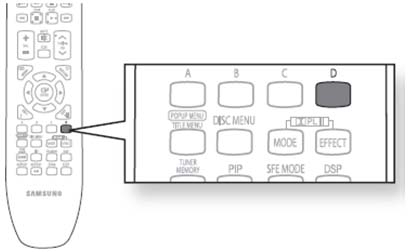

Press the BLUE(D) button

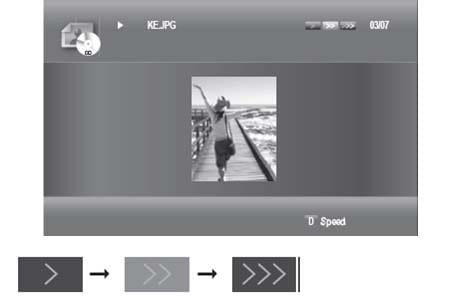

4 When the SlideShow starts, press the BLUE(D) button to adjust the play speed

• Each time you press the button, the play speed will increase accordingly
When the SlideShow starts, press the BLUE(D) button to adjust the play speed

Please note: To stop the Slide Show, Press the STOP or RETURN button

Rotate

To setup, follow these steps:

1 Insert a JPEG disc into the Disc Slot

• The Menu screen is displayed
2 Press the ▲▼ buttons to select Photo, then press the ENTER button

• The Photo List is displayed
3 Press the ▲▼ buttons to select a picture

• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
4 Press the ENTER button
Press the ENTER button

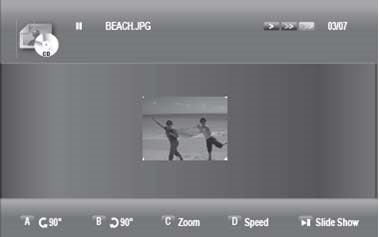

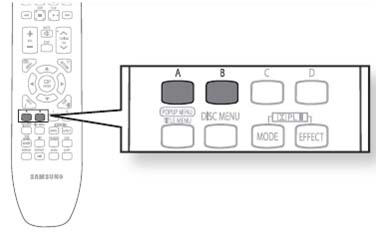

5 Use the RED (A) and GREEN (B) buttons to rotate the image in a desired direction
Use the RED (A) and GREEN (B) buttons to rotate the image in a desired direction

Zoom

To setup, follow these steps:

1 Insert a JPEG disc into the Disc Slot

• The Menu screen is displayed
2 Press the ▲▼ buttons to select Photo, then press the ENTER button

• The Photo List is displayed
3 Press the ▲▼ buttons to select a picture

• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
4 Press the ENTER button
Press the ENTER button

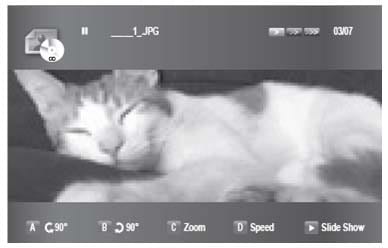

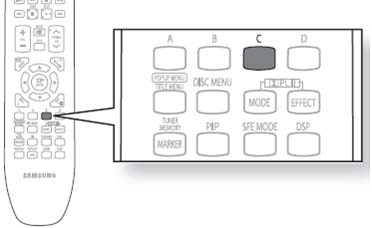

5 Press the YELLOW (C) button
Press the YELLOW (C) button

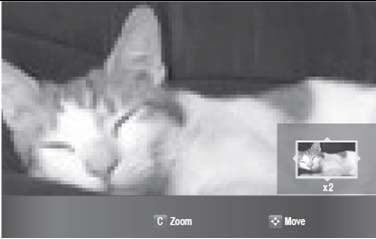

6 Use the YELLOW (C) or ENTER button to zoom the image in/out
Use the YELLOW (C) or ENTER button to zoom the image in/out

Please note:
• To move the area, press the ▲▼◄ ► buttons to the area you want to enlarge
• To stop the Zoom, press the YELLOW (C) button

And If you want to go to Photo List, follow these steps:

1 Insert a JPEG disc into the Disc Slot

• The Menu screen is displayed
2 Press the ▲▼ buttons to select Photo, then press the ENTER button

• The Photo List is displayed
3 Press the ▲▼ buttons to select a picture

• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
4 Press the ENTER button
Press the ENTER button
5 To go Photo List, press the RETURN or STOP button
To go Photo List, press the RETURN or STOP button
