LH65WMRWBGCXEN

Interactive Display WMR Series 65"

Pen mode notation Brush mode notation Annotation on
size 65

Draw, write & inspire new ideas

Pen mode notation

Samsung Flip provides users with a smooth and familiar pen to paper writing experience in a variety of available colours, styles and widths. Up to 4 people can write simultaneously, using any object as a writing tool. In addition, users can quickly erase the drawings with a finger or palm swipe.

Draw, write & inspire new ideas

Creating a masterpiece

Brush mode notation

On Brush mode, Samsung Flip recognises a wide range of thicknesses, ensuring users can create art at the stroke of a brush. Water and oil painting modes allow different styles and textures, while the Flip also gives users a full, vibrant colour palette, even allowing flexible colour mixing.

Creating a masterpiece

Write on any background

Annotation on

Samsung Flip allows users to write on any background source. By simply clicking the note layer button, users can enjoy smooth writing anytime, anywhere on any content displayed, without affecting any work behind the original layer.

Write on any background

Flexible image editing

Selection tool & Merge to roll

Bringing versatility to the board. With Samsung Flip, users can quickly and easily select, move, crop, capture and edit any images. Each image can also be merged to the roll with just one click of a button, allowing it to be edited or erased.

Flexible image editing

Suitable for all business needs

Various form options

Samsung Flip can be used for a wide range of business applications, providing embedded versatile templates. You can use the Flip as a calendar, scheduler, note or checklist board. Samsung Flip perfectly matches any business need, enabling users to utilise the display in various customised ways.

Suitable for all business needs

Easy content navigation & protection

Scroll & Lock

Samsung Flip has up to 20 pages of writing space per roll, allowing users to seamlessly scroll through pages. In addition, the Flip ensures that confidential meeting information remains in the right hands. Its reinforced lock system allows users to safeguard sensitive content from view.

Easy content navigation & protection

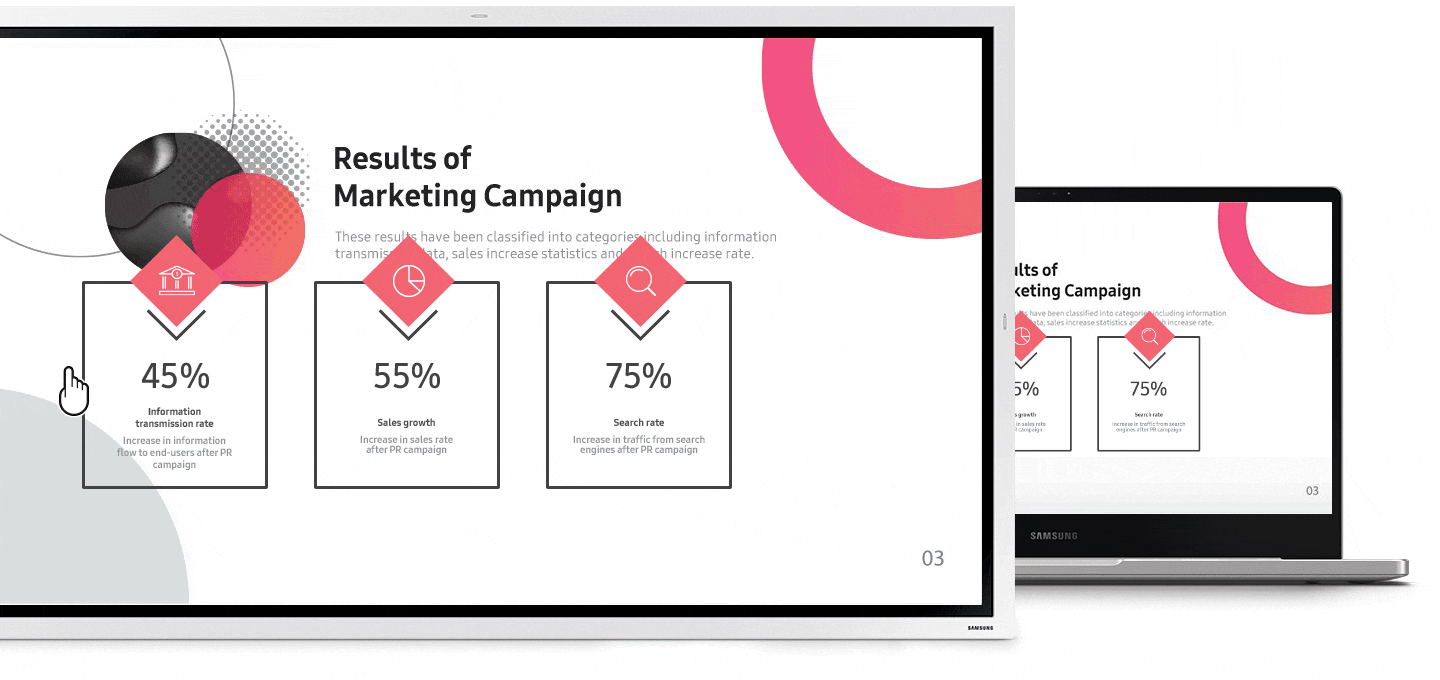

Synchronised screen viewing

Touch out

The touch out functionality allows users to sync their personal devices with the Samsung Flip, allowing real-time content sharing and control. Any changes made on the Flip display will be mirrored on the connected device, and vice versa, for efficient collaboration.

Synchronized screen viewing

*Touch out control is available through a touch USB cable connection or UIBC-connected Android mobile devices (2016 or later) and Windows 10 PCs.

Connect from anywhere

Remote PC & Bluetooth support

To help create more efficient meetings, the Samsung Flip can connect to a PC remotely, eliminating the need for additional devices in the room. Users can also connect a keyboard, mouse to the display directly via Bluetooth connection, enabling better productivity and collaboration.

Connect from anywhere

Large audience sharing

Screen share

Users can project content on Samsung Flip to another large digital display in real-time, using Wi-Fi network or HDMI out connection. Even connected to a personal device, the Flip display can be shared. This feature is ideal for large meeting environments, delivering information to bigger audiences.

Large audience sharing

Effortless meeting recap distribution

Easy sharing

Following any meeting, users can distribute recaps to all attendees and colleagues, removing the frustration traditionally associated with handwritten meeting notes. Important conversations and content are stored within the Flip in real-time, easily shareable across mobile and digital channels.

Effortless meeting recap distribution

Precise visuals with powerful operation

UHD display & Tizen OS

Samsung Flip displays all content in clear UHD picture quality, regardless of the room, creating a compelling meeting environment. Backed by the powerful Tizen 5.0 operating system for a seamless user experience, embedded sensors automatically activate the display when the screen is knocked.

Precise visuals with powerful operation

Convenient, optimised management

Advanced convenience

Samsung Flip offers a host of improved capabilities, including secure wireless connection, automatic firmware updates, LDAP synchronisation, file security and remote management – ensuring a convenient and productive meeting experience.

Convenient, optimized management

*Samsung’s Remote Management solution must be purchased separately.

Specification
  • Display
    • Diagonal Size 65"
    • Panel Type New Edge, 60Hz
    • Resolution 3,840 x 2,160
    • Pixel Pitch (HxV) 0.372 x 0.372(mm)
    • Brightness (Typical) 350cd/m2 (220cd/m2 with glass)
    • Contrast Ratio 4,000:1
    • Viewing Angle (Horizontal/Vertical) 178/178
    • Response Time 8ms
    • Colour Gamut 72%
    • Glass Haze 2%(without glass)
    • H-Scanning Frequency 30 ~ 81khz
    • Maximum Pixel Frequency 594Mhz
    • V-Scanning Frequency 48~75 hz
    • Dynamic Contrast Ratio N/A
  • Connectivity
    • HDMI In 2
    • DP In N/A
    • DVI In N/A
    • Tuner In N/A
    • USB 1
    • Component In N/A
    • Composite In N/A
    • RGB In N/A
    • IR In N/A
    • HDBaseT In N/A
    • Audio In N/A
    • Audio Out Stereo Mini Jack
    • Video Out N/A
    • Video Out N/A
    • RS232 In Yes
    • RS232 Out N/A
    • RJ45 In Yes
    • RJ45 Out N/A
    • WiFi Yes
    • 3G Dongle N/A
    • Bluetooth Yes
  • Power
    • Power Supply AC 100~240V 50/60Hz
    • Power Consumption (Off Mode) N/A
    • Power Consumption (On Mode) 181.5
    • Power Consumption (Sleep Mode) 0.5 W
  • Dimension
    • Set Dimension (WxHxD) 1522.4 x 897.6 x 62.9 mm
    • Package Dimension (WxHxD) 1691 x 1055 x 198 mm
  • Weight
    • Set Weight with Stand 40.0 kg
    • Package Weight 50.6 kg
  • Operation Conditions
    • Temperature 0℃ ~ 40℃
    • Humidity 10 ~ 80%, non-condensing
  • Mechanical Specification
    • VESA Mount 400 x 400 mm
    • Bezel Width 26.2
    • Frame Material Plastic
  • General Feature
    • External Memory Slot N/A
  • Optional Feature
    • Touch Yes
    • Mount WMN-WM65R
    • Stand N/A
  • Internal Player (MagicInfo)
    • MagicInfo Daisychain Videowall Support N/A
  • Eco
    • Energy Efficiency Class A+
  • Touch
    • Touch Technology InGlass™
  • Certification and Compliance
    • EMC Class B FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Chinese Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
    • Safety CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
