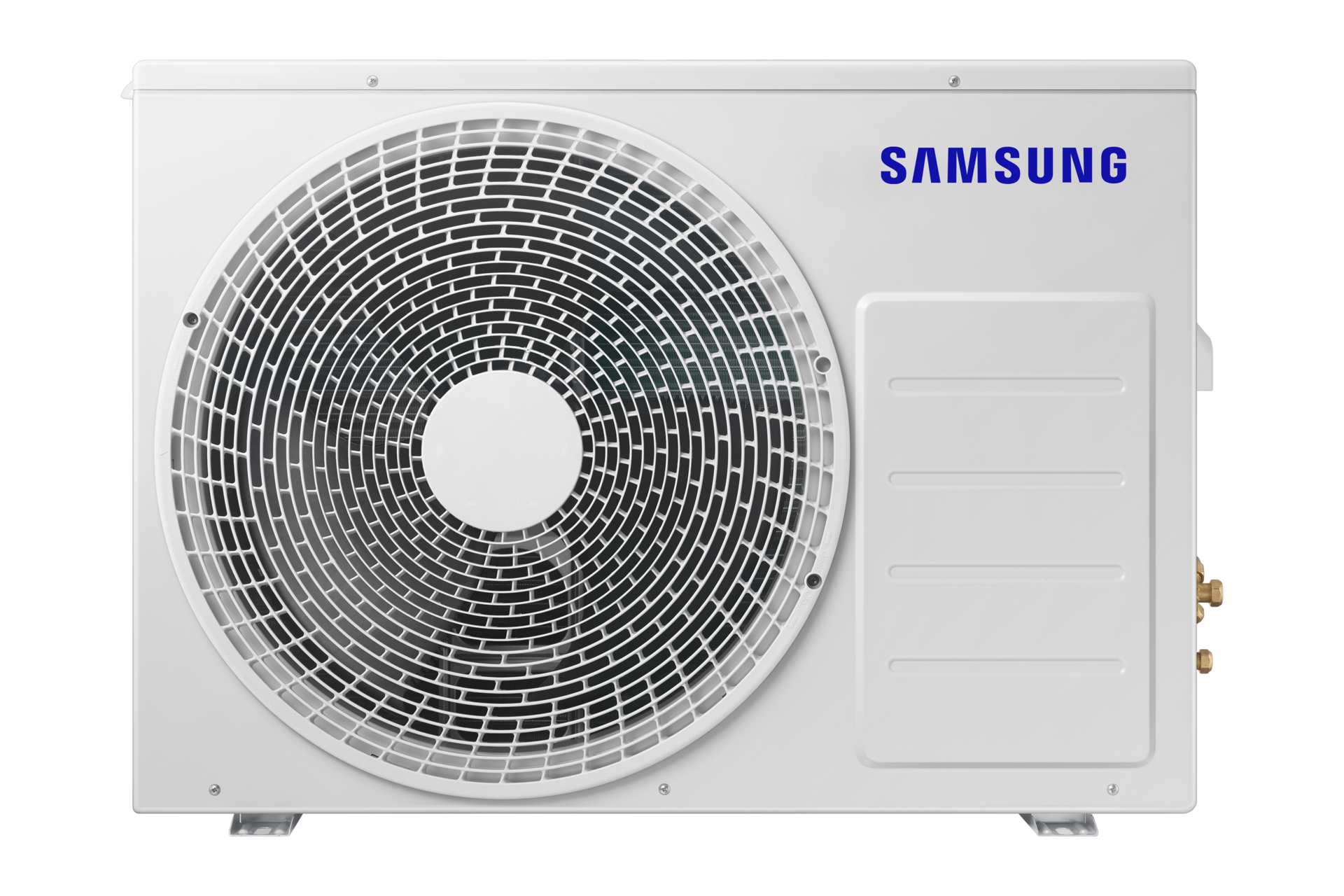

Air Conditioner Outdoor Unit 2.5 HP AR9500T

AR24BYFAMWKXME

0 ( 0 )

Choose your Capacity

Air Conditioner Outdoor Unit 2.5 HP AR9500T
2.5 HP

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.orignalPrice}} {{price.priceWrapper.info.savePrice}}

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}
{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Choose your colour

Customizable bezels sold separately

Choose your skin colour

Customizable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern type

  • {{item.name}}

    Out Of Stock

Beveled type

  • {{item.name}}

    Out Of Stock

Skin color

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

You have maximum number of Trade-in in cart already. If you wish to add in Trade-in, please remove from cart.

Congratulations, your trade-in request is successful.

  • {{item.discountText1}} {{item.discountPriceText}} {{item.discountText2}} {{item.discountPriceText2}} {{item.specialDiscountText}}

    {{item.displayModelName}}

Your Old Device Value, this value may differ from estimated trade-in value and will be credited upon the collection/drop off of the used device.
Overtrade Bonus, discount will be reflected in cart upon checkout.

Add Another Trade-in

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description1}}

{{tariffOptionResult.description2}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{offerItem.title}}

{{offerItem.offerText}}

{{offerItem.linkText}}
{{bundle.imgAttr.alt}} {{bundle.imgAttr.alt}}
{{bundle.title}}
{{bundle.price.original}} {{bundle.price.save}} {{bundle.price.now}}
{{bogo.item.headline}}

{{decmain.text}}

{{bogo.item.description.sub}}

{{bogo.item.description.date}}

{{bogo.item.price.original}} {{bogo.item.price.save}} {{bogo.item.price.now}}
{{gift.item.headline}}

{{decmain.text}}

{{gift.item.description.date}}

{{gift.item.learnMoreCta.text}}
{{combo.item.headline}}

{{decmain.text}}

{{combo.item.description.date}}

{{combo.item.learnMoreCta.text}}
{{delightDelivery.item.imgAttr.alt}} {{delightDelivery.item.imgAttr.alt}}
{{delightDelivery.item.headline}}

{{decmain.text}}

Learn more
{{finance.item.iconAttr.alt}} {{finance.item.iconAttr.alt}}
{{finance.item.description.text}}
{{finance.item.emiText}}
{{message.item.iconAttr.alt}} {{message.item.iconAttr.alt}}

{{decmain.text}}

{{offer.headline}}

Specifications

  • Capacity (Cooling, Btu/hr)

    21500 Btu/hr

  • Capacity (Cooling, kW)

    6.30 kW

  • EER (Cooling, W/W)

    3.32 W/W

  • Net Dimension (Outdoor, WxHxD)

    880*638*310 mm

  • Capacity (Cooling, Btu/hr)

    21500 Btu/hr

  • Capacity (Cooling, Min - Max, Btu/hr)

    5,000 ~ 25,000 Btu/hr

  • Capacity (Cooling, kW)

    6.30 kW

  • Capacity (Cooling, Min - Max, kW)

    1.47 ~ 7.33 kW

  • EER (Cooling, W/W)

    3.32 W/W

  • EER (Cooling, Btu/hW)

    11.32 Btu/hW

  • CSPF

    4.60

  • Energy Efficiency Class for cooling (Grade)

    4★

  • Noise Level (Indoor, High/Low, dBA)

    45 / 30 dBA

  • Noise Level (Outdoor, High/Low, dBA)

    52 dBA

  • Power Source(Φ/V/Hz)

    1 / 220-240 / 50

  • Power Consumption(Cooling, W)

    1900 W

  • Operating Current(Cooling, A)

    8.7 A

  • Gross Dimension (Indoor, WxHxD)

    1115*290*375 mm

  • Gross Dimension (Outdoor, WxHxD)

    1023*724*413 mm

  • Net Dimension (Indoor, WxHxD)

    1055*299*215 mm

  • Net Dimension (Outdoor, WxHxD)

    880*638*310 mm

  • Gross Weight (Indoor, kg)

    13.4 kg

  • Gross Weight (Outdoor, kg)

    39.7 kg

  • Net Weight (Indoor, kg)

    11.8 kg

  • Net Weight (Outdoor, kg)

    36.7 kg

  • Loading Quantity (20/40/40Hft without Pipe)

    65 / 138 / 154

  • Piping Length (Max, m)

    20 m

  • Piping Height (Max, m)

    12 m

  • SVC Valve (Liquid (ODxL))

    6.35

  • SVC Valve (Gas (ODxL))

    15.88

  • Moisture Removal (l/hr)

    2.5 l/hr

  • Air Circulation (Cooling, ㎥/min)

    18.6 ㎥/min

  • Refrigerant (Type)

    R32

  • Refrigerant (Charging, kg)

    0.8 kg

  • Refrigerant (Charging, tCO2e)

    0.54tCO2e

  • Low Ambient (Cooling, ℃)

    16~46 ℃

  • Outdoor Unit (Compressor Type)

    BLDC

  • Outdoor Unit (Anti-Corrosion Fin)

    Yes

  • WindFree Cooling

    Yes

  • Air Direction Control (Up/Down)

    Auto

  • Air Direction Control (Left/Right)

    Auto

  • Air Flow Control Step (Cool/Fan)

    5/4

  • PM 1.0 Filter

    No

  • Tri Care Filter

    No

  • Easy Filter Plus (Anti-Bacteria)

    Yes

  • Auto Clean (Self Cleaning)

    Yes

  • SmartThings

    Yes

  • AI Auto Cooling

    Yes

  • Motion Detect Sensor

    No

  • Freeze Wash

    No

  • Filter Cleaning Indicatior

    Yes

  • Indoor Temp. Display

    Yes

  • Display On/Off

    Yes

  • Beep On/Off

    Yes

  • 24-Hour Timer

    Yes

  • Auto Changeover

    No

  • Auto Restart

    Yes

  • Auto Mode

    Yes

  • Fast Cool

    Yes

  • Good Sleep

    Yes

  • Eco Mode

    Yes

  • Dehumidification

    Yes

  • Fan Mode

    Yes

  • Quiet

    Yes

  • WiFi Embedded

    Yes

  • SmartThings App Support

    Yes
