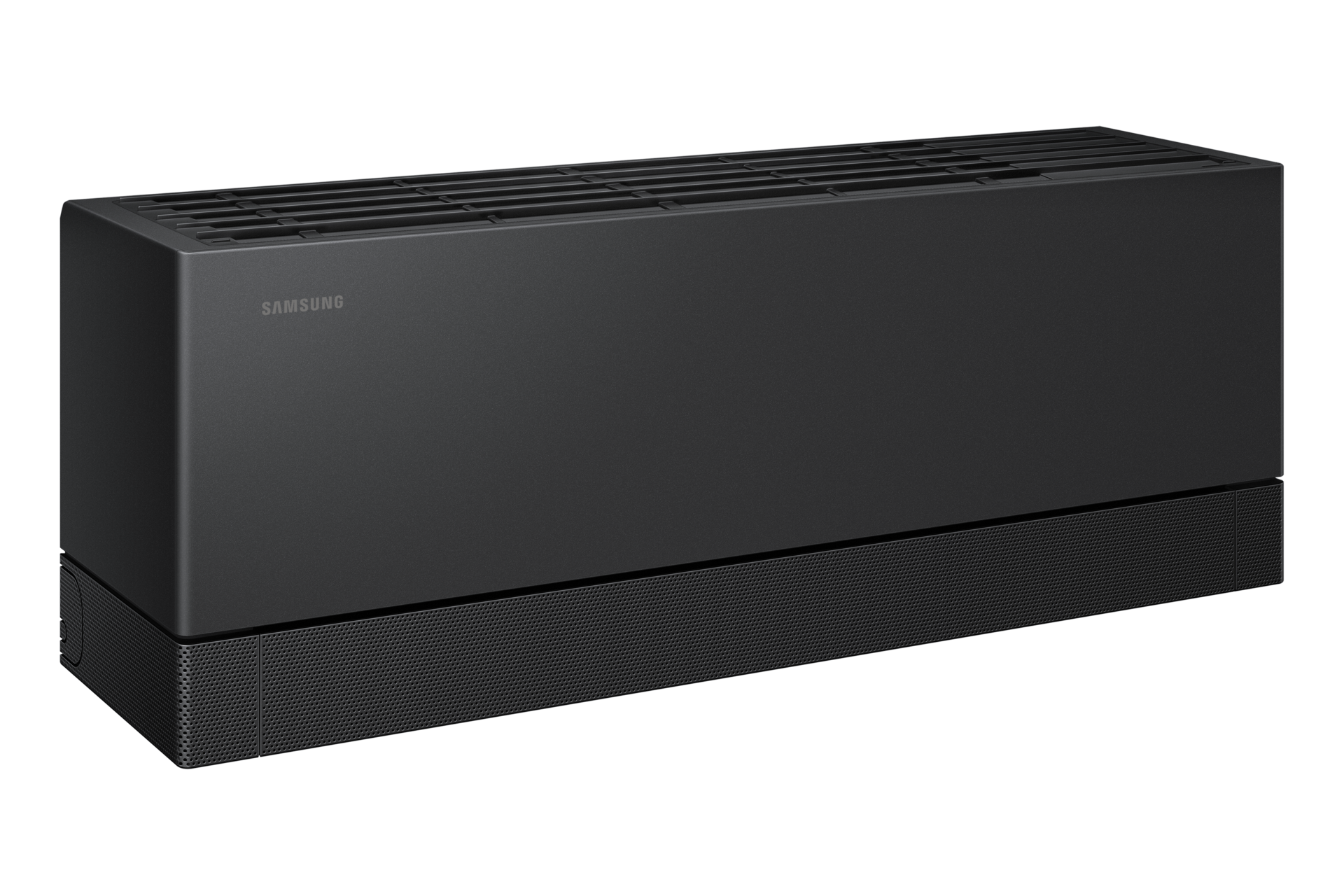

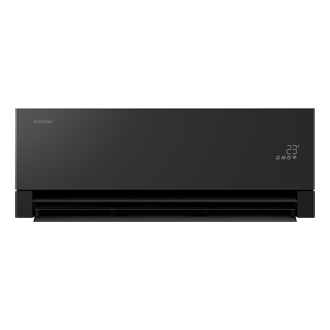

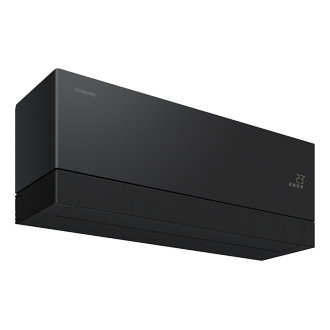

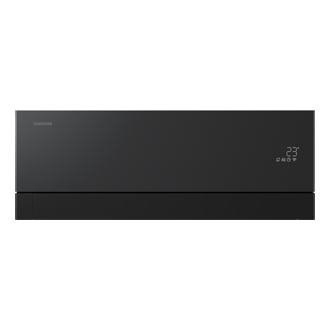

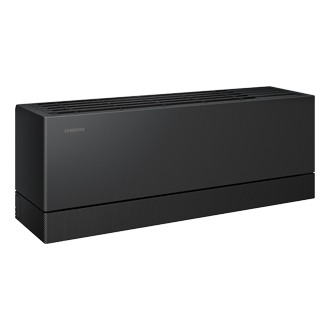

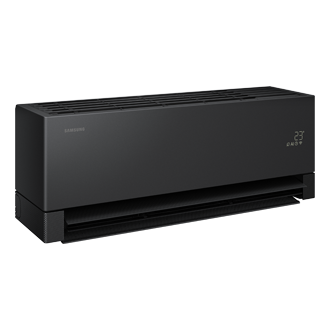

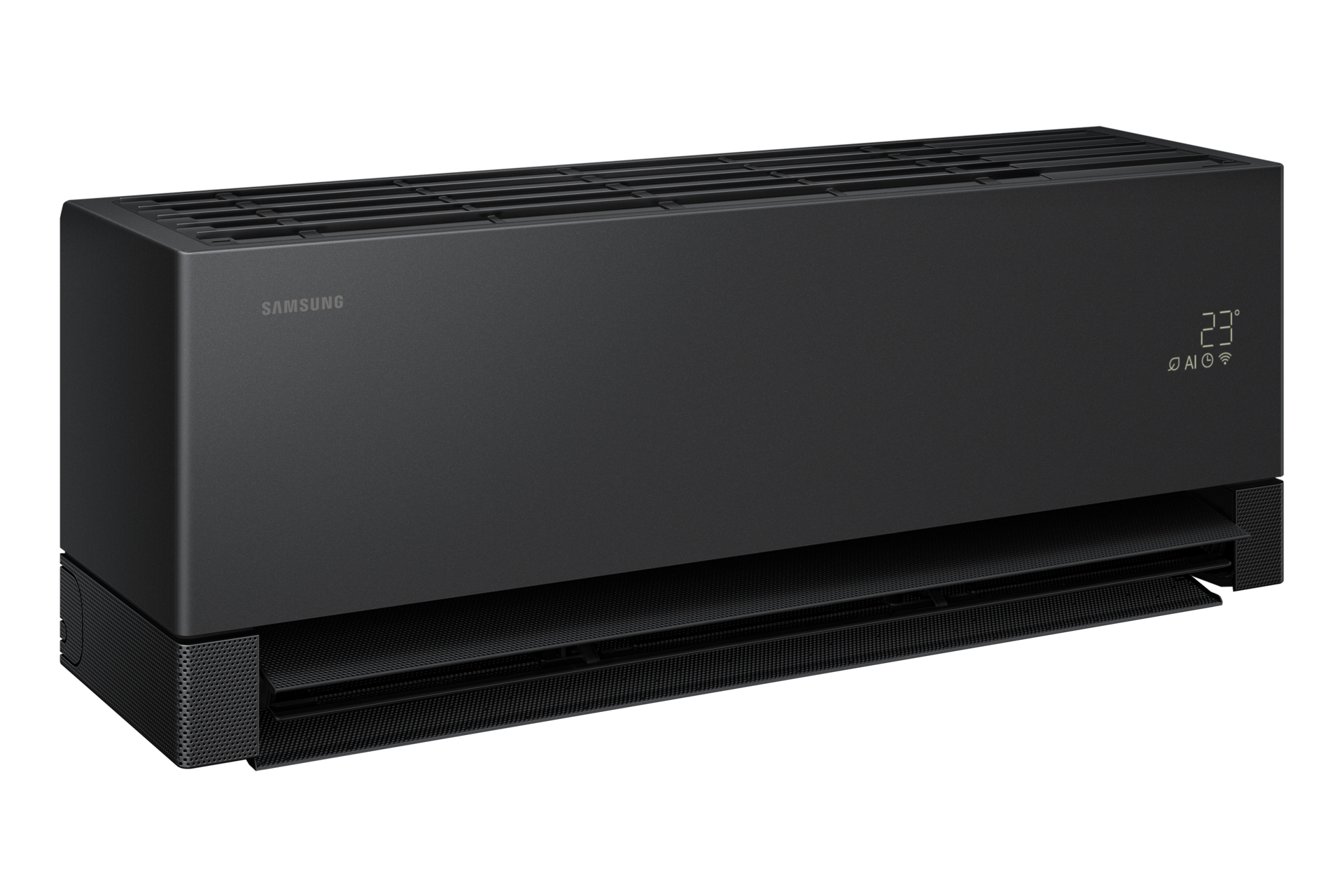

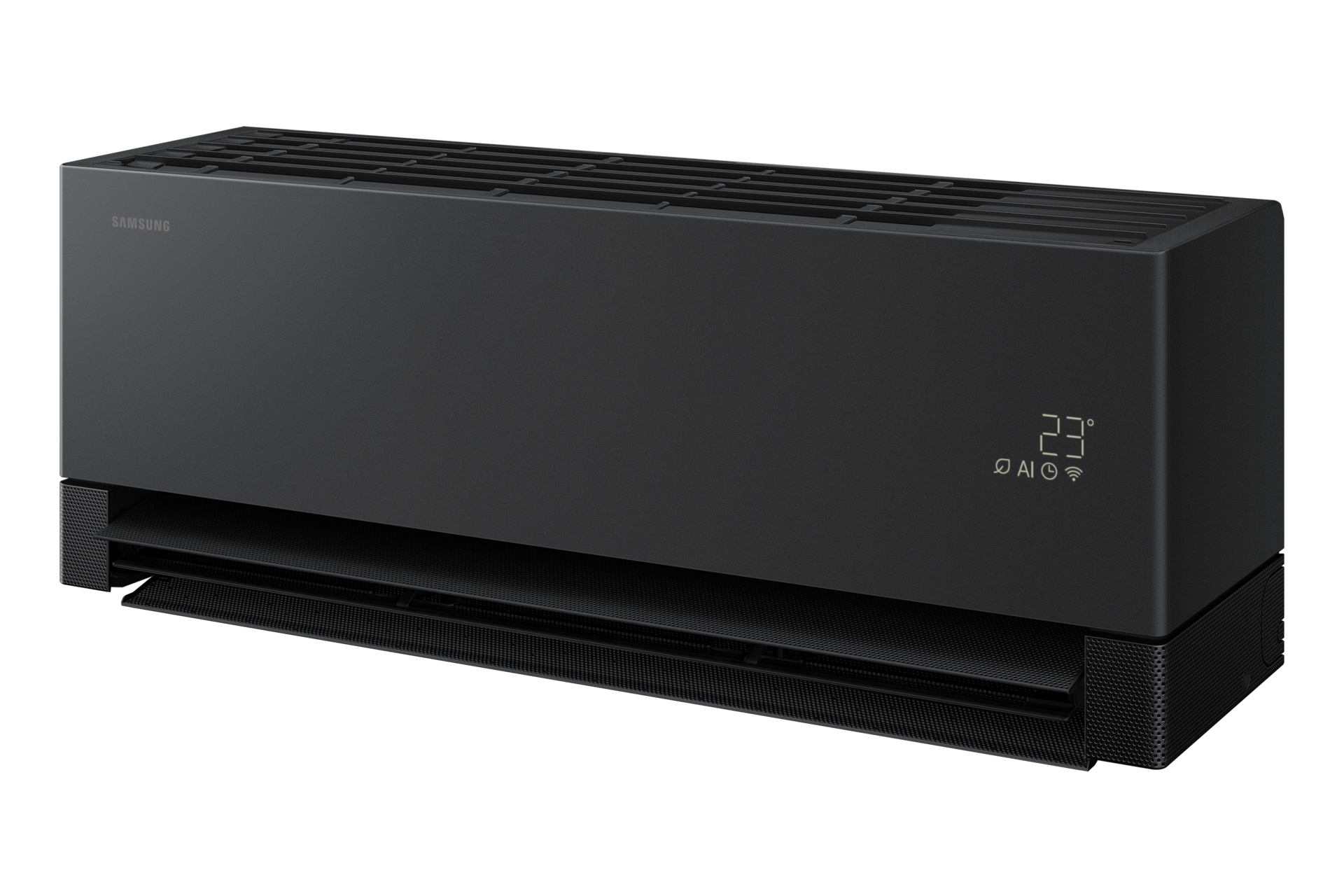

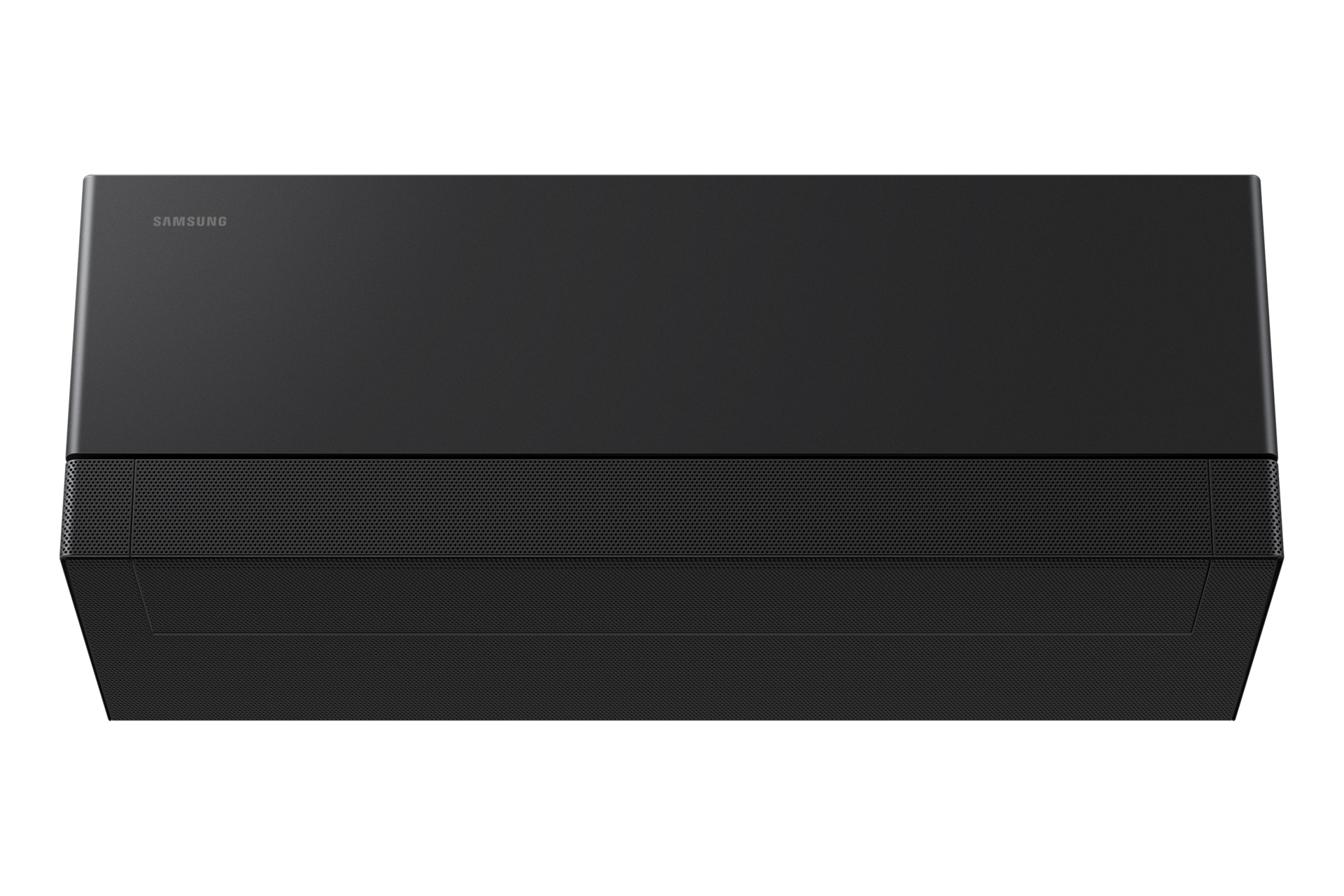

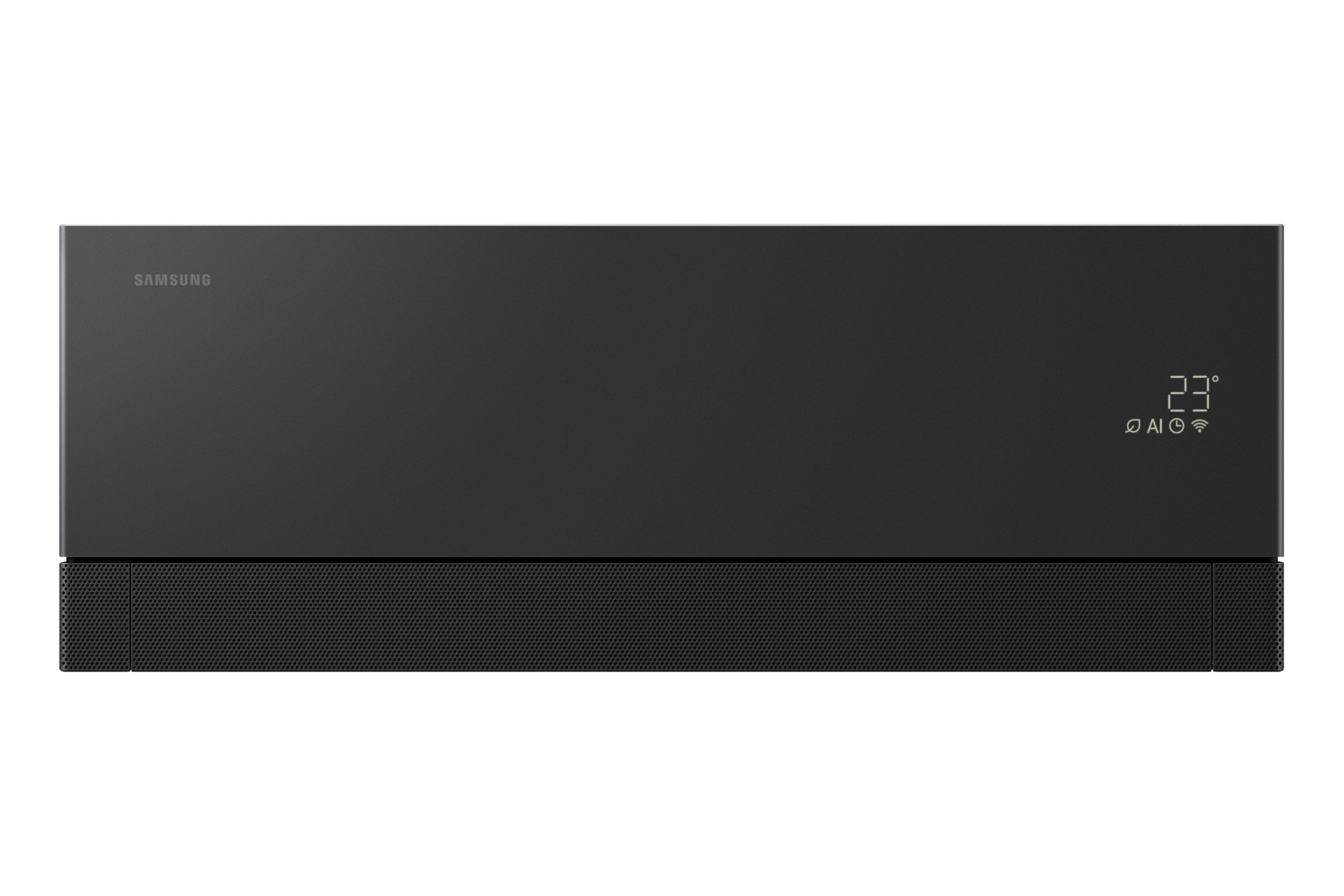

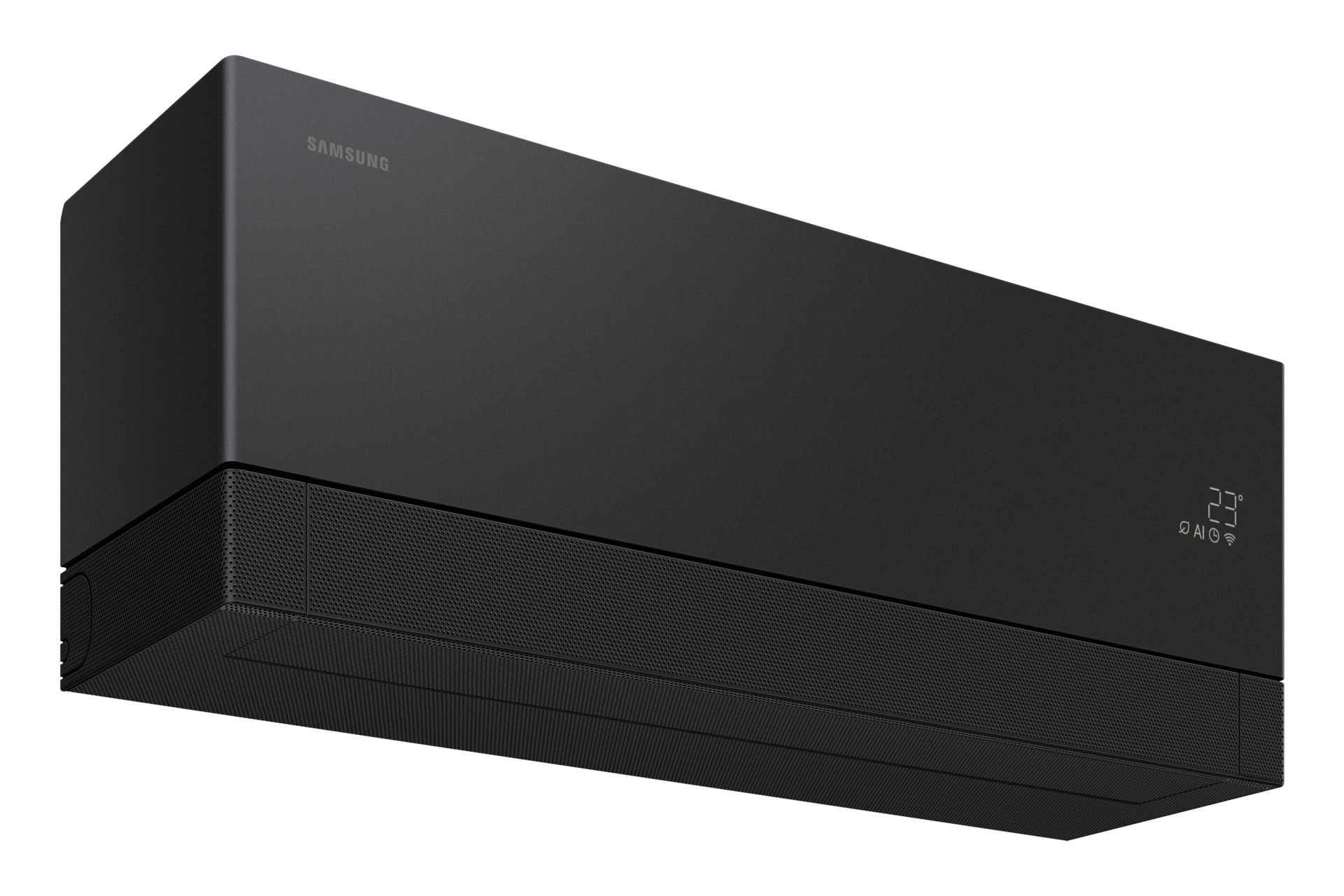

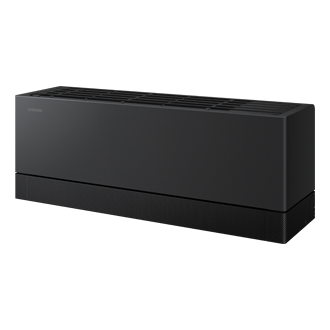

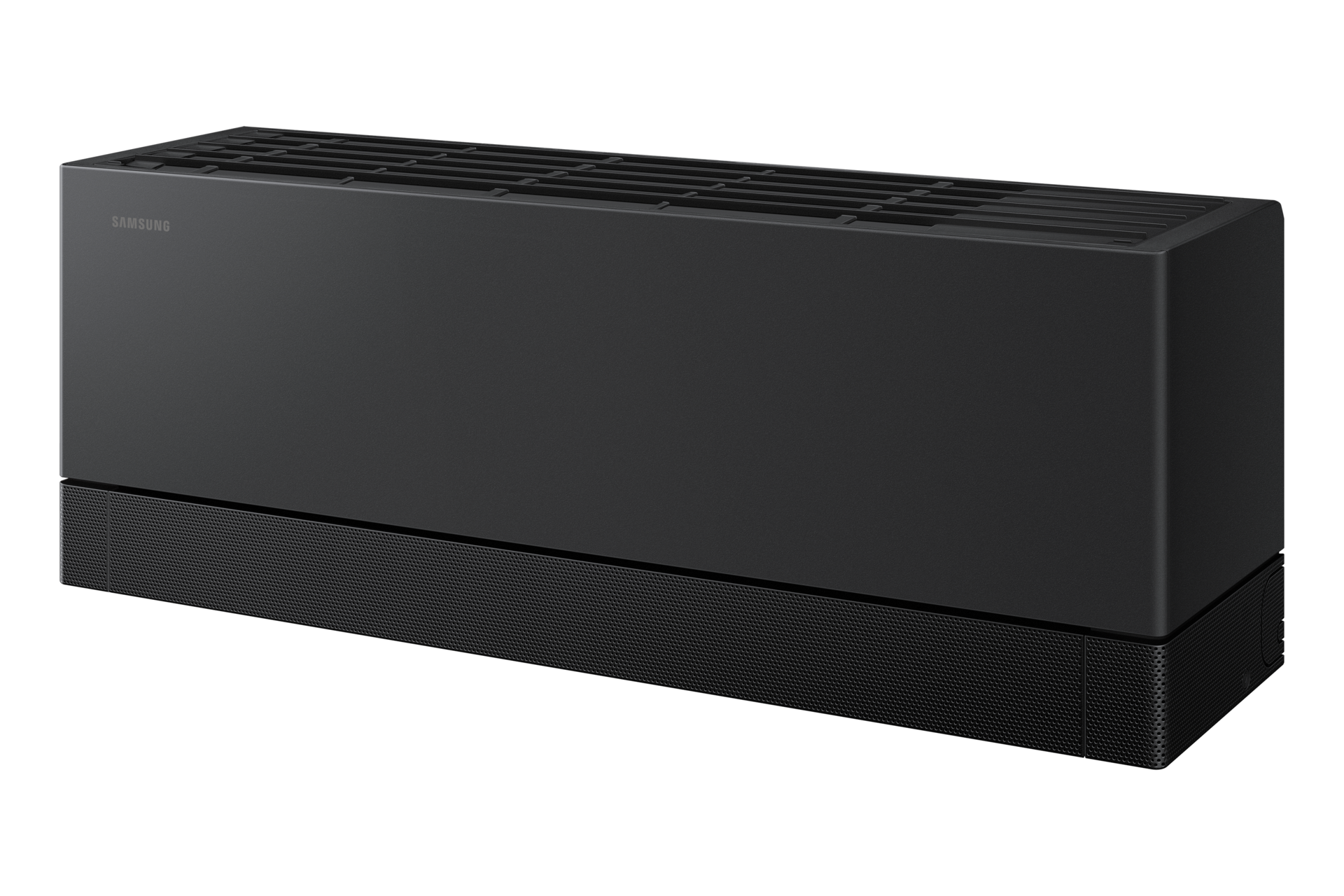

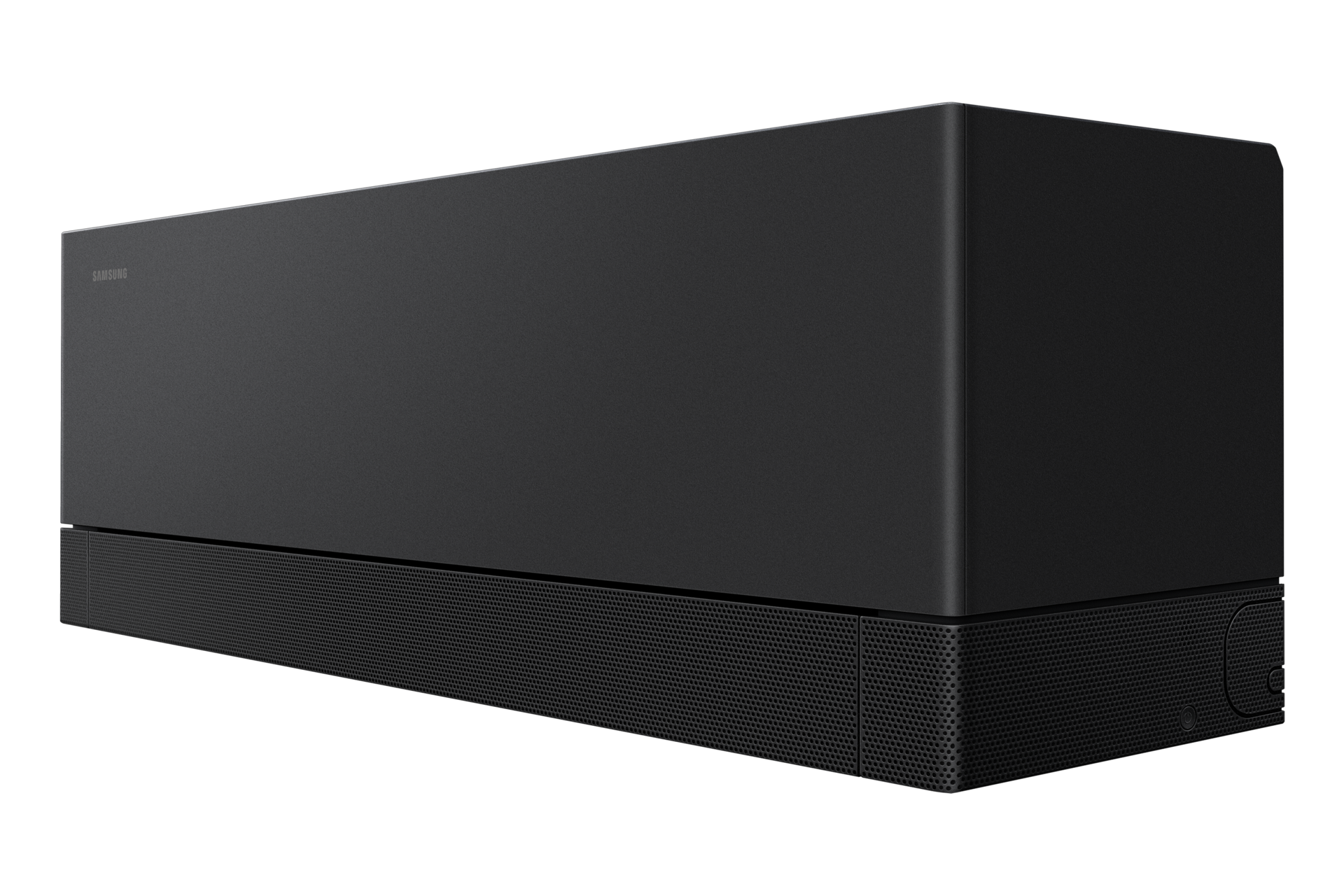

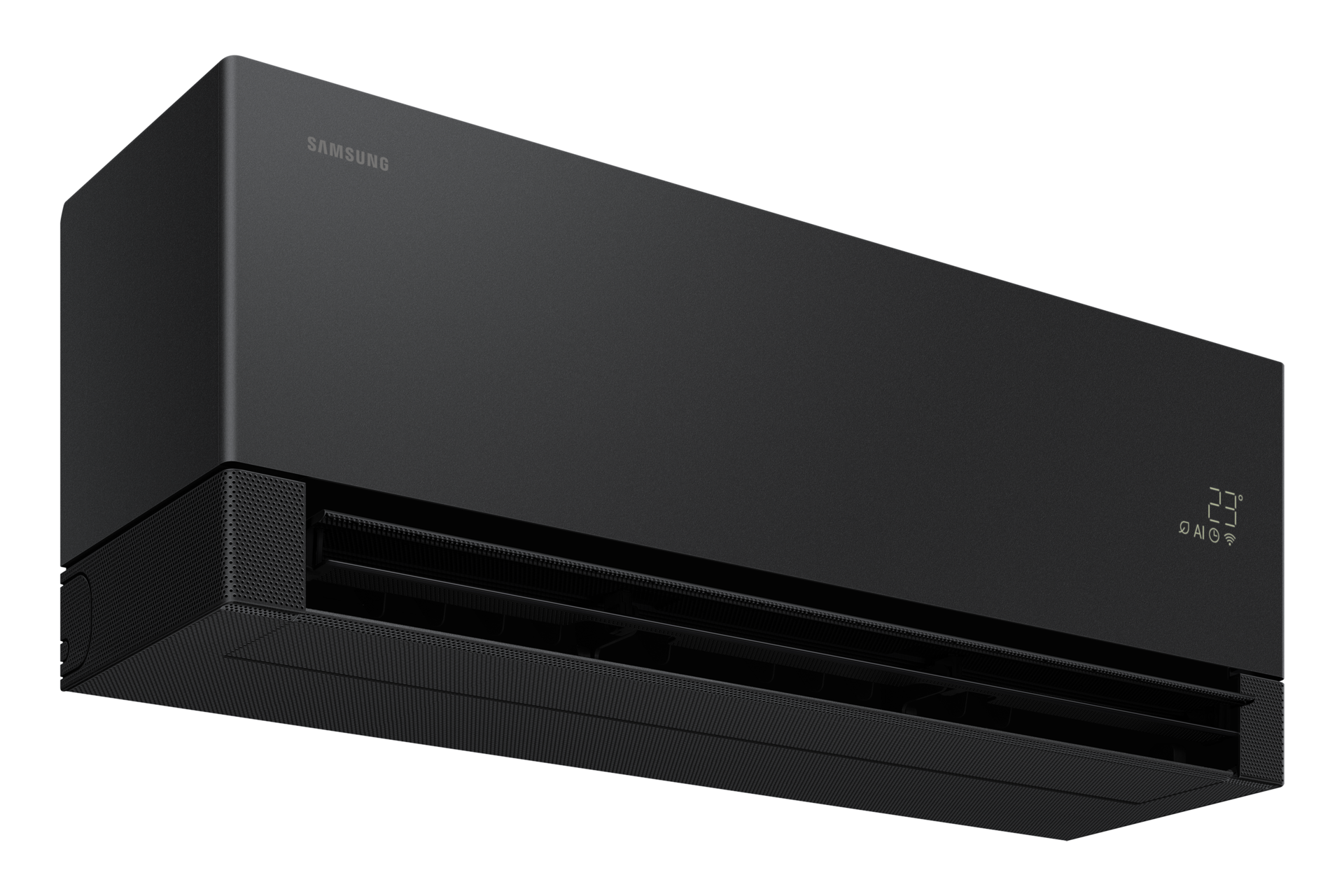

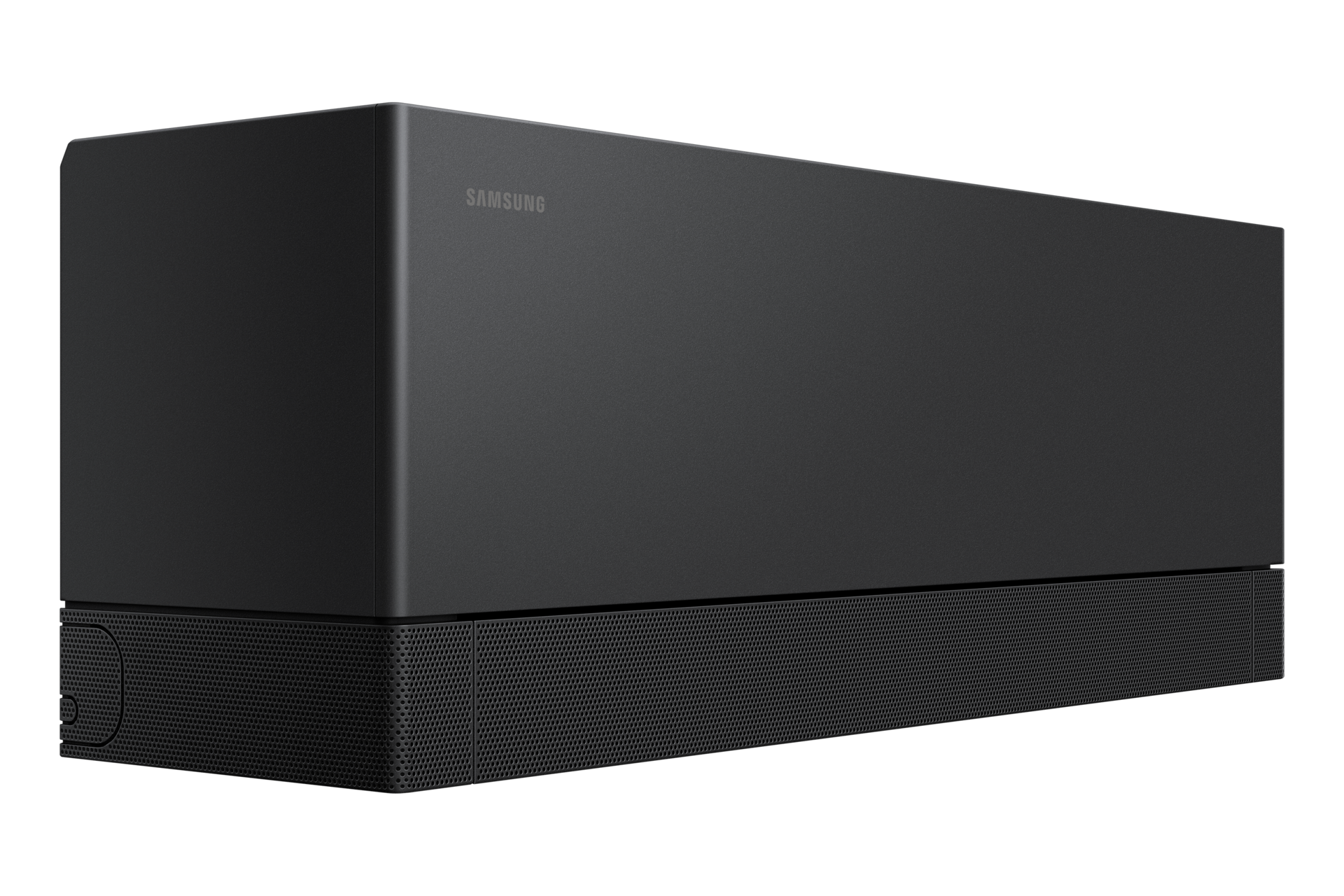

Bespoke AI WindFree™ Wall-mount Air Conditioner Radar Sensor 1.0HP

Name: Bespoke AI WindFree™ Wall-mount Air Conditioner Radar Sensor 1.0HP
Brand: Samsung
SKU: AR70H10DAABNTC
Price: 45756 PHP
Availability: inStock

Charcoal Black 1.0 HP

Product Ratings : 0 (Number of Ratings :0) AR70H10DAABNTC

Not for sale

Amazing Add-ons

+13 more

Bespoke AI WindFree™ Wall-mount Air Conditioner Radar Sensor 1.0HP

Dimension

Spin the angle

Highlights

AI Motion Wind

AI Fast & Comfort Cooling

AI Energy Mode

Features

AI-tailored cooling

Precisely tailored winds

AI Motion Wind

Experience a variety of seven tailored wind modes. Max Wind provides 15% faster instant cooling;* Surround Wind creates a breeze that evenly reaches every corner; Long Reach Wind sends cool air twice as faster;** Down Wind rapidly pushes hot air downward for quick comfort. AI Direct Wind follows you with targeted cooling, while AI Indirect Wind ensures targeted user to stay comfortable without direct breeze. Finally, enjoy gentle coolness with WindFree™. Additionally, AI learns your usage patterns and Radar Sensors track your movement to deliver precisely the coolness you need.¹

Precisely tailored winds

AI Motion Wind

Precisely tailored winds

AI Motion Wind

Precisely tailored winds

AI Motion Wind

Precisely tailored winds

AI Motion Wind

Precisely tailored winds

AI Motion Wind

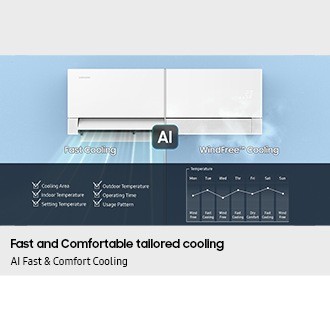

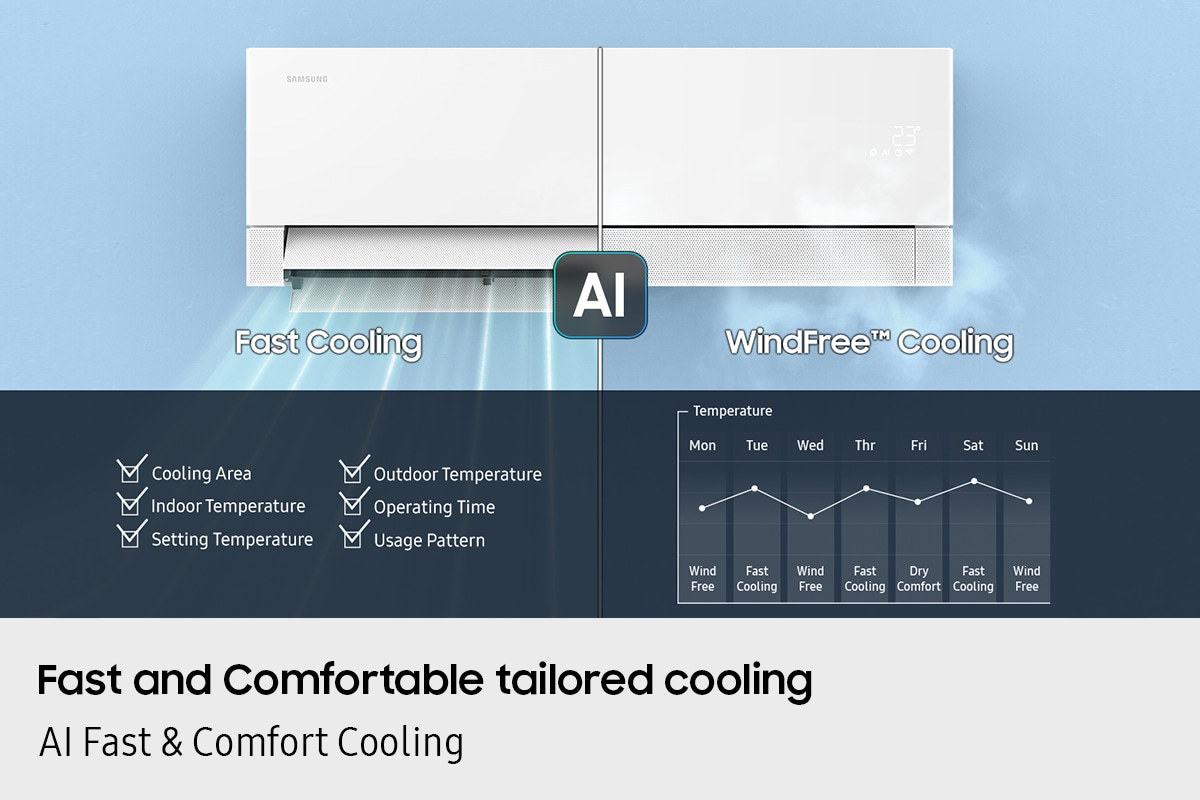

Fast and Comfortable tailored cooling

AI Fast & Comfort Cooling

AI analyzes indoor and outdoor temperature, humidity, even room size to automatically activate cooling - tailored to your learned usage patterns and preferences. Fast Cooling for instant cooling, WindFree™ for comfortable cooling and Dry Comfort for cold-free pleasant environment.

A living room with an air conditioner installed. The AI text appears on the air conditioner and texts such as 'Outdoor Temp.', 'Indoor Temp.', 'Setting Temp.', 'Usage Pattern', 'Operation Time' and 'Cooling Area' are combined into the air conditioner. With AI text displayed at the center, the air conditioner operates in two modes: 'Fast Cooling' on one side and 'WindFree™ Cooling' on the other. At the bottom, the categories 'Cooling Area', 'Indoor Temp.' 'Setting Temp.', 'Outdoor Temp.', 'Operation Time', 'Usage Pattern' appear with check marks. A graph shows that Fast Cooling, WindFree and Dry-Comfort are activated to regulate temperature based on the day of the week and conditions. WindFree worked on Monday, Wednesday, and Sunday, Fast Cooling on Tuesday, Thursday and Saturday, and Dry Comfort on Friday.

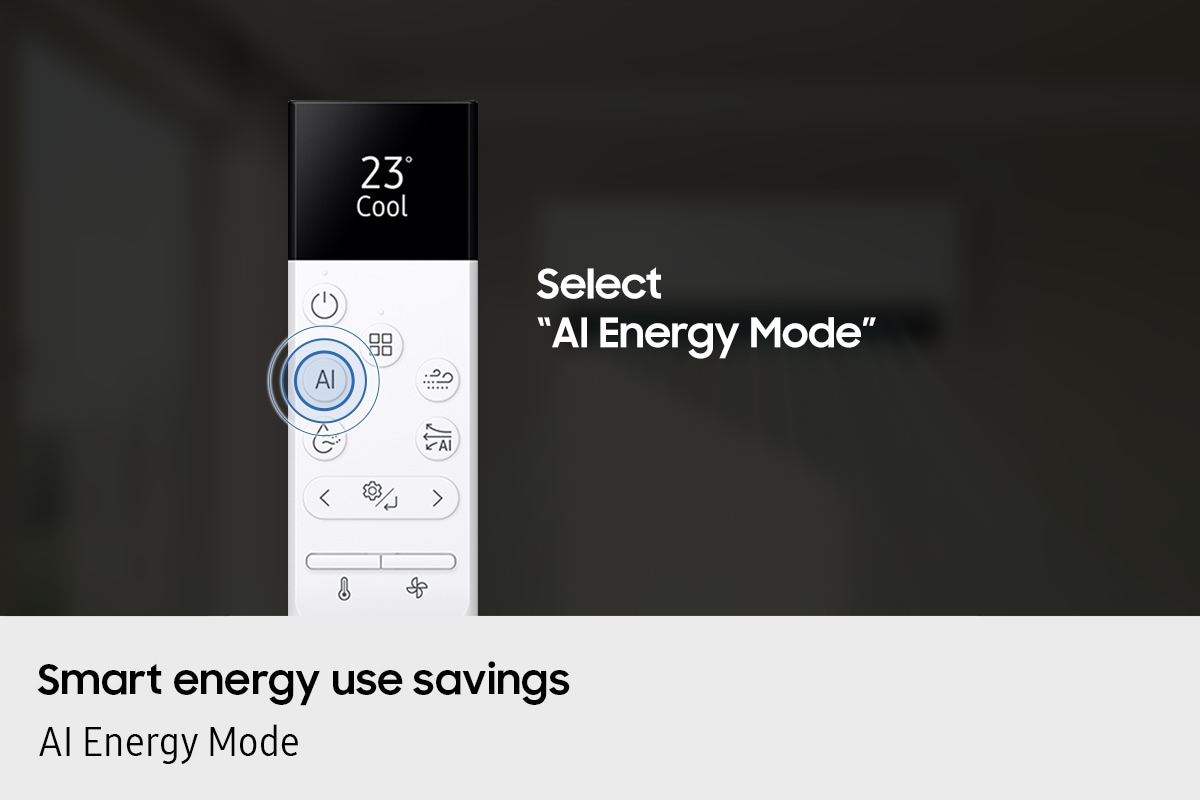

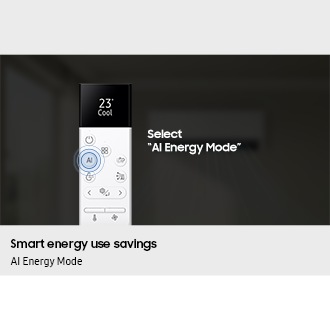

Smart energy use savings

AI Energy Mode

By using AI to analyze your usage patterns and external conditions, it prevents sudden stops or increases in the compressor’s frequency, reducing energy use by up to 30%.*⁷

Motion Wings

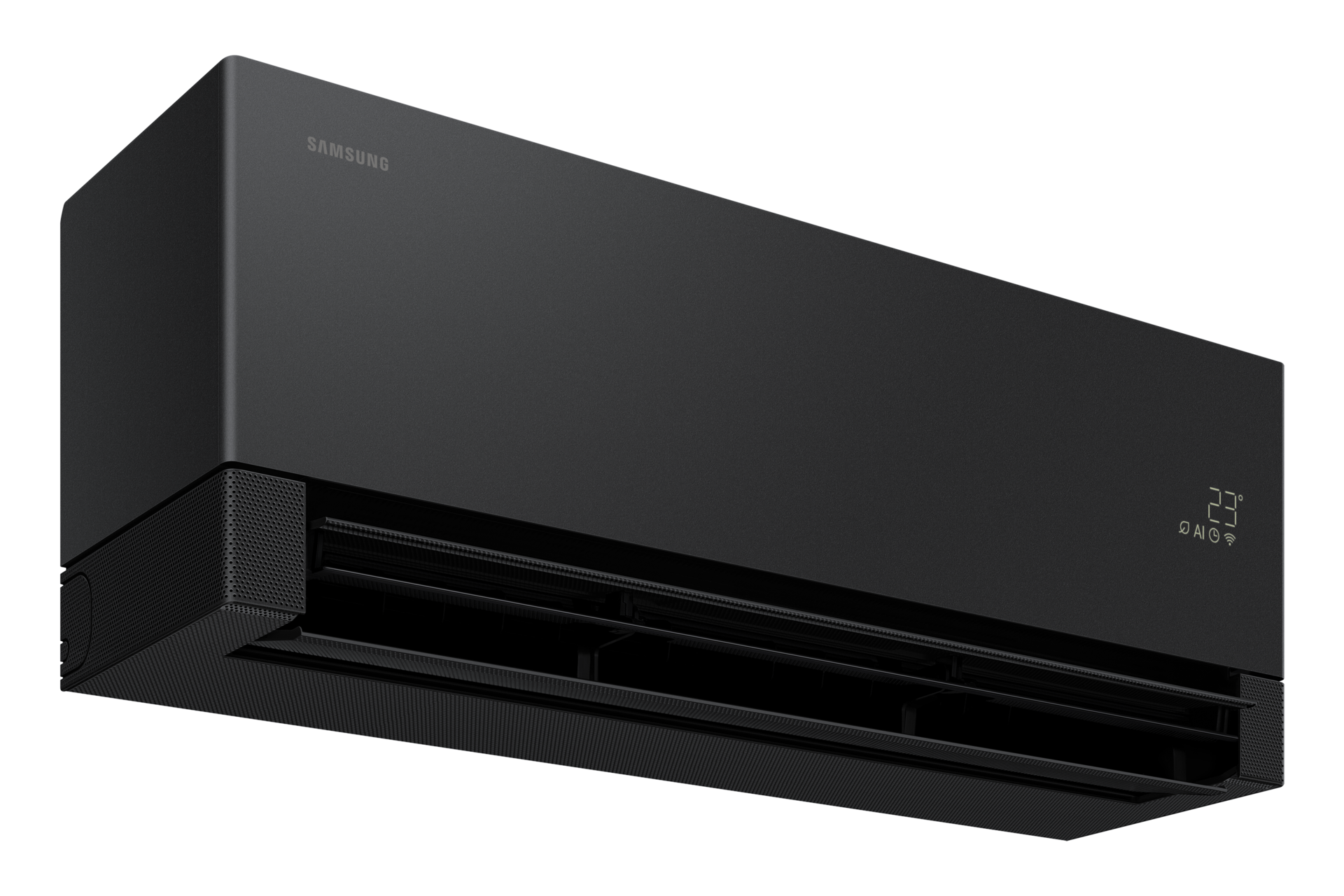

Triple Motion Wings

Motion Wings

Three Motion Wings form a distinctive air outlet system.* The redesigned blade assembly enlarges the air inlet by 10% and discharges air 15% faster**, while providing twice the adjustment range for vertical and horizontal angles.*** In WindFree™ mode, the blades use integrated micro‑holes to boost and evenly distribute cooling.⁸

User focused cooling

Radar Sensor

Radar sensors track movement to automatically select the most efficient cooling mode. Wind direction and intensity adjust based on user data — number of occupants, activity level and range, and their locations. You can preset energy‑saving or preferred modes in advance, and AI learns your usage patterns to deliver cooling tailored to your preferences.

WindFree™

Stay comfortably cool

WindFree™ Cooling

Stay cool without feeling cold draft using WindFree™ Cooling. An advanced air flow structure gently and evenly disperses air through 23,000 micro air holes. It creates a “Still Air” environment* with a very low air speed, so there is no unpleasant feeling of cold wind.⁹

Enjoy a good sleep

WindFree™ Wearable Good Sleep

Enjoy a good night’s sleep. A WindFree™ Wearable Good Sleep mode links to wearable smart devices*, like the Galaxy Watch and Ring. If they detect that you are asleep, it automatically turns on WindFree™ Cooling and adjusts the cooling performance to create the ideal climate for a deep and pleasant sleep.**¹⁰

Save energy, stay cool

WindFree™ Energy Saving

Save energy and still stay comfortably cool. WindFree™ mode reduces unnecessary energy consumption, as it doesn’t have to keep blowing powerful blasts of cold air like a Normal cooling operation. So, it consumes 77% less energy than Fast Cooling mode*.¹¹

Less disturbance

WindFree™ Low Noise

Feel comfortably cool without disturbing your daily life. WindFree™ air conditioners gently and uniformly disperse air through thousands of micro air holes covering the entire front panel. The resulting very low air speed generates less air friction and noise* compared to Normal cooling.¹²

Clean & Hygiene

Traps ultrafine dust

Washable PM1.0 Filter

Protect yourself from inhaling bacteria and tiny particles. A washable PM1.0 Filter traps ultrafine dust and removes over 99% of certain bacteria*. It works twice as fast as a PM2.5 Filter**. Colored lights show the current air quality. And it is easy to wash, so it will work for a long time.¹³

Traps ultrafine dust

Washable PM1.0 Filter (Only N.A)

Protect yourself from inhaling tiny particles. -> It helps you not inhale small particles. A washable PM1.0 Filter traps ultrafine dust using an electrostatic precipitator. Lights show the air quality and a sensor detects when the air is dirty, so it can be automatically cleaned*. And it returns to a level comparable to the initial performance after washing.**¹⁴

Wind without dust

4-in-1 PM2.5 Filter

Remove fine dust, viruses, bacteria and allergens. A 4-in-1 PM2.5 Filter has a fabric that traps dust, including particles as small as PM2.5, as well as fibers and hair. It also has a filter with a Zeolite Coating that removes up to 99% of certain viruses and bacteria, allergens and PM2.5 dust*.¹⁵

Easy to clean filter

Copper Anti-bacterial Filter

Keep the air conditioner working efficiently with little effort. A Copper Anti-bacterial Filter is located outside, on the top, so it can easily be removed and cleaned. Its dense mesh keeps the Heat Exchanger clean and the copper material in the yarn helps reduce certain bacteria by up to 99%*.¹⁶

Maintain hygienically

Freeze Wash

Keep the air conditioner clean and hygienic. Freeze Wash quickly freezes and then defrosts the Heat Exchanger. So it is washed in water removing dirt and contamination, including 95% of microorganisms*. Finally, it dries up any moisture. This process can be done when you are away with Unoccupied Auto Clean mode** and also it alerts you when it is time for a clean***.¹⁷

Maintain performance

Freeze Wash

Maintain high quality performance with the push of a button. Freeze Wash quickly freezes the Heat Exchanger and then defrosts the ice. So it is washed in water, which removes dirt . Finally, it dries up any moisture. And it alerts you when it is time for a clean*.¹⁸

Stays fresh & hygienic

3-step Auto Clean

Keep the air conditioner hygienic by doing nothing. Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes*. So it helps prevent the buildup of bacteria and odors. This process can be done when you are away with Unoccupied Auto Clean mode.**¹⁹

Easy to clean filter

Easy Filter

Keep your air conditioner working efficiently with little effort. The Easy Filter is located outside, on the top, so it can easily be taken out and cleaned. It is made of a dense mesh, so it is very effective at capturing dust, which keeps the Heat Exchanger clean.

Efficiency

Automatic efficiency

AI Digital Inverter Control

Cool quickly, quietly and efficiently. Using AI it analyzes your usage patterns and the external conditions, and senses the air conditioner’s operating status. It then precisely controls the compressor’s operating frequency* to maintain the preferred temperature and reduce energy consumption.²⁰

Energy saving starts when vacant

AI Absence Monitoring

Radar sensors detect inactivity and automatically lower or switch off the unit. AI learns your vacancy patterns to optimize settings and all connected appliances via SmartThings can be controlled during vacancy. With the SmartThings app, you can also receive alerts for unusual movements or monitor your children’s arrivals.²¹

Cools you faster

Fast Cooling

Cool rooms rapidly. The twin compressor works stably at any speed, as its two cylinders rotate alternately. The BLDC motor’s Neodymium magnets are 3x stronger than normal, which generates powerful and rapid rotation. So it cools the air 52% faster* and disperses cool air far**.²²

Save energy cooling

Energy Saving

Save energy but stay comfortably cool with highly energy-efficient Digital Inverter Boost technology. It maintains the desired temperature without frequently turning off and on, so there is less fluctuation. And it enhances its power usage when cooling, which reduces energy use by up to 76%*.²³

Get warm faster

Fast Heating

Heat rooms rapidly from corner to corner, so you are feel comfortable whenever you want and wherever you are. When activated, the Fast Heating mode quickly distributes warm air across an entire room. Its unique design means it reaches the desired temperature 49% faster than conventional fixed-speed Samsung models*.²⁴

Less noise at home

Low Noise

Cool your living spaces with less noise. The twin compressor creates 20 times less vibration than a single compressor. Samsung’s patented Twin Tube Muffler also reduces refrigerant flow noise. And its WindFree™ operation reduces ambient noise, so there is a 40% reduction in detectable sound*.²⁵

Fits in many places

New Slim Outdoor Units

Make good use of valuable space and save energy. The volume of the slim outdoor unit* has been reduced by 20%** by utilizing compact core components, which also improve its energy efficiency by 20%**. And its simplified exterior eliminates painting and reduces the use of screws when installing.²⁶

Zero ODP & lower GWP*

R32 Refrigerant

R32 refrigerant helps conserve the ozone layer and has less impact on global warming. It has zero Ozone Depletion Potential (ODP) and a lower Global Warming Potential (GWP) compared to conventional R22 or R410A refrigerants* that are commonly used.²⁷

Performance

Comfortably cool

Comfort Drying for Cold-free Dehumidification

Enjoy comfortable dehumidification without feeling cold. Dry Comfort mode jointly analyzes the temperature and humidity using sensors and dehumidifies without overcooling by using fine-tuning technology to control the refrigerant flow rate. So it is ideal when sleeping or in the rainy season. With AI Fast & Comfort Cooling, Dry Comfort automatically maintains a comfortable temperature and humidity for you.

Reduces energy use

Comfort Drying for Energy Saving

Save energy dehumidifying. Dry Comfort mode just cools part of the Heat Exchanger, and only creates the amount of cold air needed for dehumidification. By only using the Heat Exchanger and compressor as much as necessary, it reduces energy use by more than 30%* compared to conventional systems.²⁸

Automatically enhanced humidity control

Humidity Comfort Zone

Maintain the desired temperature without being uncomfortably dry. Dry Comfort mode controls the temperature and humidity to maintain a comfortable humidity of 30-60% without it feeling cold. And you can monitor the humidity on the SmartThings App*.²⁹

Convenience

Walk in. Feel cool.

Welcome Cooling & Away Care

Use your air conditioner efficiently and effectively when you arrive home or go out. SmartThings Welcome & Away Care* alerts when you get close to home** and reminds you to turn on the air conditioner. And when you leave** it will notify you if there is an air conditioner that is still working.³⁰

Safe overload operation

Abnormal overload-detection

If an abnormal load is detected, such as the window or door not closed, the room temperature rising rapidly, or the outdoor unit room temperature being unusually high, then you will be alarmed and energy saving mode will be activated automatically*.³¹

Design your wind path

Custom blade

Don't wait to stop blade in the desired location. You can easily set the angle of blades and design your own wind direction.

Always feel comfortable

SmartThings Air Care

Maintain a comfortable environment in your home. SmartThings Air Care* automatically controls purifying and cooling devices, based on the outdoor and indoor air quality and the temperature and humidity in each room. So it enhances the cleanliness of your air and keeps you feeling comfortable.³²

Look after your pets

SmartThings Pet Care

Care for your pets even when you are not home. SmartThings Pet Care* lets you adjust the temperature in your home to keep pets comfortable. You can turn the air conditioner on and off at a certain temperature or a set time and customize the temperature for long-haired and short-haired breeds.³³

Convenience

No disposable battery

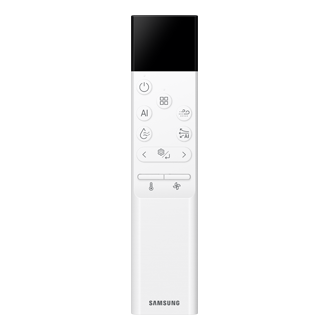

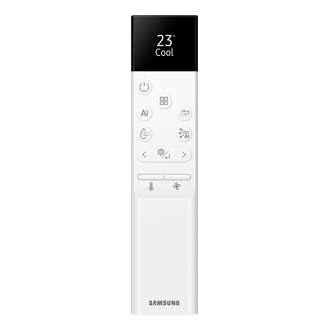

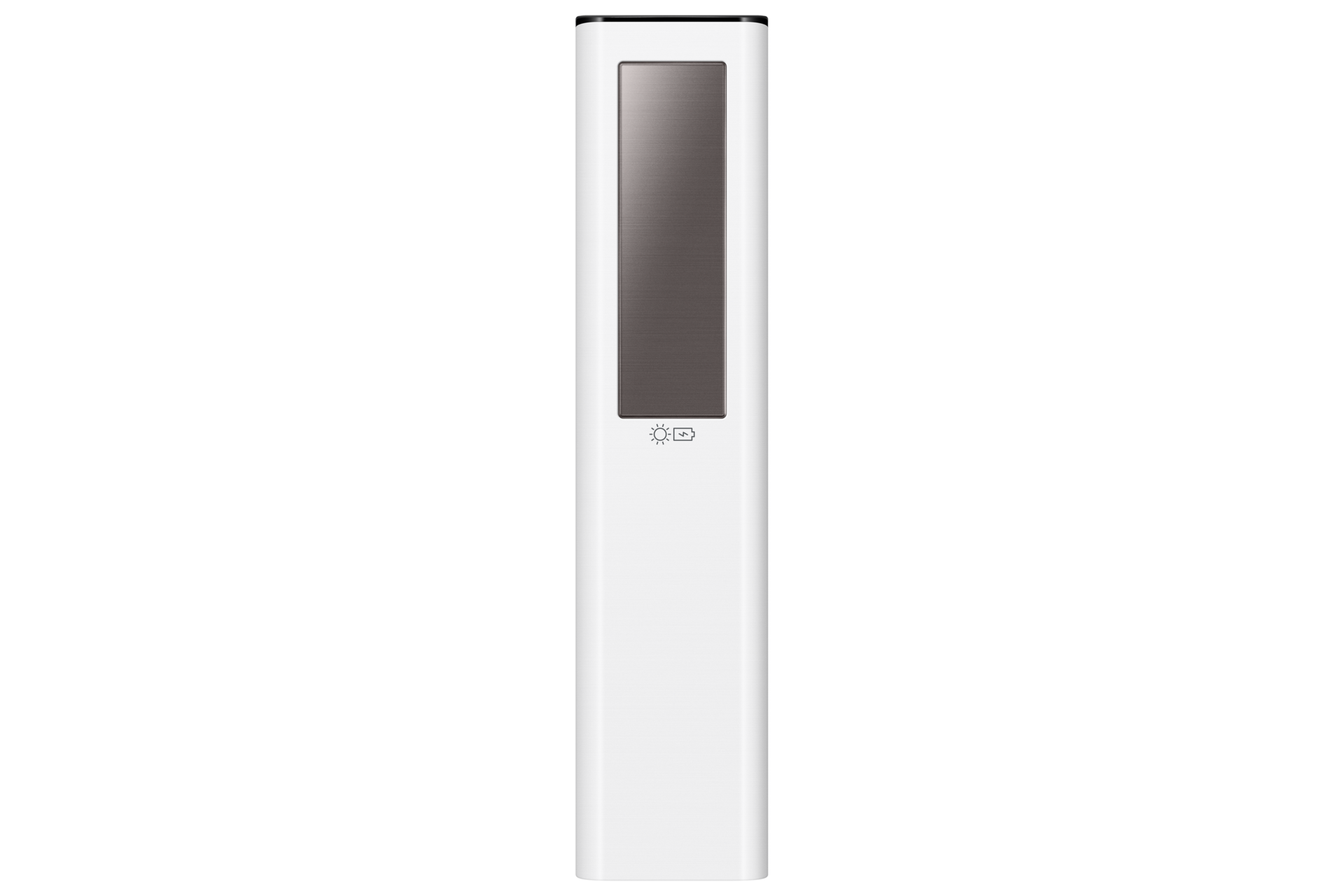

Solarcell Remote Controller

Stay in control without having to worry about using batteries! The Samsung Solarcell Remote Controller includes a small solar panel on the back. All you need to keep it powered is the light of the sun – or even the ambient light in a room. You can also recharge it using a C-type USB connector.

Cools every corner

4-way Swing

Create a comfortable environment with an even temperature in every corner of a room. The 4-way Swing function lets you remotely control the air direction or automatically expels air in every direction. As well as the auto up-down swing function it also has an auto left-right swing function.

Works on any voltage**

Power Volt

Stop worrying about the electrical voltage in your home. It does not matter whether you use 127V or 220V power outlets – or even both! The air conditioner has a Power Volt* function and can be safely used on either voltage**, without the extra time and cost of installing a voltage transformer.³⁴

Works non-stop

Auto Ampere Control+

Stay comfortable if the power supply is limited. Auto Ampere Control+* starts operating in Ampere Control mode when the electrical power is limited to ensure continuous cooling or heating**. It can be remotely controlled, adjusted over 6 levels and will control all indoor units on one floor***.³⁵

Easy energy control

5-step Convertible Control

Save energy, but still stay cool. The 5-step Convertible Cooling* lets you adjust the compressor operation in 5 steps, from 40% to 120%, to suit your changing cooling needs, using the minimal amount of energy**. You can also use it to reduce your daily energy consumption whenever you want.³⁶

SmartThings

Get close. Turn on.

Quick Remote

Control the room temperature quickly and easily on a Galaxy smartphone*. When you get close to the air conditioner**, a Quick Remote pops up on your phone*** to let you control its priority features, like on/off and start/stop****. So don’t need to waste time finding the actual remote control. ³⁷

Visual control

Map View

Monitor and control all your air conditioners wherever you are. Using Map View in the SmartThings App*, you can see a 3D map of your home and smart devices. You can change settings, run preset routines and monitor the air quality, room temperature and energy consumption of your air conditioner.³⁸

Smart management

SmartThings Home Care

Take care of your air conditioner easily. SmartThings Home Care* uses artificial intelligence (AI) to detect abnormal behavior, so that you can address maintenance needs without an on-site service**. AI diagnosis checks its status and displays information about any issues with major components.³⁹

Cooling based on space size

Space Optimized Cooling

By setting the cooling area size, it delivers optimized cooling tailored to space and capacity*. It analyzes indoor and outdoor environments to adjust room size, ensuring efficient cooling with the right amount of air conditioning. Simply input the room size for optimized cooling.⁴⁰

Simply smart control

SmartThings & Voice Control

Control the temperature effortlessly. Using the SmartThings App* you can remotely control and monitor it with just a touch. You can also control it with your voice using a voice assistant**, such as Samsung Bixby***, Amazon Alexa**** or Google Assistant*****. It even suggests the best settings.⁴¹

Reliability

Smart updates

7 Years of Software Updates

Samsung's commitment to providing 7 years of software updates* ensures your appliances receive essential WiFi security patches and system updates, keeping them secure, reliable, and future-ready for years to come.⁴²

Peace of mind

Home Appliance Remote Management (HRM)

Get proactive prediction and diagnosis* with continuous monitoring, and resolve problems remotely. Home Appliance Remote Management (HRM)** fixes issues, offers usage tips and enables remote troubleshooting to help avoid service visits. Prevent surprise breakdowns and enjoy long-lasting reliability.⁴³

Lasting peace of mind

10 Year Warranty

Enjoy peace of mind knowing that your air conditioner will deliver a long-lasting performance – guaranteed! Its inverter compressor is designed to work efficiently for a long time. And this is backed up by a 10 year warranty*, so you can be sure that you will enjoy a hassle-free performance.⁴⁴

Lasting efficiency

DuraFin

Enhance the performance and efficiency of the Heat Exchanger. The DuraFin is made of a denser material and thicker in design and its improved coating has more corrosion resistance than previous models. So it passes the accelerated Sea Water Acetic Acid Test (SWAAT) for corrosion over 100 days*.⁴⁵

Lasting protection

DuraFin+

Stay comfortably cool for a long time. The DuraFin+ is made of corrosion-resistant material to protect the condenser from rusting, which helps to maintain the performance and efficiency of the Heat Exchanger. Its superb corrosion-resistance was proven in a Salt Spray Test (SST) for 500 hours*.⁴⁶

Long-lasting cooling

DuraFin Ultra

Protect the Heat Exchanger to maintain its performance. The DuraFin Ultra has anti-corrosive and hydrophilic layers that prevent rust from forming on the Heat Exchanger. Its superb corrosion resistance was proven in a Salt Spray Test (SST) of over 10,000 hours with no refrigerant leakage*.⁴⁷

Reliability

Stable and durable

Triple Protector Plus

Enjoy a long-lasting performance in challenging environments. Triple Protector Plus technology prevents damage from power surges and fluctuating electrical currents, without a separate voltage stabilizer*. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.⁴⁸

Corrosion-resistant

Coated Copper Tube*

Enjoy a long-lasting and consistent performance. The Heat Exchanger’s coated copper tubes have 7.5x better corrosion resistance*, protecting it against harmful environmental conditions, like dust and pollutants. So the indoor unit will work reliably for a long time and needs less maintenance.⁴⁹

Stay cool when hot

Cool Even at 58°C

Stay cool in extremely hot weather. The Samsung air conditioner will continue cooling inside your home even when the outside temperature reaches up to 58°C (136°F)*. So you can feel comfortable all year round, even in the scorching summer heat.⁵⁰

Stay warm when cold

Max Heat

Stay comfortably warm all year round even in extremely cold conditions. Max Heat ensures that the air conditioner provides a 100% heating performance when it is as low as -20°C* outside. It will even continue working reliably and heat your home effectively in freezing temperatures of -30°C**.⁵¹

Design

Seamless Design

Seamless Grid Design

Seamlessly blending with the repetitive grids, and planes of your space, it becomes an integral part of the environment. The Essential White Color with a patina texture adds an elegant, warm touch, while the Soapstone Charcoal, with its softly matte finish and subtly shiny details, completes a sophisticated and refined aesthetic.

Buy direct. Get more.

Earn Points with Samsung Rewards

Learn more

Samsung Care+

Shop for Samsung Care+ for your Galaxy device, TV, or Digital Appliance today.

Learn more

Official Warranty

Enjoy extra peace of mind with the official warranty.

Learn more

0% Installment Plans

Spread the cost at 0% interest for up to 12 months using select credit cards.

Learn more

Specifications

Net Dimension (Outdoor, WxHxD, mm)

790*548*285 mm
Capacity (Cooling, kJ/h)

10600 kJ/hW
Net Weight (Indoor, kg)

9.6 kg
Electrical Data

1 / 220-240V~/ 50/60Hz

Capacity (Cooling, kJ/h)

10600 kJ/hW
Capacity (Cooling, Min - Max, kJ/h)

4220 - 13715 kJ/hW

Noise Level (Indoor, High/Low, dBA)

39/20 dBA
Noise Level (Outdoor, High/Low, dBA)

48 dBA

Power Source(Φ/V/Hz)

1 / 220-240V~/ 50/60Hz
Power Consumption(Cooling, W)

680 W
Operating Current(Cooling, A)

3.6 A

Net Dimension (Indoor, WxHxD, mm)

820*299*230 mm
Net Dimension (Outdoor, WxHxD, mm)

790*548*285 mm
Net Weight (Indoor, kg)

9.6 kg
Net Weight (Outdoor, kg)

27.1 kg

Piping Length (Max, m)

15 m
Piping Height (Max, m)

8 m
SVC Valve (Liquid (ODxL))

6.35
SVC Valve (Gas (ODxL))

9.52
Moisture Removal (l/hr)

1.14 l/hr
Air Circulation (Cooling, ㎥/min)

10.1 ㎥/min
Refrigerant (Type)

R32
Refrigerant (Charging, tCO2e)

0.40 tCO2e
Low Ambient (Cooling, ℃)

16~46 ℃
Outdoor Unit (Compressor Type)

BLDC
Outdoor Unit (Anti-Corrosion Fin)

Yes

WindFree Cooling

Yes
Air Direction Control (Up/Down)

Auto
Air Direction Control (Left/Right)

Auto
Air Flow Control Step (Cool/Fan)

5/4

PM 1.0 Filter

No
Tri Care Filter

No
4-in-1 Care Filter

Yes
Easy Filter Plus (Anti-Bacteria)

No
Copper Anti-bacterial Filter

Yes
Auto Clean (Self Cleaning)

Yes

SmartThings

Yes
AI Auto Cooling

Yes
Motion Detect Sensor

Yes
Freeze Wash

Yes
Beep On/Off

Yes
24-Hour Timer

Yes
Auto Restart

Yes

Auto Mode

Yes
Fast Cool

Yes
Dry Comfort

Yes
Good Sleep

Yes
Eco Mode

Yes
Dehumidification

Yes
Fan Mode

Yes
Quiet

Yes

WiFi Embedded

Yes

SmartThings App Support

YES

User manual & downloads

User Manual

ver 1.0 | 14.56 MB

Jan 07. 2026

ENGLISH

Download

See more content

Solutions & Tips

Product support

Find answers the question you have about the product

Product support

Get the most from Samsung device and services.

Learn more

Live Chat

See how products work and get advice on which models fit your needs.

Learn more

1. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Based on internal testing on the AR70H12CAAWNER compared with the AR12TXCAAWKEU old model - Installation area of 326㎥ (positioned at 2m height) at 35℃, standard outdoor cooling condition. - Distance of airflow reach measured during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
2. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Based on internal testing on the AR70H12CAAWNER compared with the AR12TXCAAWKEU old model - Installation area of 326㎥ (positioned at 2m height) at 35℃, standard outdoor cooling condition. - Distance of airflow reach measured during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
3. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Based on internal testing on the AR70H12CAAWNER compared with the AR12TXCAAWKEU old model - Installation area of 326㎥ (positioned at 2m height) at 35℃, standard outdoor cooling condition. - Distance of airflow reach measured during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
4. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Based on internal testing on the AR70H12CAAWNER compared with the AR12TXCAAWKEU old model - Installation area of 326㎥ (positioned at 2m height) at 35℃, standard outdoor cooling condition. - Distance of airflow reach measured during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
5. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Based on internal testing on the AR70H12CAAWNER compared with the AR12TXCAAWKEU old model - Installation area of 326㎥ (positioned at 2m height) at 35℃, standard outdoor cooling condition. - Distance of airflow reach measured during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
6. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Based on internal testing on the AR70H12CAAWNER compared with the AR12TXCAAWKEU old model - Installation area of 326㎥ (positioned at 2m height) at 35℃, standard outdoor cooling condition. - Distance of airflow reach measured during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
7. * The testing was conducted in Samsung’s 132m² residential environment laboratory at a temperature of 35°C/24°C (dry bulb/wet bulb, KS C 9306: air conditioner). Results provided to and interpreted by Intertek, comparing the power consumption between AI energy mode on and off in AI comfort mode of AR07D9181HZN model. Actual savings may vary by usage patterns and environment and the set temperature may increase by up to 2 degrees. Requires the use of the SmartThings App and a Samsung account. Go to feature
8. * Motion Wings consist of two outer blades (top and bottom) and one inner blade (middle).** Based on internal testing on the AR70H12CAAWNEU model compared with AR12TXCAAWNEU.*** The blade motion range has been expanded from 30~80°(45°) to front 0~90° and bottom -70~0°. Go to feature
9. * ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) defines “Still Air” as air currents at speeds below 0.15m/s that lack the presence of cold drafts. Go to feature
10. * It can be used when linking a Samsung smartphone with Samsung software One UI version 4.0 or later and a wearable device that supports Wear OS: Galaxy Watch 4 or later, Fit 3 or later, Galaxy Ring.** You must download the Samsung SmartThings App on the wearable device and connect the air conditioner to your home Wi-Fi. You can set it in the Samsung Watch App's 'Sleep well with smart devices' or Settings > Mode and routine > Sleep menu, and you must wear the device while sleeping. SmartThings is optimized for Samsung smartphones and Galaxy Watches, and some functions may be limited when used on smartphones and watches from other manufacturers.*** Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Go to feature
11. * Based on internal testing on the AR70H12CAAW/EU model in accordance with Samsung protocols. Results provided to and interpreted by Intertek, comparing the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode. Results may vary depending on the actual usage conditions. Go to feature
12. * Based on internal testing on the AR12TXCAAWKNEU model. WindFree™ mode generates only 23dB of noise, compared to 26dB with the Samsung conventional model. Go to feature
13. * Based on internal testing in accordance with Samsung protocols. Results provided to and interpreted by Intertek. Removes 99% of certain bacteria, including Staphylococcus aureus and Escherichia coli. Results may vary depending on environmental factors and individual use.** Based on internal testing. Removes 50% of 0.3µm size dust particles in a 30m² indoor area with 10 minutes operation per hour. Tested on the AR13TYAAAWKNST model. Results may vary depending on environmental factors and individual use.*** It can only be set using a mobile App.**** The PM 1.0 Filter line-up may differ between regions. Go to feature
14. * It can only be set using a mobile App.** Based on internal testing. The set was installed in a 30㎥ chamber and tested for cleaning performance according to the CAC certification test method. Once every 3 months in 1year, it was soaked in water with a neutral detergent for 30 minutes and then rinsed with water.*** The PM 1.0 Filter line-up may differ between regions. Go to feature
15. * Tested by Intertek for anti-bacteria properties, the Chungbuk National University (Korea), witnessed by Intertek, for anti-virus properties, the Japan test lab (ITEA) for anti-allergy properties and the Korea test lab (KITECH) for PM2.5 dust collection. The filter performance is based on testing of the filter material and not a specific model. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use. Go to feature
16. * Tested by Intertek. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use. Go to feature
17. * This the test results verified by Intertek, an international testing and inspection agency, and actual results may vary depending on the usage environment.- Test method: Bacteria were applied to the surface of the heat exchanger, and the WashClean function was activated. The reduction rate was calculated by averaging the values measured from three samples.Test bacteria: Escherichia coli (Escherichia coli ATCC 8739), Staphylococcus aureus (Staphylococcus aureus ATCC 6538)** It is available to set up in the SmartThings app, which is supported on Android and iOS devices. *** Notifications are available when connected to Wi-Fi and a Samsung account are required. Go to feature
18. * Notifications are available when connected to Wi-Fi and a Samsung account are required. Go to feature
19. * The Auto Clean time will vary depending on the condition of the air conditioner.** The Auto Clean while away can be set up through the SmartThings App. Go to feature
20. * A Wi-Fi connection is required. Only available when AI Auto Cooling mode is selected. Go to feature
21. * You can customize settings through SmartThings.** You need to restart with remote or SmartThings app after power is turned off. Go to feature
22. * Based on internal testing on the AR70H12CAAWNER compared with the Samsung conventional AQ12EASER model - Installation area of 68㎥ at 35℃, standard outdoor cooling condition. - Time taken for indoor temperature to drop from 33℃ to 25℃ in Max mode. - values may vary depending on the actual testing conditions and environment. ** Tested on the AR70H24C1AWNER model during cooling operation, at maximum airflow and the highest blades position setting. Go to feature
23. * Based on EN14825 standards and internal testing results; actual performance may vary depending on conditions. Fixed-speed model AQ09TSLXEA(power consumption of 374 kWh) vs Inverter new model AR70H09CAAW/EU(power consumption of 90 kWh). Go to feature
24. * Based on internal testing - values may vary depending on the actual testing conditions and environment. -Installation area of 68㎥ at 7℃, standard outdoor cooling condition.-Time taken for indoor temperature to rise from 9℃ to 20℃ in Max mode.-Test models: AQ12EASER(older model), AR70H12CAAWNEU(new model). Go to feature
25. * Based on internal testing. Generates a 40% reduction in the 1kHz noise band, which is the weakest level of sound that humans are sensitive to. Go to feature
26. * 85L model only.** Based on internal testing compared to Samsung’s existing outdoor unit. Go to feature
27. * GWP by refrigerant: R32 = 675, R22 = 1810, R410A = 2090. Go to feature
28. * Based on internal testing comparing the Dry Mode and Dry Comfort Mode on the AR50F12C1AH/EU model. Tested in a 66m² chamber at 27°C(DB)/24°C(WB) over a 2 hour period and the power consumption compared when the relative humidity is below 60% for each Dry mode.=> Tested by Intertek, based on testing comparing the conventional Dry Mode and new Dry Comfort Mode on the AR80F07D21WN model. Tested in a 68㎥ chamber at 27°C(DB)/24°C(WB) over 2 hours and the power saving rate is obtained by comparing each mode integrated power under the condition of maintaining indoor relative humidity below 60%, which is the comfortable humidity level. Go to feature
29. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Go to feature
30. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** The Welcome & Away Care (energy saving notification) function uses smartphone Geofencing and GPS to determine whether you are close to your personal set location, and its performance may vary depending on the actual usage environment and the cooling function of each model. Go to feature
31. * It is available to set up and check in the SmartThings app, which is supported on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Go to feature
32. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. SmartThings Air Care feature may vary by region and is currently available in the following countries: Korea, USA, UAE, Chile, Poland, Australia, Indonesia. Go to feature
33. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Go to feature
34. * Only available on certain models.** Operates safely using either 127V or 220V power outlets. Go to feature
35. * A Wireless Auto Ampere Control+ kit is required to use this function. This function is available to use with SmartThings.** When using the Auto Ampere Control+ mode, the cooling and heating performance may be weakened so that the operating current does not exceed the set current, depending on the indoor/outdoor environment.*** One or more of the Wireless Auto Ampere Control+ kits can be installed to suit the size and environmental conditions of the installation area. Go to feature
36. * Only available when the air conditioner is in Cooling mode, but not in WindFree™ mode.** Based on internal testing on the AR24AY4YATAN compared with Samsung conventional models, measuring the power consumption of the Normal mode vs. 5-step Convertible Cooling mode. Tested based on the Cooling Standard (Out 35℃ DB / 24℃ WB, In 27℃ DB / 19℃ WB). The results may vary depending on the model, environmental factors and individual use. Go to feature
37. * Only available when using Samsung Galaxy smartphones. A Wi-Fi connection and a Samsung account are required.** The air conditioner must be connected to the Wi-Fi network and registered in the SmartThings App. Only certain models of air conditioners manufactured in 2024 or later are supported.*** The automatic activation time varies depending on the user environment.**** The controllable functions of compatible devices may vary depending on their specification or the usage environment, especially B2B products and some special models manufactured in 2024. Go to feature
38. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Go to feature
39. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** Service callouts will occasionally be required and may incur extra repair costs. Go to feature
40. * You can start optimized cooling by setting your room size with SmartThing app(Product plugin menu-Settings-Adjust room size). Go to feature
41. * Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** A Wi-Fi connection is required*** Bixby is Samsung’s brand of Internet of Things (IoT) voice assistant. Bixby service availability may vary depending on country. Bixby recognizes selected languages and certain accents/dialects. The user interface may change and differ by device. The availability of Bixby features and content providers may vary depending on the country/carrier/language/device model/OS version. A Samsung account log-in and data network connection (Wi-Fi or data network) are required.**** Amazon, Alexa and all related logos are trademarks of Amazon.Com, Inc. or its affiliates.***** Google is a trademark of Google LLC. Go to feature
42. * Available on eligible smart home appliances equipped with a Wi-Fi module and released in 2024 or later. Software update support may be limited by hardware capabilities (e.g., memory capacity or chip performance). Go to feature
43. * Includes both fault and non-fault diagnosis. The fault diagnosis is based on an error code on the product while the non-fault diagnosis is a perceived defect that occurs as a usability issue without generating an error code. Certain issues can be detected by AI based on the operational data, regardless of whether it generates an error code or not.** Only available on SmartThings-supported models produced after 2018. Requires the SmartThings App, which is available on Android and iOS devices. A Wi-Fi connection and a Samsung account are also required. Go to feature
44. * The 10 year parts warranty is only applicable to the inverter compressor. Go to feature
45. * Based on internal testing on the AR13TYHYBWKNST model compared with the Samsung conventional model AR18JRFNFWK. Go to feature
46. * Based on internal testing by applying pressure (42kgf/cm2) using nitrogen for 1 minute after a Salt Spray Test (SST) of over 500 hours, in accordance with ASTM B117 and KS D(ISO 9227). Go to feature
47. * Based on internal testing by applying pressure (42kgf/cm2) using nitrogen for 1 minute after a Salt Spray Test (SST) of over 10,000 hours, in accordance with ASTM B117 (ISO 9227). Go to feature
48. * Based on internal testing on the AR12TXEAAWKNEU model compared with the Samsung conventional model AS18FCMID. Go to feature
49. * Based on testing by TUV Rheinland in accordance with the ASTM G85 Annex A3 modified-SWAAT test, compared to the non-coated copper tube. The level of corrosion resistance is based on the reduction rate of the copper tube’s thickness. The original thickness of each copper tube was 206㎛. After 40 days, the coated copper tube was 186㎛ thick and the non-coated copper tube was 52㎛ thick. Go to feature
50. * Based on internal testing and certified by Intertek. Go to feature
51. * Based on internal testing on the AR**CSDACWKXCV model. Test conditions: Indoor (DB 21.1°C / WB 15.6°C), Outdoor (DB -20°C).** Based on internal testing on the AR**CSDABWKXCV model. Test Conditions: Indoor (DB 21.1°C / WB 15.6°C), Outdoor (DB -30°C). Go to feature

All specifications and descriptions provided herein may be different from the actual specifications and descriptions for the product. Samsung reserves the right to make changes to this document and the product described herein, at anytime, without obligation on Samsung to provide notification of such change. All functionality, features, specifications, GUI and other product information provided in this document including, but not limited to, the benefits, design, pricing, components, performance, availability, and capabilities of the product are subject to change without notice or obligation. The contents seen on or with the product are oftentimes simulated and are for demonstration purposes only.

Bespoke AI WindFree™ Wall-mount Air Conditioner Radar Sensor 1.0HP
