Specs

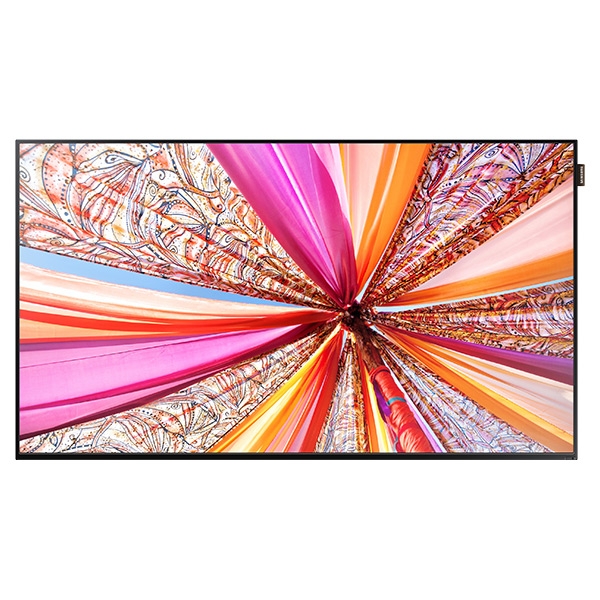

DH Series Digital Signage (DH55D)
Specification
DH Series Digital Signage (DH55D)
Series Name
DH
Display
55"
Slim Direct-LED Backlight
1920x1080
(16:9)
700 nits
5000:1
178°/178°
8ms
Connectivity
VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack
DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack
RS232C(In/Out) thru stereo jack, RJ45
IR, Ambient Light
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
86W / 175W
< 0.5W
Environmental Conditions
0℃~ 40℃
10~80%
Features
Hardware: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker, WiFi Module Embedded, Allshare Screen Mirroring, SD Card Slot
Software: Magic Clone(to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update,
Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch
Yes
Yes
Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS
400 x 400mm
Yes
Dimensions
48.4" X 27.8" x 2"
53.1" X 31.9" x 5.8"
9.5mm (Top/Side), 15.0mm (Bottom)
Weight
34 lb.
43 lb.
Service
3 Years On-Site (Parts / Labor / Backlight)
Included in Box
Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
WMN4270SD, WMN250MD
STN-L4055AD, STN-L4655E
CY-TD55
PIM-BD7, PIM-BQ7P
Green Management
Yes
Yes
EMC
Packing Materials Recyclable
