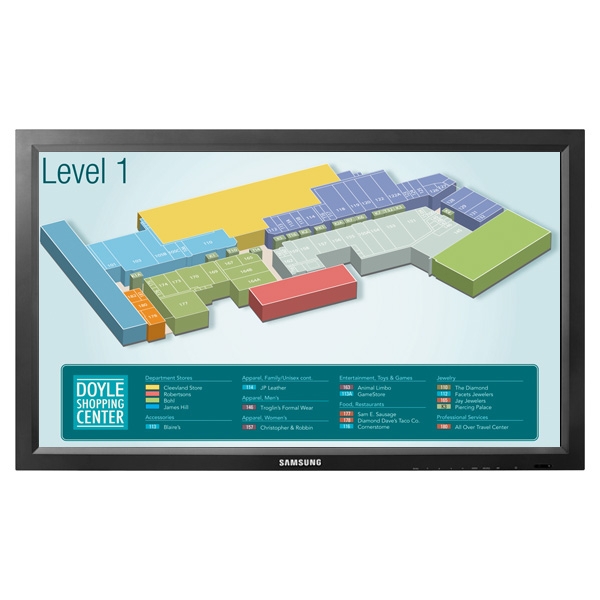

FP Series Digital Signage (460FPN-2)
Product info
Manual, downloads, specs and register
FP Series Digital Signage (460FPN-2) edit- FP Series
- FP Series
- Model
- 400FP-2
- 400FP-3
- 400FPN-2
- 460FP-2
- 460FP-3
- 460FPN-2
- 650FP
- 650FP-2
- MP Series
- Model
- 320MP
- 320MP-2
- 320MP-3
- 400MP
- 400MPN
- 460MP
- 460MPN
- MX Series
- Model
- 320MX
- Other Series
- Model
- 320P
- 323T
- 400P
- 403T
- 460I
- 460I-C2
- 460I-C3
- 460I-K
- 460I-K2
- 460I-S
- 520LD
- P Series
- Model
- 460P
- Plasma Series
- Model
- P50FP
- P50HP
- P63FP
- P64FP
- [SELECT]
Register
Gain access to exclusive offers and perks, apps and services, world-class customer support and more.
register nowManuals
JUN 01,2009
Quick Guide
ver. 1.0, SPANISH
1.62 MB
JUN 01,2009
Quick Guide
ver. 1.0, ENGLISH
1.65 MB
JUN 01,2009
Quick Guide
ver. 1.0, KOREAN
1.69 MB
MAY 20,2009
User Manual
ver. 1.0, SPANISH
3.66 MB
MAY 18,2009
User Manual
ver. 1.0, ENGLISH
3.57 MB
MAY 18,2009
User Manual
ver. 1.0, KOREAN
3.56 MB
Downloads
MAY 26,2009
VGA(Graphics)
ver. 1.0 Win 98/ME/2K/XP/X64/Vista MULTI LANGUAGE
If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64
0.05 MB
Specs
FP Series Digital Signage (460FPN-2)
SEE FULL SPECS
Specification
FP Series Digital Signage (460FPN-2)
Display
Screen Size
The diagonal measurement of a TV screen or monitor, from corner to corner.
46"
Resolution
Fixed number of horizontal scan lines on a TV. P (Progressive) means scan lines are drawn in sequence.
1920 x 1080
Aspect Ratio
Ratio of the width of an display to its height. 16:9 is the universal standard for high-definition display.
16:9
Brightness
450
Contrast Ratio (Typical)
Difference in light intensity between brightest color (white) & darkest (black). Higher ratio means more contrast.
4000:1
Contrast Ratio (Dynamic )
Difference in luminosity between brightest color (white) & darkest (black) over time. Higher ratio means more contrast.
40,000:1
Viewing Angle (H/V)
Degrees from side to side (and above to below) from which a screen can be viewed without loss of quality.
178°/178°
Response Time
Speed at which pixels can change color. Lower response times mean better motion image reproduction.
8ms
Power
Power Supply
AC 100 - 240V (+/- 10%), 50/60 Hz
Power Consumption (Typical/Max)
330
Power Consumption (Standby)
1W/5W (Energy Saving ON)
Features
Special
Lamp Error Detection, Temperature
Multimedia Speakers
Additional speakers that supplement or enhance the sound generated from a monitor's internal speaker.
10W x 2
Dimensions
Without Stand (W x H x D)
Width, height and depth of the display without the stand, measured in inches (in.).
43.4" x 28.3" x 4.9"
Packaging (W x H x D)
Width, height and depth of the display including the shipping container, measured in inches (in.).
48.0" x 30.7" x 12.2"
Green Management
RoHS Compliant
RoHS Compliant
Emission Standard
Yes
Mechancial Specs
VESA Mount
600 x 400mm
Operation
Operating Temperature
Climate range in which a display can operate.
50-104° F
Operating Humidity
Minimum and maximum air moisture in which a display will operate, as measured in percentage.
10 – 80%
