Specs

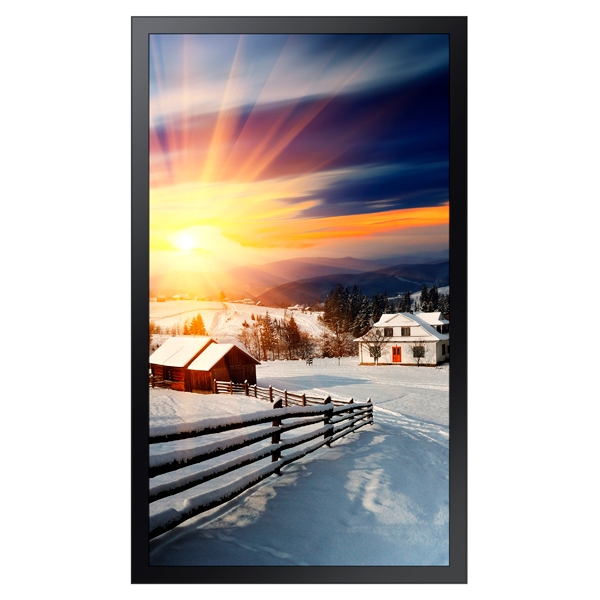

OH-F Series Digital Signage (OH85F)
Specification
OH-F Series Digital Signage (OH85F)
Series Name
OH85F
Display
85
60Hz D-LED Local Dim. BLU
3840x2160
16:9
2,500 cd/m2
3,000:1
178/178
8ms
Connectivity
RGB: DP 1.2 (2) @UHD 60Hz
VIDEO: HDMI 1.4 (2) @UHD 30Hz, HDBaseT
HDCP: HDCP 1.4
USB: 'USB 2.0 (1) (only for FW update)
AUDIO: Stereo Mini Jack
RS232C (In), RJ45, HDBaseT
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Max: 1600Wh
Less than 0.5W
Features
Slim High Brightness, IP56 Certified, Heat Exchanger, IP56 Certified for Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installing, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, FHD 4-PBP, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)
N/A
N/A
Yes
N/A
Yes
Dimensions
2004 x 1185 x 120 mm
2175 x 1383 x 495 mm
62 / 62 / 62 / 62 mm
Weight
163kg
211kg
Included in Box
Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries
Green Management
FCC (USA) Part 15, Subpart B Class A
Operation
~30℃ ~ 50℃
10~80%
