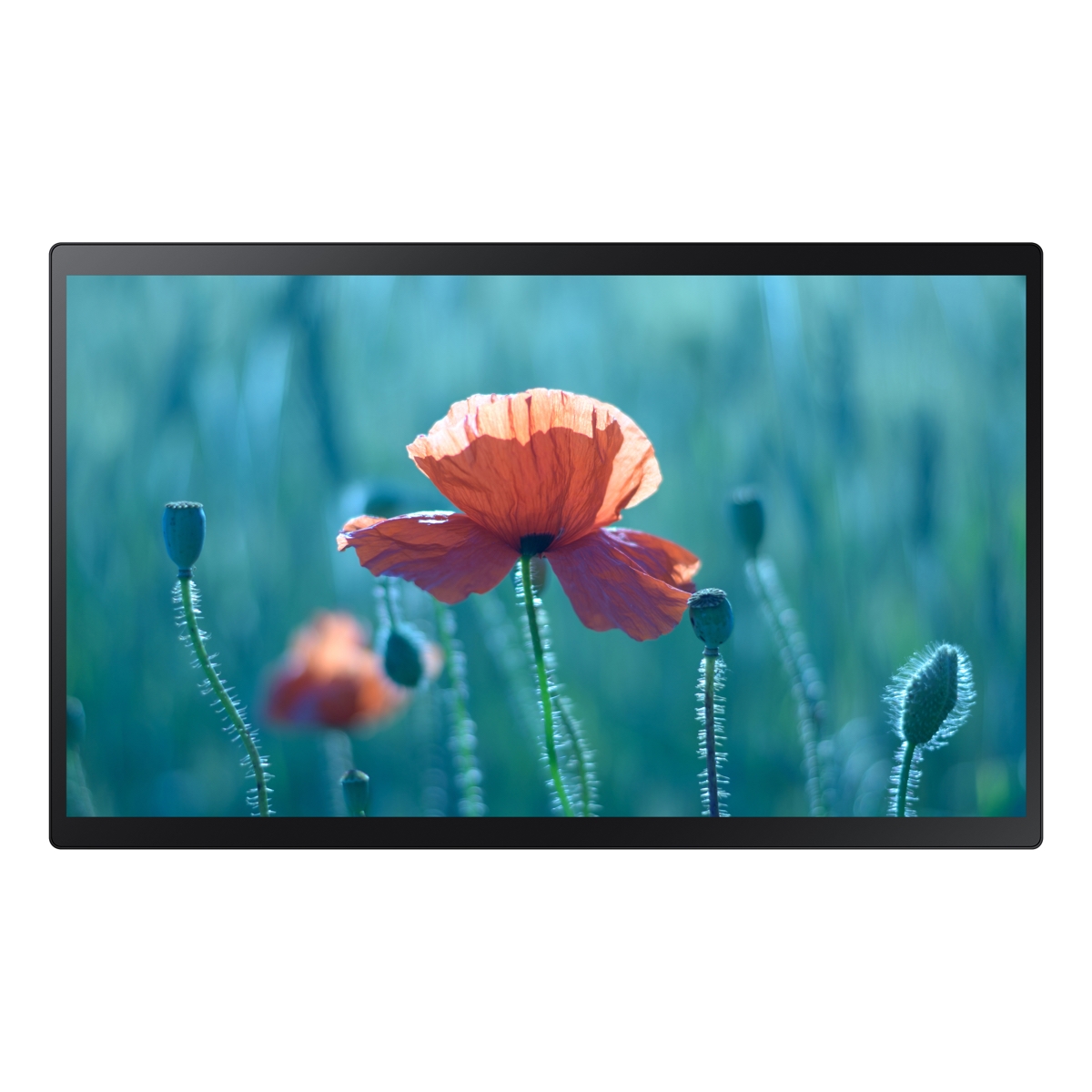

QBR-T Series Digital Signage (QB24R-T)
Specification
QBR-T Series Digital Signage (QB24R-T)
Series Name
QBR-T Series
Display
24"
Edge LED
1920 x 1080
250 nit (w/o Glass)
1000:1 (w/o Glass)
MEGA
178/178
14ms(Typ.)
16/7
Connectivity
VIDEO: HDMI 1.4 (1)
HDCP: HDCP 2.2
USB: USB 2.0 (1)
AUDIO: Stereo Mini Jack
RS232C(in) thru stereo jack, RJ45
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Typical: TBD W/h Max: TBD W/h
0.5
Environmental Conditions
0℃~ 40℃
10~80%
Features
Small Touch Signage Display, Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
HARDWARE: Temperature Sensor, Pivot Display, Clock Battery (168Hrs Clock Keeping), Built-in Speaker (5W 1CH), IP5x Rating, Wi-Fi/BT, 10 Point Touch (Max)
SOFTWARE: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug&Play (Initial Setting)
Yes
Yes
Yes
Built-in Speaker (5W)
Yes
Internal Player
Cortex A72 1.7GHz Quad-Core CPU
L1 Instruction Cache: 48KB
L1 Data Cache: 32KB
L2 Cache: 2MB
1.7GHz
2.5GB
LPDDR4 1.5GHz 64bit
Graphic Resolution: 1920 x 1080
Output Resolution: 3840 x 2160 (Scale Up From Graphic Processing Result)
8GB (3.88GB Occupied by O/S, 4.12GB Available)
Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9
Audio Decoder: AC3 (DD), MPEG
USB 2.0
Tizen 4.0 (VDLinux)
Dimensions
547.9 x 334.4 x 34.6 mm
620 x 419 x 122 mm
17.9mm (U/B), 9.4mm (L/R)
Weight
4 kg
5.2 kg
Accessories
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries, USB Cable
Mechancial Specs
100 x 100
