Specs

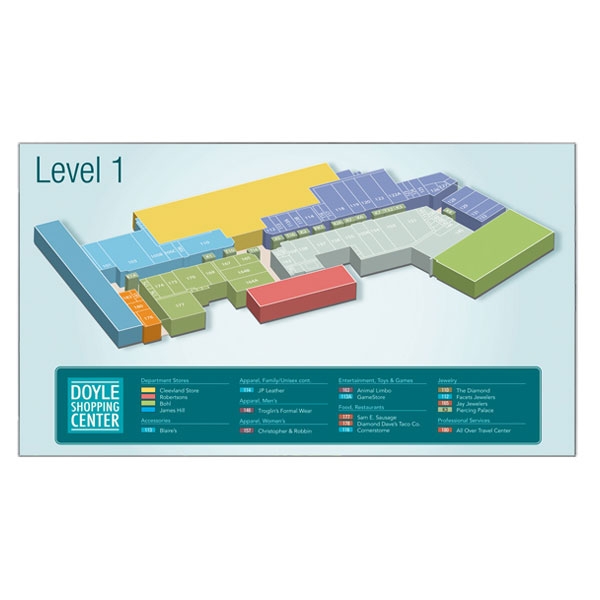

UD-A Series Digital Signage (UD46A)
Specification
UD-A Series Digital Signage (UD46A)
Series Name
Series UD
Display
46"
60Hz Direct-lit LED LCD
1920x1080
16:9
600 nit (Typical) / 700 nits (Max)
3000:1
178°/178° Viewing Angle (Horizontal/Vertical)
8ms
Connectivity
VGA (D-sub 15 pin), DVI-D, Display Port, Composite, HDMI (x2), Component (thru VGA port, adapter not included), RCA (L/R), Stereo Mini Jack
DVI-D (Loop out), Stereo Mini Jack
RS232C (in/out), RJ45
Attached
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
200 (Typical) / 220W (Max)
Less than 1W
Environmental Conditions
0°C - 40°C
10%~80% Non-Condensing
Features
Lamp Error Detection, Anti-Image Retention, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Built-in Video Wall processor (10x10), Portrait Orientation, Button Lock, Digital Daisy Chain, Smart Scheduling, Smart F/W update
SBB-A (optional slide-in module)
600 x 400mm
Dimensions
40.3” x 22” x 3.8”
45.7” x 27.8” x 11.6”
3.7mm (Top/Left), 1.8mm (Right/Bottom)
Included in Box
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries
Green Management
ENERGY STAR 5.0 (USA)
