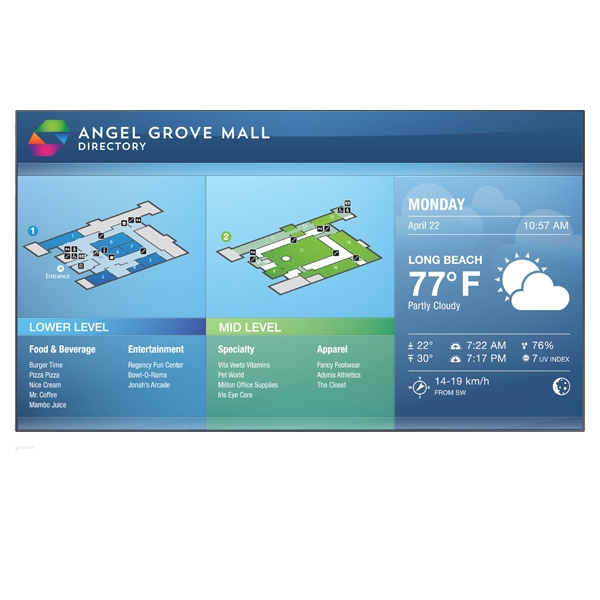

UD-C Series Digital Signage
Edit product modelmake selection
- UD-C Series
- UD-A Series
- Model
- UD46A
- UD55A
- UD55AN
- UD-B Series
- Model
- UD22B
- UD-C Series
- Model
- UD46C
- UD46C-B
- UD55C
- UD55C-B
- UD-D Series
- Model
- UD46D-P
- UD55D
- UD-E Series
- Model
- UD46E-A
- UD46E-B
- UD46E-C
- UD46E-P
- UD55E-A
- UD55E-B
- UD55E-P
- UD55E-S
- [SELECT]
Product info
Manual, downloads, specs and register
UD-C Series Digital Signage (UD46C-B) edit- UD-C Series
- UD-A Series
- Model
- UD46A
- UD55A
- UD55AN
- UD-B Series
- Model
- UD22B
- UD-C Series
- Model
- UD46C
- UD46C-B
- UD55C
- UD55C-B
- UD-D Series
- Model
- UD46D-P
- UD55D
- UD-E Series
- Model
- UD46E-A
- UD46E-B
- UD46E-C
- UD46E-P
- UD55E-A
- UD55E-B
- UD55E-P
- UD55E-S
- [SELECT]
Register
Gain access to exclusive offers and perks, apps and services, world-class customer support and more.
register nowManuals
SEP 25,2015
0.13 MB
APR 02,2013
6.16 MB
APR 02,2013
6.48 MB
APR 02,2013
6.19 MB
Downloads
Unfortunately, this information isn't currently available for this product.
Specs
UD-C Series Digital Signage (UD46C-B)
Specification
UD-C Series Digital Signage (UD46C-B)
Series Name
UD
Display
46"
60Hz (Direct-LED Backlight)
1920 x 1080
450 nits
3500:1
178°/178°
6.5ms
Connectivity
VGA (D-sub 15 pin), DVI-D, Composite, HDMI (x2), Component, Stereo Mini Jack
DVI-D (Loop out), Stereo Mini Jack
RS232C (In/Out), RJ45
Detachable Type (IR, Ambient)
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
120W/165W
<0.5W
Environmental Conditions
0°C - 40°C
10%~80%
Features
Auto Source Switching & Recovery, Lamp Error Detection, Anti-Retention (Haze 11%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Video Wall (10 x 10), Pivot Display, Button Lock, DVI Digital Daisy Chain, Smart Scheduling, Smart F/W Update, Clock Battery (80 hrs. Clock Keeping)
600 x 400mm
Yes
Dimensions
40.3" x 22.8" x 3.8"
45.7" x 27.8" x 11.6"
3.5mm (U/L), 2.0mm (R/B)
Weight
40.0 lb.
68.6 lb.
Service
3 Years On-Site (Parts/Labor)
Included in Box
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries
Optional Mount: WMN-4675MD
Optional Stand: MID-UD46FS
Optional Media Player: SBB-C, SBB-CD7, SBB-CQ7
