Television: Connect your TV to a Wired Network

Last Update date : Oct 26. 2020

Note: This help content is only applicable to the product purchased from Indian retailers. If you require help for the products purchased from US, Kindly visit Samsung US support section and for other countries, kindly contact your local Samsung Subsidiary.

Connect to a Wired Internet Network in New Series Smart TV?
1 Connect the Ethernet cable into the LAN port of the One Connect Box.
Television: Connect your TV to a Wired Network
2 Press the Home button on your One Remote.
Television: Connect your TV to a Wired Network

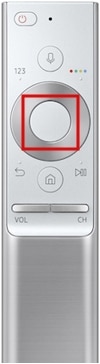

3 Using the Directional pad on your remote, navigate to and select Settings.
Television: Connect your TV to a Wired Network
4 Navigate to and select General and then Network.
Television: Connect your TV to a Wired Network
5 Select Open Network Settings.
Television: Connect your TV to a Wired Network
6 Select your desired Network Type. For this example, select Wired.
Television: Connect your TV to a Wired Network
7 Select OK from One Remote.
Connect to a Wired Internet Network in Old series Smart TV?

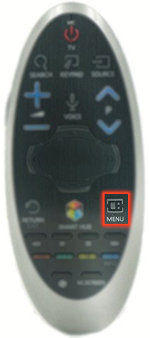

1 Press the MENU button.
Television: Connect your TV to a Wired Network

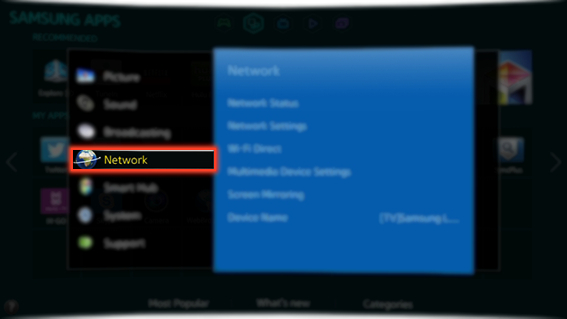

2 Select Network.
Television: Connect your TV to a Wired Network

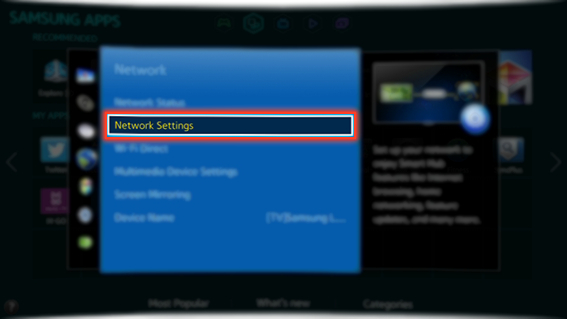

3 Select Network Settings.
Television: Connect your TV to a Wired Network

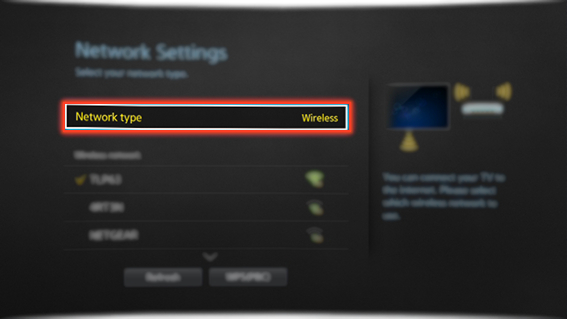

5 Select Network type.
Television: Connect your TV to a Wired Network

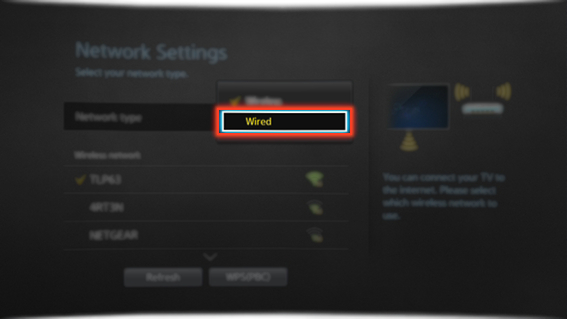

6 Set the Network type to Wired.
Television: Connect your TV to a Wired Network

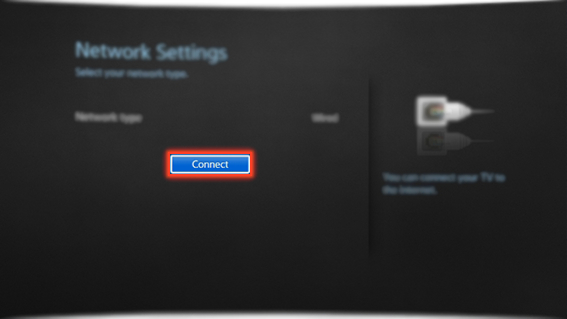

7 Select Connect. The TV will attempt to connect to an available network. Once it is successful, you will see a confirmation message.
Television: Connect your TV to a Wired Network

Note: If your wired network doesn't connect automatically. Please manually enter the network information when the connection fails or choose Stop.

8 Select Stop when the TV Attempts to connect to the network.
Television: Connect your TV to a Wired Network
9 Select IP Settings once the network connection has been interrupted.
Television: Connect your TV to a Wired Network
10 Select IP Setting.
Television: Connect your TV to a Wired Network
11 Select Enter manually.
Television: Connect your TV to a Wired Network
12 Select IP Address after the IP Setting has been changed to Enter manually.
Television: Connect your TV to a Wired Network
13 When the IP Address entry window appears, enter three digits into each field on the IP address line.
Television: Connect your TV to a Wired Network

NOTE: If the value has less than three digits, add leading zeroes.

14 After three digits have been entered in a field, the highlight automatically jumps to the next field i.e. Subnet Mask.
Television: Connect your TV to a Wired Network
15 Repeat the process for Subnet Mask, Gateway, and DNS Server.
Television: Connect your TV to a Wired Network
16 Select OK when done.
Television: Connect your TV to a Wired Network
17 The TV attempts to connect to the network again using the settings you entered. Once it has established the connection, it displays a confirmation message. Select OK.
Television: Connect your TV to a Wired Network
