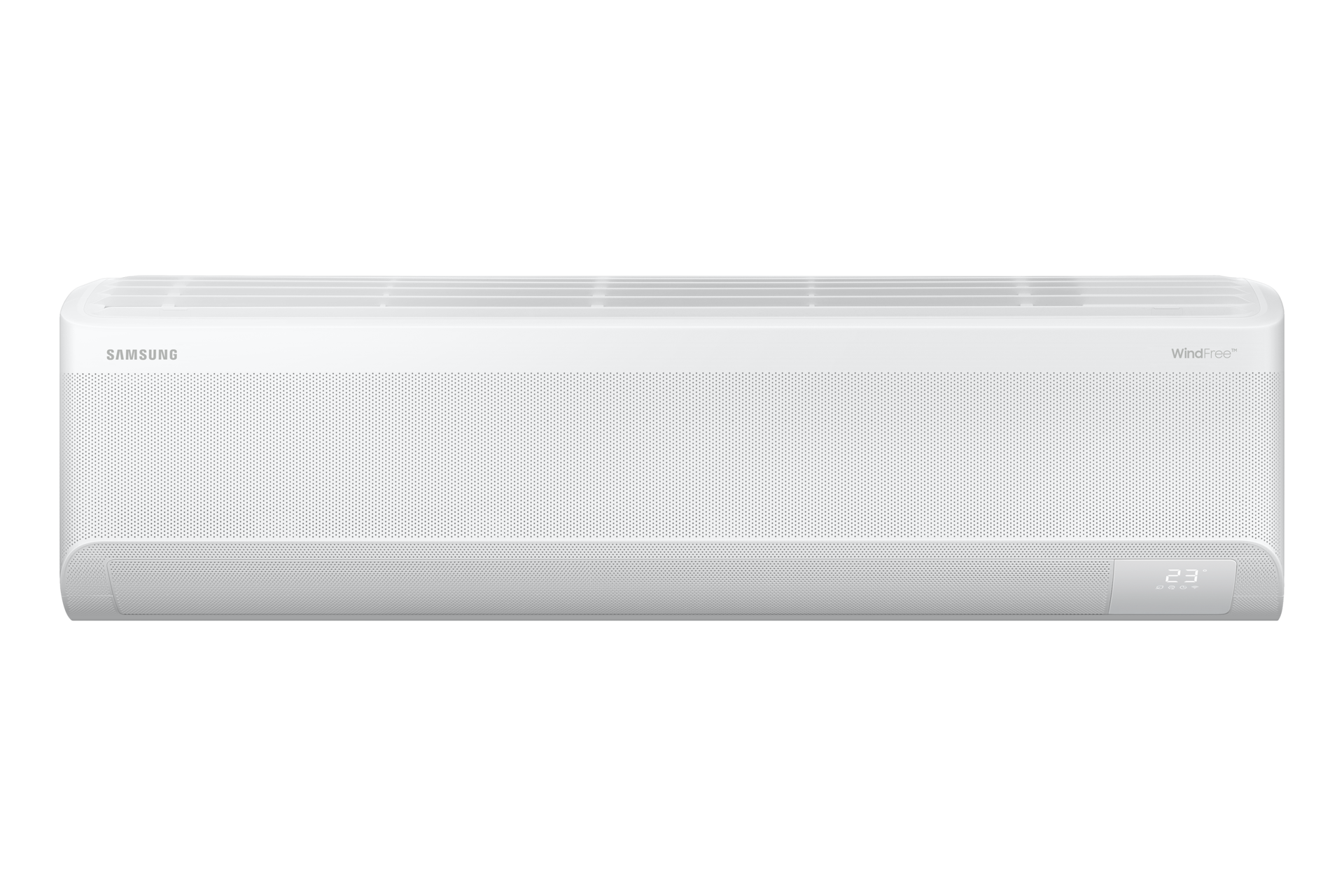

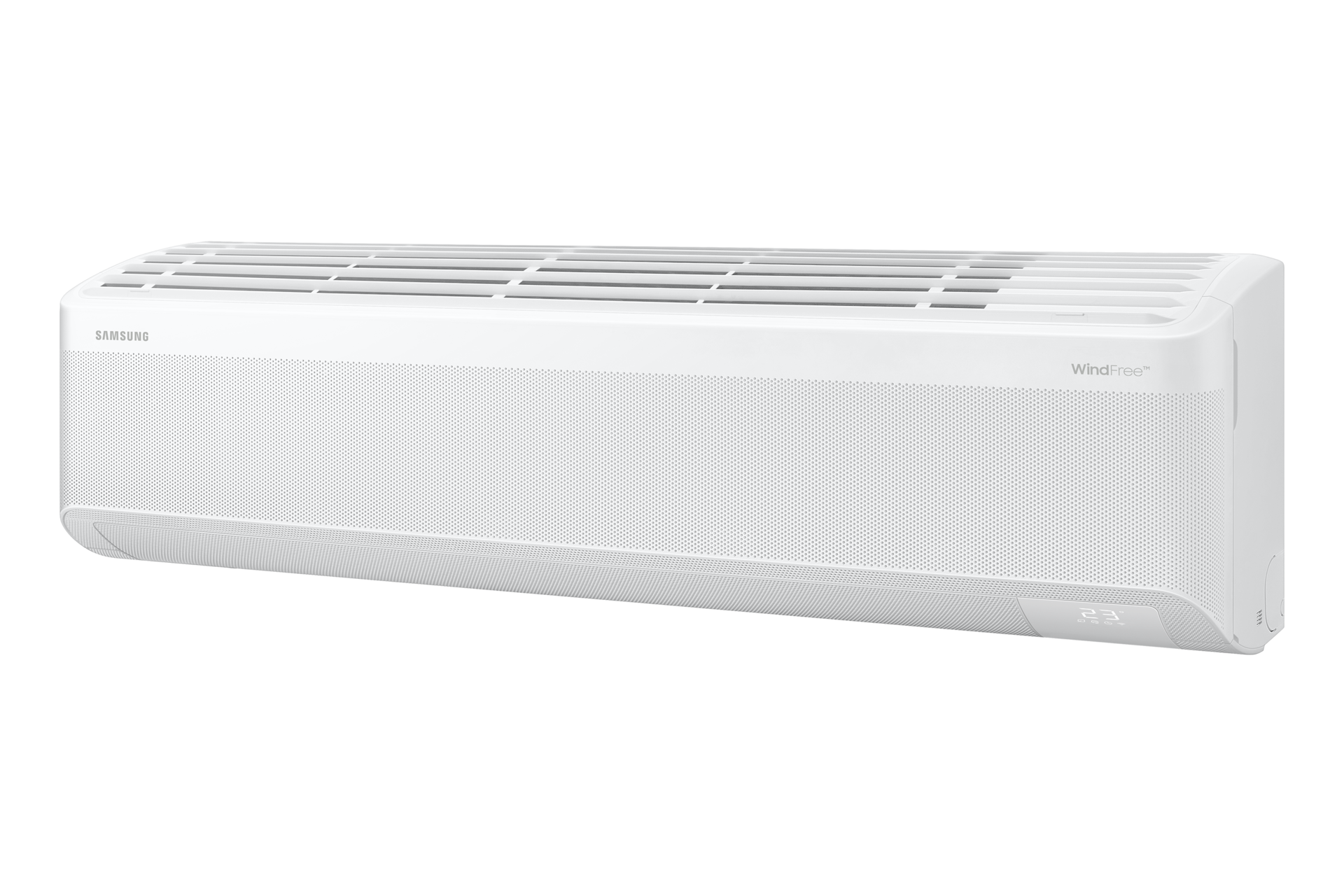

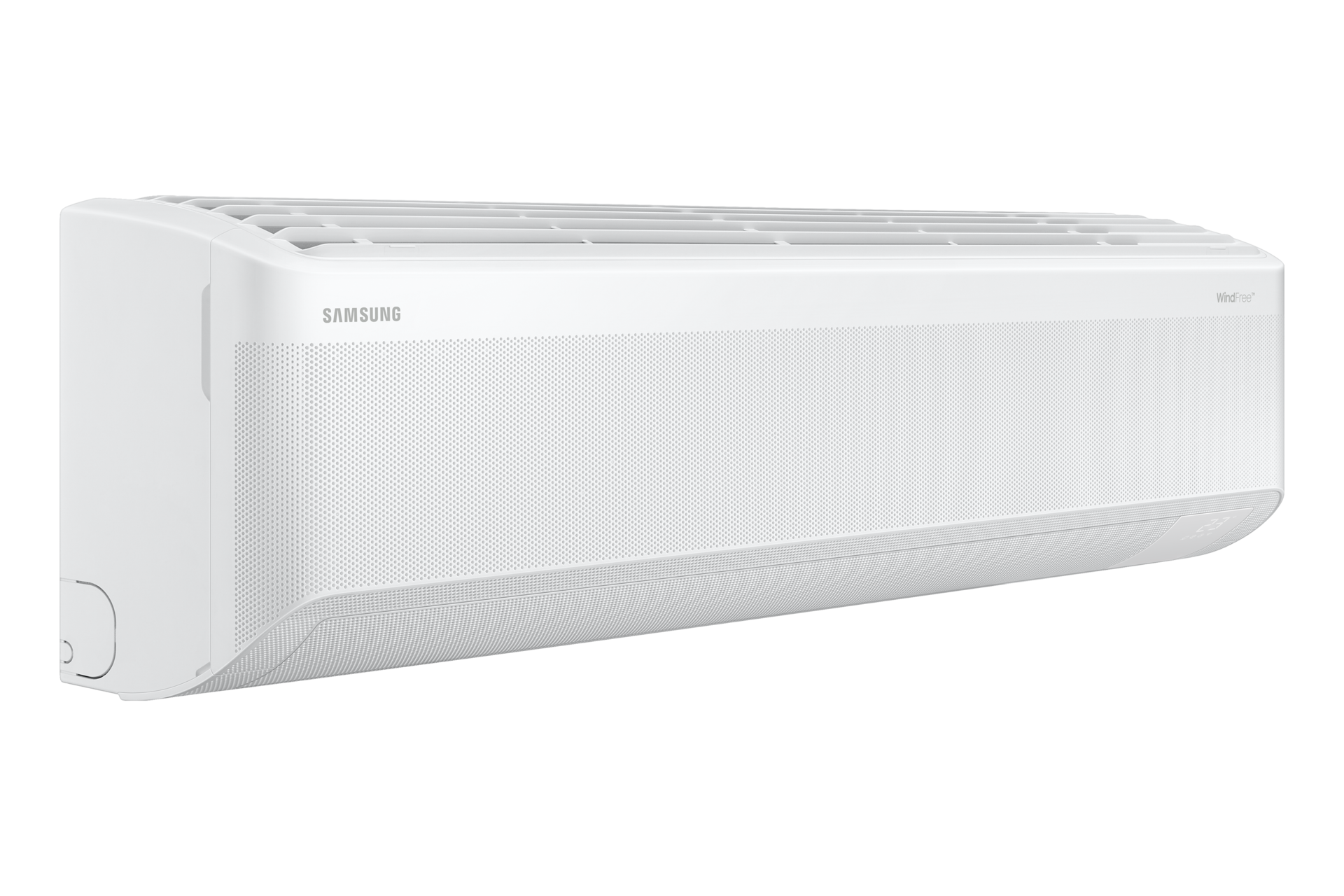

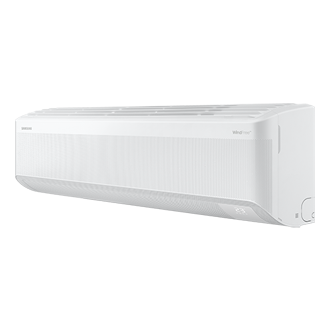

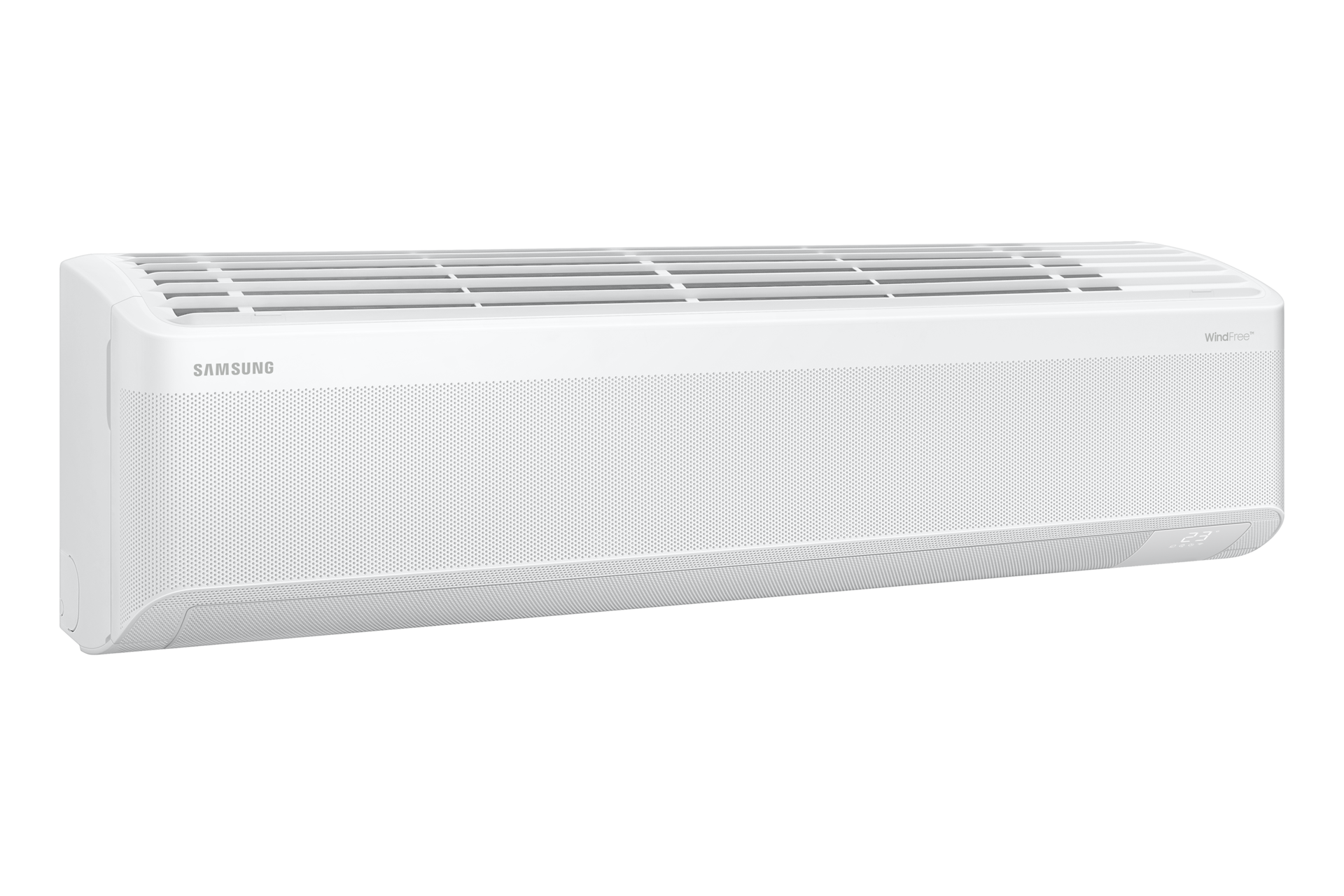

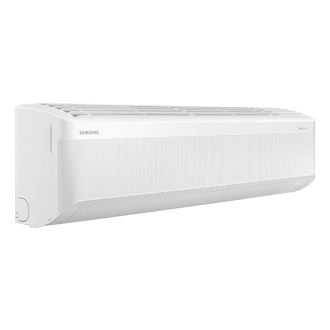

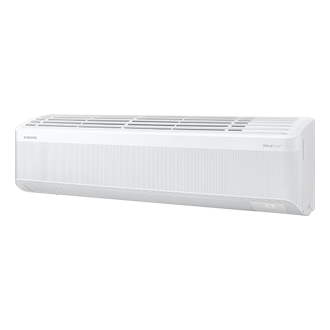

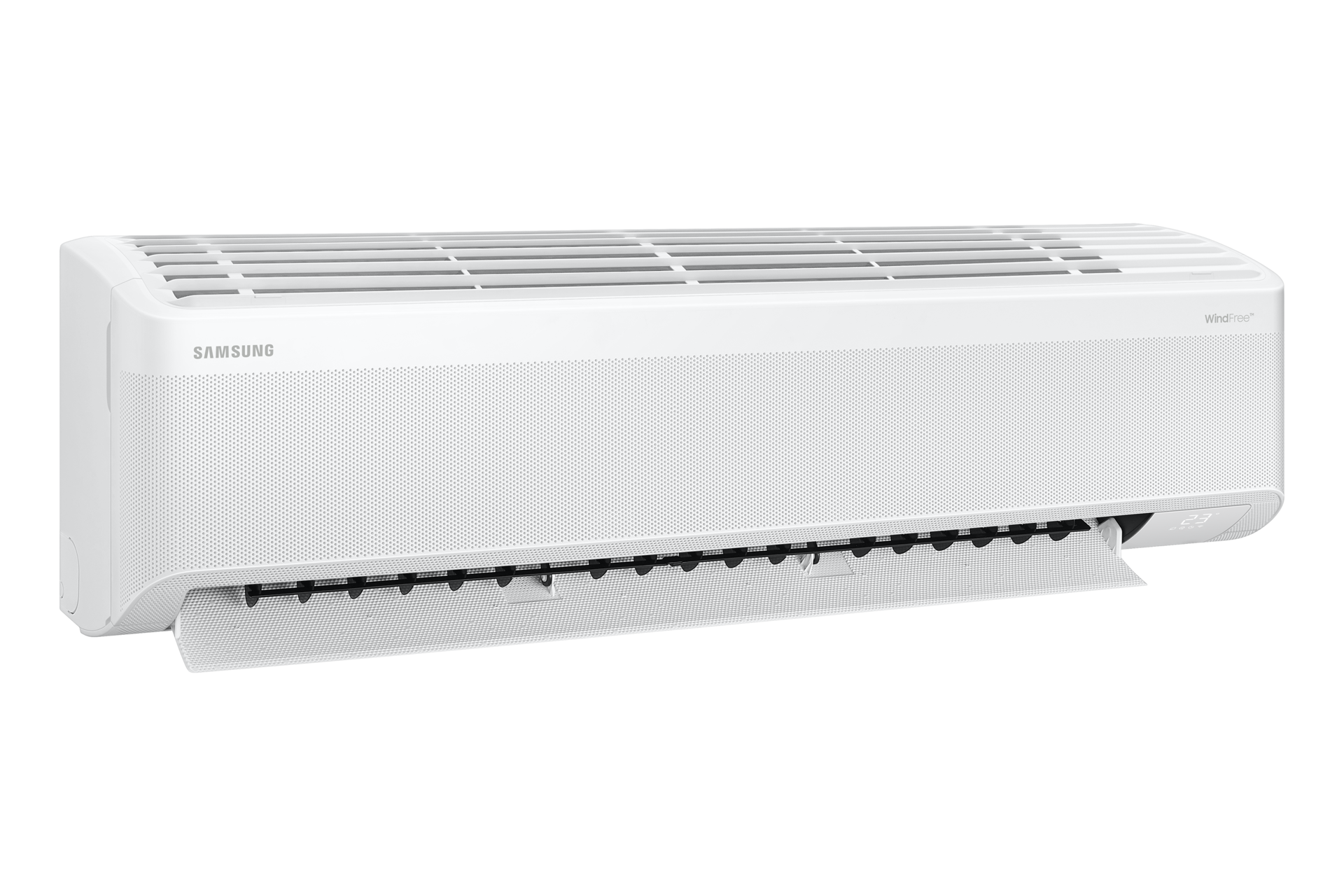

AR70F24D1GW/GU, Bespoke AI Wall-mount AC with Dry Comfort & Digital Inverter, 2 Ton
AR70F24D1GW/GU
Scan this QR code with your phone and place the object in your space.
Features
Bespoke AI WindFree™
Highlights
WindFree™
AI
Performance
Efficiency
SmartThings
Hygiene
Durability
Convenience
Specifications
-
Capacity (Cooling, Btu/hr)
24000 Btu/hr
-
Capacity (Cooling, kW)
7.03 kW
-
EER (Cooling, W/W)
3.53 W/W
-
Net Dimension (Outdoor, WxHxD)(mm)
310*638*880
-
EER (Cooling, W/W)
3.53 W/W
-
EER (Cooling, Btu/hW)
12.06 Btu/hW
-
Energy Star Rating (Cooling)
1 Star
-
Capacity (Cooling, Btu/hr)
24000 Btu/hr
-
Capacity (Cooling, Min - Max, Btu/hr)
5000 - 28000 Btu/hr
-
Capacity (Cooling, kW)
7.03 kW
-
Capacity (Cooling, Min - Max, kW)
1.47 - 8.21 kW
-
Noise Level (Indoor, High/Low, dBA)
45/28 dBA
-
Noise Level (Outdoor, High/Low, dBA)
54 dBA
-
Power Source(Φ/V/Hz)
1 / 220-240 / 50
-
Power Consumption(Cooling, W)
1990 W
-
Operating Current(Cooling, A)
8.7 A
-
Gross Dimension (Indoor, WxHxD)(mm)
375*290*1115
-
Gross Dimension (Outdoor, WxHxD)(mm)
413*724*1023
-
Net Dimension (Indoor, WxHxD)(mm)
215*299*1055
-
Net Dimension (Outdoor, WxHxD)(mm)
310*638*880
-
Gross Weight (Indoor, kg)
13.2 kg
-
Gross Weight (Outdoor, kg)
40.7 kg
-
Net Weight (Indoor, kg)
11.5 kg
-
Net Weight (Outdoor, kg)
35.7 kg
-
Loading Quantity (20/40/40Hft without Pipe)
65 / 138 / 154
-
Piping Length (Max, m)
30 m
-
Piping Height (Max, m)
15 m
-
SVC Valve (Liquid (ODxL))
6.35
-
SVC Valve (Gas (ODxL))
15.88
-
Moisture Removal (l/hr)
2.43 l/hr
-
Air Circulation (Cooling, ㎥/min)
16.60 ㎥/min
-
Refrigerant (Type)
R32
-
Refrigerant (Charging, kg)
0.860 kg
-
Refrigerant (Charging, tCO2e)
0.58 tCO2e
-
Low Ambient (Cooling, ℃)
16~52 ℃
-
Outdoor Unit (Compressor Type)
BLDC
-
Outdoor Unit (Anti-Corrosion Fin)
Yes
-
WindFree Cooling
Yes
-
Air Direction Control (Up/Down)
Auto
-
Air Direction Control (Left/Right)
Auto
-
Air Flow Control Step (Cool/Fan)
5/4
-
PM 1.0 Filter
No
-
Tri Care Filter
No
-
4-in-1 Care Filter
Yes
-
Copper Anti-bacterial Filter
Yes
-
Auto Clean (Self Cleaning)
Yes
-
SmartThings
Yes
-
AI Auto Cooling
Yes
-
Motion Detect Sensor
No
-
Freeze Wash
No
-
Filter Cleaning Indicatior
Yes
-
Indoor Temp. Display
Yes
-
Display On/Off
Yes
-
Beep On/Off
Yes
-
24-Hour Timer
Yes
-
Auto Changeover
Yes
-
Auto Restart
Yes
-
Auto Mode
Yes
-
Fast Cool
Yes
-
Dry Comfort
Yes
-
Good Sleep
Yes
-
Eco Mode
Yes
-
Dehumidification
Yes
-
Fan Mode
Yes
-
Quiet
Yes
-
WiFi Embedded
Yes
-
SmartThings App Support
Yes
